Summary of Contents for Bose RoomMatch RMS218
- Page 1 ® RoomMatch RMS218 Loudspeaker Service Manual ©2014 Bose Corporation Reference Number 344055-SM Rev.02 Electronic Copy Only...
-
Page 2: Table Of Contents
Packing List, RoomMatch RMS218 Loudspeaker (see Figure 1) ..........6 Figure 1. RoomMatch Bass Loudspeaker Packaging View ..............6 Main Part List, RoomMatch RMS218 Loudspeaker (see Figure 2) ..........7 Figure 2. RoomMatch Bass Loudspeaker Exploded View ..............7 Disassembly Procedures ......................... 8 Test Procedures .......................... -
Page 3: Specifications
SPECIFICATIONS MECHANICAL External dimensions, single speaker: Single Speaker: 21"H x 37"W x 41.6"D (53.34cm H x 93.9cm W x 105.66cm D) System weight, unpackaged single speaker: 199 lbs (90.26 Kg) Packaged System Dimentions 23'' H x 39'' W x 43.6'' D (58.42cm H x 99.06cm W x 110.74cm D) Volume of Packaged System 16 cubic feet... -
Page 4: Product Description

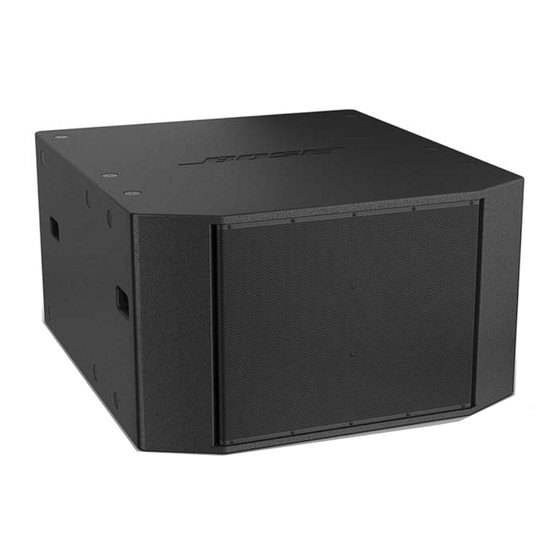

PRODUCT DESCRIPTION The ROOMMATCH RMS218 is a subwoofer loudspeaker consistsing of a double 18" direct vented bass box. The enclosure is a Birch plywood cabinet. It has hang points that allow for easy integration into standard rigging solutions and has a size making it ideal for bass arrays. It also has points that allow eight (8) CZV mid/hi boxes to be hung / suspended from the bass enclosure. -
Page 5: Product Dimensions
PRODUCT DIMENSIONS 939.0 833.0 53.0 492.7 1054.0 191.0 264.8 Side 264.8 191.0 492.7 Front 427.0 533.0 53.0... -
Page 6: Packing List, Roommatch Rms218 Loudspeaker (See Figure 1)
Number CARTON, RMS218 372072-0010 PACKING, CORNER PAD, RMS215 343899-0010 PACKING, TOP/BOTTOM PAD, RMS218 372074-0010 AU/NZ WARR SLIP SHEET 8.5 X 5.5 355731-0010 GUIDE, INSTALL, RMS215/218 SUBWOOFER 375010-0010 PACKING, FRONT PAD, RMS218 372073-0010 PACKING, POLYBAG, RMS218 372075-0010 Figure 1. RoomMatch RMS218... -
Page 7: Main Part List, Roommatch Rms218 Loudspeaker (See Figure 2)
GASKET, GRILLE, RMS218 371353-0010 GASKET, GRILLE CENTER POST, RMS218 371354-0010 HEX HEAD CAP SCREWS, M6/25MM LONG SCREW, INSERT, RIGGING, BLK (SERVICE) 330026-011S CONN, SPEAKON, 4POS, MALE, 240V, 30A, 298548 BLACK I/O PANEL CONN VIEW Figure 2. RoomMatch RMS218 Subwoofer Exploded View... -
Page 8: Disassembly Procedures
DISASSEMBLY PROCEDURES 1. Grille Removal 1.1 Remove the five screws on the top, five on the bottom and 2 in the middle of the grille using a #2 phillips head screwdriver. 1.2 Lift off the grille assembly from the cabi- net. -
Page 9: Test Procedures
TEST PROCEDURES ! Caution: Hearing protection is required. 4. Air Leak Test Equipment Required: 4.1 Apply an audio sine wave signal of 10Hz, • Audio signal generator 20 VRMS +/- 1 VRMS to pins 1+ and 1- and • Amplifier 2+ and 2- of the NL4 input connector. -
Page 10: Wiring Diagram
WIRING DIAGRAM WIRING DIAGRAM Wiring – Input Connectors Each pair of terminals on the NL4 is wired to each 18 inch woofer. This will allow the product to be wired independently as two 8 ohm loads. -
Page 11: Service Manual Revision History
SERVICE MANUAL REVISION HISTORY Date Revision Description of Change Change Driven Pages Level Affected 10/13 Document released at revision Service manual initial release 1/20/14 Added service part numbers 2/5/14 Removed part numbers... - Page 12 SPECIFICATIONS AND FEATURES SUBJECT TO CHANGE WITHOUT NOTICE Bose Corporation The Mountain Framingham Massachusetts USA 01701 Reference Number 344055-SM Rev02 2/14 (P)
