JEHNERT SOUND DESIGN W907 Assembly Instruction Manual

Mercedes Sprinter Integrated
W907 / W910 Soundpackage 1 and 2
3-way sound system Mercedes Sprinter (68131/68132)
incl. subwoofer and amplifi er, living room speakers
Model/year: Sprinter VS30 from 2018 (Type W907 / W910) - Integrated models incl. low-frequency extension.
Only for vehicles without cover fl aps on the dashboard/storage compartment

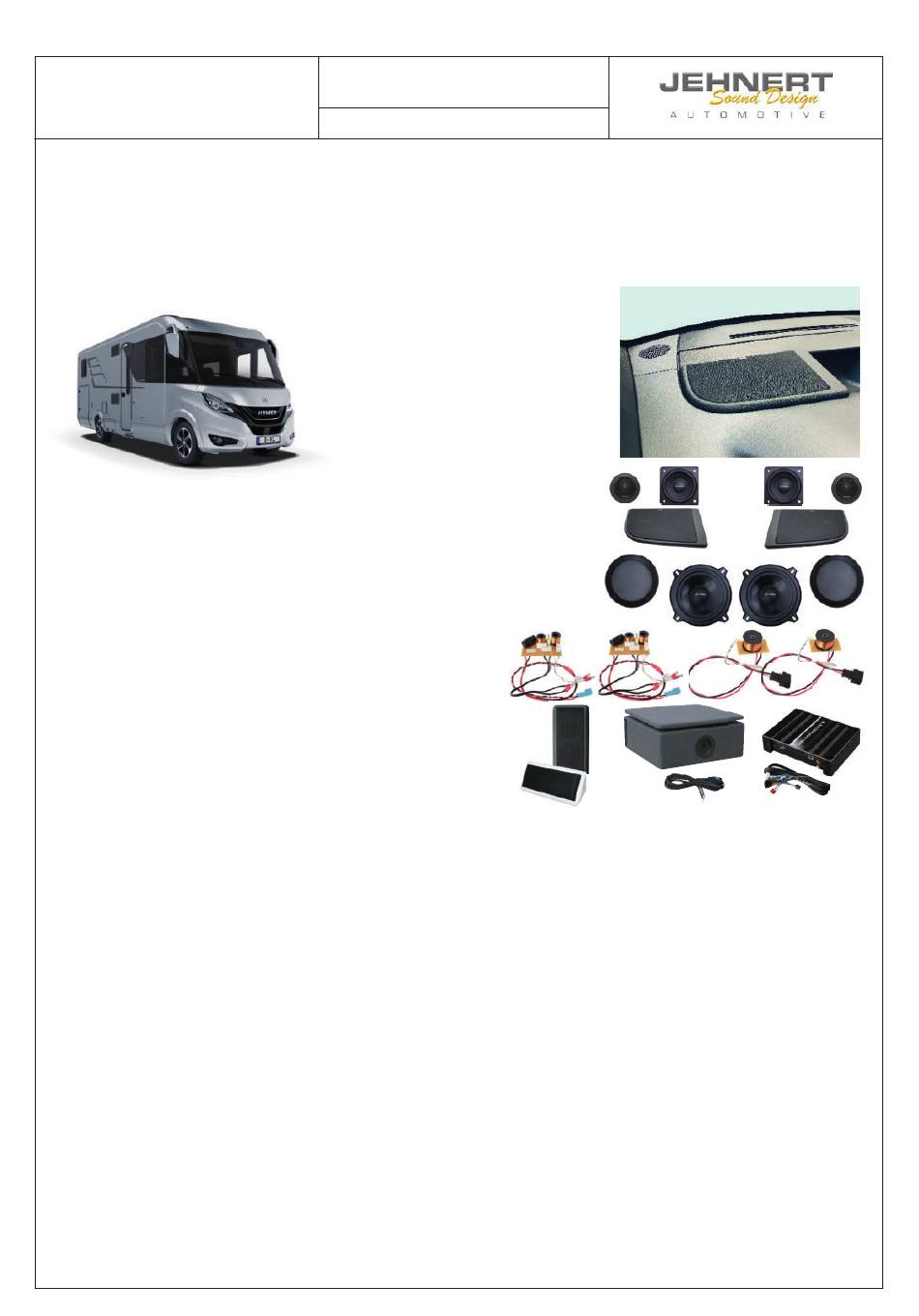

Packing List:
1x midrange/tweeter module incl. acoustic fabric baffl e (left & right), covered.
2x „XE26" neodymium softdome tweeter Ø 26mm
2x „XE80" midrange driver Ø 80mm
2x „XE130G" low-midrange driver „Power-Woofer" Ø 130mm inkl. mounting ring an grille
2x mid-high crossover incl. cable assembly (Art.-No.: 7000 FW)
2x low frequency crossover incl. cable assembly and rear felt (Art.-No.: 65130FW-TT)
1x mounting set - Mercedes Sprinter art.-no.: 65130)
1x 5-channel DSP amplifi er incl. 2,2m ISO cable and mounting instructions
1x subwoofer of your choice incl. mounting set and 4,8m subwoofer cable
1x cable crossover for center crossover speaker jacketed
with sound package 2 (68132):
2x living room speakers of your choice incl. mounting set and
mounting instructions
Mounting kit part no. 68131/68132:
Other:
10x self-tapping screw with collar 3.9 x 16
2x Spax screw 4x25
2x Spax screw 4x55
2x plastic ring washer
4x collar screw 3,9x22
Required tools
Phillips screwdriver
Torx screwdriver (TX 20/25/30)
Hot glue gun
Plastic wedge
Note: For easier installation, it is recommended to order the radio preparation (Mercedes code: E3D) at the factory, so that simple
plug&play connection is possible. If the motorhome is a Hymer motorhome, the ISO cabling of the factory-installed of the factory-
installed DSP box (only for vehicles incl. multimedia system), but the DSP amplifi er must remain connected for TV use (power).
JEHNERT Sound Design | Im Michelreis 14 | D-72124 Pliezhausen | Tel. 07127 / 93457-0 | Fax 07127 / 93457-10 | sounddesign@jehnert.de | www.jehnert.de
Assembly instruction
Status: 09.05.2023
Art.-No. 68131/68132
Mounting set for MDF subwoofer
4x Velcro pads round
4x self-adhesive velcro pads
4x Pan head screw 3,5x13mm
Optional accessories:
• Remote control to control the subwoofer
Insulating tape
and to regulate the sound setup
Stripper
• AUX connection integrated in the amplifi er (optional additionally
Crimping pliers
Bluetooth connection external via Y-adapter)
Side cutter
• Bluetooth function integrated in the amplifi er (instead of AUX)
• Rocker switch
