Support
: support@jennov.com
Quick Guide
(M Series)
24 hours online service
www.jennov.com (24 hours online service)
U.S Hotline: +1 3239021978
M.2023.087.E

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the M Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Jennov M Series

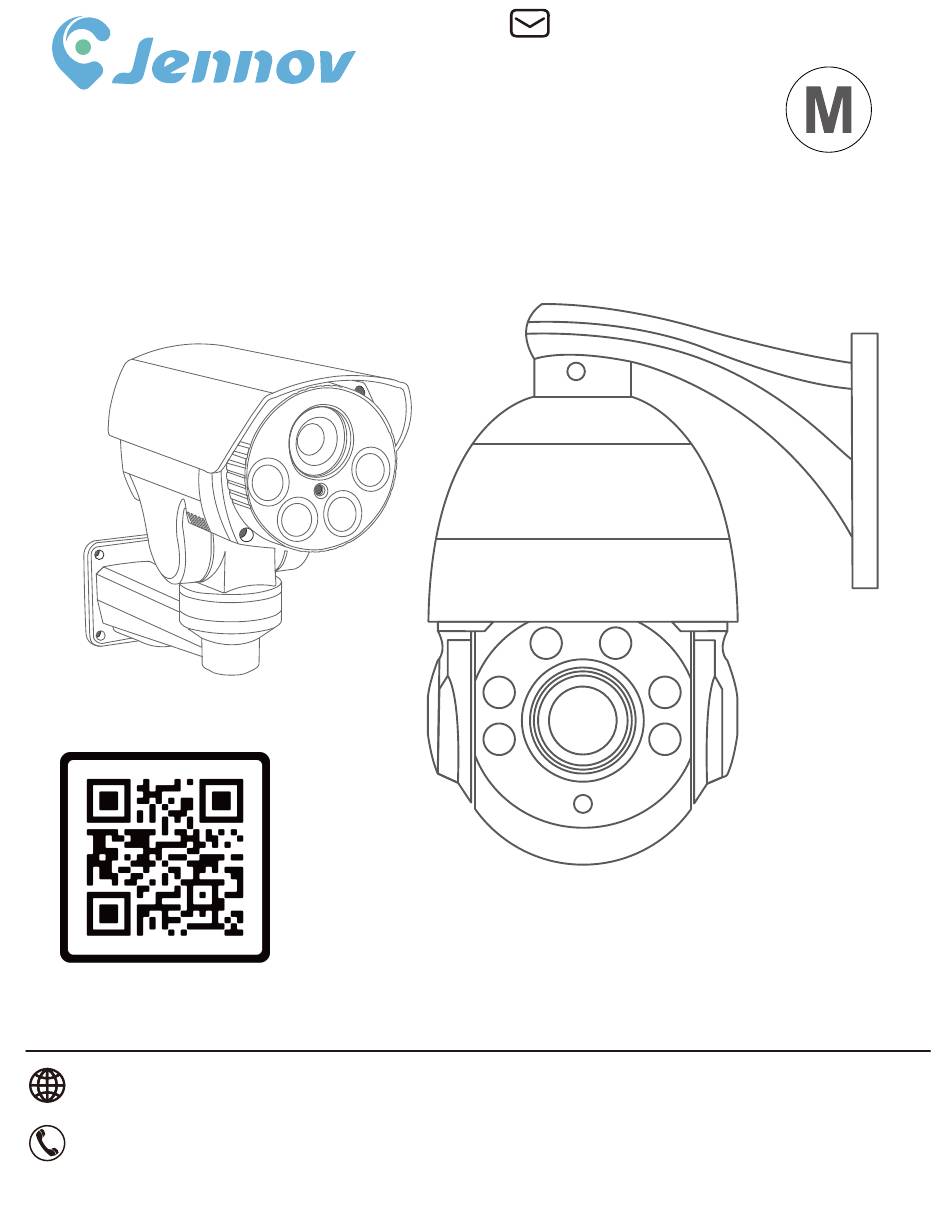

  • Page 1 Support : support@jennov.com Quick Guide (M Series) 24 hours online service www.jennov.com (24 hours online service) U.S Hotline: +1 3239021978 M.2023.087.E...
  • Page 2: Table Of Contents

    Support : support@jennov.com Contents 1.Camera Installation........... 2.Single Camera Connection........3.POE NVR Connection..........4.Software Download........... 5.Check IP Address Before Connection......6.LMS Quick Guide............7.Human Tracking Setting(LMS)........8.VideoLink Quick Guide..........9. VideoLink Interface Instroduction......10.Human Tracking Setting(VideoLink)......11. FAQS..............12.Activate the Warranty..........
  • Page 3 Support : support@jennov.com Latest Detailed Manual Operation Guidance Video Please scan the QR code above for the latest and more detailed manual. 1. QR code for the latest detailed instruction 2. QR code for camera connection instructional video...
  • Page 4: Camera Installation

    Support : support@jennov.com Camera Installation Installation Diagram (For tracking cameras only) 1.Please refer to the schematic diagram to adjust the appropriate installation angle; 2.When multiple targets appear at the same time, the camera will preferentially track the relatively large target;...
  • Page 5: Single Camera Connection

    Support : support@jennov.com Single Camera Connection Compatible with Onvif Protocol Power supply POE IP Camera Router - 02 -...
  • Page 6: Poe Nvr Connection

    Support : support@jennov.com POE NVR Connection ·Compatible with 8MP POE NVR which support Onvif protocol ·Compatible with Hikvision POE NVR (Plug&Play) ·Compatible with Dahua POE NVR (Plug&Play) Cell phone Router Notebook Power Adapter POE1 POE2 DC IN POE3 POE4 UP LINK...
  • Page 7: Software Download

    Support : support@jennov.com Software Download Download website: https://www.jennov.com/ Click “Support”→“Download”→“M-Series” - 04 -...
  • Page 8: Check Ip Address Before Connection

    Support : support@jennov.com Check IP Address Before Connection 1. Please power on the camera and plug network cable, then run the software “LMS” to search the camera IP address. 2. Click “Start Search” to search the camera IP address. 3.Choose the IP and click “Batch Modify IP” .
  • Page 9: Lms Quick Guide 1

    Support : support@jennov.com LMS Quick Guide 1 After downloading and running the LMS, log in to the LMS and enter User name and Password. User name: admin Password: 123456 - 06 -...
  • Page 10: Human Tracking Setting(Lms)

    Support : support@jennov.com LMS Quick Guide 2 Click LiveView and then double-click IP address to view. Right click with your mouse to access the menu function. Camera Camera 2022-06-06 2022-06-06 Monday Monday 15:26:05 15:26:05 Human Tracking Settings 1. Select the camera you want to set up.
  • Page 11: Videolink Quick Guide 1

    Support : support@jennov.com VideoLink Quick Guide 1 1.You can search “VideoLink” in Google Play or App Store. Or you can scan the QR code below to download the APP. Android iPhone Wednesday 15:14:16 Available on the GET IT ON App Store...
  • Page 12 Support : support@jennov.com VideoLink Quick Guide 2 1. Register for a VideoLink personal account. 2. Click on “Add New device” in the middle. 3. Select “Lan” to Scan the QR code on the camera. Camera 2023-03-12 Tuesday 11:06:51 - 09 -...
  • Page 13: Videolink Interface Instroduction

    Support : support@jennov.com Link Interface Instroduction PTZ (Pan-Tilt-Zoom) Control Flip Screen Camera 2023-03-12 Tuesday 11:06:52 Zoom in & Zoom out Screenshot Microphone Record to Mobile Album Audio Split Screen Resolution Switch Adaptive Screen Human tracking settings 1. Click "Advanced Configuration".
  • Page 14: Faqs

    Support : support@jennov.com F A Q S Q: Where can I find the reset button? The latest versions of the P87 camera are equipped with a reset button on the tail cord. The A76 camera is not equipped with a reset button.
  • Page 15 Support : support@jennov.com F A Q S Q: How to add if NVR is Dual IP? A:1. Connect the Dual IP NVR to the monitor to check the camera IP address of the NVR port. 2. Download the M-series software "AjDevTools".
  • Page 16: Activate The Warranty

    12-month warranty from the order date on. After finish filling or scanning, please take a picture and send it to the email(support@jennov.com). Then your free warranty will take effect ! During the warranty period, if any parts of product are damaged, please contact us immediately and we will provide satisfactory resolution.
