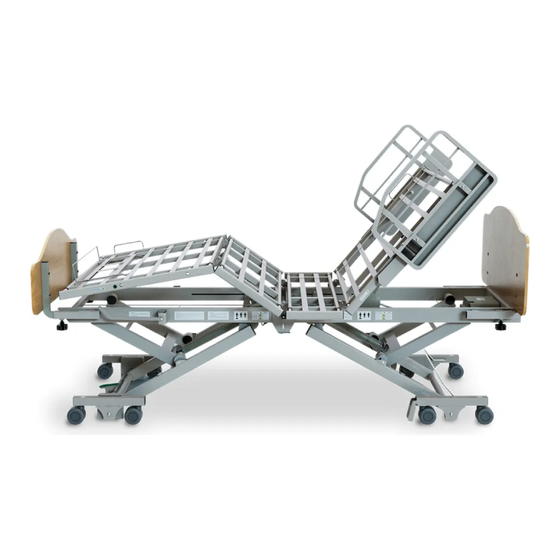

Invacare® CS600 Bed CS600-36, CS600-EXP Long-Term Care Bed User Manual For more information regarding bed rail safety, refer to the Bed Rail Entrapment Risk Notification Guide at www.invacare.com. This manual MUST be given to the user of the product. BEFORE using this product, this manual MUST be read and saved for future reference.
The bed is intended to be used as a mattress support system. The bed allows for articulation of the head and foot sections to provide different positions for the user. It is intended to be used in home and long-term facilities. 1.2 Symbols 1.2.1 Symbols Used on the CS600 Bed Symbol Description Warning –...
Page 4
Invacare® CS600 Bed Symbol Description General warning symbol (ISO 3864). Crush hazard symbol (based on ANSI Z535). Crush hazard symbol (based on ANSI Z535) 60131107-A...
Invacare® CS600 Bed 2 Overview 2.1 Label Locations Rear Front Fig. 2-1 Symbol Label Minimum user weight, height, and Body Mass Index (BMI) 60131107-A...
Page 6
Invacare® CS600 Bed Symbol Label Maximum user weight (500 lb) Maximum weight limit including the user and accessories (600 lb) (tag attached to deck and frame) (green circle) Side rail alignment indicators. 60131107-A...
Page 7
Width Extension (CS600–EXP only): not shown 42 inches 39 inches 36 inches Refer to 6.2 Expanding the Deck (model CS600–EXP only), page 38. not shown (on caster support) No stepping not shown (on deck corners) not shown (on side rails) Side rail installation aids.
Invacare® CS600 Bed 2.2 Technical Specifications 2.2.1 Certifications Models CS600 and CS600–EXP have passed type-testing for compliance with IEC 60601-2-52:2009, AMD 1:2015 and are determined to be safe by a nationally recognized testing laboratory recognized pursuant to 29 CFR 1910.7.
Invacare® CS600 Bed 2.3 Electronics A control box and actuators under the bed control the electrical functions and bed movement. The control box and the actuator locations are shown in the following images. Fig. 2-2 Control Box Fig. 2-3 Control Box and Actuator Locations...
Bed accessories designed by other 3.1 General Guidelines manufacturers have NOT been tested by DANGER! Invacare. Use of NON-Invacare bed accessories Risk of Death, Injury, or Damage may result in injury or death. Improper use of this product may cause -Use ONLY Invacare rails, mattresses, bed injury or damage.
Read and understand the User some conditions. Using the bed on these Manual prior to using the Invacare bed and types of surfaces MUST be evaluated by the bed rails. User manuals are available at care provider.
Fall hazards exist due to the incorrect injury from fall or entrapment: -Invacare recommends the use of installation of bed rails. -To avoid injury, ensure the Invacare bed rails mattress keepers. are installed correctly and are securely 3.1.2 Replacement Parts/Accessories attached to the bed while entering or exiting.
The bottom of the bed rail and the mattress in Invacare mattress MUST fit firmly against which individuals may become entangled, the bed frame AND bed side rails to adjust the height of the bed rail (if prevent user entrapment.
3.2 Operating Information DANGER! Risk off Death, Injury, or Damage To avoid product damage and/or personal injury from fall or entrapment: -Invacare recommends the use of mattress keepers. DANGER! Risk of Death, Injury, or Damage To avoid serious injury or product damage...
Invacare® CS600 Bed Handheld portable transceivers 3.3 EMI Information (transmitters/receivers) with the antenna CAUTION! Risk of Damage mounted directly on the transmitting unit. To avoid product damage from Examples include: citizens band (CB) radios, electromagnetic interference: “walkie talkies”, security, fire and police...
Invacare® CS600 Bed 3.5 Disposal Follow local governing ordinances and recycling plans regarding disposal of the product or components normally used in operation. The product does not generate waste or residue in operation. Any accessories not part of the product MUST be handled in accordance with the individual product marking for disposal.
Make sure to have the truck driver sign the copy acknowledging the count and any damage. 5. If there is a shortage or if the cartons are damaged, IMMEDIATELY contact Invacare Customer Service at (800) 333-6900.
Page 18
Invacare® CS600 Bed 1. Remove the outside packaging. Fig. 4-1 2. Remove the two screws on the head base frame and the two screws on the foot base frame. Fig. 4-2 3. Lift the head and foot frame from its support B.
Page 19
Invacare® CS600 Bed 4. Lay the head and foot frame flat on the floor. Fig. 4-4 5. Insert the two motor cables as shown. Fig. 4-5 60131107-A...
Page 20
Invacare® CS600 Bed 6. Push out the two pins C on the foot frame, gather the head and foot frames together, and pull the pins D to lock the frames. Fig. 4-6 Fig. 4-7 Fig. 4-8 7. Remove the bands.
Invacare® CS600 Bed 4.2.1 CS600 Bed Parts The packaging contents include the parts and quantities listed in the following table. Fig. 4-9 Label Description Quantity Leg Frame Thigh Frame Head Frame Control Box Hand Pendant Power Cable T-cable Foot Section Actuator...
4.3 Inspecting DANGER! Risk Of Injury Or Damage To avoid injury or damage, inspect the following items and contact a qualified technician or Invacare if any of the following issues are present: -Pendant covering is cracked or damaged. -Power cord or plug are cut or damaged.
The CS600-36 and CS600-EXP mattress keepers kit includes four parts. Fig. 4-10 CS600 Mattress Keepers (CS600 on the left; CS600-EXP on the right) To install the mattress keepers: 1. In the two holes on the sides of the head and foot ends of the bed frame, insert each leg of the mattress keeper A.
Page 24
2. With the mattress keeper A legs positioned in the holes, rotate the mattress keeper toward the outside of the bed while slowly pushing the legs farther into the holes. Fig. 4-14 CS600-EXP and CS600-36 with width extender Fig. 4-13 CS600 CS600WIDTHEXP 3.
Invacare® CS600 Bed 4.5 Installing the Bed Ends The CS600-36 and CS600-EXP bed end kit includes: One headboard A One foot board B Four L tubes C Eight screws D Fig. 4-17 Bed End Kit To install the bed ends: 1.
Page 26
Invacare® CS600 Bed 3. Repeat step 2 for the remaining L tubes. 4. Ensure the snap buttons are seated in the proper holes. Bed Length (inches) Headboard Bracket Hole Foot Board Bracket Hole head foot Fig. 4-20 5. Attach the headboard A and the foot board B to the L tubes C with a Phillips® screwdriver.
User entrapment from the use of bed side rails may cause injury or death. To avoid user entrapment: -Note the Invacare mattress MUST fit firmly against the bed frame AND bed side rails to prevent user entrapment. Follow the manufacturer’s instructions. Monitor user frequently. Read and understand the User Manual prior to using the Invacare bed and bed rails.
Page 28
Invacare® CS600 Bed 2. Attach the fix clips as follows: On the CS600-EXP bed, attach the fix clips D on the three grooves on each mounting rod. Fig. 4-25 On the CS600 bed, attach the fix clips D on each mounting rod groove as listed in the following table.
Page 29
Invacare® CS600 Bed 3. Place two bolts C into holes 3 and 6 in the head end assist rail A. Fig. 4-26 4. Align the head end assist rail A with the mounting rods B, and use the provided Allen key to tighten the bolts C.
To avoid damage to the bed and hand pendant: -Ensure the pendant and pendant cable are clear of moving parts at all times. The CS600-36 and CS600-EXP beds include a hand pendant A. Fig. 4-32 The pendant is installed on the bed at the factory. Refer to this procedure if a pendant must be reinstalled.
Invacare® CS600 Bed To install and move the pendant: 1. Plug the pendant cable A into the eighth hole of the control box B. Fig. 4-33 2. Use the clip on the back of the pendant to attach the pendant to one of the following locations:...
WARNING! -Unplug the bed from the electrical outlet and Risk of Injury or Damage contact a qualified technician or Invacare for To avoid electrical damage, product damage, repair if any malfunction is detected. shock, and/or personal injury: -DO NOT unplug the power cord from the 5.2 Operating the CS600 Bed...
Invacare® CS600 Bed 5.2.1 Raising and Lowering the Head and Foot 2. To move the bed to the chair position, press Sections and hold the Chair button H. 5.2.4 Using the Under-bed Light and Returning the Bed to Level 1. To turn on or turn off the under-bed light (if available), press the Light button I.
Invacare® CS600 Bed 2. To unlock the bed, press the green pedal A with your foot. Fig. 5-4 5.4 Using the Bed Steering Mechanism The bed steering mechanism is located on either side of the head end of the bed.
-The Invacare mattress MUST fit firmly against the bed frame AND bed side rails to prevent patient entrapment. Follow the manufacturer’s instructions. Frequently monitor the patient. Read and understand the User Manual prior to using the Invacare bed and bed rails. User manuals are available at www.invacare.com or your dealer.
Page 36
-When in use, always rotate the trapeze until the handle is located over the center of the bed and ensure it drops down into the anti-rotation position. The CS600 trapeze safe working load is 220 lb (100 kg). DO NOT exceed 220 lb (100 kg).
* The microAir series of air mattresses is excluded from the FDA Entrapment Guidelines tests. 6.2 Expanding the Deck (model CS600–EXP only) CS600–EXP model bed decks can be expanded from 36 inches to 39 inches or to 42 inches. 1. To expand the deck to 39 inches: A.
DO NOT use solvents, bleach, alcohol, -Stop use immediately. petroleum products, caustic agents, or -Keep the product away from sparks, flame, and open heat sources. highly alkaline or acidic agents to clean -Contact your dealer or Invacare for repair. the bed. 60131107-A...
Casters (tread wear and brake levers) Inspect all bed components for damage or Invacare reserves the right to ask for any item that has excessive wear. an alleged defect in workmanship to be returned. See the warranty that shipped with the product for specific Visually examine all welds for cracks.
Invacare® CS600 Bed 7.5.2 Electrical Inspection Inspect all electrical bed components for damage or excessive wear (for example, broken housings or worn components). Check handset, power, and actuator cords for chafing, cuts, or excessive wear. Ensure all plugs are fully plugged in and free of damage.
Invacare® CS600 Bed 7.6 Maintenance Log Use the following table to record cleaning, inspection, and maintenance tasks. Product Serial Number: Date Inspection Maintenance Cleaning Initials Notes 60131107-A...
Invacare® CS600 Bed 8 Troubleshooting Symptom Probable Cause Solution 1. Plug in the hand pendant. The hand pendant is not plugged in. 2. Replace the hand pendant. Plug the bed power cord into a wall The bed is not connected to an outlet.
Page 44
The actuators operate but do The actuators are plugged into the wrong box. not move correctly. ports. 2. Replace the control box. If the solutions in the preceding table do not resolve the issue, contact Invacare Customer Service at 1–800–333–6900. 60131107-A...
Invacare warrants all welds of this product when purchased new and unused to be free from defects in materials and workmanship for a period of five years from date of purchase from Invacare or a dealer, with a copy of the seller’s invoice required for coverage under this warranty.
Page 46
Invacare® CS600 Bed Some states do not allow the exclusion or limitation of incidental or consequential damage, or limitation of how long an implied warranty lasts, so the above exclusion and limitation may not be applicable. THIS WARRANTY SHALL BE EXTENDED TO COMPLY WITH STATE/PROVINCIAL LAWS AND REQUIREMENTS.
