You will need:
•
Hinged window fabric sealing assembly
•
Sealing velcro
•
A soft, clean cloth

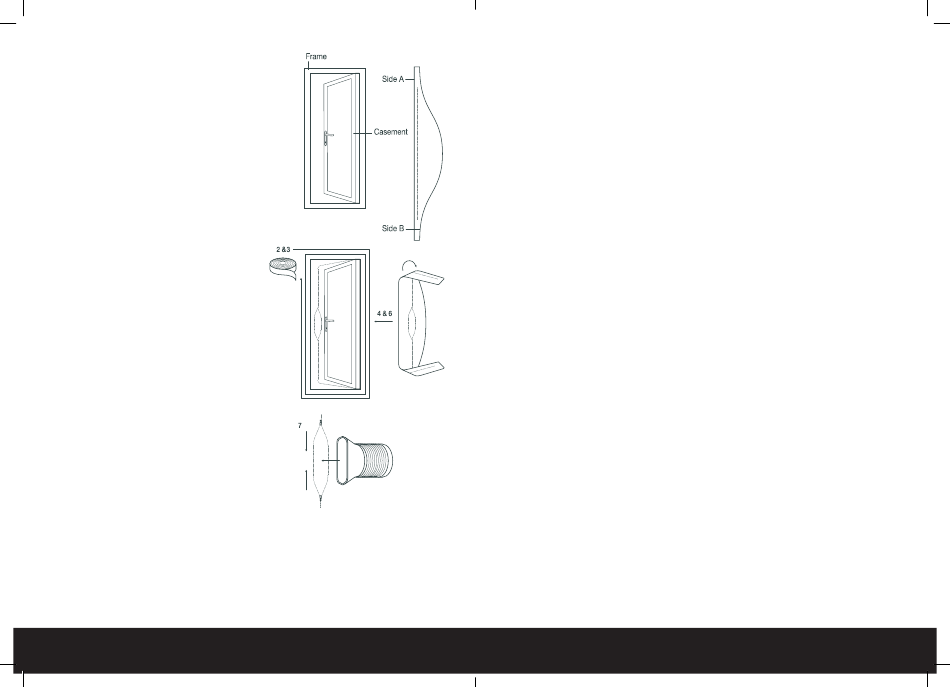

1.
Open window and clean frame and
casement surfaces of dust and particles.
2.
Stick the velcro tape around the entire
window frame. Never stick to the window seal
as doing so will prohibit the window from
closing fully.
3.
Stick the velcro tape around the entire
window casement (inside or outside). Check
to ensure the window can close fully.
4.
Attach side A of the sealing fabric assembly
to the velcro on the window frame working
from the centre outwards.
5.
Close and open window to ensure no fabric
gets trapped.
6.
Attach side B of the sealing fabric assembly
to the velcro on the window casement
working from the centre outwards.
7.
Open the window slightly and insert the heat
exhaust hose short connector into the sealing
fabric assembly securing with the zippers
around its lip.
The sealing fabric assembly is now ready for use.
OPERATING INSTRUCTIONS
― ―
•
Power button: Press once to turn your device
ON/OFF
•
Fan speed button: Press to choose between
high and low speed.
Note: you cannot change the fan speed in dry
mode
•
Up And Down Buttons
Use the up and down buttons to:
1.
Set desired temperature when in cooling mode.
2.
Set desired hours until turn-on and turn-off when setting a timer.
3.
Change between °C and °F by pressing both down at the same time.
•
Mode button: Press this button to change to one of the four modes outlined below. The
14 of 24 | English
relevant indicator will illuminate when the mode has been selected.
Note: Temperature can only be set when in cooling mode.
a.
Cooling Mode: Perfect for cooling a room in hot weather. Use the up and down buttons
when in cooling mode to set the desired temperature between 16°C (60°F) and 30°C (80°F).
The appliance will cool the room if the room temperature goes above the set temperature.
If the room temperature goes below the set temperature, cooling mode will pause, but the
fan will remain operating at the set fan speed. IMPORTANT: The heat exhaust hose must be
connected to allow the hot air to be discharged outside. See instructions below.
b.
Fan-Only Mode: The appliance operates at the set fan speed, blowing cold air into the
room. The room temperature is displayed on the digital display panel. Note: The heat
exhaust hose does not have to be connected to the appliance.
c.
Dry (Dehumidifying) Mode: Ideal for reducing room humidity in humid and damp times
of year. The appliance will dehumidify the room if the room temperature is greater than or
equal to 17°C (62°F) and the fan will operate at the low fan speed. If the room temperature
decreases to less than or equal to 15°C (59°F) the appliance will stop dehumidifying the
room, but the fan will continue to operate.
d.
Sleep Mode: Set sleep mode to reduce energy consumption when in cooling mode. To
activate, press the sleep button on the remote control or both the timer and down buttons
on the control panel at the same time. The display will blink five times with SL to confirm
sleep mode has been set then revert to the set temperature. In sleep mode, after two hours
the set temperature will increase automatically by 1°C (33°F). After another two hours, the
set temperature will increase automatically by a further 1°C (33°F). and the fan speed will
change to low fan speed if it is not already at this fan speed. The appliance will continue to
run at this setting until turned off.
•
Timer Button: you can set your device to turn on or off automatically in one hour increments
(from 1-24hrs) using the timer button.
Setting a Turn-On Timer
1.
Ensure the appliance is plugged in and the power socket is turned on.
2.
Press the timer button to activate the timer function.
3.
Press the up and down buttons to set the desired time (1-24 hours) until turn-on.
4.
The time digits will blink five times to confirm a timer has been set and the timer indicator
light will remain illuminated.
5.
Select the desired settings prior to turn-on.
6.
To check the remaining time until turn on, press the timer button.
7.
To cancel the turn-on timer, set the time to 0 hours or turn the appliance on and off.
Note: If no desired settings are selected the appliance will turn on in the previously set settings.
Setting a Turn-Off Timer
1.
Ensure the appliance is plugged in and the power socket is turned on.
2.
Press the power button to turn the appliance on.
3.
Press the timer button to activate the timer function.
English | 15 of 24
