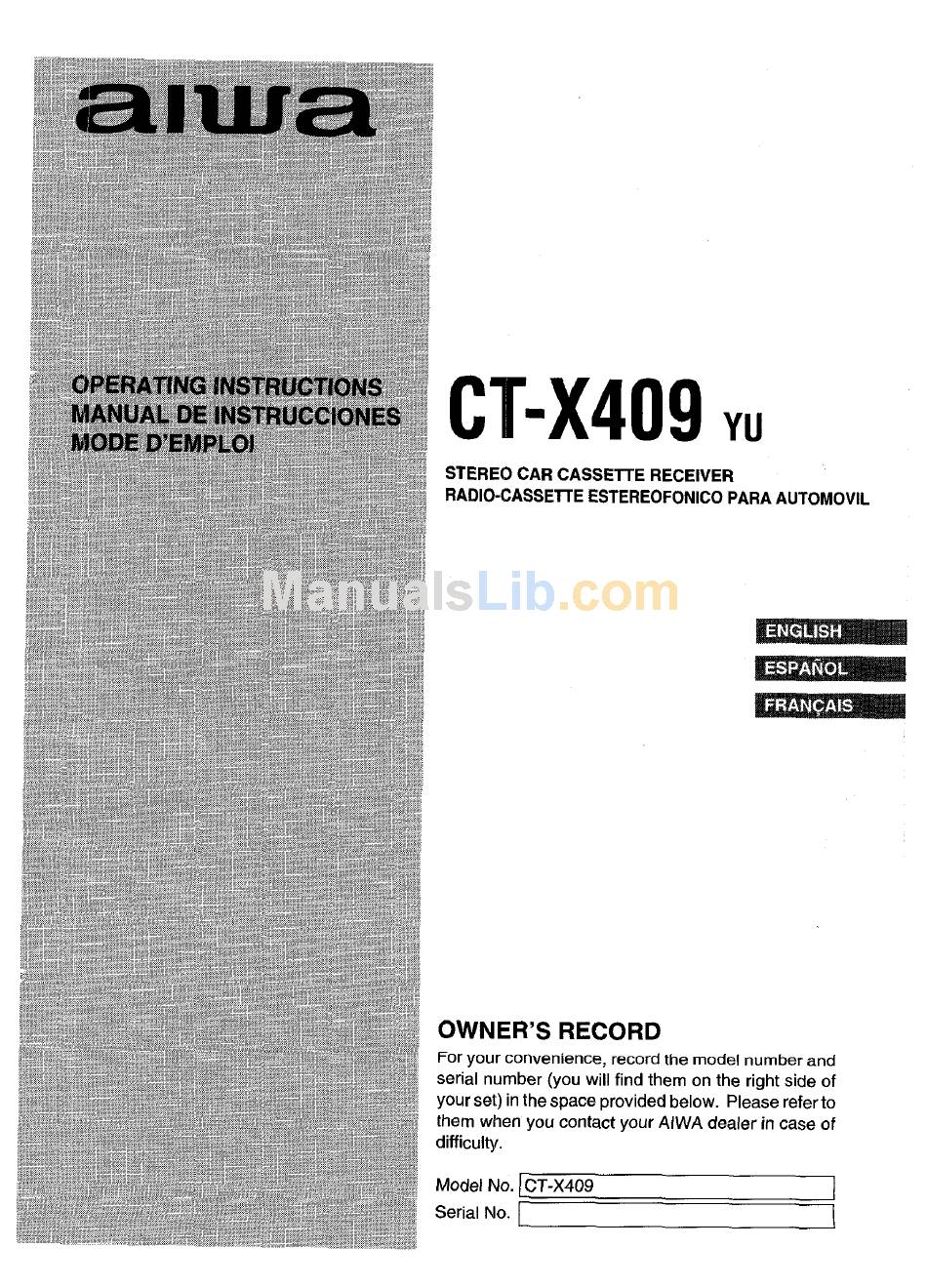

CFX409 ,"
STEREO CAR CASSEITE
RECEIVER
RADIO-CASSETTE ESTEREOFONICO PARA AUTOMOVIL
OWNER'S RECORD
For your convenience,
record the model number and
serial number (you will find them ontheright
side of
yourset) inthespace
provided below. Please referto
them when you contact your AIWA dealer in case of
difficulty.
Model No. ICT-X409
Serial No. ~
