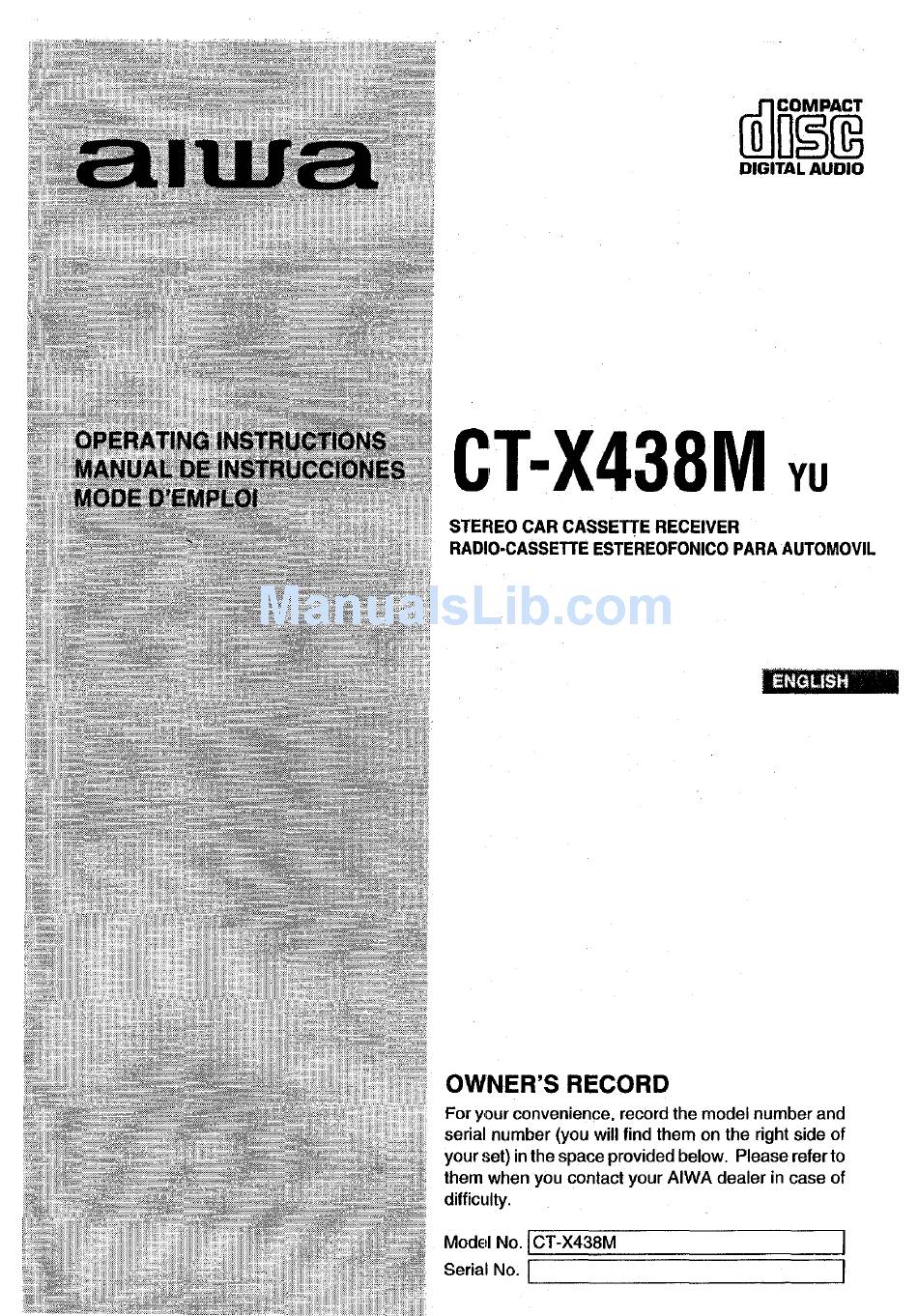

(m?lif!
DIGITAL
AUDIO
CT-X438M w
STEFtEO CAR CASSEITE RECEIVER
RADIO.CASSEITE ESTEREOFONICOPARA AUTOMOVIL
OWNER'S
RECORD
For your convenience, record the model number and
serial number (you will find them on the right side of
your:$et) inthespace provided below. Please referto
them when you contact your AIWA dealer in case of
difficulty.
MOde!lNO. [cT-x438M
Serial No. ~
Advertisement
Table of Contents
Related Manuals for Aiwa CT-X438
Summary of Contents for Aiwa CT-X438
- Page 1 For your convenience, record the model number and serial number (you will find them on the right side of your:$et) inthespace provided below. Please referto them when you contact your AIWA dealer in case of difficulty. MOde!lNO. [cT-x438M Serial No. ~...
- Page 2 Welcome Thank you for your purchasing thisAIWA product. To optimize the performance of this unit, please read through this manual carefully. In addition to this operating instructions manual, be sure to refer to the separate installation and connections manuals as well. PRECAUTIONS This unit is designed to be operated on a 12-volt DC negative-ground electrical system only.
-
Page 3: Table Of Contents
TABLE OF CONTENTS FRONT PANEL ... 3 DETACHING AND All_ACHING THE FRONT PANEL ... 4 SETTING THE CLOCK ... 5 RADIO OPERATION ... 5 PRESETTING STATIONS ... 6 MY INFORMATION SWITCH ... 8 TAPE PLAYBACK ... 9 SOUND ADJUSTMENTS ... 10 CD CHANGER PLAY ... -
Page 4: Frontpanel
FRONTPANEL Display window OH-BASS button @ PWR (power onloff) button SEL (select) button @+/- (audio control) button @EJECT 4 button @Cassette compartment @ DIRECTION -/M buttons @ BAND button @CD (CD Changer play/pause) @~ (release) button @ TUNEIDISC VIA buttons @MUTE button jack (3.5-mm dia.) @CD IN... -
Page 5: Detaching And All_Aching The Front Panel
DETACHING AND ATTACHING THE FRONT PANEL You can detach the front panel from the unit and carry it with you when you leave your car unattended. When you carry the front panel out of your car, use the supplied earring case. Before detaching the front panel, remove the cassette to prevent possible damage to the unit. -
Page 6: Setting The Clock
SETTING THE CLOCK Switch the ignition to ACC. With the unit off, press and hold down SELfor more than 1.5 seconds until the clock indication appeara. If you do not proceed with step 3 within 5 seconds, the clock indication disappears. Press v to set the hour. -
Page 7: Presetting Stations
Note The unit turns on in the last selected mode when you turned off the unit with the exceptions of pressing the following buttons. Pressing TAPE turns on the unit in Tape Play mode. c Pressing CD turns on the unit in CD Changer Play mode. - Page 8 PRESETTING STATIONS Press BAND to select the band from among F1 (FM1), F2 (FM2), F3 (FM3) and AM. Tune in the station that you wish to preset with TUNE 7 or TUNE A. Press one of the preset station buttons 1 to 6 for appro~mately 1.5 seconds.
-
Page 9: My Information Switch
MY INFORMATION SWITCH You can timer-activate the radio for up to two daily radio programs. The unit turns on and off in Radio mode at the preset time automatically. 3,5,7,9,11 With the unit turned off, press MUTE for more than 1.5 seconds. The “PROGRAM 1“... -
Page 10: Tape Playback
MY INFORMATION SWITCH With the unit turned off, prese DRV for more than 1.5 seconds. The “PROGRAM indication flashes in the display window. Press TUNE v or TUNE A repeatedly until the “PROG ON” indication flashes. Press DRV to turn the unit off. Todeactivate thetimer Press TUNE Y or TUNE A repeatedly until the “PROG OFF indication flashes in step 2. -
Page 11: Sound Adjustments
Auto reverse function When the end of the tape is reached during playback or fast tape transport, the direction of the tape is automatically reversed, and playback starts again. Direction indications Displayed when Displayed when the lower side of the Tape transport dispiay When you start tape playback, the transport display indicates the tape movement. - Page 12 SOUNDADJUSTMENTS MUTEbutton Pressthisbutton totemporarilylowerthe volume. Pressit againto restorethe previous You can adjust the position of sound stage to best serve a particular seat just by pressing DRV. Press DRV to change the position of sound stage. Every time you press DRV, the sound stage changes as follows.
-
Page 13: Cd Changer Play
CD CHANGER PLAY You can play CDs with this unit by connecting the optional AIWA ADC-M55, ADC-M35 compact disc changer. Make sure that the dk.c magazine loaded with the discs is inserted in the connected compact disc changer. To install the unit, refertotheseparate and Connections Manual. -
Page 14: Connecting Aportable Cd Player Or Other Equipment
CONNECTING A PORTABLE CD PLAYER OR OTHER EQUIPMENT This unit is equipped with the line-level input (CD IN) jack enabling high quality of the sound. If a cassette is inserted, remove it to prevent possible damage to the unit. Connect a portable CD player, etc. via the CD IN jack (3.5-mm dia.) on the unit. -
Page 15: Troubleshooting
TROUBLESHOOTING Errorcodes In the following cases the corresponding error codeindication appears.Follow thesuggestions belowto solve problem. If the error indication does not disappear, consult an AIWA setvice center. ERRORO1 The disc magazine is not properly inserted in the changer. Reinsert the magazine. -
Page 16: Specifications
SPECIFICATIONS RADIO SECTION (FM) FrequencyRange: 87.5 MHz -108 MHz (100-kHzsteps) 87.5 MHz-108 MHz (50-kHzsteps) UsableSensitivity: 12.7dBf 50 dB QuietingSensitivity 17.2dBf IF Rejection 80 dB FrequencyResponse 30 Hz -15,000 Hz S/N Ratio 63 dB StereoSeparation 35 dB at 1 kHz AlternateChannelSelectiwty 70 dB CaptureRatio 3 dB...
