Auga Varioclean Pro-X 120 Technical Data Sheet page 2

Technical Data
PRESENTATION
General Operation Mode
INSTALLATION
Troubleshooting
Maintenance lamp remplacements
Maintenance quartz sleeve replacements
PRESENTATION AND OPERATION
The bactericidal UVc concept has for principale to generate ultraviolet rays inside a treatment chamber. These beams irradiate
the living cells that are present in the liquid crossing the device, without modifying their physical-chemical criteria and without
generating any residual solution.The activation of the system is via a 220V outlet controlled filtration. When the filtration is
stopped, lights are OFF.

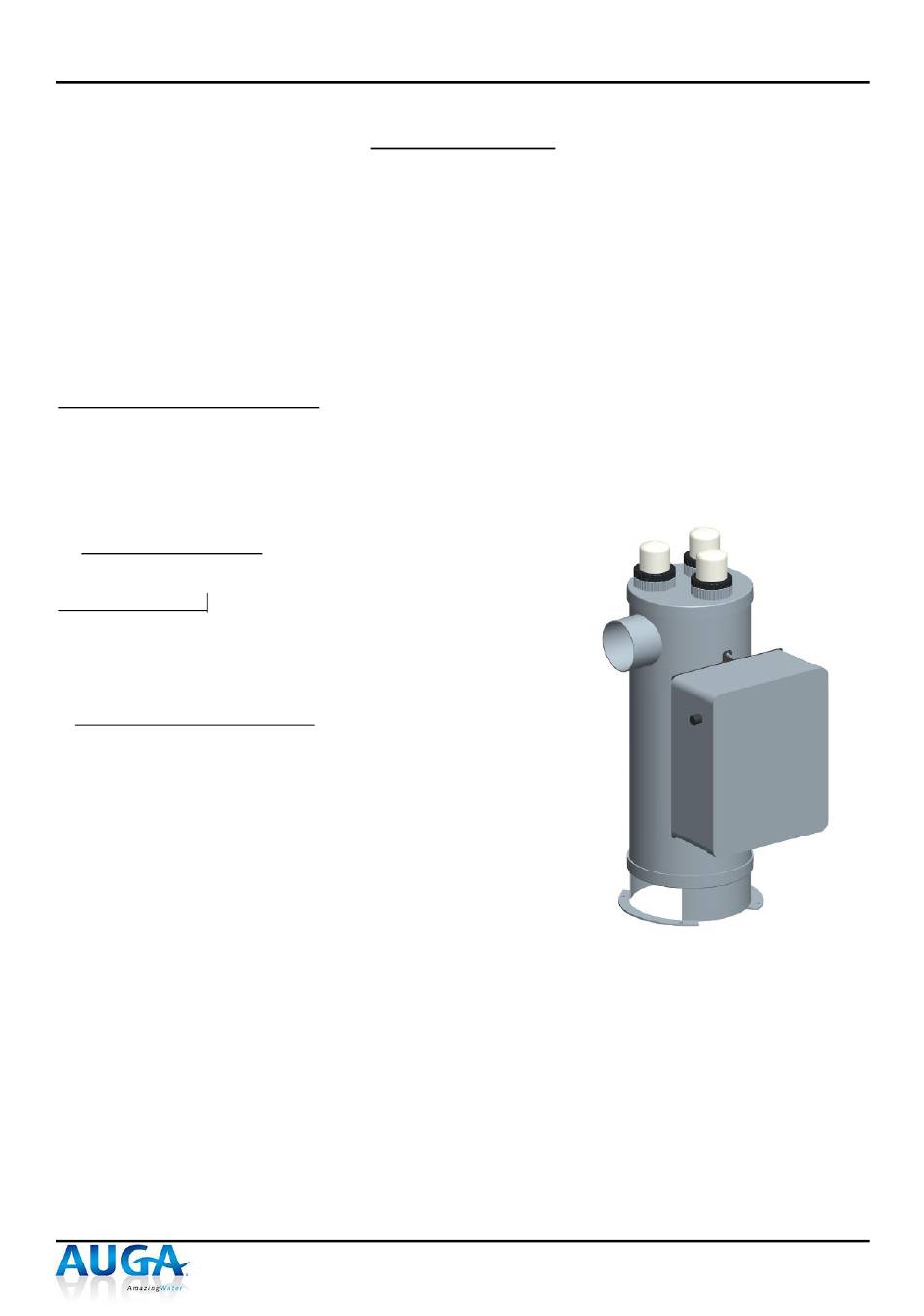

Discription of UVc device
A. Stainless Steel Foot:
to
To fix it on the floor
B. Quartz sleeve(s) and their tightening o-ring:
C. Lamps UVc type 2G11-PLL including :

Translucent Lamp Cap l enabling to visualize the smooth operation of bactericidal.

1 O-ring

1 Cut Gasket

1 micro switch

1 gland in derlin for tightness
D. Electrical box including:

All startup items for the UVc lamps

Power cable 2Ph + T lg 3 meters
E. Stainless Steel Chamber including:

1 water treatment chamber in which the MCR lamps are disposed equipped with quartz sleeve for protection. The tightness of the lamps is
done via hydraulic gland (knurled cap).

1 Flat seal placed under the gland to damp the rise of the quartz against the gland

1 input/output threaded G male
Varioclean Pro-X 120/190/285
Table of Contents
Page 2/7
