AES E-LOOP EL00IG Quick Start Manual

Specifications
Model E-LOOP: EL00IG & EL00IG-RAD
Frequency: 433.39 MHz.
Security: 128-bit AES encryption.
Range: up to 50 yards.
Battery life: up to 6-10 years.
Battery type: 14500 mA battery.
Transmitting power: <10mW.
COMMERCIAL INGROUND
VERSION 3.0

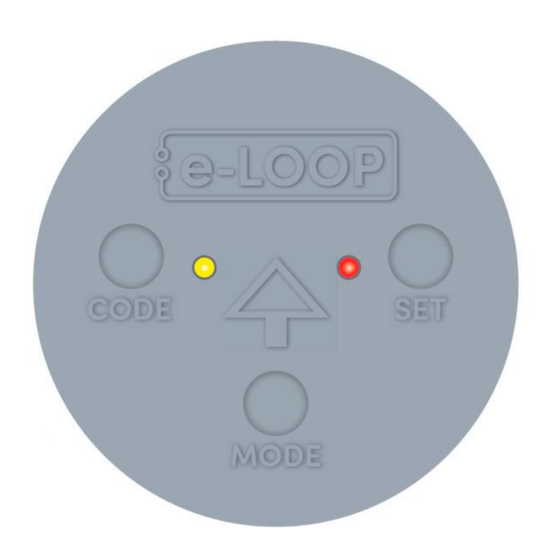

Changing mode using a magnet
(EL0OIG-RAD only)
Note: e-loop comes preset in presence mode.
1. Place a magnet on the MODE recess until the
yellow starts LED flashing indicating presence
mode, to change to exit mode place the magnet
on the SET recess, the red LED will start flashing,
to change to parking mode place the magnet on
the MODE recess, the Yellow LED will come on
solid.
2. Wait 5 seconds until all LED's flash, we have now
entered the confirmation menu, move to Step 3
or wait a further 5 seconds until all LED's flash 3
times to exit menu.
3. Confirmation mode.
Once in the confirmation menu the red LED will
be on solid meaning confirmation is not enabled,
to enable place magnet on code recess, the
yellow LED and red LED will be on, confirmation is
now enabled, wait 5 seconds and both LED's will
flash 3 times indicating menu has now been
exited.
E. sales@aesglobalus.com
T: +1 - 321 - 900 - 4599
Safety instructions:
installation, check that all the materials are in good working
order and suited to the intended applications. Warning! –
Exhausted batteries contain polluting substances; therefore
they may not be disposed of together with unsorted
household waste. They must be disposed of separately
according to the regulations locally in force.
Installation Warnings
The e-LOOP should be installed in a location
that is always visible. Do not place the e-
LOOP in a dip or area where snow or water
can sit. Keep e-LOOP central in the driveway
so as it passes directly underneath the
vehicles.
DISCLAIMER: UNITS WITH THE PRESENCE FEATURE IS
NOT TO BE USED AS A SOLE SAFETY DEVICE & SHOULD
BE USED IN CONJUNCTION WITH STANDARD GATE
SAFETY PRACTICES.
Disposal:
local recyclable containers. According to the European
Directive 2002/96/EC on waste electrical equipment,
this device must be properly disposed of, after usage
in order to ensure a recycling of the materials used.
Old accumulators and batteries may not be disposed
of in the household waste, since they contain
pollutants and must be properly disposed of in
municipal collection points or in the containers of the
dealer provided. Country-specific regulations must be
observed.
www.aesglobalus.com
MAGNET
Before proceeding with the product's
The packaging must be disposed of in the
PLACING
MAGNET INTO
BUTTON RECESS.
