4.2 Remotely Set DMX Address
Fixtures No.
DMX channel for
Moveing Head
Scanner
Barrel
Color changer
Multi-Gobo projector
Fixtures No.
DMX channel for
Moving Head
Scanner
Barrel
Color changer
Multi-gobo projector

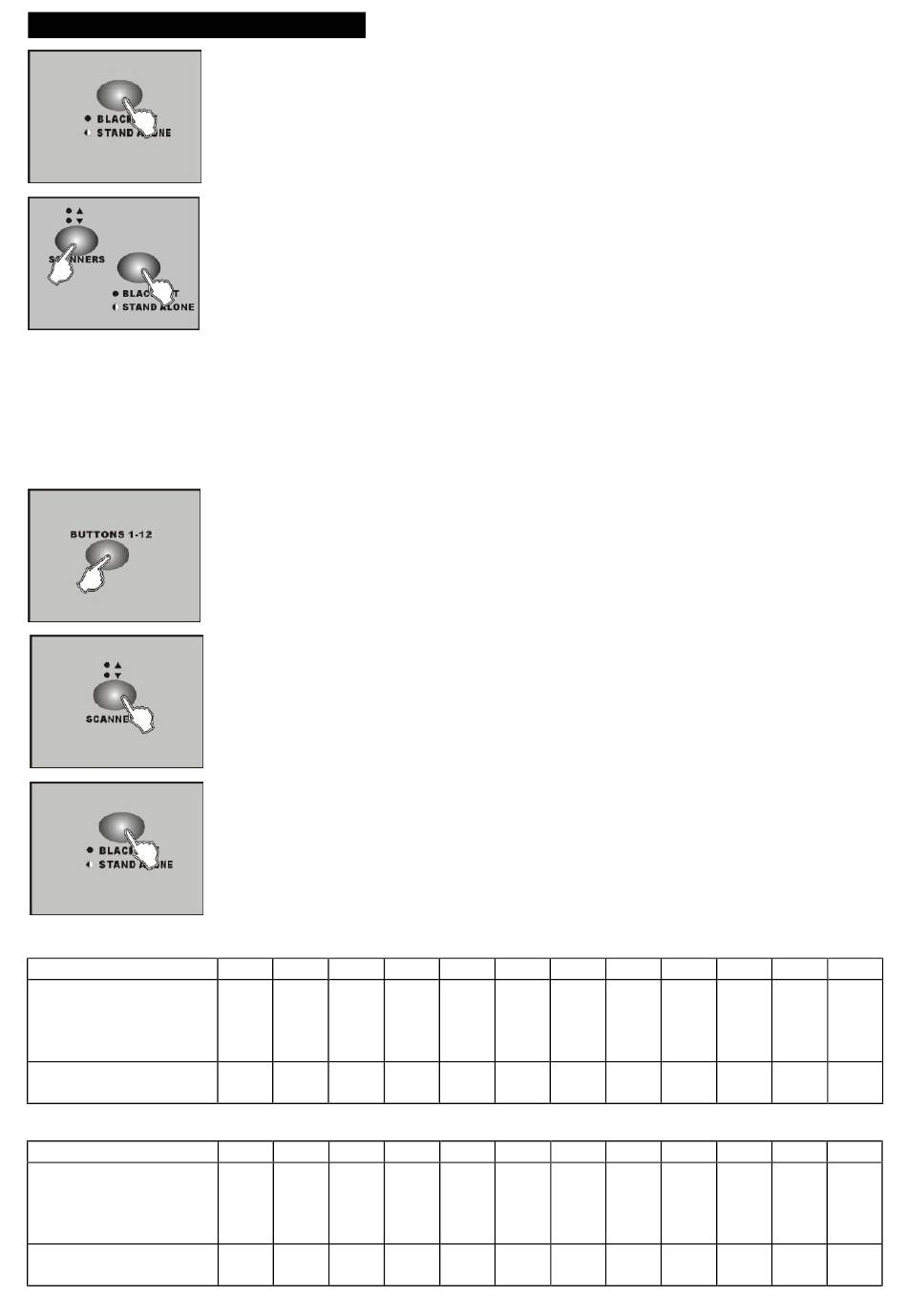

1. Hold on the BLACKOUT/STAND ALONE button for 3 seconds to
enter Stand-Alone mode.
2. Hold down the SCANNERS button and then press BLACKOUT/
STAND ALONE button. You will see the pan & tilt of all the fixtures
in the chain stopping at the central position. The shutter & LED of
the first fixture will open/ blink indicating the fixture is active, ready
to be designated a new position ( the number in the chain ).
3. If you have two chains in the venue, you can jog ( push ) joystick
Left/Right to select chain 1 or chain 2, and jog joystick Up / Down to
select next fixture or last fixture.
4. Select 1~12 button to set DMX address.
5. Press SCANNERS to next page to select 13~24 button for setting
DMX address.
6. Press the BLACKOUT/STAND ALONE button again to return to the
program mode.
1 2 3 4
1 9 17 25
3 11 19 27
13 14 15 16
97 105 113 121
99 107 115 123
5 6 7
33 41 49
35 43 51
17 18 19
129 137 145
131 139 147
on - 8D -
8 9 10 11
57 65 73 81
59 67 75 83
20 21 22 23
155 161 169 177
157 163 171 179
12
89
91
24
185
187
