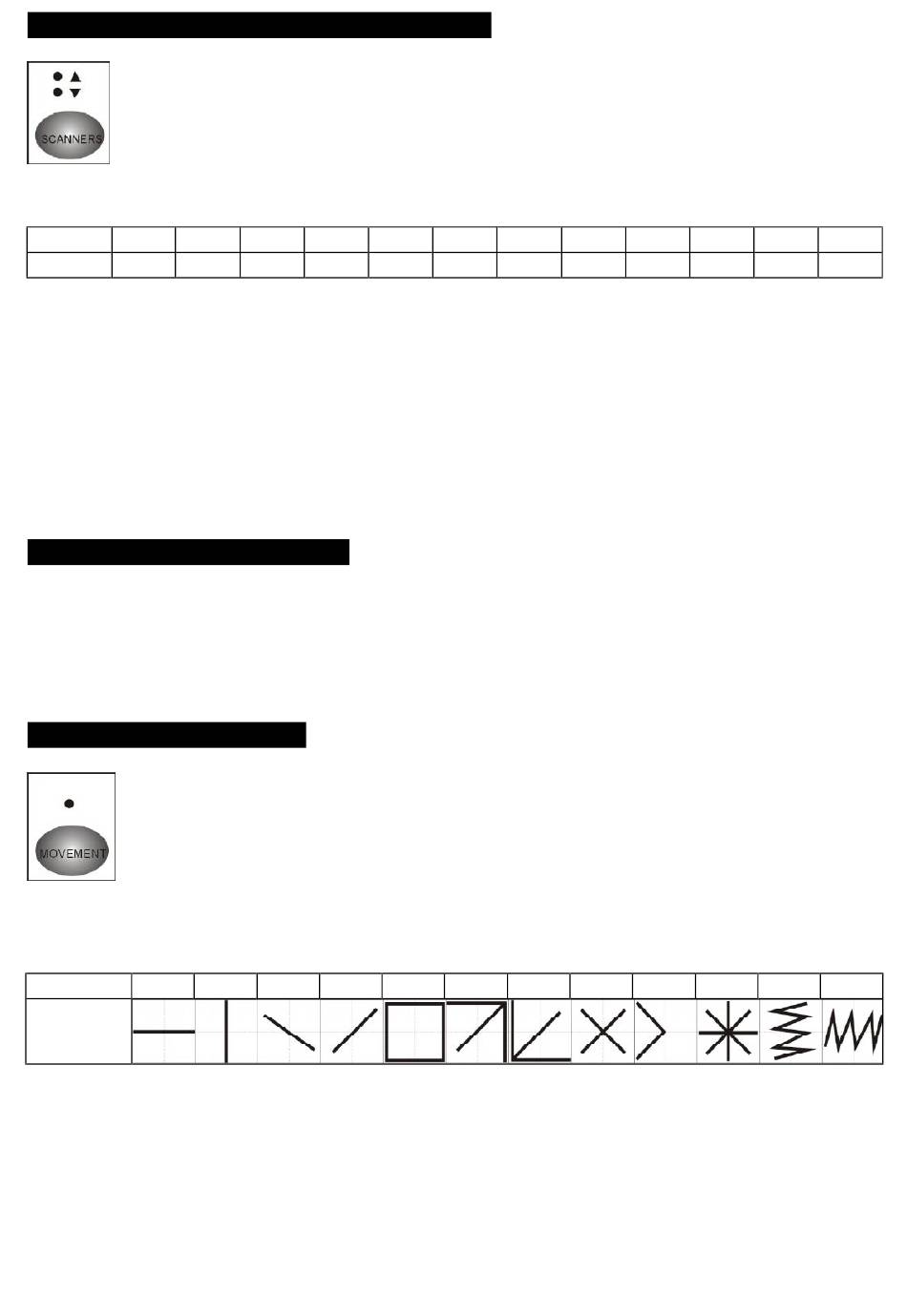

4.3.1 Select the fixtures you want to control
Ø Press SCANNERS button
Ø You can choose one or more than one fixtures by pressing the 1~12 buttons
Ø When the buttons' LED ( 1 ~ 12 ) are lit, you can control the fixtures.
Ø To select fixture 13~24, press SCANNERS to next page, the lower LED will be
on.
Upper 1
Lower 13 14
You will see the button's LED turned on when you select it. When the LEDs above the
buttons are lit, you can control the fixtures using joystick or control sliders. To exit control of
a fixture, press the number buttons again so the buttons LED light goes out. You can control
multiple fixtures at same time. To select multiple fixtures, press the button of each fixture
one by one.
4.3.2 Setting Pan/Tilt Position
Move joystick Left/Right to control the Pan movement, Up/Down to control the Tilt
movement. You can also use the Speed slider and X-Fade/Value slider to control Pan or Tilt
movement of the fixture.

4.3.3 Setting MOVEMENT

Ø Select the fixtures you want to control
Ø Press MOVEMENT button
Ø Select preset Movement patterns by pressing 1~12 buttons, and use the
X-Fade/Value slider to adjust movement range
Ø Press MOVEMENT again to return to Program mode
12 preset Movement patterns are as below:
1
Movement
When programming, you can select a movement pattern to create a scene. Use the Speed
slider to set pan movement range, and use the X-Fade/Value slider setting tilt movement
range. On the other hand, use Joystick to set the position of movement. When in Light
show mode, you can use the Speed slider to set running time within the range of 0.1 second
to 5 minutes, and use X-Fade /Value slider to set fade time.
2 3 4
15 16
2 3 4
5 6 7
17 18 19
5 6 7
on - 9D -
8 9 10
20 21 22
8 9 10
11 12
23 24
11 12
