INSTRUCTION MANUAL
B·100 K
Light Handle Expansion Kit
for B·IRON

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the B-100 K and is the answer not in the manual?

Questions and answers

Related Manuals for jbc B-100 K

Summary of Contents for jbc B-100 K

  • Page 1 INSTRUCTION MANUAL B·100 K Light Handle Expansion Kit for B·IRON...

  • Page 2: Packing List

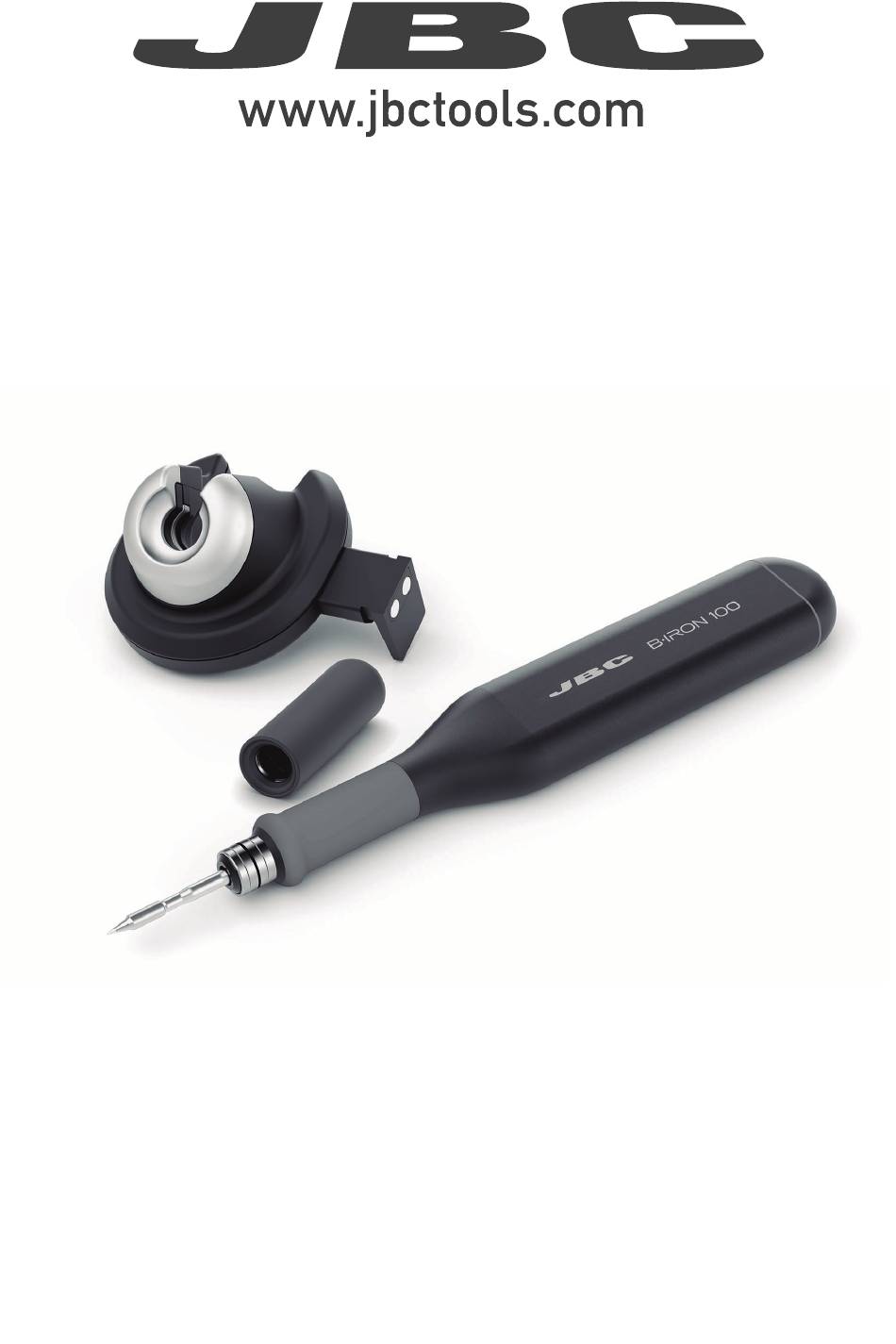

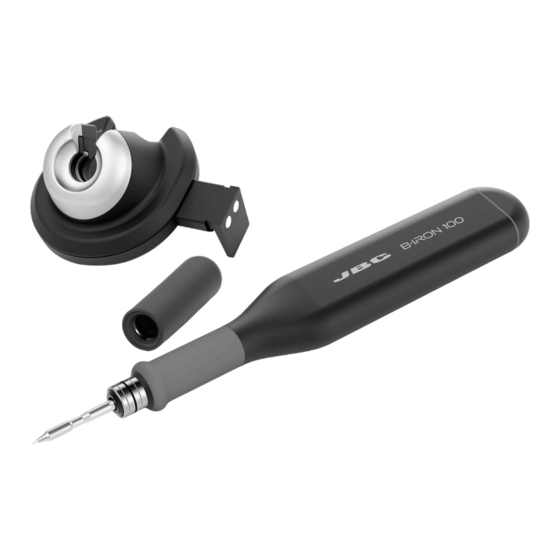

    This manual corresponds to the following reference: B100-KA Packing List The following items are included: B·100 Left-Side Charging-Holder Manual ......1 unit Light Handle for B·IRON ......1 unit Ref. 0033101 for B·IRON ....1 unit Cartridge not included, sold separately. Cartridge not included, sold separately.
  • Page 3 para manuales - color gris 200 mm Connection with B·IRON Station 130 mm 130 mm Portable Display 7” 100 mm for B·IRON * Bluetooth Connection 80 mm 60 mm 50 mm 40 mm B·100 Light Handle for B·IRON C210 * Cartridge Range B1596 Safety Cap...

  • Page 4: Compatible Cartridges

    Compatible Cartridges* B·100 works with C210 Cartridges. Find the model that best suits your soldering needs on www. jbctools.com ø 3,5 ø 1 ø 1,5 Bevel Conical Chisel Conical Bent Tool Charger Dissasembly and Replacement Tool chargers can be disassembled by loosening the screws (1) at the bottom of the charging-base and pulling downward from the side band (2).
  • Page 5 para manuales - color gris 200 mm Cartridge Insertion and Charging 130 mm 130 mm 6. Cartridge Insertion and Charging Cartridge Exchanger Inserting Fixing Charging Cartridge Exchanger The cartridge exchanger saves time and allows chan 100 mm the tool off. The cartridge exchanger saves time and allows changing cartridges safely without switching 1.
  • Page 6 100ºC 400ºC Tool Status Temperature units Charging Working No cartridge Low battery ºC ºF Power OFF Tool Connection Tool Selection 28174 MENU Work Work Work CHARGE Note: The supplied handle is already connected. 450 ºC 24 W 100% Settings Counters Make sure that the charging base is connected to Counters 348ºC...
  • Page 7 para manuales - color gris 200 mm Safety Cap 130 mm 130 mm Thanks to their safety cap, B·IRON handles can be transported safely, even with the cartridge inserted. 100 mm Handle When the cap is placed onto the handle, the cartridge stops heating immediately, data...

  • Page 8: Operation

    Operation JBC’s Most Efficient Soldering System MENU JBC#1 This revolutionary technology recovers tip temperature extremely quickly. This allows the user to work WORK at a lower temperature. 24 W 100% 450 ºC 450 º Work Charge Mode Sleep Mode 18 W 100% 350 º...
  • Page 9 para manuales - color gris 200 mm Replacing B1510 Grips (Soft Foam) 130 mm 130 mm Inserting Fitters Assembling Grips Removing Fitters 100 mm Fitter New Grip 80 mm Hold this way Handle so the fi tters can slide Insert the fitters into the new Push the grip with the fitters To remove the fitters, hold the 60 mm...
  • Page 10 If it does not exist, create it. 3. Unzip and copy the update files from the PC to JBC’s display into the above-mentioned folder. 4. Access the B·IRON app and select the tool you want to update. Then tap on “Menu” and select “Update”.
  • Page 11 para manuales - color gris 200 mm B·IRON Tool Firmware Updating 130 mm 130 mm Tool updating through user’s smartphone or tablet (Android/iOS) Note: Your device must be connected to the internet. 100 mm 1. On your device, go to “https://www.jbctools.com/software.html.” and tap on “Station Firmware Update”, then tap on the latest version displayed for the B·IRON to download the update zip file.

  • Page 12: Maintenance

    - Do not use liquids such as alcohol, thinner or benzene to clean the tablet. - Repairs should only be performed by a JBC authorized technical service. Clean the contact surfaces regularly to...
  • Page 13 para manuales - color gris 200 mm Safety 130 mm 130 mm It is imperative to follow safety guidelines to prevent electric shock, injury, fire or explosion. 100 mm - Do not use the units for any purpose other than soldering or rework. Incorrect use may cause a fire. - The power cord must be plugged into approved bases.
  • Page 14 Notes...
  • Page 15 para manuales - color gris 200 mm Notes 130 mm 130 mm 100 mm 80 mm 60 mm 50 mm 40 mm...

  • Page 16: Specifications

    9.65 x 7.28 x 1.77 in / 0.65 lb Complies with CE standards. Not grounded device. No ESD discharge feature. Warranty JBC’s 2 year warranty covers this equipment against all manufacturing defects, including the replacement of defective parts and labour. Warranty does not cover product wear or misuse.

This manual is also suitable for:

B100-ka
