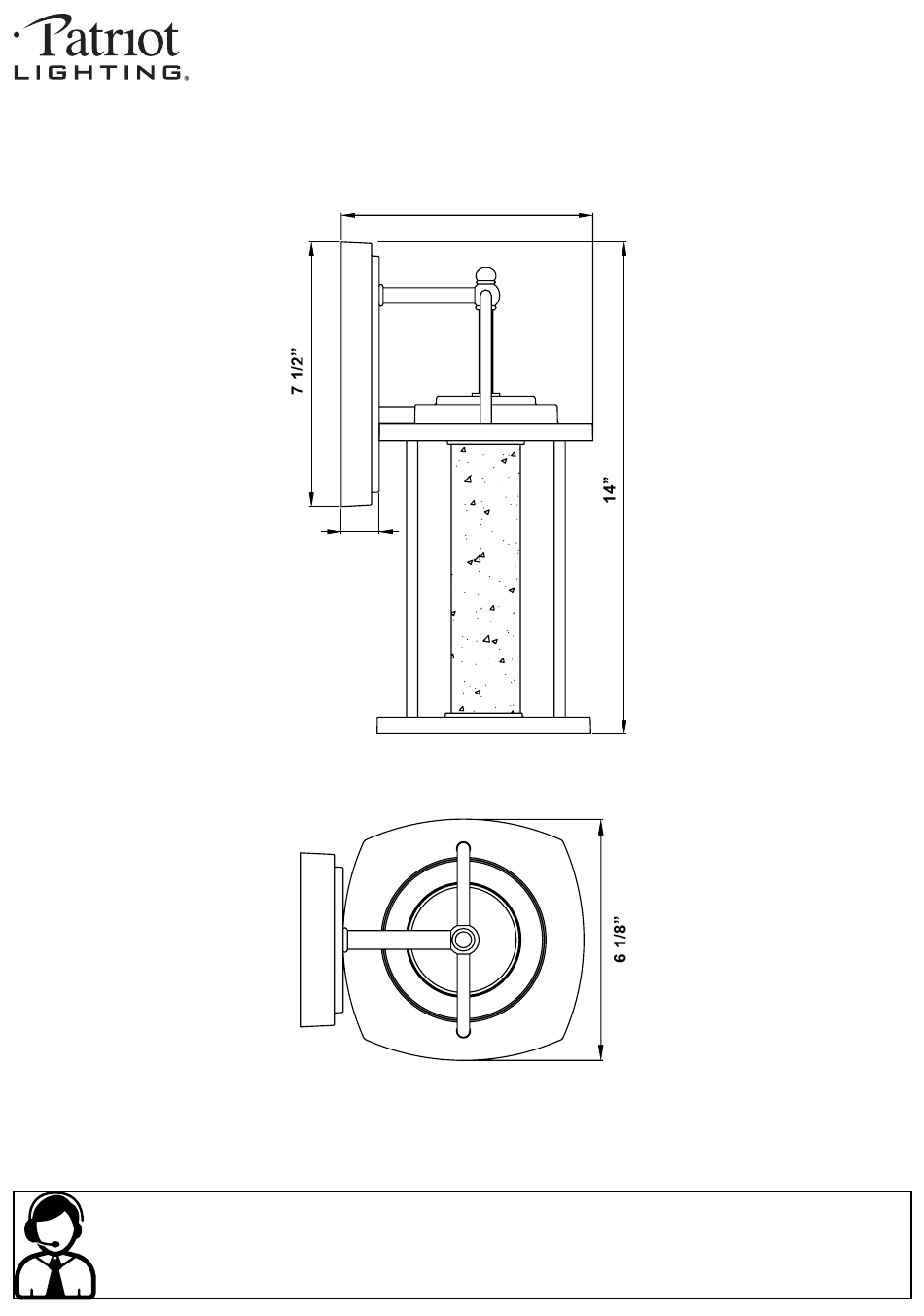

SHELLEY 1-Light Outdoor Wall Light
INSTALLATION MANUAL
SKU NUMBER: 356-1269
MODEL: Shelley BLK
7 1/8"
1 1/8"
Questions, problems, need help?
Call our customer service department at
1-866-839-2888, 8 a.m. - 5 p.m., EST, Monday - Friday
P. 1
2022-10-17
