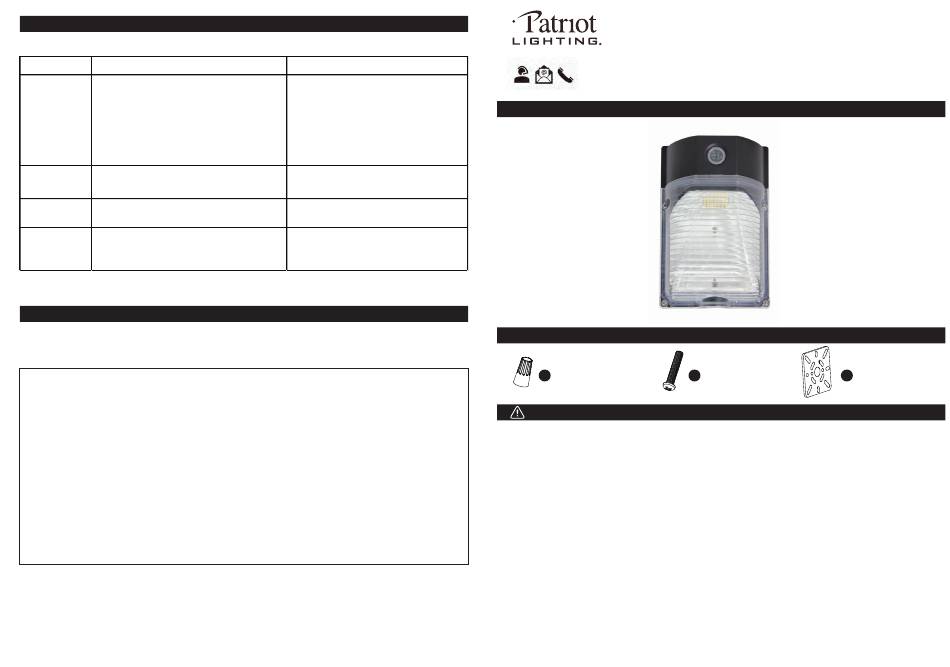

Patriot Lighting SL3451 Manual

TROUBLESHOOTING
Issues Possible cause
1. Wall switch is turned off.
2. One or more LEDs were burned out.
Lights will not 3. Fuse is blown or circuit breaker is
come on turned off.
4. Incorrect circuit wiring.
5. The fixture senses daylight.
The light cycles The photocell light sensor is sensing
ON and OFF reflected light.
The light The light fixture is wired through a dimmer
flickers switch.
The light stays The light sensor is in a shaded area.
ON.
CARE AND MAINTENANCE
• To clean, turn off and wipe with a damp and soft cloth.
• Do not use detergent or abrasives for cleaning.
FIVE-YEAR LIMITED WARRANTY: If, during normal use, this PATRIOT LIGHTING
fixture breaks or fails due to a defect in material and workmanship within five (5) years from
the date of original purchase, simply bring this lighting fixture with the original sales receipt
®
back to your nearest MENARDS retail store. At its discretion, PATRIOT LIGHTING
have the product or any defective part(s) repaired or replaced with the same or similar
PATRIOT LIGHTING ® product or part free of charge, within the stated warranty period, when
returned by the original purchaser with original sales receipt. This warranty; (1) excludes
expendable parts including but not limited to light bulbs; (2) does not cover damage that has
resulted from abuse or misuse; and (3) does not cover any losses, labor, injuries to persons/
property or costs. This warranty does give you specific legal rights and you may have other
rights, which vary from state to state.
Solution
1. Turn wall switch on.
2. Failed light, take it off and install a new
one.
3. Replace fuse or turn circuit breaker on.
4. Verify wiring is correct.
5. Cover the photocell sensor. Wait 10
seconds until the fixture turns ON.
Relocate the light fixture to a location
where there is no reflected light.
Replace the dimmer with a standard
ON/OFF switch.
The fixture should be moved to a location
with enough light in the daylight hours for
the light sensor to work.
4
PACKAGE CONTENTS
HARDWARE CONTENTS Note: Hardware not shown actual size.
Wire Connector
AA
®
lighting
×3
SAFETY INFORMATION
®
agrees to Please read and understand this entire manual before attempting to assemble, operate or
install the product.
WARNING
Turn off electricity at main fuse box (or circuit breaker box) before beginning installation by
removing fuse (or switching off circuit breaker). Be careful not to damage or cut the wire
insulation (covering) during fixture installation. Do not permit wires to contact any surface
having a sharp edge. To do so may damage or cut the wire insulation, which could cause
serious injury or death from electric shock.
CAUTION
All electrical connections must be in agreement with local codes, ordinances or the national
electric code (NEC). Contact your municipal building department to learn about your local
codes, permits and or inspections. Do not connect this fixture to an electrical system that
does not provide a means for equipment grounding. Never use a fixture in a two-wire system
that is not grounded. If you are not sure your lighting system has a grounding means, do not
attempt to install this fixture. Contact a qualified, licensed electrician for information with
regards to proper grounding methods as required by the local electrical code in your area.
Outdoor Dusk to Dawn LED Wall Pack
Questions, problems, missing parts?
Please visit our website at www.ewccelite. com or email us at
customer-service@ewccglobal.com.cn, or call us at 1-888-722-5089
Outlet Box Screw
BB
×2
1
SKU Number: 356-9326
Model Number: SL3451
Gasket
CC
×1
