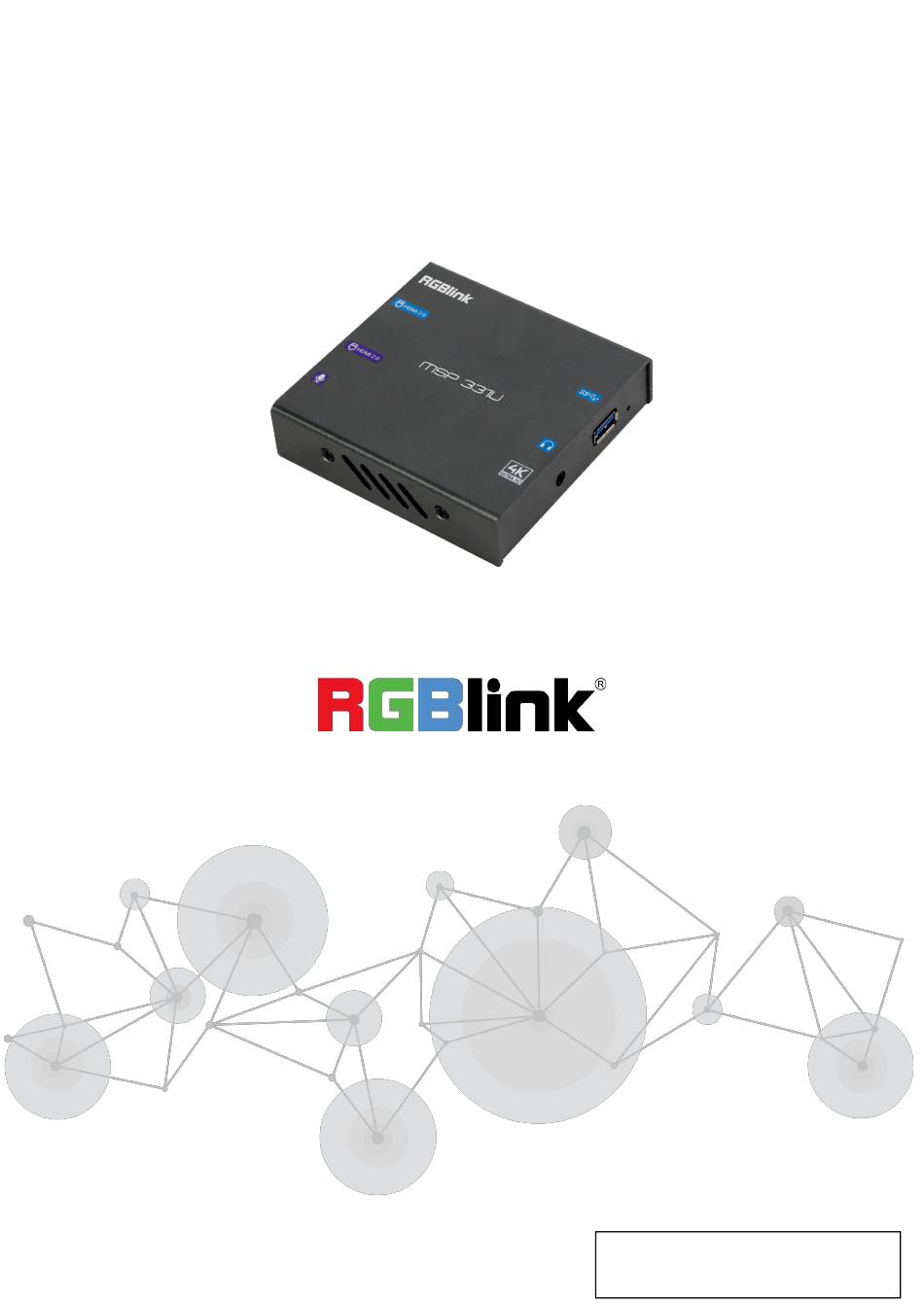

- Page 1 MSP 331U HDMI 2.0 4K60Hz Capture Card User Manual Article No: RGB-RD-UM-MSP 331U E001 Revision No: V1.1...
-
Page 2: Table Of Contents
2.2 POTPlayer ..........................12 2.2.1 FAQ ...........................14 Chapter 3 Order Codes ........................16 Chapter 4 Support ........................... 17 4.1 Contact us ........................... 17 Chapter 5 Appendix ...........................18 5.1 Terms & Definitions ......................18 5.2 Revision History ........................25 MSP 331U User Manual... -
Page 3: Declarations
30 days after the transfer of risks. In the event of justified notice of compliant, RGBlink can repair the fault or provide a replacement at its own discretion within an appropriate period. If this measure proves to be impossible or unsuccessful, the purchaser can demand a reduction in the purchase price or cancellation of the contract. -
Page 4: Operators Safety Summary
The AC Socket-outlet should be installed near the equipment and be easily accessible. Unpacking and Inspection Before opening MSP 331U processor shipping box, inspect it for damage. If you find any damage, notify the shipping carrier immediately for all claims adjustments. As you open the box, compare its contents against the packing slip. -
Page 5: Chapter 1 About Your Product
Cable 1.2 Product Overview MSP 331U is an easy to carry, 4K Video Capture Card, supporting HDMI 2.0 and USB 3.2 standards, with superior performance and compatibility and many other features such as simple installation, plug and play etc. It can capture a single HDMI input up to 4K@60 and support HDMI loop output. -
Page 6: Interface
Description Under normal power supply, the indicator will be illuminated white Power Indicator when connect PC or other USB devices to USB port of MSP 331U. ● Active HDMI Input Signal : The indicator will be illuminated HDMI Input white. -
Page 7: Supported Input Resolution List
Resolution Type Parameter USB 3.2 Capture Resolution RGB24 1920×1080@60 1280×720@60 YUY2 3840×2160@30/25 2560×1440@60 2560×1080@60 1920×1080@60 1280×720@60 NV12 3840×2160@30 2560×1440@60 2560×1080@60 1920×1080@120/60 1280×720@60 I420 3840×2160@30 2560×1440@60 2560×1080@60 1920×1080@120/60 1280×720@60 P010 1920×1080@60 1280×720@60 MJPGE 3840×2160@60 2560×1440@144/60 2560×1080@60 1920×1080@240/60 1280×720@60 MSP 331U User Manual... -
Page 8: Supported Software List
Intel Core i5-6XXX 8G or above Intel Core i7-7700HQ 8G or above Graphics NVIDIA GeForce GTX 1060 8G or above 8G or above Port USB 3.0/USB 3.1/USB 3.2 System Windows® 10 / Windows 8.1 / Windows 7(SP1) / macOS10.15 and above MSP 331U User Manual... -
Page 9: Chapter 2 Use Your Product
Chapter 2 Use Your Product 2.1 OBS Streaming MSP 331U is compatible with many third party steaming softwares, we recommend OBS, which is available to download on https://obsproject.com/download. Download OBS and double click to run it. 1. Click “+” to add sources. - Page 10 3. You can custom the name in the pop-up window, and then click "OK" to save. 4. Choose the video capture device you need, such as RGBlink HDMI 4K+CAPTURE. MSP 331U User Manual...
- Page 11 5. Set Resolution/FPS Type to Custom, you can choose resolution (up to 3840×2160) from resolution list. 6. Click FPS to choose frame rate and Video Format to set format. Audio Setting: 1. Click Audio, choose Default in Mic/Auxiliary Audio Device. MSP 331U User Manual...
-
Page 12: Potplayer
2. Enable Monitor and Output. 3. Paste the RMTP address to server and broadcast code to stream key. 4. Click “Start Streaming”. 2.2 POTPlayer 1. Run POTPlayer, click “Open” > “Device Settings” from the drop-down MENU. MSP 331U User Manual... - Page 13 2. In Device Settings interface, choose RGBlink HDMI 4K+CAPTURE as the video recording device. The user can click "Format" to select resolution from the drop-down resolution list, shown in the figure below. Choose HDMI 2.0 (RGBlink HDMI 4K+Capture) as the Audio capture device. Complete the above settings, click "Open device".
-
Page 14: Faq
1) The USB port connected to the PC is not USB 3.0. 2) The USB cable connecting PC and MSP 331U is not USB 3.0 cable. For case 1, the user can change the USB interface, and for case 2, please replace the USB cable. - Page 15 4. If there is external audio input, audio output will override HDMI embedded audio？ A: No, both the HDMI embedded audio and the external audio will play simultaneously. 5. Other questions not been mentioned？ A: Scan the QR code on the back of MSP 331U or contact us. MSP 331U User Manual...
-
Page 16: Chapter 3 Order Codes
Chapter 3 Order Codes Product Code Item 601-0331-03-1 MSP 331U MSP 331U User Manual... -
Page 17: Chapter 4 Support
Chapter 4 Support 4.1 Contact us MSP 331U User Manual... -
Page 18: Chapter 5 Appendix
●3G-SDI: Standardized in SMPTE 424M, consists of a single 2.970 Gbit/s serial link that allows replacing dual link HD-SDI. ●6G-SDI: Standardized in SMPTE ST-2081 released in 2015, 6Gbit/s bitrate and able to support 2160p@30. ●12G-SDI: Standardized in SMPTE ST-2082 released in 2015, 12Gbit/s bitrate and able to support 2160p@60. MSP 331U User Manual... - Page 19 DisplayPort 1.1 allow a maximum bandwidth of 10.8 Gbit/s (8.64 Gbit/s data rate) over a standard 4-lane main link, enough to support 1920x1080@60Hz ●DP 1.2: Introduced on 7 January 2010, effective bandwidth to 17.28 Gbit/s support increased resolutions, higher refresh rates, and greater color depth, maximum resolution 3840 × 2160@60Hz MSP 331U User Manual...
- Page 20 ●USB: Universal Serial Bus is a standard that was developed in the mid-1990s that defines cables, connectors and communication protocols. This technology is designed to allow a connection, communication and power supply for peripheral devices and computers. MSP 331U User Manual...
- Page 21 ●SMPTE: Society of Motion image and Television Engineers. A global organization, based in the United States, that sets standards for baseband visual communications. This includes film as well as video and television standards. ● VESA: Video Electronics Standards Association. An organization facilitating computer graphics through standards. MSP 331U User Manual...
- Page 22 ISO/IEC JTC1 Moving Picture Experts Group (MPEG). ●H.265: Also known as HEVC (High Efficiency Video Coding ) H.265 is the successor to the widely used H.264/AVC digital video coding standard. Developed under the auspices of ITU, MSP 331U User Manual...
- Page 23 Saturation is the amount of pigment in a colour, and not the intensity. ● Gamma: The light output of a CRT is not linear with respect to the voltage input. The difference between what you should have and what is actually output is known as gamma. MSP 331U User Manual...
- Page 24 ●HDR: is a high dynamic range (HDR) technique used in imaging and photography to reproduce a greater dynamic range of luminosity than what is possible with standard digital imaging or photographic techniques. The aim is to present a similar range of luminance to that experienced through the human visual system. MSP 331U User Manual...
-
Page 25: Revision History
Update FAQ and USB interface standard Aster All information herein is Xiamen RGBlink Science & Technology Co Ltd. excepting noted. RGBlink is a registered trademark of Xiamen RGBlink Science & Technology Co Ltd. While all efforts are made for accuracy at time of printing, we reserve the right to alter otherwise make change without notice.
