Summary of Contents for RGBlink MSP 231S

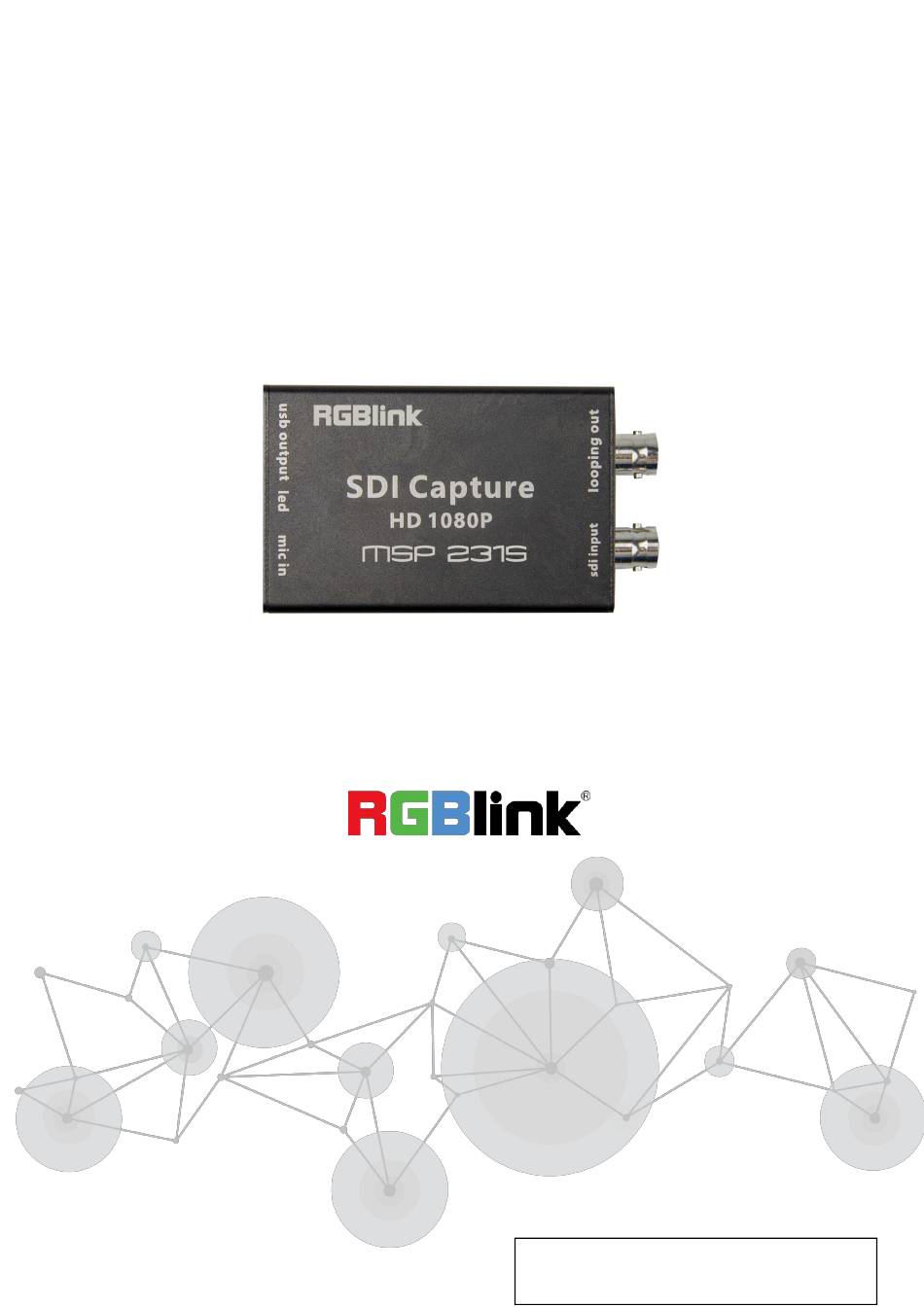

- Page 1 MSP 231S SDI to USB 2.0 Capture User Manual Article No: RGB-RD-UM-MSP 231S E000 Revision No: V1.0...
-
Page 2: Table Of Contents
2.2 Streaming Setting ........................9 Chapter 3 Order Codes ........................10 Chapter 4 Support ........................... 11 4.1 Contact Us ........................... 11 Chapter 5 Appendix ...........................12 5.1 Specification ........................12 5.2 Terms & Definitions ......................12 5.3 Revision History ........................19 MSP 231S User Manual... -
Page 3: Declarations
30 days after the transfer of risks. In the event of justified notice of compliant, RGBlink can repair the fault or provide a replacement at its own discretion within an appropriate period. If this measure proves to be impossible or unsuccessful, the purchaser can demand a reduction in the purchase price or cancellation of the contract. -
Page 4: Operators Safety Summary
The AC Socket-outlet should be installed near the equipment and be easily accessible. Unpacking and Inspection Before opening MSP 231S processor shipping box, inspect it for damage. If you find any damage, notify the shipping carrier immediately for all claims adjustments. As you open the box, compare its contents against the packing slip. - Page 5 If there is damage, notify the shipping carrier immediately for all claims adjustments. Site Preparation The environment in which you install your MSP 231S should be clean, properly lit, free from static, and have adequate power, ventilation, and space for all components. MSP 231S...
-
Page 6: Chapter 1 Your Product
SDI input and output at 1080P60. It is compatible with USB 2.0 interface on Windows, Linux, and macOS X . As MSP 231S is compatible with many USB 2.0 chipsets such as Intel, Renesas, ASMedia, Fresco Logic and so on, backward compatible with USB 2.0 too. Ready to be used as Preview, record, capture, live broadcast through a number of third-party software via USB 2.0 interface. -
Page 7: Interface
MSP 231S System Connection Diagram 1.2.1 Interface Illumination This LED illuminates when the Connect to the USB 3.0 input of USB 3.0 Signal LED device capture the video the computer or Notebook. normally Audio input, connect Camera, Vidicon, Game box, MIC IN microphone. -
Page 8: Chapter 2 Obs Streaming
Chapter 2 OBS Streaming 2.1 OBS Setting MSP 231S is compatible with many third party steaming softwares, we recommend OBS, which is available to download on https://obsproject.com/download Download the software and update to the latest version. 1.Click”+”icon 2.choose video capture device 3.Click video capture device to... -
Page 9: Streaming Setting
“Stream”. Choose Stream Type as “Custom Streaming Server” Paste the RMTP address to server and broadcast code to stream key. 4.Click “Start Streaming”. 5.Go back to live broadcast website and check the broadcasting. MSP 231S User Manual... -
Page 10: Chapter 3 Order Codes
Chapter 3 Order Codes Product Code Item 6601-0231-01-0 MSP 231S MSP 231S User Manual... -
Page 11: Chapter 4 Support
Chapter 4 Support 4.1 Contact Us MSP 231S User Manual... -
Page 12: Chapter 5 Appendix
●BNC: Stands for Bayonet Neill-Concelman. A cable connector used extensively in television (named for its inventors). A cylindrical bayonet connector that operates with a twist-locking motion . ●CVBS：CVBS or Composite video, is an analog video signal without audio. Most commonly CVBS MSP 231S User Manual... - Page 13 25, and 30 Hz, and 1920 × 1080 at 120 Hz. Compared to HDMI 1.3, 3 more features added which are HDMI Ethernet Channel (HEC) , audio return channel (ARC),3D Over HDMI, a new Micro HDMI Connector, an expanded set of color spaces. MSP 231S User Manual...
- Page 14 ●SC:(Subscriber Connector), also known as the square connector was also created by the Japanese company – Nippon Telegraph and Telephone. SC is a push-pull coupling type of connector and has a 2.5mm diameter. Nowadays, it is used mostly in single mode fiber optic patch cords, analog, GBIC, and MSP 231S User Manual...
- Page 15 ●NTSC : The colour video standard used in North America and some other parts of the world created by the National Television Standards Committee in the 1950s. NTSC utilizes an interlaced video signals. ●PAL: Phase Alternate Line. A television standard in which the phase of the colour carrier is alternated MSP 231S User Manual...
- Page 16 ●RTSP : The Real Time Streaming Protocol (RTSP) is a network control protocol designed for use in entertainment and communications systems to control streaming media servers. The protocol is used for establishing and controlling media sessions between end points. MSP 231S User Manual...
- Page 17 ●Contrast Ratio：The ratio of the high light output level divided by the low light output level. In theory, the contrast ratio of the television system should be at least 100:1, if not 300:1. In reality, there are several limitations. Well-controlled viewing conditions should yield a practical contrast MSP 231S User Manual...
- Page 18 ●PIP: Picture-In-Picture. A small image within a larger image created by scaling down one of image to make it smaller. Other forms of PIP displays include Picture-By-Picture (PBP) and Picture- With-Picture (PWP), which are commonly used with 16:9 aspect display devices. PBP and PWP image formats MSP 231S User Manual...
-
Page 19: Revision History
Release Aster All information herein is Xiamen RGBlink Science & Technology Co Ltd. excepting noted. RGBlink is a registered trademark of Xiamen RGBlink Science & Technology Co Ltd. While all efforts are made for accuracy at time of printing, we reserve the right to alter otherwise make change without notice.
