Summary of Contents for RGBlink MSP 231

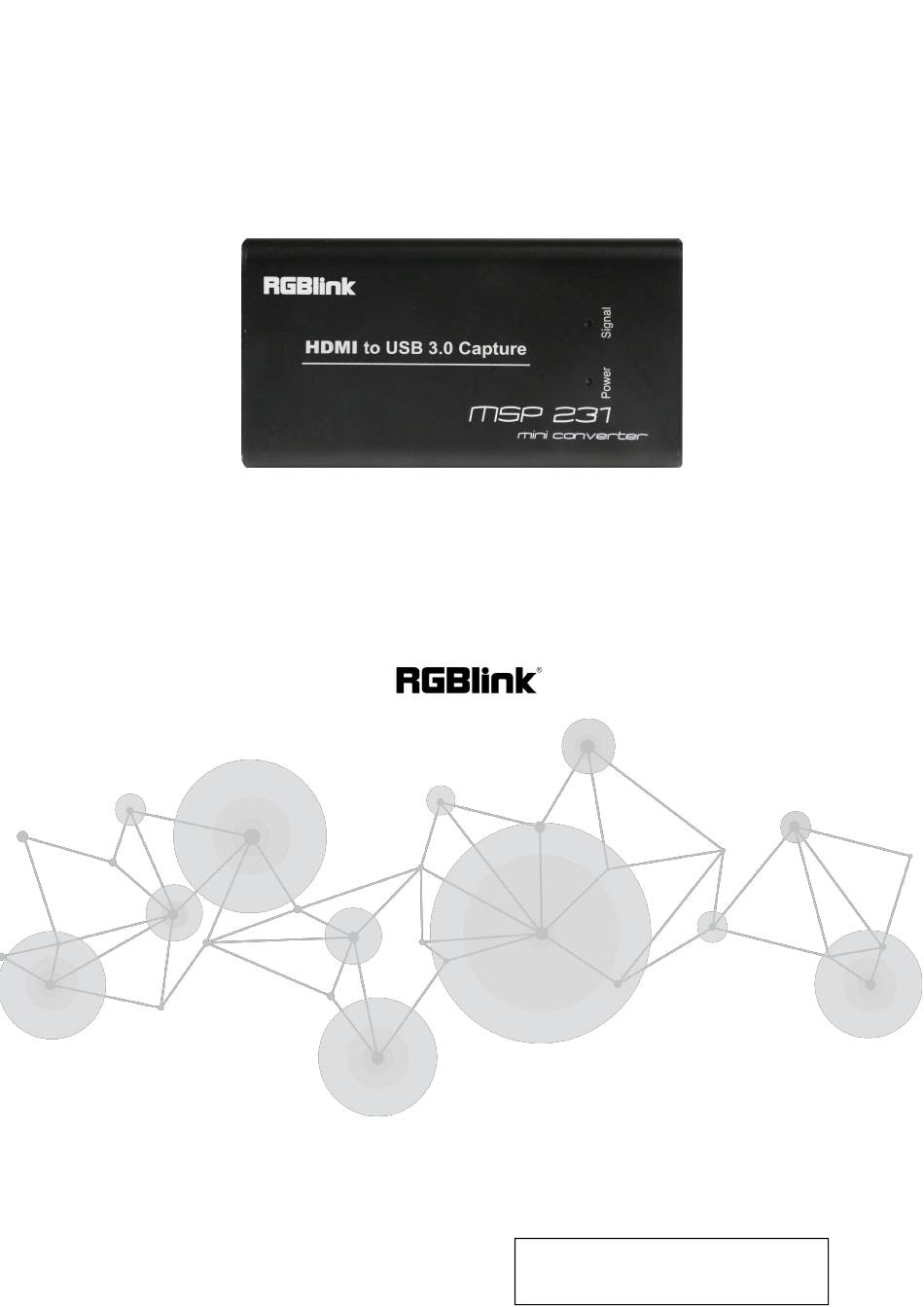

- Page 1 MSP 231 4K HDMI to USB3.0 Capture USER MANUAL Article No: RGB-RD-UM-MSP231 E001 Revision No: V1.1...
-
Page 2: Table Of Contents
Chapter 3 OBS Streaming........................10 OBS Setting..........................10 Streaming Setting........................11 Chapter 4 Order Codes........................12 Chapter 5 Support ..........................13 5.1 Contact Us........................... 13 Chapter 6 Appendix........................... 14 6.1 Specification........................14 6.2 Terms & Definitions......................15 5.3 Revision History........................22 MSP 231 User Manual... -
Page 3: Declarations
30 days after the transfer of risks. In the event of justified notice of compliant, RGBlink can repair the fault or provide a replacement at its own discretion within an appropriate period. If this measure proves to be impossible or unsuccessful, the purchaser can demand a reduction in the purchase price or cancellation of the contract. -
Page 4: Operators Safety Summary
The AC Socket-outlet should be installed near the equipment and be easily accessible. Unpacking and Inspection Before opening MSP 231 processor shipping box, inspect it for damage. If you find any damage, notify the shipping carrier immediately for all claims adjustments. As you open the box, compare its contents against the packing slip. - Page 5 If there is damage, notify the shipping carrier immediately for all claims adjustments. Site Preparation The environment in which you install your MSP 231 should be clean, properly lit, free from static, and have adequate power, ventilation, and space for all components. MSP 231...
-
Page 6: Chapter 1 Your Product
HDMI input up to 4K@30 and output at 1080P60. It is compatible with USB 3.0 interface on Windows, Linux, and macOS X . As MSP 231 is compatible with many USB3. 0 chipsets such as Intel, Renesas, ASMedia, Fresco Logic and so on, backward compatible with USB2.0 too. Ready to be used as Preview, record, capture, live broadcast through a number of third-party software via USB3.0... - Page 7 ● Support two capture on one PC ● Support firmware update online ● RGB color range 0-255, less delay. ● Support for all third-party player software compatible with UVC and UAC protocols. ● Support loudspeaker/ earphone. MSP 231 System Connection Diagram MSP 231 User Manual...
-
Page 8: Interface
NoteBook. HDMI Output HDMI Output to display device Line Out Loudspeaker/ Earphone Power This LED illuminates when the Signal This LED illuminates when the device is connected to computer device capture the video USB port. normally. MSP 231 User Manual... -
Page 9: Chapter 2 Caution
"Not enough USB controller PID:1343 AMD CPU resource"(host driver issue) ASMedia 1343E need windows inbox driver ASMedia 1042AE Z97 on board need windows inbox driver PID:1242 ASMedia X99 on board need windows inbox driver MSP 231 User Manual... - Page 10 PID:1000 VIA800 ISOC mode BW issue,1080P60MJ and YUY2 frame VID:1106 rate <10 PID:3432 ISOC mode BW issue,1080P60MJ and YUY2 frame VIA801 rate <10 ASMedia 1042(0.96) Z77 on board ISOC mode BW issue, YUY2(x), MJ(O) VID:1B21 PID:1042 MSP 231 User Manual...
-
Page 11: Chapter 3 Obs Streaming
1.Click”+”icon 2.choose video capture device 3.Click video capture device to open up setting page 4.Choose “XXX USB device” 5.Choose Video Format Choose Audio, click Setting and choose audio device (Mic/Auxiliary Audio Device) MSP 231 User Manual... -
Page 12: Streaming Setting
“Stream”. Choose Stream Type as “Custom Streaming Server” Paste the RMTP address to server and broadcast code to stream key. 4.Click “Start Streaming” 5.Go back to live broadcast website and check the broadcasting. MSP 231 User Manual... -
Page 13: Chapter 4 Order Codes
Chapter 4 Order Codes Product Code Item 601-0231-00-0 MSP231 MSP 231 User Manual... -
Page 14: Chapter 5 Support
Chapter 5 Support 5.1 Contact Us MSP 231 User Manual... -
Page 15: Chapter 6 Appendix
HDMI | USB (output resolution is not configurable) Resolutions SMPTE 1080p@60 VESA 1920×1080@60 Supported HDMI Standard Power Input Voltage DC 5V 2A Enviroment Working -0 ~50℃ Temperature Humidity 20 - 90% Physical Weight Net (Device) 0.08kg Dimensions Net (Device) 113mm×61mm×13mm MSP 231 User Manual... -
Page 16: Terms & Definitions
●U-SDI:Technology for transmitting large-volume 8K signals over a single cable. a signal interface called the ultra high definition signal/data interface (U-SDI) for transmitting 4K and 8K signals using a single optical cable. The interface was standardized as the SMPTE ST 2036-4. MSP 231 User Manual... - Page 17 ●Single-mode Fiber: Fiber that support a single mode are called single-mode fibers. Single-mode MSP 231 User Manual...
- Page 18 ● USB 3.2: Super Speed USB with 3 varieties of 3.2 Gen 1(original name USB 3.0), 3.2Gen 2(original name USB 3.1), 3.2 Gen 2x2 (original name USB 3.2) with speed up to 5Gbps,10Gbps,20Gbps respectively. USB version and connectors figure: Type A Type B Mini A Mini Micro-A Micro-B Type C USB 2.0 MSP 231 User Manual...
- Page 19 ●Dante AV: The Dante protocol was developed for and widely adopted in audio systems for the transmission of uncompressed digital audio on IP based networks. The more recent Dante AV specification includes support for digital video. ●NDI: Network Device interface (NDI) is a software standard developed by NewTek to enable MSP 231 User Manual...
- Page 20 ●MIDI: MIDI is the abbreviation of Musical Instrument Digital Interface. As the name indicates the protocol was developed for communication between electronical musical instruments and latterly computers. MIDI instructions are triggers or commands sent over twisted pair cables, typically using 5pin DIN connectors. MSP 231 User Manual...
- Page 21 SMPTE standard colour bars. In PAL video, the most commonly used colour bars are eight full field bars. On computer monitors the most commonly used colour bars are two rows of reversed colour bars MSP 231 User Manual...
- Page 22 ●EDID: Extended Display Identification Data. EDID is a data structure used to communicate video display information, including native resolution and vertical interval refresh rate requirements, to a source device. The source device will then output the provided EDID data, ensuring proper video image quality. MSP 231 User Manual...
-
Page 23: Revision History
Update picture Sylvia All information herein is Xiamen RGBlink Science & Technology Co Ltd. excepting noted. RGBlink is a registered trademark of Xiamen RGBlink Science & Technology Co Ltd. While all efforts are made for accuracy at time of printing, we reserve the right to alter otherwise make change without notice.
