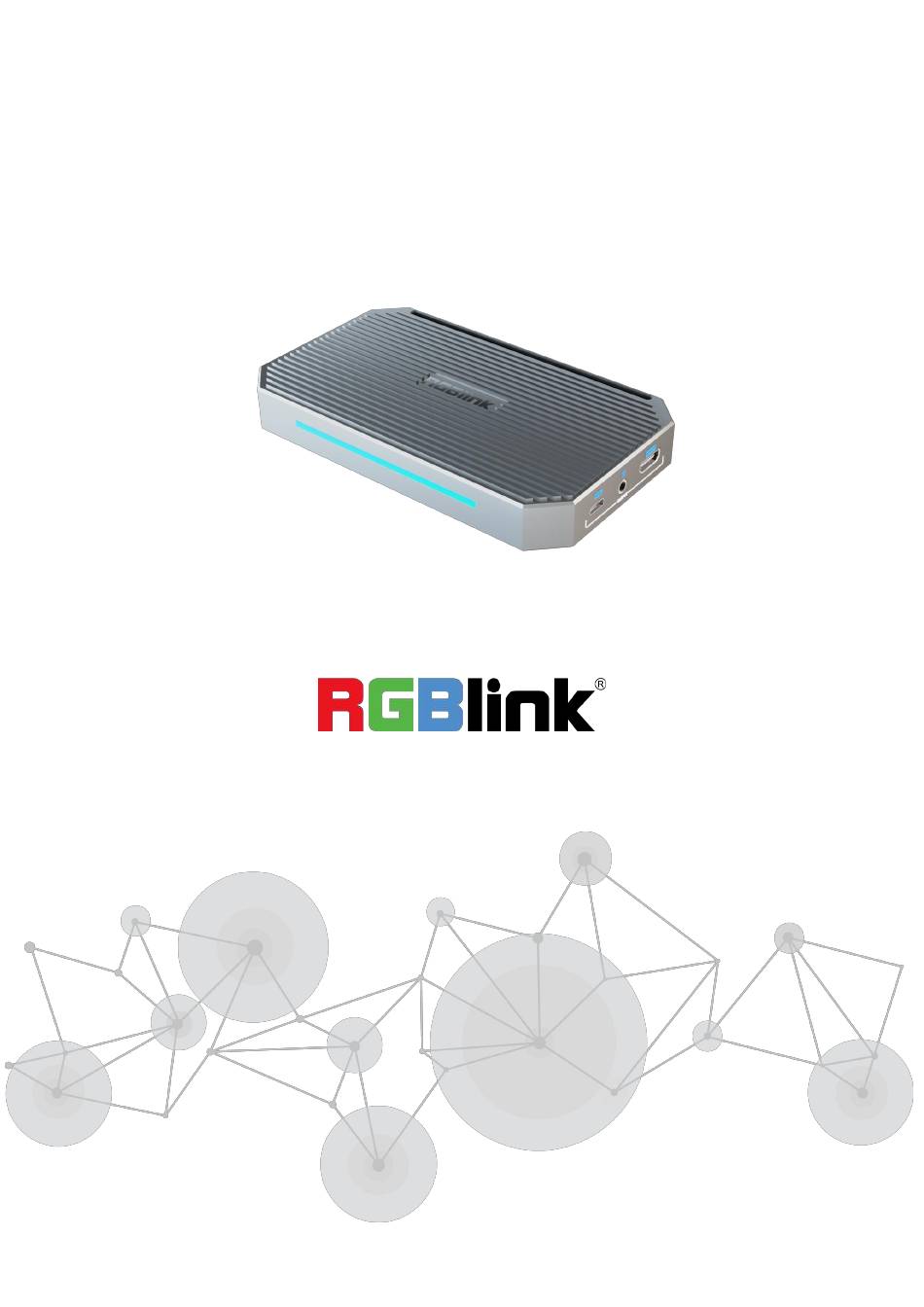

- Page 1 MSP 331U Gen2 HDMI 2.0 4K60Hz Capture Card User Manual...
-
Page 2: Table Of Contents
2.2 POTPlayer ..........................14 2.2.1 FAQ ...........................16 Chapter 3 Order Codes ........................18 Chapter 4 Support ........................... 19 4.1 Contact us ........................... 19 Chapter 5 Appendix ...........................20 5.1 Terms & Definitions ......................20 5.2 Revision History ........................27 MSP 331U Gen2 Gen2 User Manual... -
Page 3: Declarations
30 days after the transfer of risks. In the event of justified notice of compliant, RGBlink can repair the fault or provide a replacement at its own discretion within an appropriate period. If this measure proves to be impossible or unsuccessful, the purchaser can demand a reduction in the purchase price or cancellation of the contract. -
Page 4: Operators Safety Summary
The AC Socket-outlet should be installed near the equipment and be easily accessible. Unpacking and Inspection Before opening MSP 331U Gen2 processor shipping box, inspect it for damage. If you find any damage, notify the shipping carrier immediately for all claims adjustments. As you open the box, compare its contents against the packing slip. -
Page 5: Chapter 1 About Your Product
USB-C Cable 1.2 Product Overview MSP 331U Gen2 is an easy to carry, 4K Video Capture Card, supporting HDMI 2.0 and USB 3.2 standards, with superior performance and compatibility and many other features such as simple installation, plug and play etc. It can capture a single HDMI input up to 4K@60 and support HDMI loop output. -
Page 6: Interface Description
● Audio capture output and 3.5mm analog audio output ● UVC 1.5 and UAC 1.0 standards, compatible with Windows, MacOS and Linux, plug and play ● Dynamic light pipe to display signal status in real time MSP 331U Gen2 System Connection Diagram 1.2.1 Interface Description ❸... -
Page 7: Light Pipe Description
G: 255 HDMI signal detected, no external Scrolling+Breathing B: 15 audio input detected. ● Audio Mixing: R: 119 Right Cyan G: 255 HDMI signal and external audio input Scrolling+Breathing B: 255 detected (mixed state). MSP 331U Gen2 Gen2 User Manual... -
Page 8: Supported Input Resolution List
1080p@240/120/60 720p@60 VESA 4096×2160@60/59.94/50/30/29.97/24/23.98 3840×2160@60/59.94/50/30/29.97/24/23.98 2560×1440@144/60 2560×1080@60 1920×1080@240/120/60 1280×720@60 1.4 Supported Capture Resolution List Resolution Type Parameter Capture Resolution USB 3.2 RGB24 1920×1080@60 1280×720@60 YUY2 3840×2160@30/25 2560×1440@60 2560×1080@60 1920×1080@60 1280×720@60 NV12 3840×2160@30 2560×1440@60 2560×1080@60 MSP 331U Gen2 Gen2 User Manual... -
Page 9: Supported Software List
MJPGE 3840×2160@60 2560×1440@144/60 2560×1080@60 1920×1080@240/60 1280×720@60 1.5 Supported Software List Software Type Name PotPlayer Capture Software XSplit VCam CameraFi Vmix Tencent Meeting Ding Talk Meeting Meeting Software Lark Meeting Microsoft Teams Streaming Software SINSAM MSP 331U Gen2 Gen2 User Manual... -
Page 10: Computer Configuration Requirements
Intel Core i7-7700HQ 8G or above Graphics NVIDIA GeForce GTX 1060 8G or above 8G or above Port USB 3.0/USB 3.1/USB 3.2 System Windows® 10 / Windows 8.1 / Windows 7(SP1) / macOS10.15 and above MSP 331U Gen2 Gen2 User Manual... -
Page 11: Chapter 2 Use Your Product
Chapter 2 Use Your Product 2.1 OBS Streaming MSP 331U Gen2 is compatible with many third party steaming softwares, we recommend OBS, which is available to download on https://obsproject.com/download. Download OBS and double click to run it. 1. Click “+” to add sources. - Page 12 3. You can custom the name in the pop-up window, and then click "OK" to save. 4. Choose the video capture device you need, such as RGBlink HDMI 4K+CAPTURE. MSP 331U Gen2 Gen2 User Manual...
- Page 13 5. Set Resolution/FPS Type to Custom, you can choose resolution (up to 3840×2160) from resolution list. 6. Click FPS to choose frame rate and Video Format to set format. Audio Setting: 1. Click Audio, choose Default in Mic/Auxiliary Audio Device. MSP 331U Gen2 Gen2 User Manual...
-
Page 14: Potplayer
2. Enable Monitor and Output. 3. Paste the RMTP address to server and broadcast code to stream key. 4. Click “Start Streaming”. 2.2 POTPlayer 1. Run POTPlayer, click “Open” > “Device Settings” from the drop-down MENU. MSP 331U Gen2 Gen2 User Manual... - Page 15 2. In Device Settings interface, choose RGBlink HDMI 4K+CAPTURE as the video recording device. The user can click "Format" to select resolution from the drop-down resolution list, shown in the figure below. Choose HDMI 2.0 (RGBlink HDMI 4K+Capture) as the Audio capture device. Complete the above settings, click "Open device".
-
Page 16: Faq
1) The USB port connected to the PC is not USB 3.0. 2) The USB cable connecting PC and MSP 331U Gen2 is not USB 3.0 cable. For case 1, the user can change the USB interface, and for case 2, please replace the USB cable. - Page 17 A: No, both the HDMI embedded audio and the external audio will play simultaneously. 5. Other questions not been mentioned？ A: Scan the QR code on the back of MSP 331U Gen2 or contact us. MSP 331U Gen2 Gen2 User Manual...
-
Page 18: Chapter 3 Order Codes
Chapter 3 Order Codes Product Code Item 601-0331-04-1 MSP 331U Gen2 MSP 331U Gen2 Gen2 User Manual... -
Page 19: Chapter 4 Support
Chapter 4 Support 4.1 Contact us MSP 331U Gen2 Gen2 User Manual... -
Page 20: Chapter 5 Appendix
HD-SDI. ●6G-SDI: Standardized in SMPTE ST-2081 released in 2015, 6Gbit/s bitrate and able to support 2160p@30. ●12G-SDI: Standardized in SMPTE ST-2082 released in 2015, 12Gbit/s bitrate and able to support 2160p@60. MSP 331U Gen2 Gen2 User Manual... - Page 21 DisplayPort 1.1 allow a maximum bandwidth of 10.8 Gbit/s (8.64 Gbit/s data rate) over a standard 4-lane main link, enough to support 1920x1080@60Hz ●DP 1.2: Introduced on 7 January 2010, effective bandwidth to 17.28 Gbit/s support increased resolutions, higher refresh rates, and greater color depth, maximum resolution 3840 × 2160@60Hz MSP 331U Gen2 Gen2 User Manual...
- Page 22 ●USB: Universal Serial Bus is a standard that was developed in the mid-1990s that defines cables, connectors and communication protocols. This technology is designed to allow a connection, communication and power supply for peripheral devices and computers. MSP 331U Gen2 Gen2 User Manual...
- Page 23 ●SMPTE: Society of Motion image and Television Engineers. A global organization, based in the United States, that sets standards for baseband visual communications. This includes film as well as video and television standards. ● VESA: Video Electronics Standards Association. An organization facilitating computer graphics through standards. MSP 331U Gen2 Gen2 User Manual...
- Page 24 ISO/IEC JTC1 Moving Picture Experts Group (MPEG). ●H.265: Also known as HEVC (High Efficiency Video Coding ) H.265 is the successor to the widely used H.264/AVC digital video coding standard. Developed under the auspices of ITU, MSP 331U Gen2 Gen2 User Manual...
- Page 25 Saturation is the amount of pigment in a colour, and not the intensity. ● Gamma: The light output of a CRT is not linear with respect to the voltage input. The difference between what you should have and what is actually output is known as gamma. MSP 331U Gen2 Gen2 User Manual...
- Page 26 The aim is to present a similar range of luminance to that experienced through the human visual system. ●UHD: Standing for Ultra High Definition and comprising 4K and 8K television standards with a MSP 331U Gen2 Gen2 User Manual...
-
Page 27: Revision History
The source device will then output the provided EDID data, ensuring proper video image quality. 5.2 Revision History The table below lists the changes of MSP 331U Gen2 User Manual. Format Time ECO#...
