SIGNIFY HADCO ACCENT B9 Installation Instructions

www.hadco.com
DRIVER
HOUSING
LOCK
NUT
1/2" NPS
THREADS
This fixture is intended for installation in accordance with the National Electrical Code and local code
specifications. Failure to adhere to these codes and instructions may result in serious injury and/or damage
to the driver and void the warranty. These instructions do not purport to cover all details or variations in
equipment, nor to provide for every possible contingency related to installation, operation, maintenance,
or mounting situation. Should specific problems occur that are not addressed by these instructions, contact
your Sales Representative or distributor for assistance. SAVE THESE INSTRUCTIONS for future reference.
SAFETY WARNING:
ALWAYS TURN FIXTURE OFF/DISCONNECT POWER AND ALLOW TO COOL BEFORE
PERFORMING ANY MAINTENANCE, INCLUDING CLEANING!
To help prevent premature failure, decreased performance, overheating and risk of fire, keep fixture and lens
clean and free of leaves, mulch, debris and mineral deposits from water. The fixture and lens can be cleaned using
a soft cloth and a solution of mild liquid soap and warm water. Wipe clean and dry with a soft, lint-free dry cloth.
Avoid polishing fixture or lens.
Signify North America Corporation
200 Franklin Square Drive
Somerset, NJ 08873, USA
Phone: 855-486-2216
442100176010, revision B

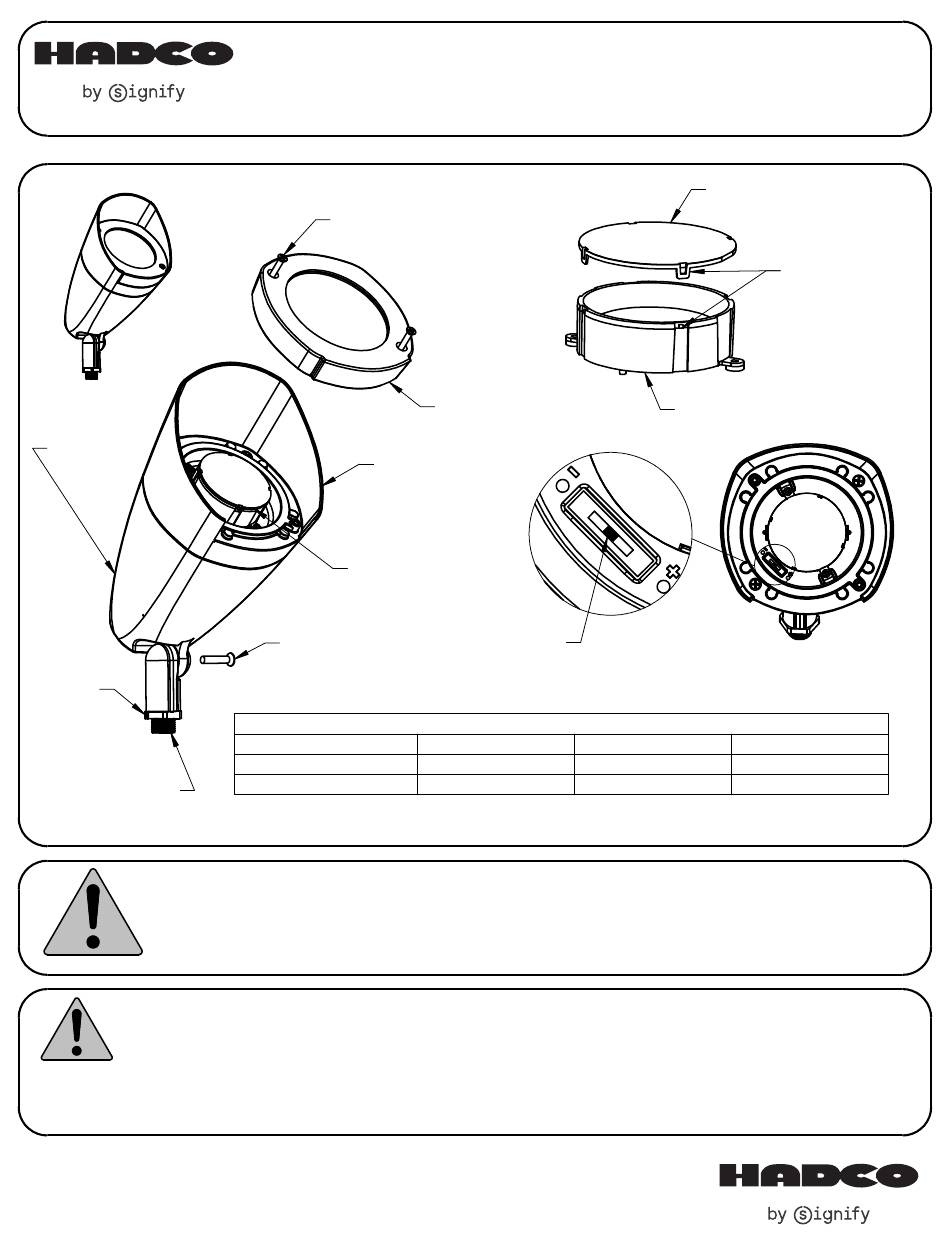

INSTALLATION INSTRUCTIONS:
ACCESS SCREW
(CAPTIVE)
SHROUD
OPTICS
SCREW TO
AIM FIXTURE
Beam / Switch output
Med Flood (3000K)
Med Flood (4000K)
NOTE: Other lumen levels for the various beams spreads and
output settings can be found at www.philips.com/luminaires
Signify Canada Ldt./ Signify Canada Ltée
281 Hillmount Road
Markham ON, Canada L6C 2S3
Phone: 800-668-9008
B9 ACCENT
LENS CAP
w/ LENS
OUTPUT SWITCH
(nominal)
Lumen Output Table
9.5W (min)
987
1097
OPTIC LENS
(3 OPTIONS)
REFLECTOR
(DO NOT REMOVE)
*Factory pre-set at this level.
*20W (nom) 34W (max)
2015
2240
ALIGN TAB
WITH NOTCH
3230
3591
page 1 of 2
