www.hadco.com

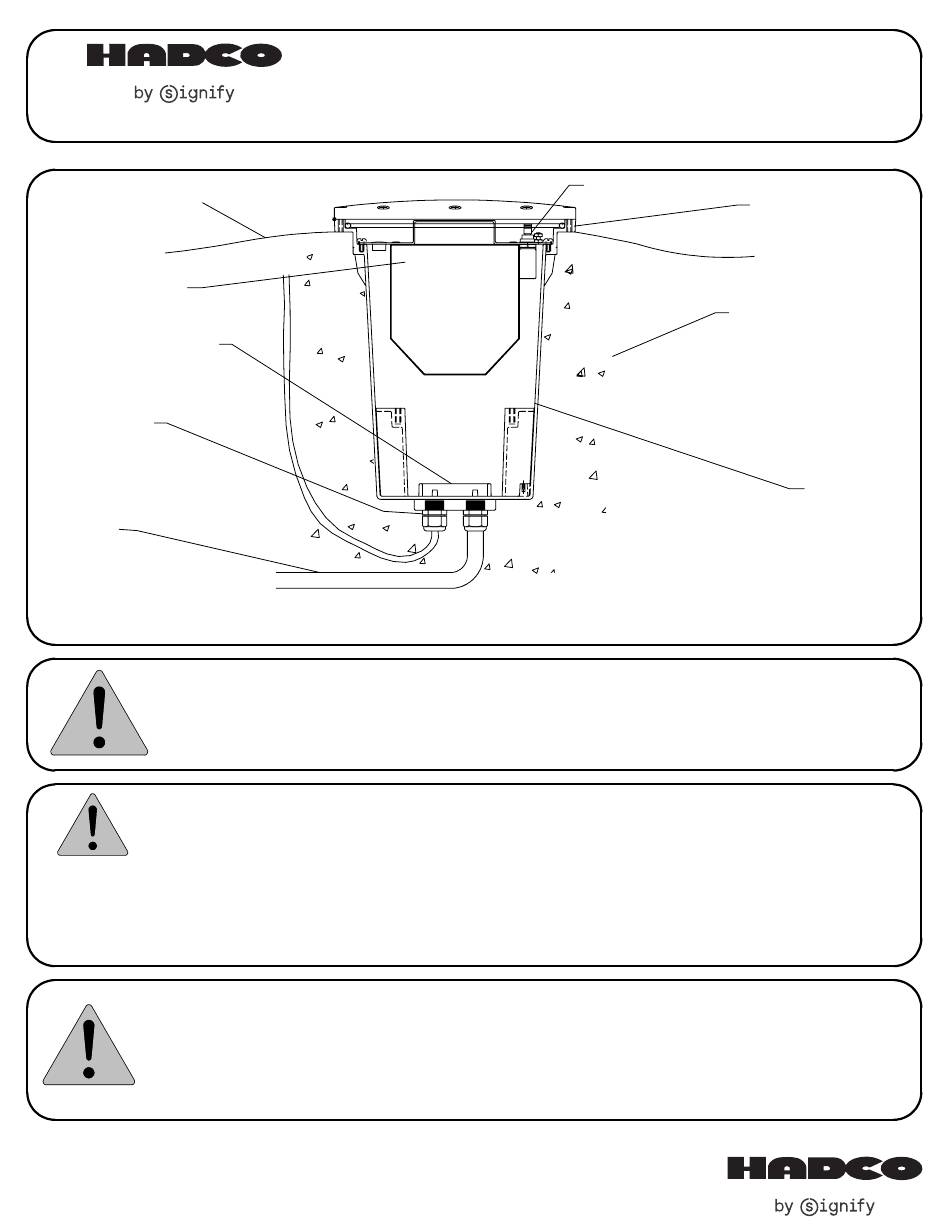

MOUND UP EARTH
AROUND HOUSING
FOR DRAINAGE
ENCAPSULATED
TRANSFORMER
CONDUIT ENTRY
AREAS MUST BE
POTTED
LIQUID TIGHT
CONNECTOR
(BY OTHERS)
12V OUTPUT
CONDUIT
(BY OTHERS)
120V INPUT
This fixture is intended for installation in accordance with the National Electrical Code and local code
specifications. Failure to adhere to these codes and instructions may result in serious injury and/or damage
to the ballast and void the warranty. These instructions do not purport to cover all details or variations in
equipment, nor to provide for every possible contingency related to installation, operation, maintenance,
or mounting situation. Should specific problems occur that are not addressed by these instructions, contact
your Sales Representative or distributor for assistance. Retain these instructions for future reference.
SAFETY WARNING:
ALWAYS TURN FIXTURE OFF/DISCONNECT POWER AND ALLOW TO COOL BEFORE
PERFORMING ANY MAINTENANCE, INCLUDING RELAMPING AND CLEANING!
This fixture can become very HOT! The fixture housing and lens, especially if it is glass, can become hot enough
to blister hands. Attention should be paid to where the fixture is mounted, particularly if it can be touched by
children or pets. To help prevent premature failure, decreased performance, overheating and risk of fire, keep
fixture and lens clean and free of leaves, mulch, debris and mineral deposits from water. The fixture and lens
can be cleaned using a soft cloth and a solution of mild liquid soap and warm water. Wipe clean and dry with a
soft, lint-free dry cloth. Avoid polishing fixture or lens.
INSTRUCTIONS PERTAINING TO A RISK OF FIRE OR INJURY TO PERSONS
IMPORTANT SAFETY INSTRUCTIONS - SAVE THESE INSTRUCTIONS!
WARNING - Lamp gets HOT quickly! To reduce the risk of FIRE OR INJURY TO PERSONS:
Do not operate fixture with a missing or damaged lens/lens assembly.
Contact only switch or plug when turning fixture on or off. Do NOT touch hot lens or housing.
Turn off or unplug fixture and allow to cool before relamping. Keep lamp away from combustibles.
Do NOT touch lamp with bare hands at any time, use a soft cloth as oil from skin may damage lamp.
Signify North America Corporation
200 Franklin Square Drive
Somerset, NJ 08873, USA
Phone: 855-486-2216
32000856, revision K
INSTALLATION INSTRUCTIONS:
INGROUND TRANSFORMER
Signify Canada Ldt./ Signify Canada Ltée
281 Hillmount Road
Markham ON, Canada L6C 2S3
Phone: 800-668-9008
BOXES
BREAKER SWITCH
HOUSING FLANGE
PLACE 3" OF GRAVEL
AROUND HOUSING FOR
DRAINAGE
HOUSING
page 1 of 3
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for SIGNIFY Hadco TBC303-15
Summary of Contents for SIGNIFY Hadco TBC303-15
- Page 1 Do NOT touch lamp with bare hands at any time, use a soft cloth as oil from skin may damage lamp. page 1 of 3 Signify North America Corporation Signify Canada Ldt./ Signify Canada Ltée 200 Franklin Square Drive 281 Hillmount Road...
- Page 2 EXCAVATION Excavate soil for housing placement and conduit runs. Contour the hole to the shape of the transformer housing, allowing 3" min. around and under the transformer housing for the placement of granular material. It is recommended that fixtures not be placed in low locations where water could accumulate and stand for long periods of time.
- Page 3 WIRING: TBC603-15/BTBC603-15 1. Remove packing material from inside housing. 2. Always be sure to turn power OFF when installing or servicing a transformer box. 3. Using a liquid tight connector (not included) in the open threaded hole in the bottom of the box, connect conduit (by others) containing incoming power to the box.
