SIGNIFY HADCO SL-43 Installation Instructions

Signify North America Corporation
200 Franklin Square Drive
Somerset, NJ 08873
Telephone 855-486-2216
Safety, Warnings and Suggestions
Care
1
should be taken not to position fixtures in locations where bare skin can come into contact with the potentially high
temperatures on the lens.
Avoid
2
installing fixtures in locations where water collects and stands for long periods.
Make
3
sure that electrical power is disconnected before any work in performed.
All
4
wiring and installation should meet local, state and national electrical codes. This will help prevent wire connector
corrosion due to water penetration from conduit.
Install
5
correct lamp type and wattage per lamp label.
All
6
gaskets and sealing surfaces must be kept clean during installation.
Check
7
that the inside of the housing is free of debris of any kind. This can obstruct the flow of air and
increase the temperature of the lens surface.
Check
8
that the gap between the lens ring and the casting is clear of any obtruction. Clean
if required. Debris can obstruct the flow of air and increase the temperature on the lens surface.
As
9
a rule of thumb, the higher the fixture is mounted above grade potential problems such as foliage over growth or
water, mud etc. collecting on lens are reduced.
If
10
condensation, built up during installation, is visible on the lens it is recommended that the fixture be turned on before
the lens ring is replaced on the fixture for approximately 30 minutes. This should allow the condensation to be exhausted.
1
8 3
6
4 7
2

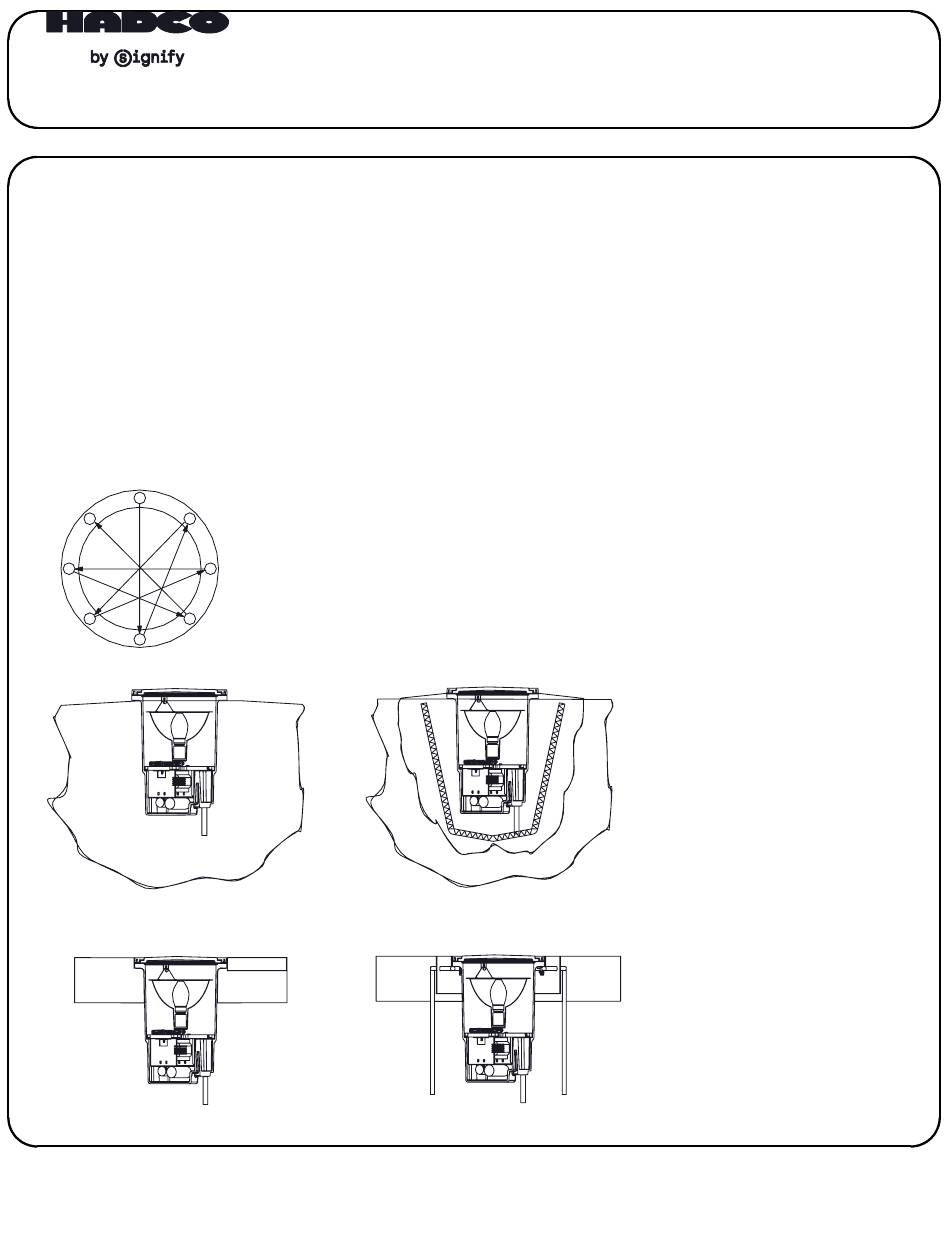

SL-43 In Soil
Concrete
SL-43 In Concrete with Trim Ring
32A41398, revision C
Signify Canada Ltd.
281 Hillmount Road,
Markham, ON, Canada L6C 2S3
Telephone 800-668-9008
Mount fixture as high above grade as
possible to prevent debris and water
Use several standing on fixture surface.
rotations of
the following Create an isolation barrier around
sequence to the fixture to prevent rocks and
5
tighten the foilage from interfering with light output.
lens ring socket
head cap screws Add drainage media below and around
to 50 in/lbs.
fixture to prevent standing water.
Paver/Marble
Use reinforcement
where necessary to
prevent concrete
cracking.
INSTALLATION INSTRUCTIONS:
SL-43 In Soil with Concrete Base
and Trim Ring
SL-43 In Concrete with Grout Mask
and Trim Ring
SL-43
1. Prepare the site with adequate
excavation to install fixtures.
Drainage media below fixture will
enhance installation.
2,3
2. Remove lens ring and lens with
gasket, reflector assembly and
4
"D" shaped splice box cover plate
and gasket.
3. Connect conduit to the 3/4" NPT
openings in the splice compartment
at the bottom of the fixture, using
the appropriate thread sealing
compound. Tighten to 15 ft-lbs. max.
4. Position fixture so it is flush or just
above the installation area grade
and orient the fixture with regard to
architectural requirements to obtain
the appropriate accent.
5. Make power and ground connections
using provided waterproff wire nuts.
It is recommended that RTV silicone or
other re-enterable water sealing
compound be used to seal the
conduit entry points.
7
6. Reinstall "D" shaped splice box cover
plate and gasket ensuring that all
(4) screws are securely tightened.
Reinstall reflector assembly, install
lamp and make aiming adjustments.
8
7. Install lens ring and lens with gasket
IMPORTANT! A CRISS CROSS PATTERN
IS REQUIRED TO ENSURE THAT A GOOD
COMPRESSION SEAL IS MADE.
If this is not accomplished, the fixture
could leak and be damaged.
Tighten socket head cap screws
gradually using multiple tightening
steps to 50 in/lbs.
1
5
4
4
page 1 of 2
