www.hadco.com
LOW VOLTAGE
CONNECTOR
[CONNECTEUR DE CABLE
A BASSE TENSION]
MOUND UP GROUND
[FORMER UN MONTICULE
AUTOUR LUMINAIRE,
NIVEAU DU SOL]
GRANULAR MATERIAL
[MATERIAU GRANULEUX]
LOW VOLTAGE CABLE
[CABLE A BASSE TENSION]
FIXTURE HOUSING
[BOITIER DU LUMINAIRE]
FACTORY SEALED
LIQUID-TIGHT CONDUIT FITTING
[ENROBE EN USINE
RACCORD DE CONDUIT ETANCHE]
This fixture is intended for installation in accordance with the National Electrical Code and local code
specifications. Failure to adhere to these codes and instructions may result in serious injury and/or damage
to the ballast and void the warranty. These instructions do not purport to cover all details or variations in
equipment, nor to provide for every possible contingency related to installation, operation, maintenance,
or mounting situation. Should specific problems occur that are not addressed by these instructions, contact
your Sales Representative or distributor for assistance. Retain these instructions for future reference.
INSTRUCTIONS PERTAINING TO A RISK OF FIRE OR INJURY TO PERSONS-IMPORTANT SAFETY INSTRUCTIONS
Lighted lamp is HOT! WARNING- To reduce the risk of FIRE OR INJURY TO PERSONS: Turn off/unplug and
allow to cool before replacing lamp. Lamp gets HOT quickly! Contact only switch/plug when turning on.
Do not touch hot lens, guard, or enclosure (see diagram/picture). Keep lamp away from materials that
may burn. Do not touch the lamp at any time. Use a soft cloth. Oil from skin may damage lamp. Do not
operate the luminaire fitting with a missing or damaged shield. SAVE THESE INSTRUCTIONS.
Xenon lamps do not require additional shielding.
Signify North America Corporation
200 Franklin Square Drive
Somerset, NJ 08873, USA
Phone: 855-486-2216
32000777, revision L
COVER LOCKING SCREW
[VIS DE FIXATION DU COUVERCLE]
Signify Canada Ldt./ Signify Canada Ltée
281 Hillmount Road
Markham ON, Canada L6C 2S3
Phone: 800-668-9008
INSTALLATION INSTRUCTIONS:

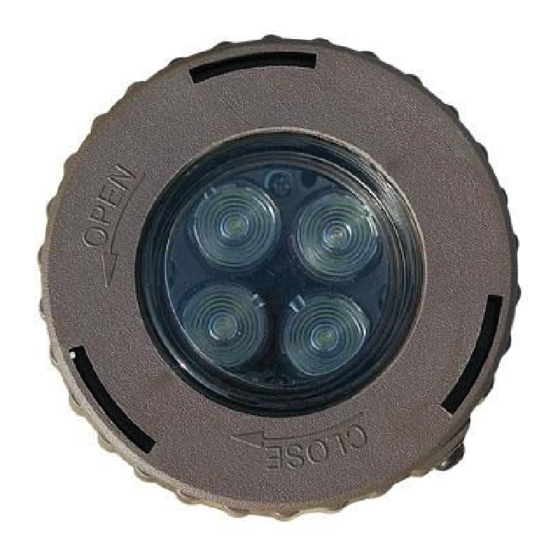

12V MICRO INGROUND
TWIST-LOCK FIXTURE COVER
[COUVERT "TWIST-LOCK"]
SILICONE GASKET
[JOINT EN SILICONE]
MR16 LAMP (BY OTHERS)
[MR16 LAMPE (NON
COMPRIS)]
BI-PIN TYPE SOCKET
[DOUILLE A DEUX BROCHES]
OPTIONAL ANCHORING
PROVISION, TAKES
#10-24 THREAD FORMING
SCREW (BY OTHERS)
[DISPOSITIFS D'ANCRAGE
OPTIONNELS A INSTALLER AU
MOYEN DE VIS AUTOTARAUDEUSES]
page 1 of 3
Advertisement
Related Manuals for SIGNIFY HADCO iUL516
Summary of Contents for SIGNIFY HADCO iUL516
- Page 1 SAVE THESE INSTRUCTIONS. Xenon lamps do not require additional shielding. page 1 of 3 Signify North America Corporation Signify Canada Ldt./ Signify Canada Ltée 200 Franklin Square Drive 281 Hillmount Road Somerset, NJ 08873, USA...
- Page 2 CAUTION! 1. To prevent electrical shock, always turn power OFF before installing or servicing this fixture. 2. DO NOT hold fixture by, or pull, the low voltage cable. If wire is pulled, it may break the liquid tight seal and void warranty.
- Page 3 LOW VOLTAGE CABLE CONNECTOR INSTRUCTIONS Low voltage cable connector to be used with 10 or 12 gauge supply cable and 18 gauge fixture cable. Philips recommends using SPT-3 water resistant (marked "WA", "W" or similar marking) supply cable such as our SCW500- 10/BSCW500-10 or our SCW100-12/BSCW100-12.
