Helmer ULT-GX Setup Manual

Helmer
Helmer Ultra-Low Temperature
ULT-GX Freezer
Freezer Set-Up Guide
Set-Up Guide
Required Tools
•
Ratchet
• 12" socket extension
• 9/16" socket
•
1/2" socket
•
1/2" open-end wrench
•
5/8" open-end wrench
NOTE: Two people will be required to remove the freezer from
the pallet.

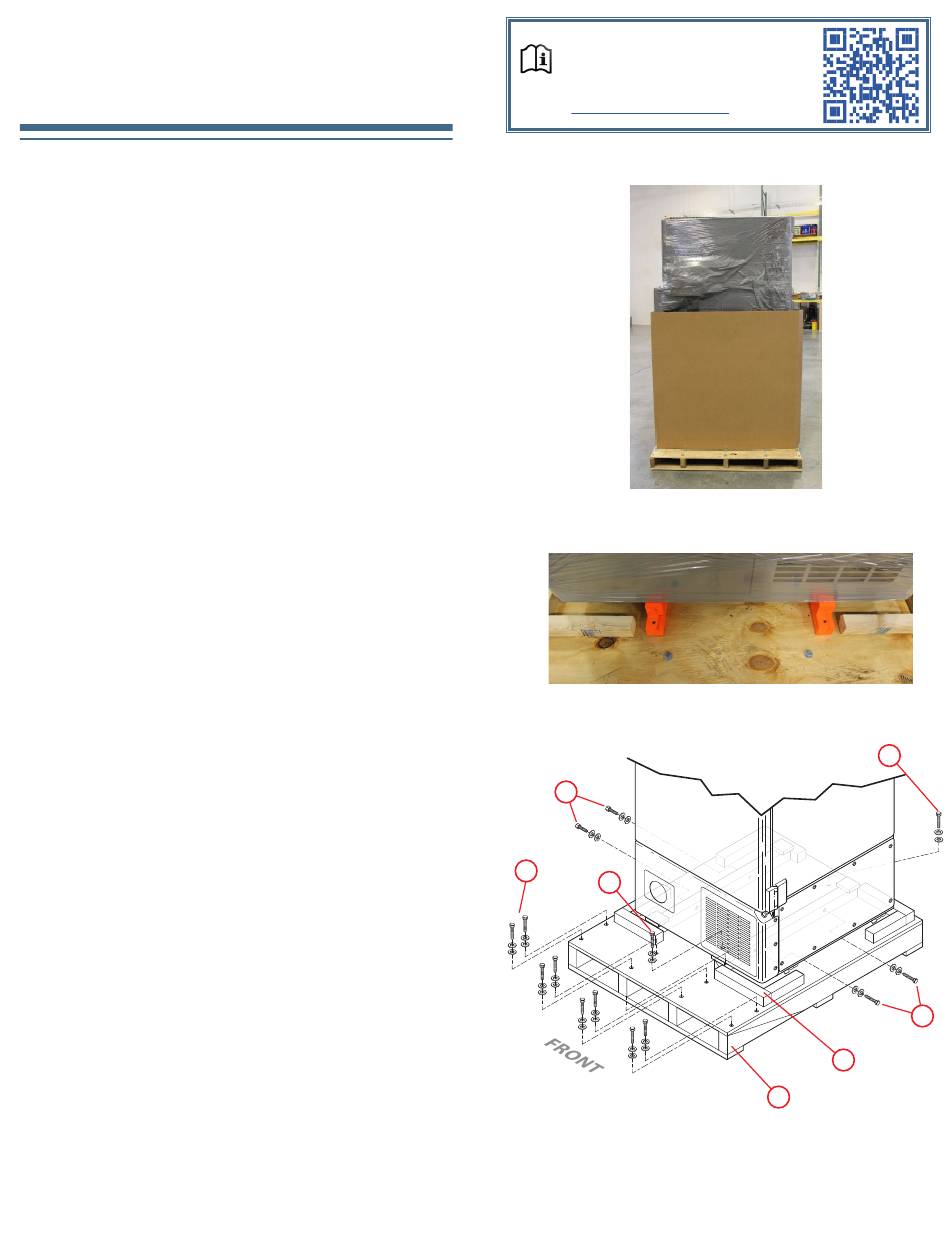

Remove Freezer from Pallet
1. Remove the cardboard, banding, and packaging materials.
2. Locate the tape securing a thin nylon block at the lower left
corner of the door. Remove the tape and block. Removal of
the block may require opening the door.
3. If present, remove the (2) front and (2) rear orange blocks
from the skid using a #2 Phillips screwdriver.
4. Using a #2 Phillips screwdriver, remove the screws securing
the panel at the bottom rear of the unit. Set the panel and
screws aside.
5. Using a ratchet, 9/16" socket, and 12" extension, remove
the (6) hex bolts under the freezer (A). The freezer will shift
slightly and the weight of the freezer will rest on the casters.
6. Remove (1) hex bolt from the bottom of the refrigeration
compartment in the back of the freezer (B).
7. Remove the condenser grill cover from the front of the
freezer.
8. Remove (1) hex bolt from bottom of condenser filter
compartment (C).
9. Remove the blocks at the front of the pallet (D). A pry bar
may be necessary to remove the blocks from the pallet.
CAUTION: While one person removes the wedges, a second
person should hold the freezer to prevent it from
tipping and rolling off until the person removing the
wedges is clear of the area in front of the freezer.
Ensure no people or obstructions are next to the
pallet where the freezer will roll off of the pallet.
10. Using a ratchet and 9/16" socket, remove the (8) hex bolts
securing the wedges to the bottom of the pallet (E).
11. Remove the wedges from under the pallet (F). A hammer
may be necessary to remove the wedges.
12. Using two people, push the freezer toward the front of the
pallet. The freezer and pallet will pivot and the freezer will
roll off of the pallet.
• 9/16" open-end wrench
• Utility knife
• Pry bar
• Hammer
• #2 Phillips screwdriver
• Bubble level
For product registration and complete
instructions, refer to current manuals
available at
info.helmerinc.com/manuals
Exterior packaging
Orange blocks
A
E
x8
C
Roll-off pallet
B
A
D
F
360451/A
page 1
