jablotron JA-156E Manual

The JA-156E / JA-156E-AN / JA-156E-GR
Wireless touchscreen keypad with reader RFID
Type: 5KPAD2204RN
The keypad is a wireless component of the JABLOTRON system
and is designed to be operated by touch. The keypad must be
installed by a trained technician with a valid Jablotron certificate
issued by an authorised distributor. This product is compatible
with JA-103K and JA-107K control panels.
This manual must be used together with the installation and
user manual of the JABLOTRON control panel system.

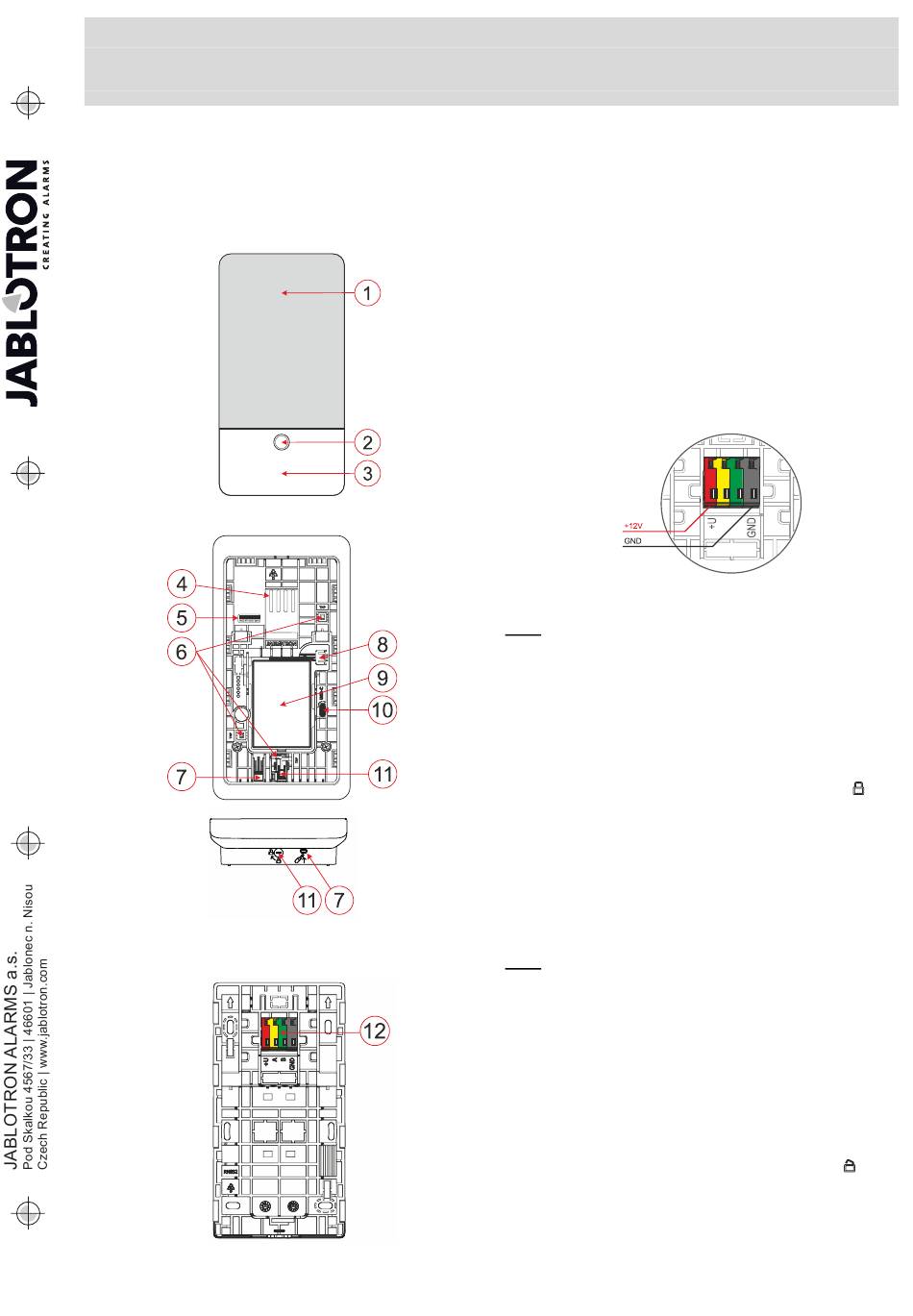

The keypad components are shown in the following figures:
Figure 1 – front part: 1 – touchscreen; 2 – button/system indicator;
3 – RFID reader – reading area;
Figure 2 – internal part: 4 – connection points of the terminal; 5 – serial
number; 6 – tamper contacts; 7 – rear part tab; 8 – connector for the backup
battery connection; 9 – backup battery; 10 – USB-C connector; 11 – locking
mechanism;
Figure 3 – mounting pad: 12 – terminal
JA-156E / JA-156E-AN / JA-156E-GR
1. Remove the mounting pad (Fig. 3) of the keypad. If it cannot be
removed easily, open the locking mechanism, see chapter "Keypad
disassembly".
2. In the mounting pad, break out the blank of appropriate slot, pull
the power cable through, and then screw the mounting pad of
the keypad to the designated place, preferably on a solid base
(wall). Select the installation height of the keypad with respect to
the height of the users. The ideal height for good readability and
control is at eye level. It is not recommended to mount at a height
consistent with electrical switches (100-110 cm).
3. Insert the backup battery (9) to the keypad and plug it to an
appropriate connector (8), recommended type BAT-3V7-2500,
see "Technical specifications".
4. Connect the individual wires of the power cable to the terminal
(12) as follows:
a) Using a flat screwdriver to press upper side of the terminal.
b) Put a stripped wire into the appropriate terminal.
c) Release the terminal.
d) Test if the wire is correctly fixed with a gentle pull.
+U – red; positive power supply pole
GND – black; negative power supply pole
Notes:
− Connect only straight, stripped wires to the terminals (their ends
only).
− Mind the correct polarity of the wires!
− Recommended power supplies DE06-12 or LT-089.07.
− The length of the connecting cable should not exceed 3 m.
5. First, attach the bottom edge of the keypad to the mounting pad
(align the bottom sides) and slide in downwards until you hear the
click of the tab (7). This will secure the keypad against falling out of
the mounting pad. Then turn the locking mechanism (11) clockwise
90° to the position where the groove points to the symbol
locks the keypad in place and engages the tamper contact.
6. There must a radio module JA-11xR installed in the system.
7. Power the keypad on.
8. Enrol the keypad to the system according to the type of control
panel, use the recommended software or application, see the
installation manual of the control panel.
9. The keypad downloads texts and control panel configuration
after being enrolled to the system, the process is indicated by
the Jablotron logo and three dots. This process can take up to
several minutes.
Notes:
− Enrolment is possible by entering the serial number (5) in the
F-Link software or appropriate application. All numbers stated
under the bar code must be entered (1400-00-0000-0001).
− Another enrolment option is by the powering the keypad
on - plugging in the backup battery (9), or by pressing the
button (2).
− The keypad must be permanently powered from the +12V/1A
power supply, the battery serves as a backup to overcome short-
term power failure, the maximum backup time is about 48 hours.
Keypad disassembly
On the underside of the keypad, turn the locking mechanism (11)
counterclockwise 90° until the groove points to the symbol
the flat screwdriver into the tab hole (7) (push the screwdriver
towards the wall) while sliding the keypad upwards. The keypad can
then be easily removed from the mounting pad.
Authorisation – can be done by entering a valid access code on
the virtual keypad or by applying the access card / chip. Authorization
will terminate itself after 15 seconds from the last detected touch on
the screen, or immediately by pressing the button (2), or it can be
