ANTAIRA LMP-0602-V2 Series Quick Installation Manual

Antaira Technologies

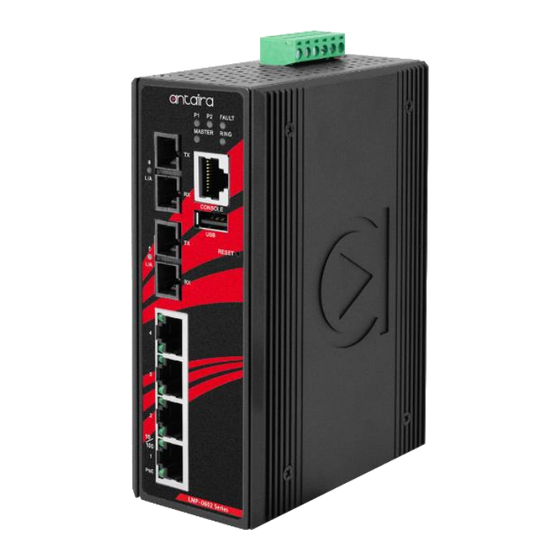

LMP-0602-XX-V2 Series
6-Port Industrial PoE+ Managed Ethernet Switch,
w/4*10/100Tx (30W/Port) and 2*100Fx, 48~55VDC Power Input;
Version 2 Hardware
Quick Installation Guide
Version 1.1
(June 2021)
Tel: 1-844-268-2472
Fax: 1-714-671-9944
www.antaira.com
Package Check List
The package contains the following items:
⚫ 1 – Quick installation guide
⚫ 1 – LMP-0602-XX-V2 Series
⚫ 1 – Wall mounting bracket set with screws
⚫ 1 – RJ45 to DB9 Serial Console cable
⚫ 1 – DC cable –18 AWG & DC jack 5.5 x 2.1mm
⚫ 1 – Dust cover set

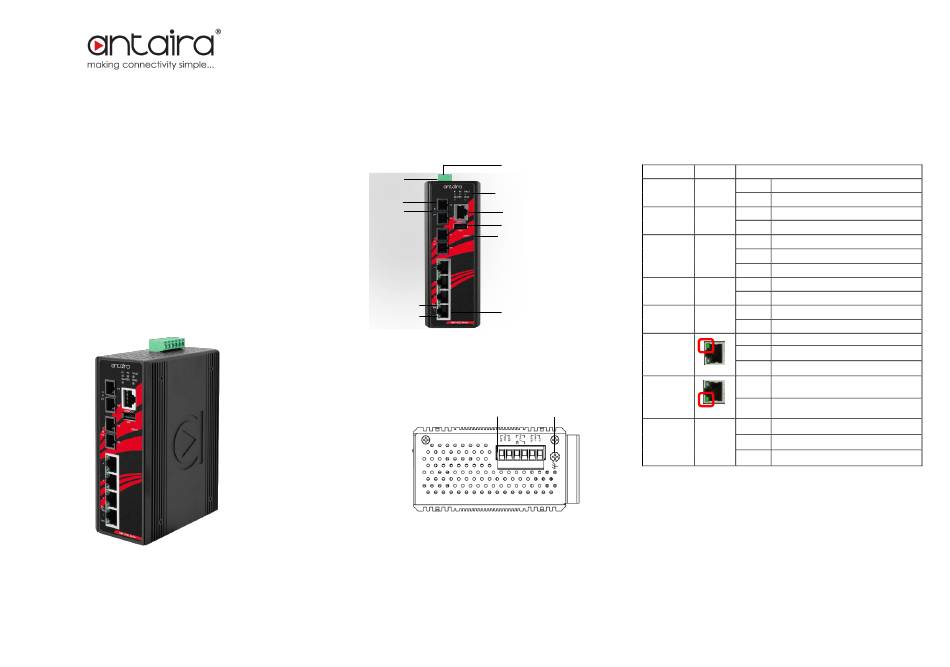

Front Panel Layout
Grounding Screw
Fiber Port #5~6 – 100Fx
Fiber Port #5~6 – LED for
Fiber Link/Activity Status
LAN# 1~4 LED for Link/Activity Status
10/100Mbps
LAN# 1~4 LED for PoE Status
Top Panel View
LMP-0602-XX-V2 series top panel is equipped with one 6-pin
removal terminal block connector for dual DC power inputs
(48~55VDC).
6-Pin Removal Terminal Block (Power Input)
Product Overview
System Interface/Performance

All RJ45 ports support the auto MDI/MDI-X function

Ethernet connectivity 4*10/100Tx (PSE: 30W/Port) RJ45
ports and 2*100Fx (SC/ST) fiber ports with multi-mode
(2km) or single-mode (30km)

Store-and-forward switching architecture

8K MAC address table
19020000000086
Power Input & Connection

DC 48 to 55V redundant power, with a 6-pin removal
terminal block

It is recommended to use a UL listed industrial power supply
Operating Temperature

Standard operating temperature model: -10°C to 70°C

Extended operating temperature model: -40°C to 75°C
Case/Installation

IP30 protection

DIN-Rail and wall mount design
LED Indicators
6-Pin Removal Terminal Block (Power Input)
LED
Power 1
LED for Power 1, Power 2, Fault, Master,
and Ring
Console Port
Power 2
USB for Configuration Back-up
Reset Button
Fault
Master
LAN# 1~4 – 10/100Tx RJ45
Ring
LAN Port 1~4
(Upper LED)
LAN Port 1~4
(Lower LED)
Grounding Screw
Fiber Port 5~6
LINK/ACT
Color Description
On Power input 1 is active
Green
Off Power input 1 is inactive
On Power input 2 is active
Green
Off Power input 2 is inactive
Green Preconfigured alarms are not detecting failure
Green/Red Red Preconfigured alarms are detecting failure
Off Switch is in the process of booting
On ERPS Owner Mode (Ring Master) is ready
Green
Off ERPS Owner Mode is not active
On Ring Network is active
Green
Off Ring Network is not active
On Connected to network, 10/100Mbps
Flashing Networking is active
Green
Off Not connected to network
On The port is supplying power to the powered-device
Off No powered-device attached or power supplying fails
Green
On Connected to network, 100Mbps
Green Flashing Networking is active
Off Not connected to network
