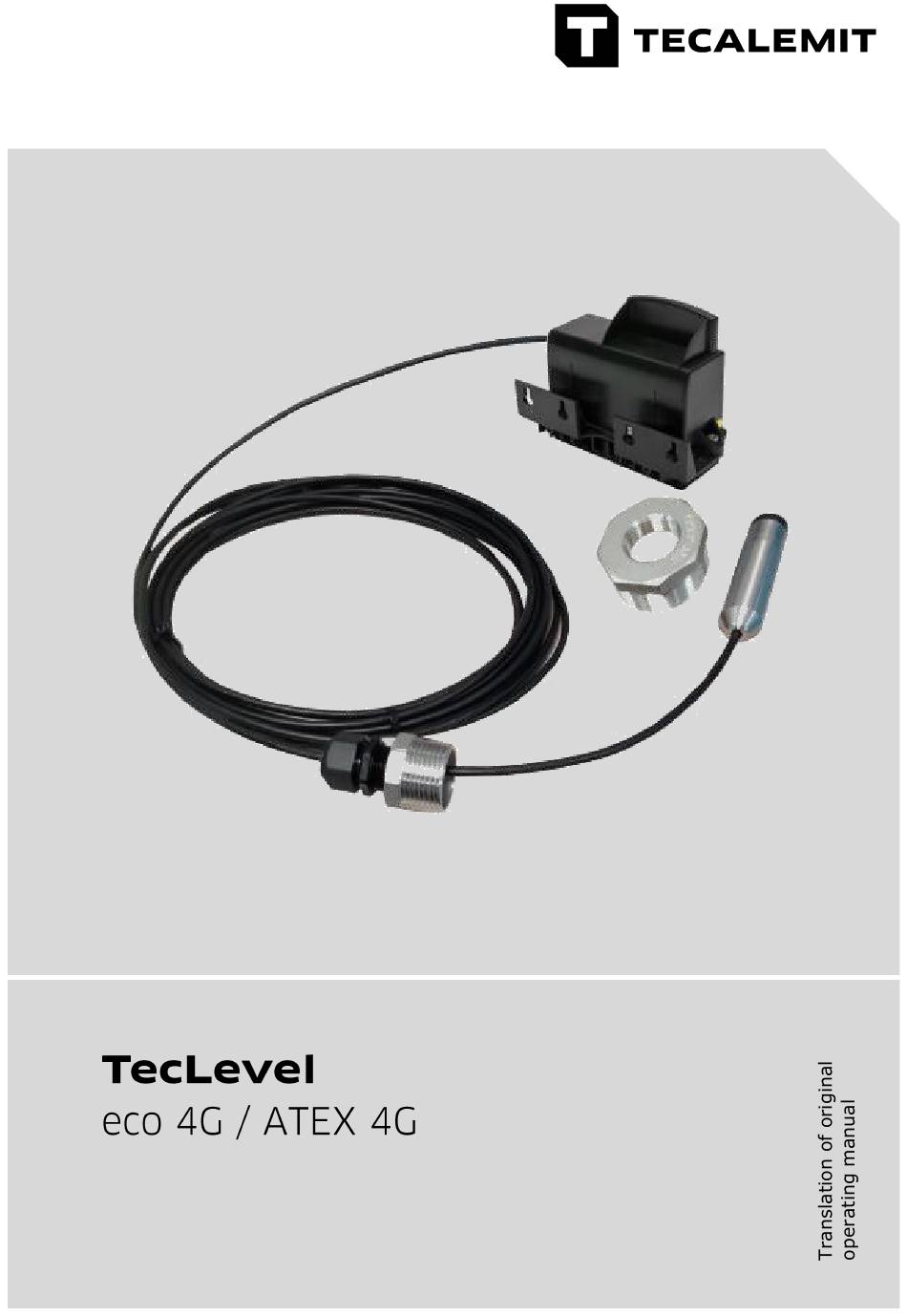

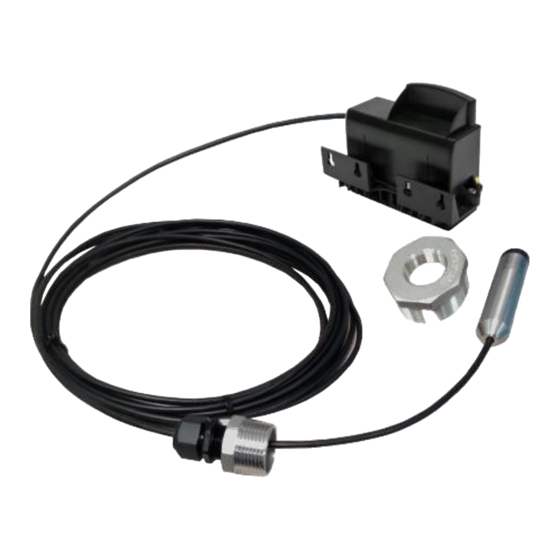

- Page 1 Fig. 225810100 Operating manual Item no.: 225810100, 225810200...
- Page 2 Copyright © TECALEMIT GmbH & Co. KG - All rights reserved. Text, graphics and layout copyright protected. Reproduction and copying, including in part, only permitted with written permission. Technical changes reserved.
-
Page 3: Table Of Contents
Safety instructions ................4 Technical description ................6 2.1 Description / Intended use .............. 6 2.2 Supplementary information for TecLevel eco 4G ......... 6 2.3 Supplementary information for TecLevel ATEX 4G....... 6 2.4 Versions ..................6 2.5 Technical specifications ..............7 2.6 Dimensional drawing .............. -
Page 4: Safety Instructions
Safety instructions This device was manufactured taking into account the relevant laws and directives for ensuring security as well as the protection of the environment and health. Despite this, its use may result in hazards for persons and material assets. Hence, it is essential that the instructions in this manual are complied with. - Page 5 Maintenance and Service Work on electrical equipment is only to be performed by qualified electricians. De- energize the machine and system components before performing any work on the device. The insulation on all live parts is to be inspected regularly for damage Explosion protection The device has been constructed for use with potentially explosive substances.
-
Page 6: Technical Description
Oil and waste oil, lubricants, coolants, and additives. Fuels with a flash point above 55°C (e.g. diesel fuel). 2.2 Supplementary information for TecLevel eco 4G This device has no explosion protection. It must not be set up in an area subject to a potentially explosive atmosphere. -
Page 7: Technical Specifications
2.5 Technical specifications Dimensions (WxHxD) 130 x 125 x 90 mm Connecting cable 5 m (16,4 ft) Drum thread 1“ or 2“ Immersion depth max. 0,3 bar (3 m water) Temperature of medium -20°C to +80°C (-4°C to 176°F) Temperature range — Operation -30°C to +55°C (-22°F to 131°F) Temperature range —... -
Page 8: Installation
Installation 3.1 Pressure transducer The pressure transducer should be fitted into the tank, and vertically suspended as shown in the diagram below. It is designed to enable the fitter to seal the inlet point of the sensor so that it is watertight. The standard cable is 5 m (16.4 ft) long, and this should be taken into account for the desired installation position of the TecLevel with tanks that are nearly 5 m (16.4 ft) in height. - Page 9 TecLevel 1/2" NPT on 1" NPT adapter Option 1 1" NPT on 2" NPT adapter Option 2 Tank opening with 1" thread Earthing point with equipotential Tank opening with 2" thread bonding Pressure sensor cable Tank Strain relief: Cable gland: ½" Pressure transducer The pressure sensor cable should be unwound and straightened before it is inserted into the tank.
-
Page 10: Teclevel
necessary, a fixed offset of 50 mm can be included in determining the fluid level of the tank. The cable gland with strain relief ensures that the cable remains fixed in position. Tighten to approx. 1.8 Nm. PTFE tape can be used for sealing the NPT adapter. We recommend removing the protective cap from the pressure transducer whenever it is used in diesel fuels or lubricants, which tend to become viscous at low temperatures. - Page 11 The sensor cable should be installed so that it points downward. Vent plug. Ensure that it does not become clogged; otherwise, this could result in a measurement error. A connection to the ground of the tank or to another suitable earthing point is recommended.
-
Page 12: Commissioning
Commissioning Hold the supplied magnet against the specified hotspot. Four brief beeps will sound at one second intervals followed by a long beep to indicate that the device has been activated and is attempting to establish a connection to the network. -
Page 13: Login
You can start with the 14-day trial version of the level module. For permanent activation please contact: Ingo Fischer, Tel.: +49 (0)461-8696-23, E-Mail: ingo.fischer@tecalemit.de Steffen Klatt, Tel.: +49 (0)461-8696-24, E-Mail: steffen.klatt@tecalemit.de Once your company has been activated, you can add a new device. - Page 14 You can then save the data or even configure the tank right away and then save the data.
-
Page 15: Maintenance
The device is ready for use now. Maintenance... -
Page 16: Battery Change
6.1 Battery change Remove the sticker from the underside of the device. Undo the 2 screws and remove them. Separate the upper plastic part from the lower plastic part. Remove the existing battery and replace it with a new battery. Ensure that the battery connection is correctly wired and inserted in the pin strip of the circuit board. -
Page 17: Disposal
If necessary, remove the old O-ring and replace it with a new O-ring. O-ring: 82.5 x 2.2 silicone (30 Shore) Ensure that the O-ring is correctly fitted. Connect the upper plastic part with the lower plastic part and fasten with 2 HEX screws with a tightening torque of 2 Nm. -
Page 18: Disposal Of Batteries
1. “Cd” stands for cadmium. 2. “Pb” stands for lead. 3. “Hg” stands for mercury. Konformitätserkl ärung Declaration of Conformity 8.1 TecLevel eco 4G We herewith declare that the construction type Type: TecLevel eco 4G Designation: Level measurement device... -
Page 19: Teclevel Atex 4G
8.2 TecLevel ATEX 4G We herewith declare that the construction type Type: TecLevel ATEX 4G Designation: Level measurement device Item number: 225810200 in the form as delivered by us complies with the following applicable regulations: – Radio Equipment Directive 2014/53/EU –... - Page 20 TECALEMIT GmbH & Co. KG Munketoft 42 24937 Flensburg Germany T +49 461-8696-0 F +49 461-8696-66 www.tecalemit.de info@tecalemit.de...
