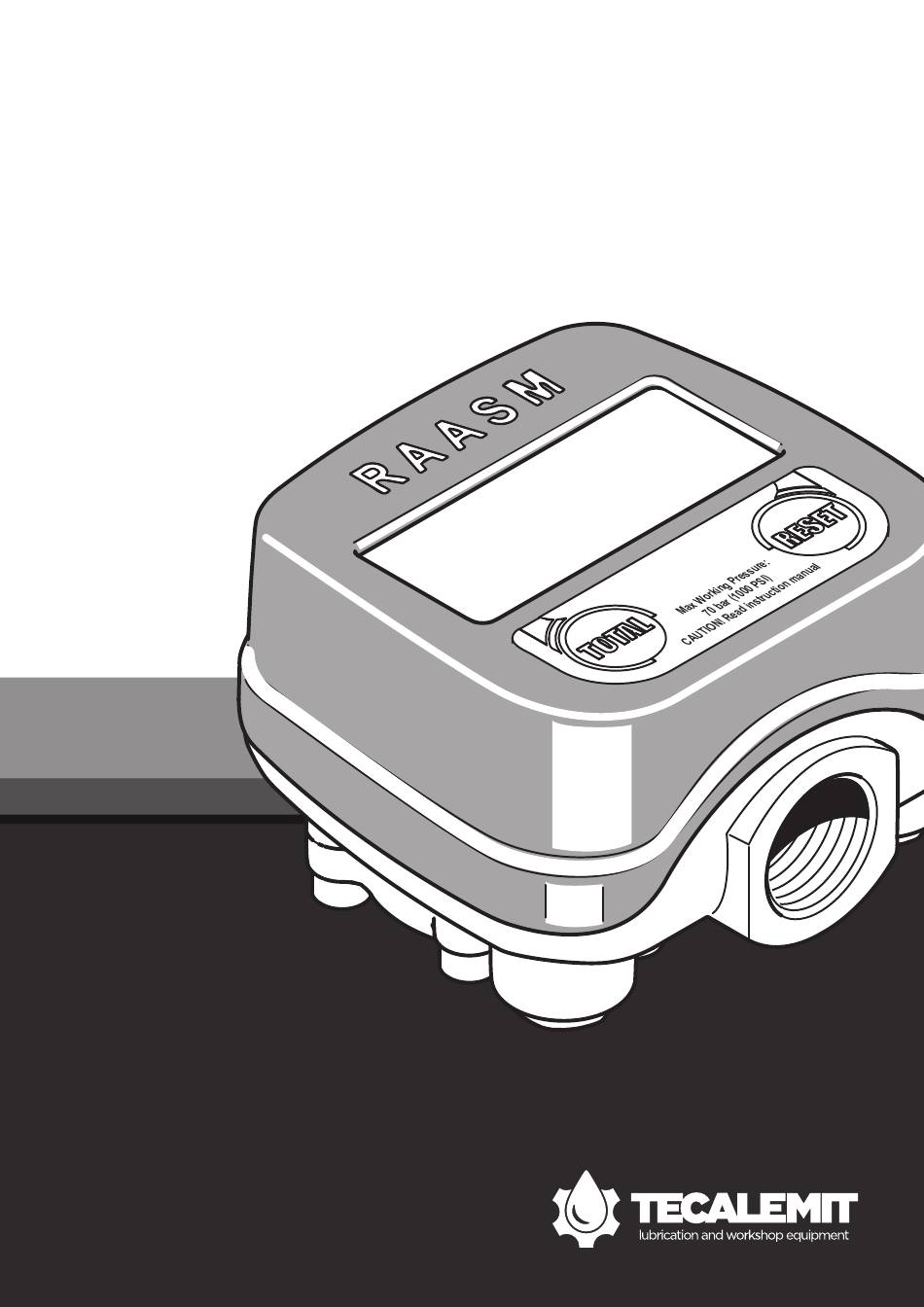

- Page 1 Calibration Guide 37780 RAASM Digital Meter tecalemit.com.au...
- Page 2 Calibration Instruction Guide Digital Display Partial register (5 digits with floating point) that indicates the volume delivered the last time the RESET button was pressed Total register Indication of the multiplication factor (x10, x100, x1000) Indication of the type of total (TOTAL / TOTAL RESET) Unit of measure of partial register (Litres, Gallons, Pints, Quarts) Unit of measure of total register TOTAL and TOTAL RESET Battery icon...
- Page 3 Calibration Instruction Guide To re-calibrate the RAASM Digital Meter please follow the steps outlined below. Step 1 Ensure the digital meter display is on the ‘Stand by Screen’ Step 1 Step 2 Press the ‘RESET’ and ‘TOTAL’ buttons at the same time for 3 seconds until you see the ‘Unit of Measure’...
- Page 4 Calibration Instruction Guide Step 3 Press the ‘RESET’ until the desired unit of measure is displayed, then press and hold the ‘TOTAL’ button to save and enter the ‘Decimal Places’ screen shown in Step 4. Step 3 Step 4 Press the ‘RESET’ until the desired number of decimal places are displayed, then press and hold the ‘TOTAL’...
- Page 5 Calibration Instruction Guide Step 5 Press the ‘RESET’ until the desired choice for Flow Direction is displayed, then press and hold the ‘TOTAL’ button to save and enter the ‘Calibration’ screen is shown in Step 6. Step 5 Step 6 Dispense a physically measured quantity of oil into a graduated jug, greater than 3 Litres –...
- Page 6 Tecalemit PTY Limited Customer Care. Tecalemit Pty Limited reserves the right to change specifications, modify designs and discontinue items without incurring obligation and whilst 2B Cardiff Court Cavan, Phone: 1800 685 577 every effort is made to ensure that descriptions, specifications and other Fax: 1800 685 533 South Australia 5094.
