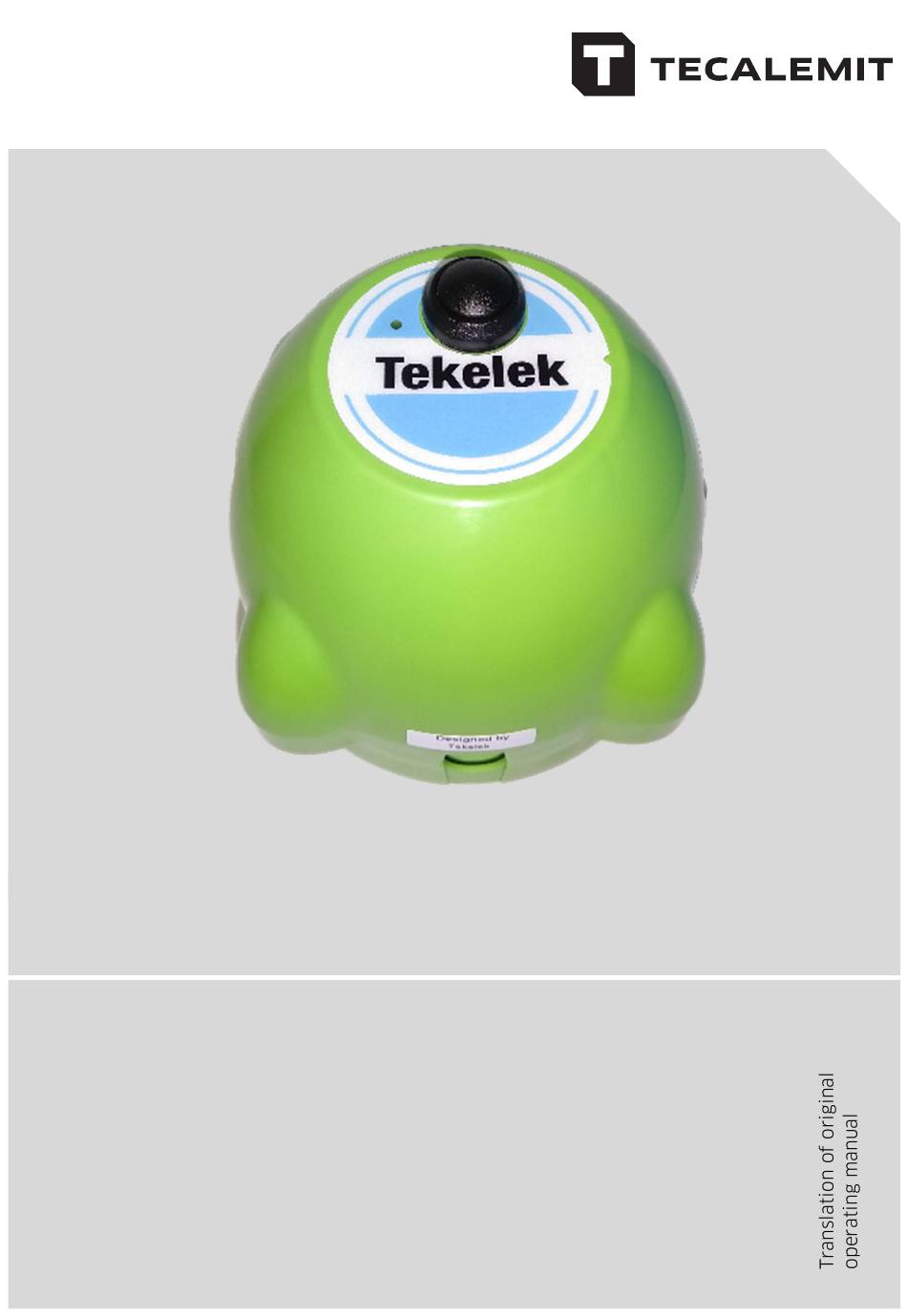

- Page 1 Fig. 225800100 Operating manual TecSonic Wi-Fi Art.-Nr.: 225800100...
- Page 2 (€0.14/min: when calling from a German land line, max. €0.42/min when calling from a mobile phone) service@tecalemit.de Document no.: 44 1756 002 GB-C Translation of document no.: 44 1756 002 DE-D Last update: 2021-05-10 44 1756 002 GB-C TecSonic Wi-Fi...
-
Page 3: Table Of Contents
3.2 LED Error Flash Codes ....................8 Installation ........................9 Login ..........................10 Disposal ........................12 6.1 Disposing of the device ................... 12 6.2 Disposal of batteries ....................12 Declaration of Conformity ..................13 44 1756 002 GB-C TecSonic Wi-Fi... -
Page 4: Safety Instructions
The device has been constructed for use with water contaminants. It is to be operated such that bodies of water cannot be polluted by it. All applicable regulations at the place of operation are to be complied with! 44 1756 002 GB-C TecSonic Wi-Fi... -
Page 5: Technical Description

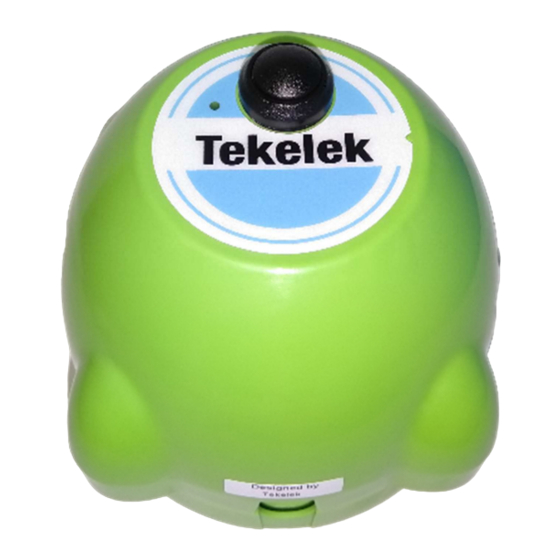

Technical description 2.1 Description / intended use The TecSonic ultrasonic sensor which uses ultrasonic technology to measure the liquid level of your tank and then communicates this data to a remote server. 2.2 Product variants Item no. Type 225800100 TesSonic mobile Wi-Fi... -
Page 6: Technical Data
WiFi coverage such that no repeat attempts are required, and a normal distribution over the operating temperature range, centered at +25°C. 2.4 Batterie The battery can be replaced without tools after opening the housing. 44 1756 002 GB-C TecSonic Wi-Fi... -
Page 7: Activation
Open a web page browser and enter 192.168.4.1 into the address bar. On the displayed page you can now select the WLAN network for the TecSonic device. Enter the Wi-Fi password and click on the “Connect to WIFI” button. The LED on the sensor will turn green. Wait approximately 20 seconds and observe if the LED flashes green or red several times. -
Page 8: Led Error Flash Codes
Firmware download failed (timed out, not found or wrong type) X 8 Flashes Low battery (a depleted battery will eventually prevent Wi- Fi connections) X 9 Flashes No response from Wi-Fi module (critical fault) 44 1756 002 GB-C TecSonic Wi-Fi... -
Page 9: Installation
• Screw the sensor into the adaptor. Ensure that the sensor is vertical on the tank and screwed correctly into the base and that the threads have not crossed, to give a secure seal. 44 1756 002 GB-C TecSonic Wi-Fi... -
Page 10: Login
Master data – Level sensors. In this menu, enter a description and select the type "TecSonic WiFi". In the next step, enter the 5-digit serial number (under the barcode on the device). You can omit the leading zeros. - Page 11 The device is now ready for use. 44 1756 002 GB-C TecSonic Wi-Fi...
-
Page 12: Disposal
"Hg" stands for mercury Lithium batteries and battery packs must be fully discharged before being brought to a return point. Otherwise, precautions against short circuits must be taken, e.g. by insulating the terminals with adhesive tape. 44 1756 002 GB-C TecSonic Wi-Fi... -
Page 13: Declaration Of Conformity
Declaration of Conformity 44 1756 002 GB-C TecSonic Wi-Fi... - Page 14 44 1756 002 GB-C TecSonic Wi-Fi...
- Page 15 44 1756 002 GB-C TecSonic Wi-Fi...
- Page 16 HORN GmbH & Co. KG Munketoft 42 24937 Flensburg Germany T +49 461-8696-0 F +49 461-8696-66 www.tecalemit.de info@tecalemit.de 44 1756 002 GB-C TecSonic Wi-Fi...
