- Page 1 Fig. 225800200 Operating manual Item no.: 225800200, 225800400...
- Page 2 Copyright © TECALEMIT GmbH & Co. KG - All rights reserved. Text, graphics and layout copyright protected. Reproduction and copying, including in part, only permitted with written permission. Technical changes reserved.
-
Page 3: Table Of Contents
Contents Safety instructions ................4 Technical description ................5 2.1 Description / Intended use .............. 5 2.2 Versions ..................5 2.3 Technical specifications ..............5 2.3.1 Wireless frequency G2 ............5 2.3.2 Wireless frequency G4 ............5 2.4 Battery change ................6 2.5 Accessories .................. -
Page 4: Safety Instructions
Safety instructions This device was manufactured taking into account the relevant laws and directives for ensuring security as well as the protection of the environment and health. Despite this, its use may result in hazards for persons and material assets. Hence, it is essential that the instructions in this manual are complied with. -
Page 5: Technical Description

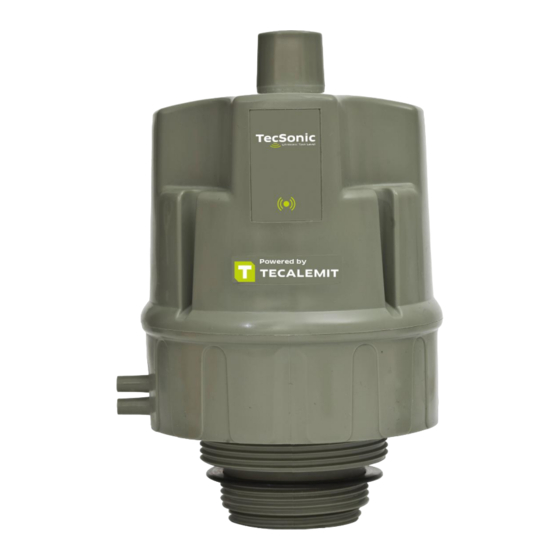

Tec hni Technical description 2.1 Description / Intended use The TecSonic ultrasonic sensor which uses ultrasonic technology to measure the liquid level of your tank and then communicates this data to a remote server. 2.2 Versions Item no. Type 225800200 TesSonic mobile 2G/GPRS 225800400 TecSonic mobile 4G/LTE... -
Page 6: Battery Change
2.4 Battery change The battery can be replaced without tools after opening the housing. 2.5 Accessories Item no. Name 225800020 Waveguide pipe TecSonic 2m (Armored conduit DN32 and 2 grub screws ISO 4027 M3x4) 225800020 Waveguide pipe TecSonic 3m (Armored conduit DN32 and 2 grub screws ISO 4027 M3x4) 225800050 Combi vent cap 2"... -
Page 7: Activation
Activation 3.1 2G/GPRS To activate the sensor, hold the supplied magnet to the hot spot, a beep will be heard to indicate correct placement of magnet. Hot Spot Keep the magnet held to the hot spot until a second beep is heard, remove magnet from hot spot once this has been achieved. -
Page 8: Installation
Installation The Ultrasonic GSM works in conjunction with the myTecalemit server. The following outlines the sensor mounting options. The sensor must sit in a vertical position on top of the tank and be fitted such that the sensor has a clear path to the tank contents. Position it so that there are no internal obstructions that may interfere with the ultrasonic signal. -
Page 9: Login
You can start with the 14-day trial version of the level module. For permanent activation please contact: Ingo Fischer, Tel.: +49 (0)461-8696-23, E-Mail: ingo.fischer@tecalemit.de Steffen Klatt, Tel.: +49 (0)461-8696-24, E-Mail: steffen.klatt@tecalemit.de Once your company has been activated, you can add a new device. - Page 10 The device is now ready for use.
-
Page 11: Beep Patterns
Beep Patterns Beep Pattern Definition Low beep once per second Network Registration High beep once per second TCP connecting Low beep once every 4 seconds Network / TCP Listen Low beep once every 2 seconds Re-establish Network / TCP High / Low combination beep Incoming Data Low / High combination beep Outgoing Data... -
Page 12: Disposal
Disposal 7.1 Disposing of the device Upon being decommissioned, the device is to be completely emptied and the fluid(s) disposed of properly. Upon being taken out of service permanently, the device is to be dismantled by specialist personnel and disposed of properly: - Dispose of used metal parts at a recycling facility for metal. -
Page 13: Declaration Of Conformity
Konformitätserkl ärung Declaration of Conformity We herewith declare that the construction type Type: TecSonic Designation: Ultrasonic sensor Item number: 225800100, 225800200, 225800400 in the form as delivered by us complies with the following applicable regulations: – EMC directive 2014/30/EU – RoHS-Directive 2011/65/EU –... - Page 14 The waveguide pipe should be securely attached via the two grub screws and hand tightened with an M1.5 Allen key (Note: over-tightening the grub screws can damage the plastic). Care should be taken to keep the sensor and pipe vertically aligned and supported, while fitting during the installation.
