INSTRUCTIONS

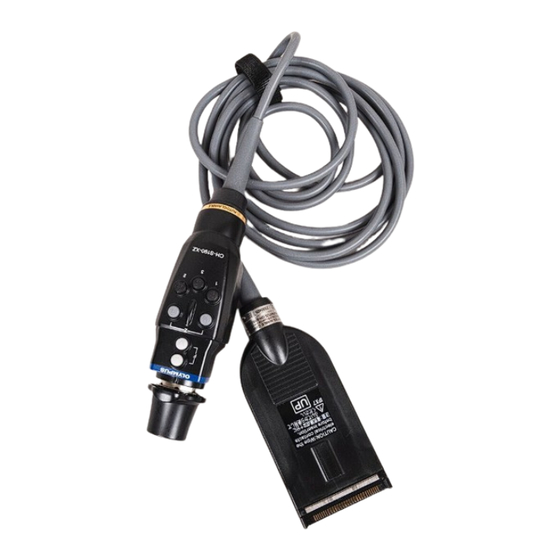

HD AUTOCLAVABLE CAMERA HEAD
OLYMPUS CH-S190-XZ-E
OLYMPUS CH-S190-XZ-Q
Refer to the camera head's companion manual, the "REPROCESSING MANUAL" with your
camera head model listed on the cover, for reprocessing information.
USA: CAUTION: Federal law restricts this device to sale by or on the order of a physician.
OPERATION MANUAL
Labels and Symbols
Important Information — Please Read Before
Use
Chapter 1
Checking the Package Contents
Chapter 2
Instrument Nomenclature and
Functions
Chapter 3
Preparation and Inspection
Chapter 4
Operation
Chapter 5
Troubleshooting
Appendix
1
3
11
13
17
31
39
43
