101160 August 2, 2010
Detex Corporation, 302 Detex Drive, New Braunfels, Texas 78130-3045
(830)629-2900 / 1-800-729-3839 / Fax (830)620-6711
E-MAIL: detex@detex.com
INTERNET: www.detex.com

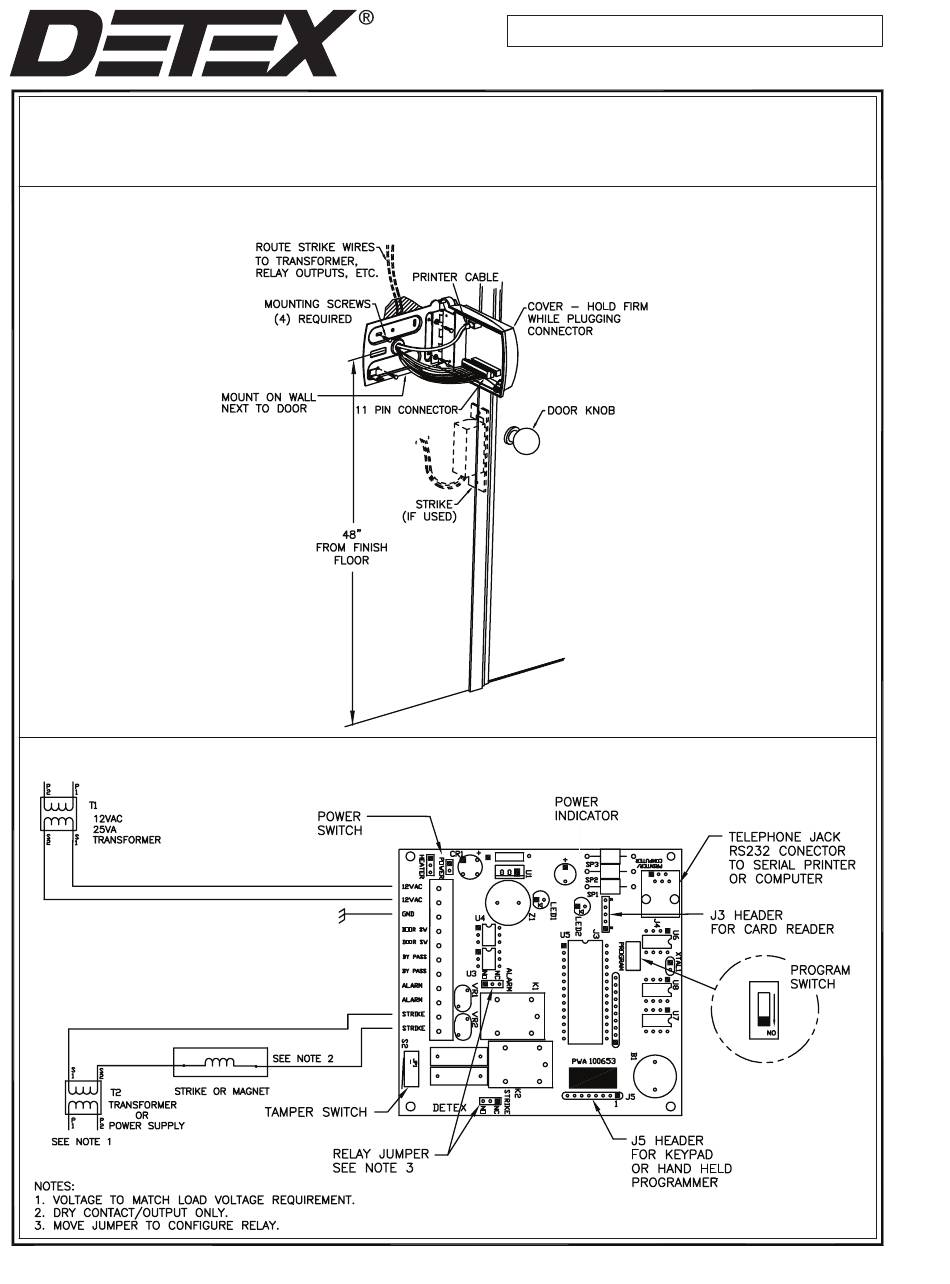

INSTRUCTIONS FOR DTX1000,
ACCESS CONTROL UNIT
MOUNTING INSTRUCTIONS
FIG. 1
WIRING INSTRUCTIONS
(Recommended wire size - #22 stranded)
Fig. 2
101160 Page 1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Detex DTX1000 Series
Summary of Contents for Detex DTX1000 Series
- Page 1 101160 August 2, 2010 Detex Corporation, 302 Detex Drive, New Braunfels, Texas 78130-3045 (830)629-2900 / 1-800-729-3839 / Fax (830)620-6711 E-MAIL: detex@detex.com INTERNET: www.detex.com INSTRUCTIONS FOR DTX1000, ACCESS CONTROL UNIT MOUNTING INSTRUCTIONS FIG. 1 WIRING INSTRUCTIONS (Recommended wire size - #22 stranded) Fig.
- Page 2 WIRING INSTRUCTIONS - "COMPLETE OPTIONS" FIG. 3 (Recommended wire size - #22 stranded) 101160 Page 2...
- Page 3 MANUAL PROGRAMMING INSTRUCTIONS FOR DTX1000 Follow steps 1-5 for all versions 1. Verify customer's specs and wiring according to Figure 2 or Figure 3 and power is on. Note: If the anti-tamper switch (ATS) is wired to an alarm system, disable the alarm system before proceeding to Step 2.
-
Page 4: Glossary Of Terms
6. Programming the "DTX1300" series with Keypad and Cardreader: COMMAND KEYPAD SEQUENCE validate range of cards start 4 digit No.(0001-9999) * end 4 digit No.(0001-9999) add one card to range of cards start 4 digit * end 4 digit(include added card number) cancel single card 4 digit No.(0001-9999) reinstate all cancelled cards... - Page 5 SERIAL PRINTER ONLY Configure serial card as follows: 4800 (baud rate), n (stop bits) 1 ("even" parity bit) KEYPAD ONLY 1 2 3 # 0 0 0 0 Valid CAC entered at Keypad Access is granted 11:15:14 03/31/98 Access Granted 1 4 5 # Invalid CAC 1 4 5 # Invalid CAC CARD READER ONLY...
- Page 6 OPERATING INSTRUCTIONS QUESTIONS? Contact Customer Service at 1-800-729-3839 101160 Page 6...
