Detex ES500 Series Instructions

Access Control > Battery Operated Exit Alarm > ES500 Series
The ES500 Series Exit Alarm is designed for applications that require an alarmed exit device
on secured doors. The alarm, with approximately 100dB, will sound when an unauthorized exit
occurs. The ES500, with its redesigned shape and smaller size make it the choice for quick and
easy installations on emergency exit and restricted doors.
Low cost, self-contained
•
door alarm with piezo
horn that sounds to warn
unauthorized use of a
door
Surface door mount
•
(factory standard) or
wall mount with external
magnetic switches. Easy
to install using ordinary
tools.
Patented plastic template
•
allows for foolproof
alignment of internal
magnetic door contact and
an accurate installation
Alarm can only be
•
silenced by proper control
key
Rim cylinder required for
•
outside key control
Designed Security, Inc.
www.dsigo.com * dsi@dsigo.com

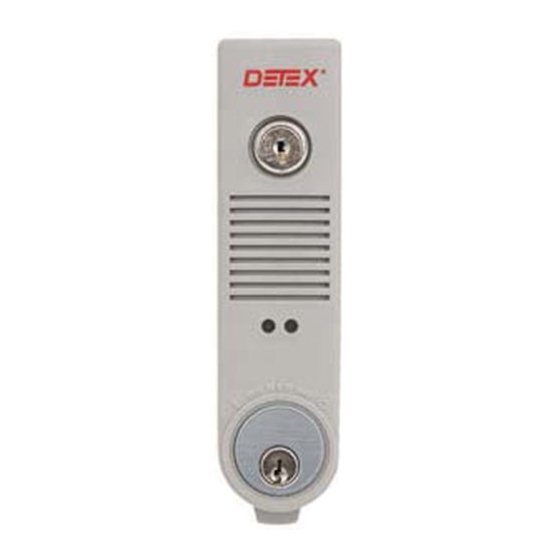

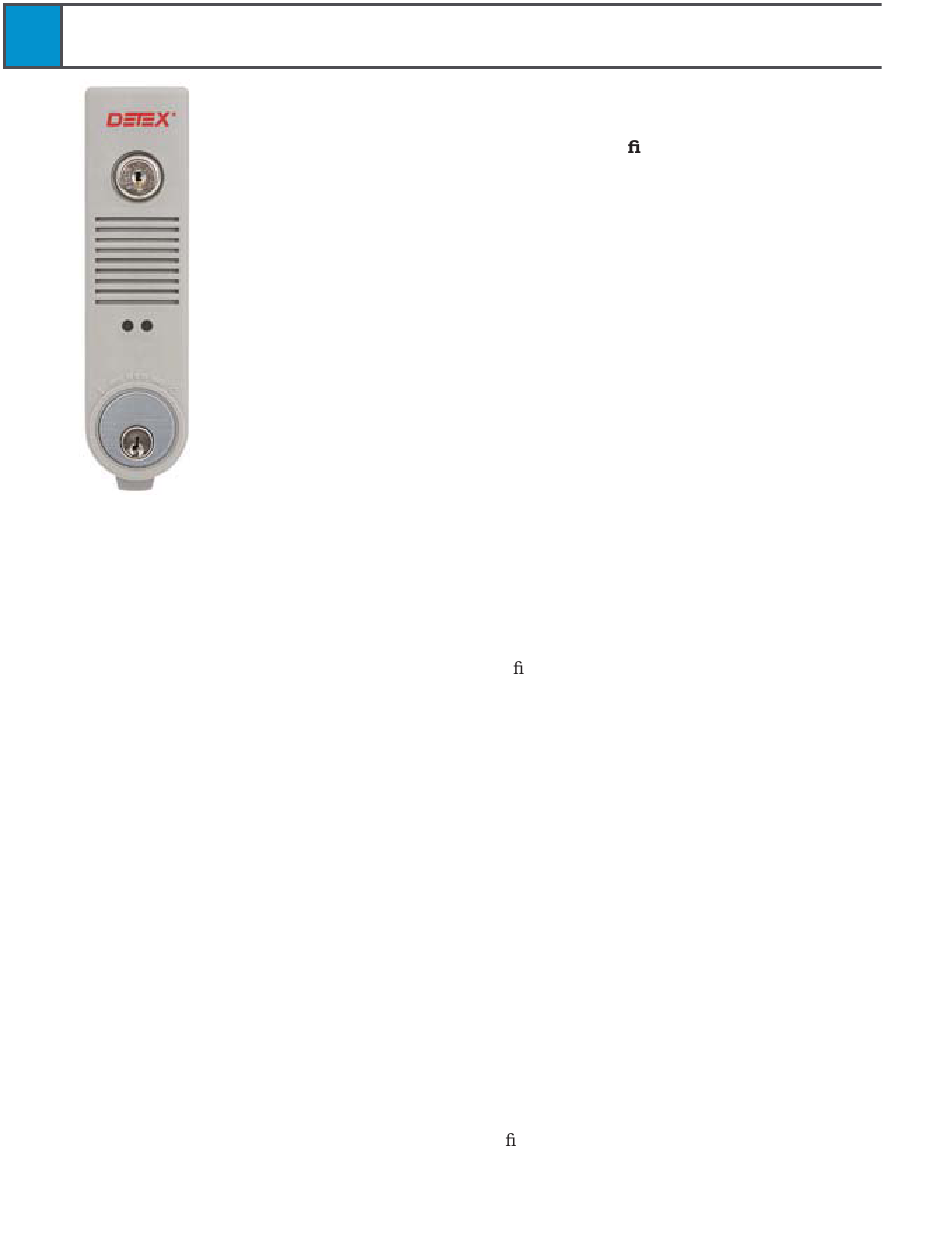

Shown with mortise cylinder
(cylinder sold separately - add xMC65 to
order the ES500 with mortise cylinder)
Now available with eld
•
selectable options
Tapered cover allows for
•
installation on narrow
stile doors, 2" minimum.
An intelligent circuit that
•
automatically senses the
"handling" of the alarm
location on the door
Patented cam assembly
•
automatically adjusts for
different sizes of cylinders
without the use of spacers
Mortise cylinder required
•
with standard Yale cam
for inside key control
Upgraded features are
•
now included and eld
selectable
Bene ts
• Low cost, self-contained door alarm
with piezo horn that sounds to warn of
unauthorized use of a door
• Secure, tamper resistant housing
• Quick, easy installation saves time and
money
•
•
•
•
•
Improved electronic
circuits for longer battery
life, LED functions
Tamper resistant housing
with cover lock, protects
electronics and battery
from manipulation
Extended bypass, now a
standard feature, allows
alarm to remain bypassed
when door is open and
automatically rearm upon
door closing
Custom settings may be
ordered and programmed
at the factory
UL Listed (see listings &
approvals)
Access Control 26
