Detex ES500W Series Instructions

Access Control > Weatherized Battery Operated Exit Alarm > ES500W Series
(cylinder sold separately - add xMC65 to
order the ES500W with mortise cylinder)
The ES500W Series Weatherized Exit Alarm is designed for applications that require an alarm
on secured doors, particularly emergency exits that open to the outdoors or wet environments.
The alarm will sound when an unauthorized exit occurs. The redesigned shape and smaller size
combined with its quick and easy installation makes the ES500W your ONLY choice for protecting
emergency exits, interior access controlled doors, and gates from unauthorized use.
Patented plastic template
•
allows for foolproof
alignment of internal
magnetic door contact
and accurate installation
Tapered cover allows for
•
installation on narrow
stile doors, 2" minimum
Intelligent circuit senses
•
the external magnet
location automatically
and sets the correct door
handing
Patented cam assembly
•
automatically adjusts
for different sizes of
cylinders without use of
spacers
Designed Security, Inc.
www.dsigo.com * dsi@dsigo.com

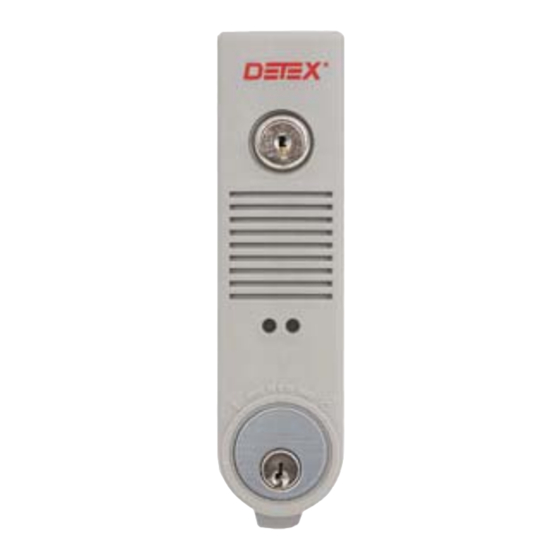

Shown with mortise cylinder
Alarm can only be silenced
•
by proper control key
Extended bypass allows
•
alarm to remain bypassed
when door is open and will
automatically rearm
upon door closing
Modern graphics on
•
cover to demonstrate key
rotation and operation
100 dB piezo alarm
•
9VDC battery operated
•
with Low Battery Alert
Bene ts
• Low cost, self-contained door alarm
with piezo horn that sounds to warn of
unauthorized use of a door or gate
• Weatherized for outdoor environments
• Secure, tamper resistant housing
• Quick, easy installation saves time and
money
•
•
•
•
•
LED visual and audible
arming indicators
Field selectable 2-minute
auto re-arm
Field selectable status
indicators
Weatherized electronics
certi ed to Driving Rain
and Salt Fog Test
UL Listed (see Listings
and Approvals)
Access Control 28
02/28/18
