Detex ES300 Series Instructions

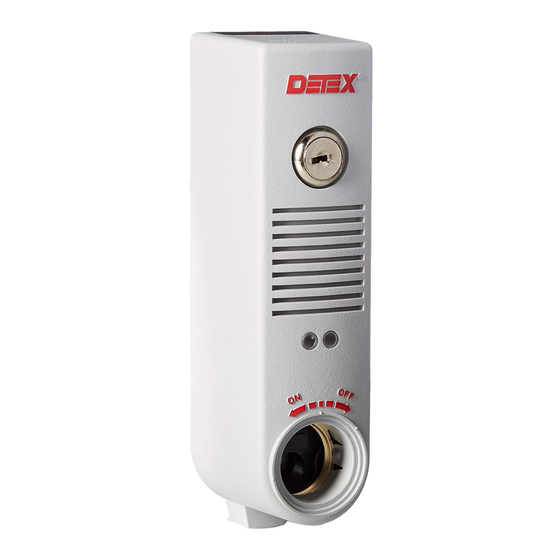

Shown with mortise cylinder
(cylinder sold separately - add xMC65 to
order the ES300 with mortise cylinder)
The ES300 Series Battery Powered Door Prop Alarm is designed for applications where doors
may be used for egress or ingress, but may not be held or propped open. Door open times from 1
second to 2 minutes (15 second default) are eld selectable. The smaller size makes installation
quick and easy.
Patented plastic
•
template allows for
foolproof alignment of
internal magnetic door
contact and accurate
installation
Surface door mount
•
(factory standard)
or wall mount with
external magnetic
switches. Easy to install
using ordinary tools
Mortise cylinder
•
required with standard
Yale cam for inside key
control
Access Control 1
02/28/18
Access Control > Battery Powered Door Prop > ES300 Series
•
•
•
•
Available with eld
•
selectable door prop
timing options
Tapered cover allows for
•
installation on narrow
stile doors, 2" minimum.
Patented cam assembly
•
automatically adjusts for
different sizes of cylinders
without the use of spacers
Improved electronic
•
circuits for longer battery
life, LED functions
Bene ts
Low cost solution to propped open doors
Helps keep energy costs down by ensuring
doors are closed
Quick, easy installation saves time and
money
Alarm silences when door is closed, no
waiting for key-holder to arrive
•
•
•
Tamper resistant housing
with cover lock, protects
electronics and battery
from manipulation
Intelligent circuit senses
the external magnet
location automatically
and sets the correct door
handling
UL Listed (see listings &
approvals)
