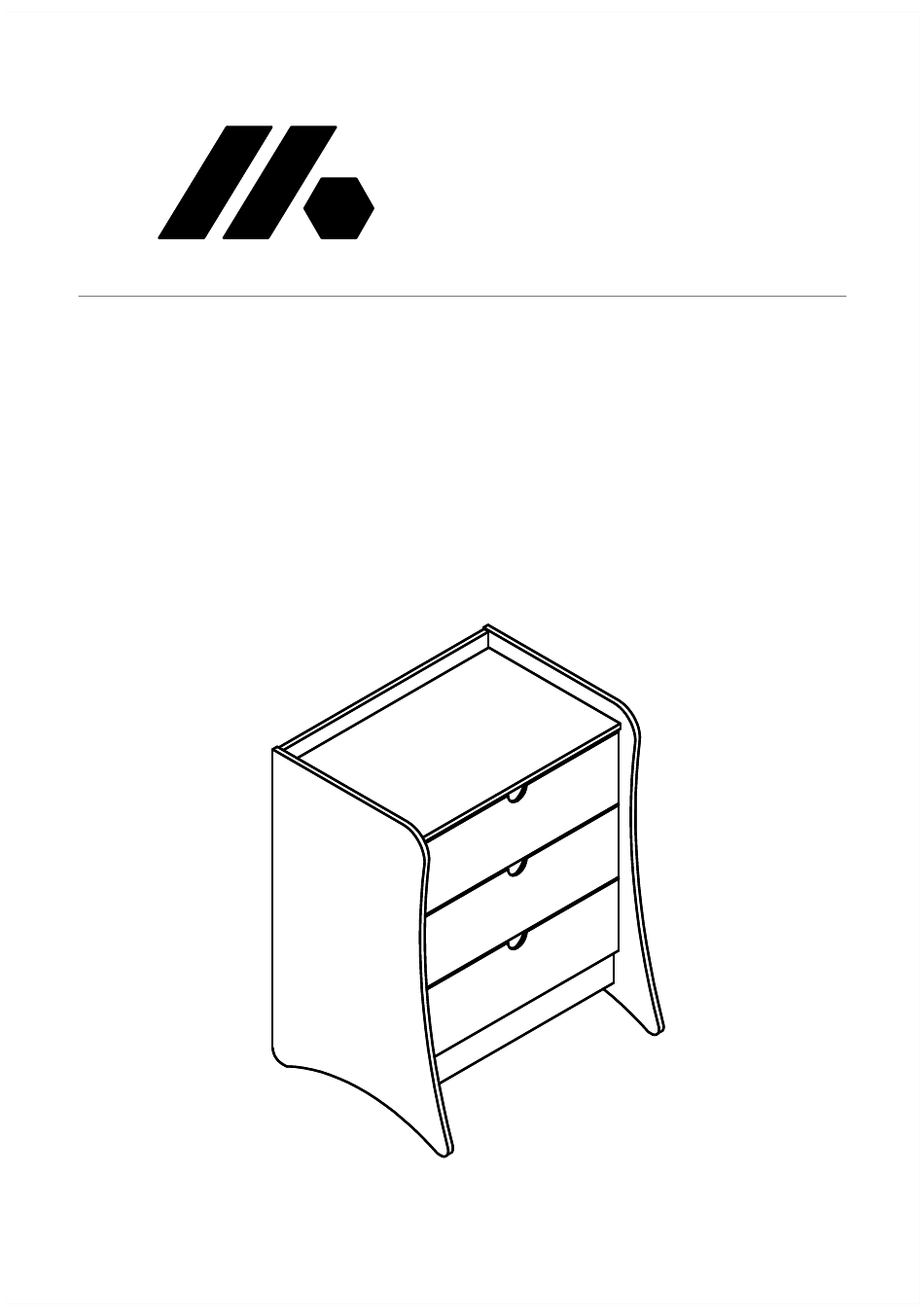

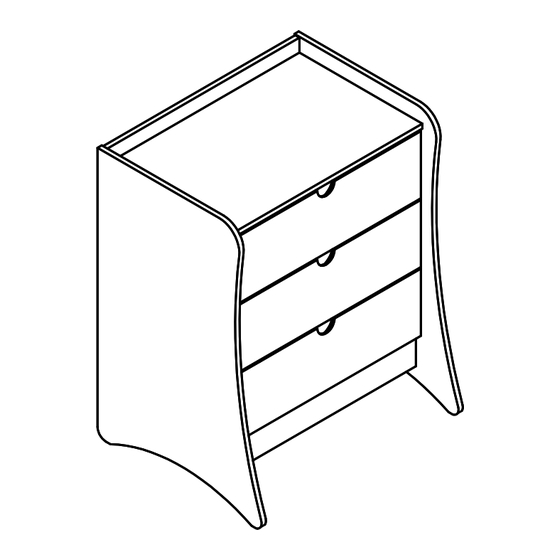

  • Page 1 MANHATTAN COMFORT 182GMC V.04152024...
  • Page 2 STOP! Before beginning the assembly process, ensure all boxes and parts have been delivered. ATTENTION: BEFORE START ASSEMBLING TAKE A PICTURE OF THE LABELS ON THE PACKAGES, THIS WILL BE RECQUIRED IN CASE THE PRODUCT HAS ANY ASSISTANCE DEMAND. FOR BEST RESULTS: Do not throw away packaging materials until assembly is complete.

  • Page 3: Included In This Package

    Included in this package: Front crossbar Right side panel of the drawer Left side panel Rear panel of the drawer Right side panel Base of the drawer Top panel Upper crossbar Back panel Rear crossbar Left slides Front of the drawer Left side panel of the drawer Right slides A - x36...

  • Page 4: Weight Capacity

    Weight capacity: 11 lb 11 lb Rear view...
  • Page 5 HOW TO IDENTIFY THE SLIDES? LEFT PANEL SLIDES *plastic wheel always pointed to the ground. RIGHT PANEL SLIDES *plastic wheel always pointed to the ground. WICH HOLES USE TO ATTACH THE SCREWS?
  • Page 6 Attention, all the assemblage must be done on the cardboard box or the Styrofoam boards to avoid damage to the parts. Step 01 A = 22x E = 04x Attention! Before apply the hardware E, clean the parts number 02 and 03, with a dry cloth. ATTENTION! It is mandatory to apply an additional screw (A) at the...
  • Page 7 Step 02 Apply the hardware (C) into the parts 02 and 03. C = 12x Step 03 Connect the part 11 onto the part 04 with the hardware (B). B = 04x...
  • Page 8 Step 04 Connect the part 04 onto the part 03 with the hardware D. D = 02x G = 02x Apply the hardware (G) onto the hardware (D). Step 05 Connect the part 12 onto the part 03 with the hardware D. D = 02x G = 02x Apply the hardware (G) onto the hardware (D).
  • Page 9 Step 06 Connect the part 01 Take care, 02 people needed. onto the part 03 with the hardware D. D = 02x G = 02x Apply the hardware (G) onto the hardware (D). Step 07 Take care, 02 people needed. Connect the part 02 onto the parts 01, 04 and 12 with the hardware D.
  • Page 10 Step 08 Connect the part 05 with the hardware F. F = 32x...
  • Page 11 Assembling the drawers Attention, all the assemblage must be done on the cardboard box or the Styrofoam boards to avoid damage to the parts.
  • Page 12 Step 09 Apply the hardware (C) into the part 06. C = 04x Repeat the same procedure to assemble all the drawers. Step 10 Connect the part 07 and 08 onto the part 06 with the hardware D. D = 04x Repeat the same procedure to assemble all the drawers.
  • Page 13 Step 11 Apply the part 10 in the groove of the parts 07, 08 until the groove of the part 06. Repeat the same procedure to assemble all the drawers. Step 12 Connect the part 09 onto the parts 07 and 08 with the hardware (B).
  • Page 14 Step 13 You must apply the screws on the holes indicated by the arrows. *plastic wheel always pointed to the rear panel of the drawer part 09. A = 04x Repeat the same procedure to assemble all the drawers.
  • Page 15 Step 14 Attention! Tipover system. Wall J = 01x Then, pass the hardware ( J ) through the hole of the part (05) from inside to the outside as shown in the figure above until it reaches the wall.
  • Page 16 Step 15 Attention! Tipover system. You will need a pencil to mark where you should drill the wall with a 3/8" drill bit to put in the hardware ( I ). I = 01x Use the 3/8" drill bit to drill the wall. Press the wings of the hardware ( I ) and put it in to the hole that you drilled on the wall.
  • Page 17 Step 16 Attention! Tipover system. Connect the hardware ( J ) on the wall, using the hardware (H). H = 01x *Hardware ( I ) plugged in the wall. Put the furniture in the right position and connect the hardware ( J ), under the part 04 with the hardware (A). A = 02x...
  • Page 18 Step 17 Install the drawers fitting them into the slides fixed on the parts 02 and 03.

  • Page 19: Warranty Policy

    COMFORT WARRANTY POLICY All Manhattan Comfort furniture products are warranted, to the original purchaser at the time of purchase and for a period of 30 days thereafter. Our warranty is limited to new products purchased in factory sealed cartons. This wa- ranty is valid in the United States of America and Canada.
