AGV-XPO High-Dynamic Laser Scan Head

HARDWARE MANUAL
Revision 1.00

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AGV-XPO and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Aerotech AGV-XPO

Summary of Contents for Aerotech AGV-XPO

  • Page 1: Agv-Xpo High-Dynamic Laser Scan Head

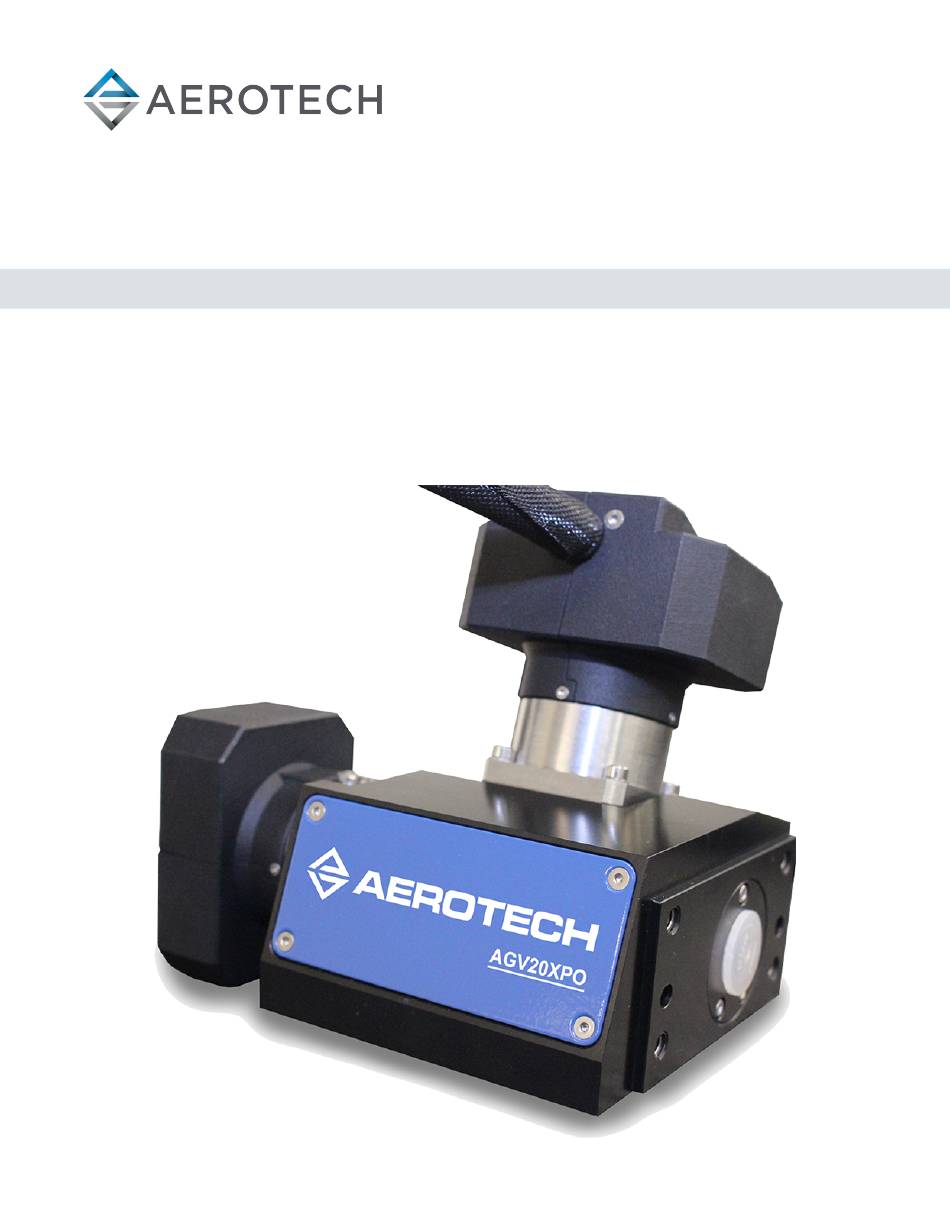

    AGV-XPO High-Dynamic Laser Scan Head HARDWARE MANUAL Revision 1.00...
  • Page 2 This manual contains proprietary information and may not be reproduced, disclosed, or used in whole or in part without the express written permission of Aerotech, Inc. Product names mentioned herein are used for identification purposes only and may be trademarks of their respective companies.

  • Page 3: Table Of Contents

    Hardware Manual AGV-XPO Table of Contents AGV-XPO High-Dynamic Laser Scan Head Table of Contents List of Figures List of Tables EU Declaration of Incorporation UKCA Declaration of Incorporation Safety Procedures and Warnings Installation and Operation Laser Safety Electrical Warnings Motor-Related Warnings...

  • Page 4: List Of Figures

    AGV20XPO-E2-BE1 Galvanometer Scanner Dimensions Figure 2-12: AGV20XPO-E2-BE2 Galvanometer Scanner Dimensions Figure 2-13: Example of F-Theta Lens (Complete Assembly) Figure 2-14: Assembly of Focal Lens to Scan Head (AGV-XPO) Figure 2-15: Air-Cooling (-AC) Locations Figure 2-16: Water Cooling (-WC) Locations Figure 3-1:...

  • Page 5: List Of Tables

    -AC Cooling Option Specifications Table 2-2: -WC Cooling Option Specifications Table 3-1: Aerotech Standard Scan Head to Controller Cable Part Numbers Table 3-2: Scan Head Motor Connector Pinout Table 3-3: Mating Connector Part Numbers for the Scan Head Motor Connector...

  • Page 6: Eu Declaration Of Incorporation

    101 Zeta Drive Pittsburgh, PA 15238-2811 herewith declares that the product: AGV-XPO scan head is intended to be incorporated into machinery to constitute machinery covered by the Directive 2006/42/EC as amended; and that the following harmonized European standards have been applied:...

  • Page 7: Ukca Declaration Of Incorporation

    101 Zeta Drive Pittsburgh, PA 15238-2811 herewith declares that the product: AGV-XPO scan head To which this declaration relates, meets the essential health and safety requirements and is in conformity with the relevant UK Legislation listed below: Supply of Machinery (Safety) Regulations 2008...
  • Page 8 AGV-XPO Hardware Manual This page intentionally left blank. www.aerotech.com...

  • Page 9: Safety Procedures And Warnings

    To find the newest information about this product, refer to www.aerotech.com. If you do not understand the information in this manual, contact Aerotech Global Technical Support. IMPORTANT: This product has been designed for light industrial manufacturing or laboratory environments.

  • Page 10: Installation And Operation

    AGV-XPO Hardware Manual Installation and Operation To decrease the risk of damage to the equipment, you must obey the precautions that follow. DANGER: General Hazard Warning! This product can produce high forces and move at velocities that could cause injury. The user is responsible for its safe operation.

  • Page 11: Laser Safety

    Classes of Lasers The AGV-XPO series scan head can be used with a variety of lasers. Each laser is assigned a particular hazard level, which is indicated by the Laser Class label that is affixed to the device near the location where laser radiation is emitted.
  • Page 12 Class I, IIa, or II laser device. The AGV-XPO can aim the laser beam over an approximately pyramidal volume. When the scan head is used in conjunction with a laser device that can generate a sufficiently intense beam, a laser area will be produced that includes the aiming volume as well as the reflections from all objects that can be exposed to the radiation.
  • Page 13 The AGV-XPO scan head does not include a laser attenuator, and therefore it cannot block or reduce the intensity of the laser beam. Due to the unique properties of each laser, it is the responsibility of the user to incorporate an appropriate shutter as per any and all applicable regulations in order to prevent unwanted emission of the laser beam.

  • Page 14: Electrical Warnings

    It is the responsibility of the End User/System Integrator to make sure that scan heads are properly connected and grounded per Engineering Standards and applicable safety requirements. It is the responsibility of the End User/System Integrator to configure the system drive or controller within the Aerotech motor/scan head electrical and mechanical specifications. www.aerotech.com...

  • Page 15: Motor-Related Warnings

    Hardware Manual AGV-XPO Motor-Related Warnings Aerotech motors are capable of producing high forces and velocities. Obey all warnings and all applicable codes and standards when you use or operate a system that incorporates Aerotech motors. DANGER: Mechanical Hazard! Personnel must be made aware of the mechanical hazards during set up or when you do service to the scan head.

  • Page 16: Pinch Points

    AGV-XPO Hardware Manual Pinch Points A pinch point is a mechanical hazard that can occur when there are exposed parts of the scan mirrors or system that can move. For example, the travel of a stage tabletop could expose the user to a pinch point between the tabletop and the stage housing.

  • Page 17: Handling And Storage

    Do not use the focal lens or exit aperture as a lift surface. Make sure that the lens cap is attached before you move the AGV-XPO. Put the scan head on a soft surface when it is not attached to its mounting surface to pro- tect the optics.
  • Page 18 AGV-XPO Hardware Manual Unpacking and Handling WARNING: Electrostatic Discharge (ESD) Sensitive Components! Wear an ESD wrist strap when you handle, install, or do service to the system assembly. You could damage the power supply or drives if you fail to observe the correct ESD practices.

  • Page 19: Chapter 1: Overview

    Figure 1-1: Functional Principle of a 2-Axis Galvanometer Scanner The AGV-XPO control connections are two 25-pin D-style connectors. The AGV-XPO is also available with right-side and left-side input apertures for “mirror image” machine builds or side-by-side scanner mounting with a single laser beam split to source both scanners.

  • Page 20: Figure 1-2: Standard Agv-Xpo

    AGV-XPO Hardware Manual Figure 1-2: Standard AGV-XPO www.aerotech.com...

  • Page 21: Table 1-1: Ordering Options

    Hardware Manual AGV-XPO Table 1-1: Ordering Options AGV-XPO Series High-Dynamic Laser Scan Head AGV10XPO 2-axis galvanometer scanner with 10 mm diameter beam aperture AGV14XPO 2-axis galvanometer scanner with 14 mm diameter beam aperture AGV20XPO 2-axis galvanometer scanner with 20 mm diameter beam aperture Note: Contact the factory for additional aperture options.

  • Page 22: Environmental Specifications

    "power-on" thermal drift. To minimize delays in operating the AGV-XPO, it is recommended that the +5 V feedback power supply is continuously maintained to the galvo motors, even when they are not under servo control.

  • Page 23: Basic Specifications

    Hardware Manual AGV-XPO 1.3. Basic Specifications Table 1-3: AGV-XPO Series Specifications AGV10XPO AGV14XPO AGV20XPO Optical Performance Beam Aperture 10 mm 14 mm 20 mm Maximum Scan Angle ±20° Beam Displacement 12.6 mm 16.5 mm 23.2 mm 0.012 µrad (25 bit) (-E1) Feedback Resolution 0.00016 µrad (32 bit) (-E2)

  • Page 24: Table 1-4: Agv-Xpo Series Mirror Specifications

    AGV-XPO Hardware Manual Table 1-4: AGV-XPO Series Mirror Specifications Wavelength Coating Cooling Aperture Option Size -W12 10 mm 14 mm Cooling 20 mm 10 mm Maximum CW Laser 14 mm Cooling Power (W) 20 mm 10 mm Air and Water...

  • Page 25: Vacuum Operation

    Hardware Manual AGV-XPO 1.4. Vacuum Operation Contact the factory for information about operation in a vacuum environment. www.aerotech.com...
  • Page 26 AGV-XPO Hardware Manual This page intentionally left blank. www.aerotech.com...

  • Page 27: Chapter 2: Mechanical Specifications And Installation

    Avoid eye or skin exposure to direct or scattered radiation. WARNING: Aerotech recommends that you only use a Class 1 HeNe laser to do alignments. If a Class 1 HeNe laser is not available, use the lowest power setting on the available laser and remote beam sensing techniques.

  • Page 28: Dimensions

    AGV-XPO Hardware Manual 2.1. Dimensions Figure 2-1: AGV10XPO-E1-BE1 Galvanometer Scanner Dimensions www.aerotech.com...

  • Page 29: Figure 2-2: Agv10Xpo-E1-Be2 Galvanometer Scanner Dimensions

    Hardware Manual AGV-XPO Figure 2-2: AGV10XPO-E1-BE2 Galvanometer Scanner Dimensions www.aerotech.com...

  • Page 30: Figure 2-3: Agv10Xpo-E2-Be1 Galvanometer Scanner Dimensions

    AGV-XPO Hardware Manual Figure 2-3: AGV10XPO-E2-BE1 Galvanometer Scanner Dimensions www.aerotech.com...

  • Page 31: Figure 2-4: Agv10Xpo-E2-Be2 Galvanometer Scanner Dimensions

    Hardware Manual AGV-XPO Figure 2-4: AGV10XPO-E2-BE2 Galvanometer Scanner Dimensions www.aerotech.com...

  • Page 32: Figure 2-5: Agv14Xpo-E1-Be1 Galvanometer Scanner Dimensions

    AGV-XPO Hardware Manual Figure 2-5: AGV14XPO-E1-BE1 Galvanometer Scanner Dimensions www.aerotech.com...

  • Page 33: Figure 2-6: Agv14Xpo-E1-Be2 Galvanometer Scanner Dimensions

    Hardware Manual AGV-XPO Figure 2-6: AGV14XPO-E1-BE2 Galvanometer Scanner Dimensions www.aerotech.com...

  • Page 34: Figure 2-7: Agv14Xpo-E2-Be1 Galvanometer Scanner Dimensions

    AGV-XPO Hardware Manual Figure 2-7: AGV14XPO-E2-BE1 Galvanometer Scanner Dimensions www.aerotech.com...

  • Page 35: Figure 2-8: Agv14Xpo-E2-Be2 Galvanometer Scanner Dimensions

    Hardware Manual AGV-XPO Figure 2-8: AGV14XPO-E2-BE2 Galvanometer Scanner Dimensions www.aerotech.com...

  • Page 36: Figure 2-9: Agv20Xpo-E1-Be1 Galvanometer Scanner Dimensions

    AGV-XPO Hardware Manual Figure 2-9: AGV20XPO-E1-BE1 Galvanometer Scanner Dimensions www.aerotech.com...

  • Page 37: Figure 2-10: Agv20Xpo-E1-Be2 Galvanometer Scanner Dimensions

    Hardware Manual AGV-XPO Figure 2-10: AGV20XPO-E1-BE2 Galvanometer Scanner Dimensions www.aerotech.com...

  • Page 38: Figure 2-11: Agv20Xpo-E2-Be1 Galvanometer Scanner Dimensions

    AGV-XPO Hardware Manual Figure 2-11: AGV20XPO-E2-BE1 Galvanometer Scanner Dimensions www.aerotech.com...

  • Page 39: Figure 2-12: Agv20Xpo-E2-Be2 Galvanometer Scanner Dimensions

    Hardware Manual AGV-XPO Figure 2-12: AGV20XPO-E2-BE2 Galvanometer Scanner Dimensions www.aerotech.com...

  • Page 40: Securing The Scan Head To The Mounting Surface

    The mounting surface should be flat and have adequate stiffness in order to achieve the maximum performance from the AGV-XPO scan head. When an AGV-XPO is mounted to a non-flat surface, the scan head can be distorted as the mounting screws are tightened. This distortion will affect the alignment between the galvo motors and decrease the overall accuracy of the scan head.
  • Page 41 3. Clean the mounting flange and the mating surface of the scan head with the appropriate cleaners (isopropyl alcohol for the scan head). 4. Line up the dowel hole and slot features of AGV-XPO scan head with the dowel pins protruding from the mounting flange.

  • Page 42: Attaching The Focal Lens To The Scan Head

    The procedure outlined in this section is provided as a general reference for how to remove or install a focal lenses (F-Theta lenses). A lens adapter is required to attach the focal lens to the AGV-XPO series scan head. This lens adapter is supplied with optics configurations that include a focal lens. For AGV-XPO scan heads that are provided without a focal lens, the user is responsible for supplying both the F-Theta lens and the necessary lens adapter.

  • Page 43: Figure 2-14: Assembly Of Focal Lens To Scan Head (Agv-Xpo)

    7. Remove the dust cover from the front of the focal lens. To remove the focal lens, reverse the procedure outlined above. Figure 2-14: Assembly of Focal Lens to Scan Head (AGV-XPO) www.aerotech.com...

  • Page 44: Air Requirements

    Lock out the source and bleed off the pressure before you do service to the equipment. Wear eye protection. An external air supply is required for AGV-XPO models equipped with the -AC air cooling option. This option provides cooling airflow to the turning mirrors. It does not actively cool the individual motors. The -WC...

  • Page 45: Water Requirements

    AGV-XPO 2.5. Water Requirements WARNING: To prevent damage to the AGV-XPO, do not attach a water hose to an air fitting or an air hose to a water fitting. WARNING: Use distilled water as the coolant in the AGV-XPO water-cooling system. Do not use deionized (DI) water.
  • Page 46 AGV-XPO Hardware Manual This page intentionally left blank. www.aerotech.com...

  • Page 47: Chapter 3: Electrical Specifications And Installation

    Aerotech motion control systems are adjusted at the factory for optimum performance. When the AGV-XPO is part of a complete Aerotech motion control system, setup should only require that you connect the scan head to the appropriate drive chassis with the cables provided. Labels on the system components should indicate the appropriate connections.

  • Page 48: Motor Connectors

    3-2. Table 3-1: Aerotech Standard Scan Head to Controller Cable Part Numbers Application Part Number Standard C23680-xxx Hi-Flex C23690-xxx (1) The cable length (xxx) is in decimeters (1 decimeter = 3.937 inches). Contact Aerotech for the available cable lengths. www.aerotech.com...

  • Page 49: Table 3-2: Scan Head Motor Connector Pinout

    Hardware Manual AGV-XPO Table 3-2: Scan Head Motor Connector Pinout Description Connector Case Cable Shield SIN1+ (Encoder Sine 1+) COS1+ (Encoder Cosine 1+) 5V Common Ground SIN2+ (Encoder Sine 2+) COS2+ (Encoder Cosine 2+) +/CW LMT (End-of travel limit signal that indicates maximum permitted travel in the “machine positive”...

  • Page 50: Motor Wiring

    AGV-XPO Hardware Manual 3.2. Motor Wiring Figure 3-1: Motor and Feedback Wiring www.aerotech.com...

  • Page 51: Motor, Feedback, And Limit Specifications

    Hardware Manual AGV-XPO 3.3. Motor, Feedback, and Limit Specifications Table 3-4: Scan Head Motor and Feedback Specifications Feedback Specifications 5 V DC , ±5%, ≤250 mA (typical) Power NOTE: Encoder and Limit circuits share one common 5 V supply. SINE/COSINE Incremental, differential analog sinusoids in quadrature.

  • Page 52: Machine Direction

    Hardware Manual 3.4. Machine Direction Aerotech scan heads are configured to have positive and negative "machine" directions. The machine direction defines the phasing of the feedback and motor signals and is dictated by the motor wiring (refer to Section 3.5.

  • Page 53: Feedback Phasing

    Hardware Manual AGV-XPO 3.5. Feedback Phasing Figure 3-4: -E1 Option Encoder Phasing Reference Diagram Figure 3-5: -E2 Option Encoder Phasing Reference Diagram www.aerotech.com...
  • Page 54 AGV-XPO Hardware Manual This page intentionally left blank. www.aerotech.com...

  • Page 55: Chapter 4: Maintenance

    4.2. Cleaning and Lubrication There are no elements on the scan head that require lubrication. Before you use a cleaning solvent on any part of the AGV-XPO, blow away small particles and dust with nitrogen or, less preferably, clean, dry, compressed air.

  • Page 56: Focal Lens And Protective Glass

    Optical materials and coatings are relatively soft substances and incorrect cleaning techniques will result in surface damage and drastically reduced component lifetime. The cleaning procedure for the AGV-XPO is intended to help prolong the component lifetime.

  • Page 57: Turning Mirrors

    Section 4.2.1. The AGV-XPO is a dynamically-optimized scan head and the turning mirrors are not field-replaceable. Contact the factory in the event of severe damage to the reflective surfaces.

  • Page 58: Troubleshooting

    Refer to Section 4.2. the laser beam passes debris through the scan head Optical surfaces damaged Contact Aerotech service and/or a lens supplier. Motor and Feedback Refer to Section 3.1., Section 3.2., and the AGV-XPO scanner connections controller documentation.

  • Page 59: Appendix A: Warranty And Field Service

    Aerotech makes no warranty that its products are fit for the use or purpose to which they may be put by the buyer, whether or not such use or purpose has been disclosed to Aerotech in specifications or drawings previously or subsequently provided, or whether or not Aerotech’s...
  • Page 60 On-site Non-Warranty Repair If any Aerotech product cannot be made functional by telephone assistance or purchased replacement parts, and cannot be returned to the Aerotech service center for repair, then the following field service policy applies: Aerotech will provide an on-site Field Service Representative in a reasonable amount of time, provided that the customer issues a valid purchase order to Aerotech covering all transportation and subsistence costs and the prevailing labor cost, including travel time, necessary to complete the repair.

  • Page 61: Appendix B: Revision History

    Hardware Manual AGV-XPO Appendix B: Revision History Revision Description 1.00 New manual www.aerotech.com...
  • Page 62 AGV-XPO Hardware Manual This page intentionally left blank. www.aerotech.com...

  • Page 63: Index

    AGV-XPO Hardware Manual Index Index Electrical Installation Electrical Warnings 2006/42/EC EN 60204-1 2010 EN ISO 12100 2010 EU 2015/863 Accuracy and Temperature Effects nitrogen Feedback Specifications Air Cooling Option Specifications field service Air Requirements Focal Lens 42,56 Altitude Ambient Temperature...
  • Page 64 Index AGV-XPO Hardware Manual Ordering Options packing list part number Protection Rating Protective Glass Securing the Scan Head to the Mounting Surface serial number Service and Inspection Schedule solvents Specifications Air Cooling Option Water Cooling Option Storage Table of Contents...
