Summary of Contents for Seco Titan 250 APL IP65

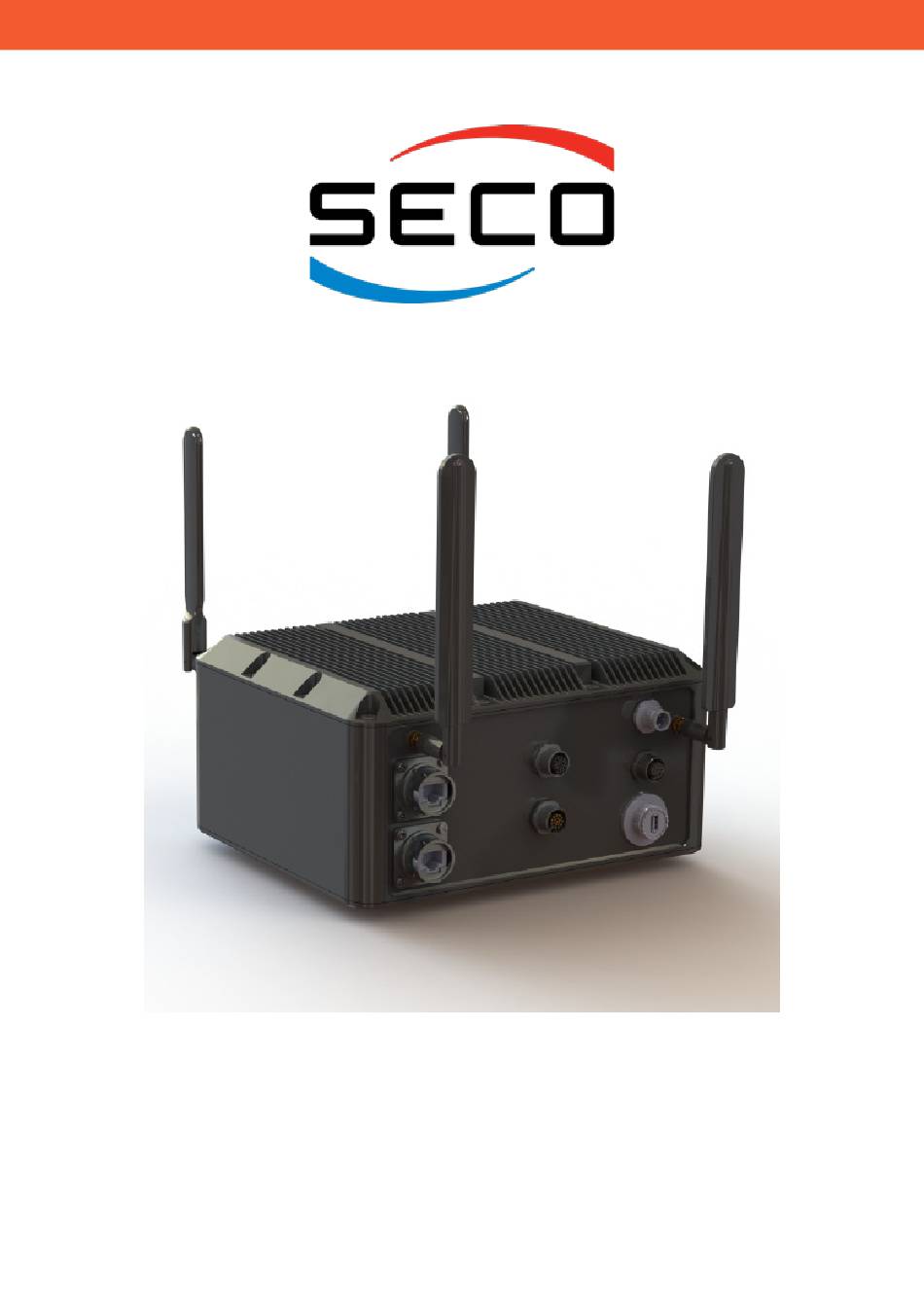

- Page 1 SYS-B68-HEN INSTALLATION, USE AND WARNINGS MANUAL Edition: 06/2023...
- Page 2 SYS-B68-HEN PAGE INTENTIONALLY LEFT BLANK Information subject to change. Please visit www.seco.com to find the latest version of this manual.
-
Page 3: Table Of Contents
CHARACTERISTICS AND COMPONENTS OF THE DEVICE .......... 14 MEASUREMENT LAYOUT ..................... 14 COMPONENTS ........................15 INSTALLATION ........................16 PERMITTED ENVIRONMENTAL CONDITIONS ..............16 INSTALLING THE DEVICE ....................17 VERSIONS AVAILABLE ......................19 Information subject to change. Please visit www.seco.com to find the latest version of this manual. -
Page 4: Preliminary Information
The SYS-B68-HEN device is a gateway enclosed in a metal box with a heat sink. The technology developed by SECO S.p.A. can be used and applied in various fields, such as: Information subject to change. Please visit www.seco.com to find the latest version of this manual. -
Page 5: Recipients
(if not triggered by the device). The complete warranty terms are set out in the sales contract. IMPORTANT The Manufacturer is not liable for improper use of the device. Information subject to change. Please visit www.seco.com to find the latest version of this manual. -
Page 6: Identification
The device is equipped with an identification plate located on the side. The plate features the device identification information to be reported to SECO S.p.A. if necessary, as shown in the table: Information subject to change. Please visit www.seco.com to find the latest version of this manual. - Page 7 Industrial Operating Temperature Range = “I” • Product Revision Index = “x” CAUTION It is strictly forbidden to remove the identification plate and/or replace it with other plates. Information subject to change. Please visit www.seco.com to find the latest version of this manual.
-
Page 8: Technical Specifications
Integrated Intel® HD Graphics 500 series controller, with up to 18 Execution Units Graphics 4K HW decoding and encoding of HEVC(H.265), H.264, VP8, VP9, MVC Three independent display support Information subject to change. Please visit www.seco.com to find the latest version of this manual. - Page 9 For the mouse, keyboard, USB stick and other peripherals connected to the USB port, the plastic shell must have fire rating of V-0 or higher. Information subject to change. Please visit www.seco.com to find the latest version of this manual.
-
Page 10: Software Specifications
Please also note that the device has been designed according to the following Directives: • 2014/53/EU (RED) • 2012/19/EU (WEEE2) • 2011/65/EU (RoHSII) and subsequent amendments and additions by the European Parliament and the Council. Information subject to change. Please visit www.seco.com to find the latest version of this manual. -
Page 11: Safety Devices
CAUTION To avoid the risk of electric shock, this equipment must only be connected to a supply main with protective earth supply mains. Information subject to change. Please visit www.seco.com to find the latest version of this manual. - Page 12 For the mouse, keyboard, USB stick and other peripherals connected to the USB port, the plastic shell must have fire rating of V-0 or higher. Information subject to change. Please visit www.seco.com to find the latest version of this manual.
-
Page 13: Safety Pictograms Affixed On The Device And Used In The Manual
Indicates the separate collection of electronic and electrical equipment according to Directive 2012/19/EU. Symbol used to indicate the need to consult the instruction manual before using the equipment. Information subject to change. Please visit www.seco.com to find the latest version of this manual. -
Page 14: Characteristics And Components Of The Device
The DIN bar is the only fastening system to integrate the device on any of the customer’s machines. Measurement layout Length (A) 218 mm Width (B) 218,5 mm Height 115,6 mm Information subject to change. Please visit www.seco.com to find the latest version of this manual. -
Page 15: Components
LTE - MAIN input LTE - AUX Connector Ports Ethernet Ports ports 2.0 Connector Ethernet Connector Mini DP MAIN WiFi WiFi SIM Card Antenna Antenna Connector Information subject to change. Please visit www.seco.com to find the latest version of this manual. -
Page 16: Installation
SECO S.p.A. shall not be held liable if these instructions are not complied with. Information subject to change. Please visit www.seco.com to find the latest version of this manual. -
Page 17: Installing The Device
DB9 - COM1 DB9 - COM2 Colors Wires RXD1 RXD2 BLUE TXD1 YELLOW TXD2 GREEN WHITE RTS1 GRAY RTS2 BLACK CTS1 ORANGE CTS2 BROWN WHITE YELLOW Information subject to change. Please visit www.seco.com to find the latest version of this manual. - Page 18 Proceed to connect the electric supply to the device. Once inserted, turn the connector clockwise in order to lock it in place; Proceed to electrically connect the destination machine. Information subject to change. Please visit www.seco.com to find the latest version of this manual.
-
Page 19: Versions Available
Option WIFI + LTE + MINIDP SYS-B68-HEN-xxxx-x3xx-Ix Option LTE + MINIDP SYS-B68-HEN-xxxx-x4xx-Ix Option WIFI + MINIDP SYS-B68-HEN-xxxx-xxx0-Ix Option No Operating System SYS-B68-HEN-xxxx-xxx1-Ix Option Windows SYS-B68-HEN-xxxx-xxx2-Ix Option Ubuntu Information subject to change. Please visit www.seco.com to find the latest version of this manual.
