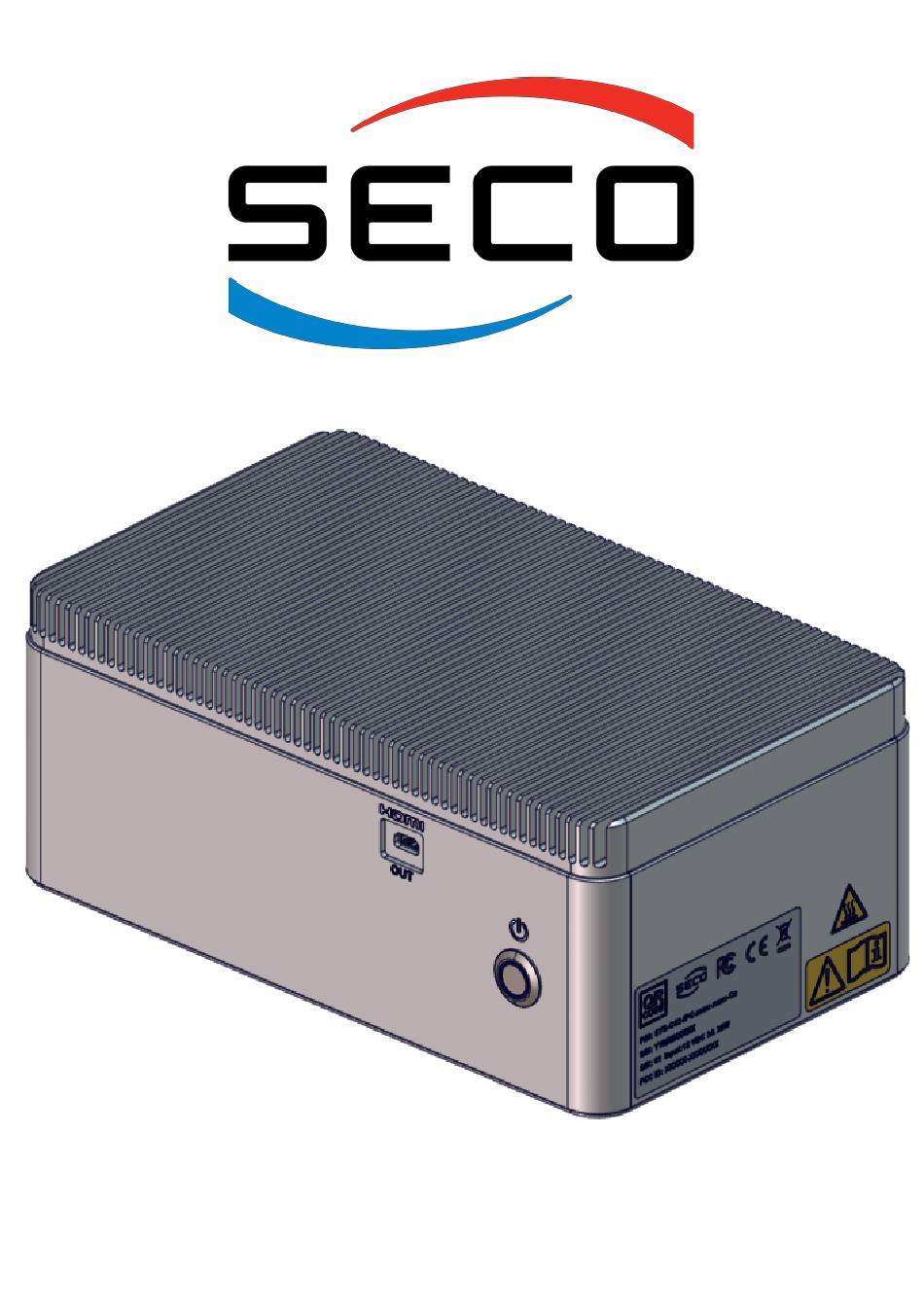

- Page 1 SYS-C43-IPC INSTALLATION, USE AND WARNINGS MANUAL...
-
Page 2: Table Of Contents
Identification ................................5 Manufacturer identification .......................... 5 Device identification ............................5 Device identification plate ..........................5 Technical specifications............................6 SYS-C43-IPC device hardware specifications ..................6 Software Specifications ..........................7 Reference directives ............................8 FCC disclaimer ..............................8 Safety devices ................................9 Warnings ................................ - Page 3 SYS-C43-IPC Versions available ............................23 Maintenance................................24 Waste disposal ..............................24 Information subject to change. Please visit to find the latest version of this manual. www.seco.com Page.2 of 18...
-
Page 4: Preliminary Information
SYS-C43-IPC Preliminary information Device description The SYS-C43-IPC device is a gateway enclosed in a metal box with a heat sink. The SYS-C43-IPC is a boxed solution based on the i.MX 8 QuadMax i.MX 8 QuadPlus Applications Processors, placed inside a finned box enclosure. -
Page 5: Recipients
SYS-C43-IPC Recipients This manual is intended for ordinary people and installers (expert users). Important! The user must read this manual before start with any kind of operation. Warranty The warranty shall be voided in the event of: failure to comply with safety regulations;... -
Page 6: Identification
The device is equipped with an identification plate located on the side. The plate features the device identification information to be reported to Seco S.p.A. if necessary. Caution! It is strictly forbidden to remove the identification plate and/or replace it with other plates. -
Page 7: Technical Specifications
SYS-C43-IPC Technical specifications SYS-C43-IPC device hardware specifications The table below features the board hardware specifications: NXP i.MX 8 Family: i.MX 8QuadMax: 2x ARM Cortex®-A72 + 4x ARM®Cortex®-A53 Processor + 2x Cortex®-M4F i.MX 8QuadPlus: 1x ARM Cortex®-A72 + 4x ARM®Cortex®-A53 + 2x Cortex®-M4F Soldered down LPDDR4 memory, 64-bit interface, 1600MHz. -
Page 8: Software Specifications
XXX is 000 in standard version and assumes other values in customized versions YY is the revision BBB is the BIOS version Software version C43 is released on the SECO website and is always https://www.seco.com updated and available, even in later versions. -
Page 9: Reference Directives
SYS-C43-IPC Reference directives SECO S.p.A. places the device on the market, equipping and providing it with: CE marking as IT device FCC - Part 15 Certification Declaration of Conformity* User manual* *These documents are available after a request to the manufacturer. -
Page 10: Safety Devices
SYS-C43-IPC Safety devices Warnings Caution! It is the user’s responsibility to apply preventive and protective measures, in accordance with the legislation of the country of installation and use of the device. Lithium Battery Warning Caution! Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type recommended by the manufacturer. - Page 11 Warning! It is strictly forbidden to cover the device during operation. Warning! Personnel training is a responsibility of the manufacturer of the device to which the SYS-C43-IPC will be connected. Warning! Make sure that the fixing nut on the earth connection it’s correctly fixed to the pin on the back of the device.
-
Page 12: Safety Pictograms Affixed On The Device And Used In The Manual
SYS-C43-IPC Safety pictograms affixed on the device and used in the manual The device and the manual are equipped with symbols, as indicated in the table below: PICTOGRAM DESCRIPTION CE marking Danger of hot surfaces! Skin burns in case of contact. -
Page 13: Characteristics And Components Of The Device
SYS-C43-IPC Characteristics and components of the device The SYS-C43-IPC device is a gateway enclosed in a metal box with a heat sink. Caution! When running, the device can reach very high temperatures, causing the danger of burns when in contact with the heat sink. -
Page 14: Components
SYS-C43-IPC Components HDMI ON/OFF RESET button Information subject to change. Please visit to find the latest version of this manual. www.seco.com Page.13 of 18... - Page 15 SYS-C43-IPC DESCRIPTION USB 3.0 Type-A Micro SD Line Out + Mic In combo TRRS audio jack USB 2.0 Dual Type-A connector Ports Ethernet Power supply input: Pin1= GND • Pin2= GND • Pin3= Vin (12Vdc) • Pin4= Vin (12Vdc) •...
-
Page 16: Permitted Environmental Conditions
SYS-C43-IPC Permitted environmental conditions environmental conditions Transport and storage The table below features permissible environmental conditions for transport and storage. Room temperature range 0 °C ÷ + 50 °C Relative humidity range 10 % ÷ 95 % @40°C non-condensing Operating environmental conditions Use of the device and of associated control systems that differ from those listed below is not permitted. - Page 17 Positioning the device in environments that do not correspond to those indicated shall render the warranty null and void for the parts to be replaced. SECO S.p.A. shall not be held liable if these instructions are not complied with. Information subject to change. Please visit to find the latest version of this manual.
-
Page 18: Installation
SYS-C43-IPC Installation Installing the device The power button is backlit by a LED when the device is on. The device does not generate system messages, error messages or fault messages. Warning! Only use certified power supplies, capable of delivering a power limited to 100 Watts (maximum limit) in normal operating conditions and also in fault conditions. - Page 19 SYS-C43-IPC In order to install the device, make sure that the incoming electrical power supply complies with the following values: Only use power supply LPS that are certified according to safety standards, pursuant to the regulations in force in the country of use (IEC 60950-1).
- Page 20 SYS-C43-IPC Information subject to change. Please visit to find the latest version of this manual. www.seco.com Page.19 of 18...
- Page 21 SYS-C43-IPC To install the device properly on wall using DIN bar support, follow the procedure below: Make sure the electric connection on the destination machine is off and the electric power supply is disconnected from the device; Proceed to fasten the device to the standard DIN bar support pushing it until will be locked;...
- Page 22 SYS-C43-IPC To install the device properly on table/plane surface, follow the procedure below: Make sure the electric connection on the destination machine is off and the electric power supply is disconnected from the device; Proceed positioning the device taking care to leave enough space around and that the support fit foots (C) have enough grip on the surface;...
- Page 23 After the installation’s procedure, be sure to connect the grounding removing the screw A, as shown in the figure below: SECO S.p.A. shall not be held liable if these instructions are not complied with. Information subject to change. Please visit to find the latest version of this manual.
- Page 24 SYS-C43-IPC Versions available The SYS-C43-IPC device is available in different versions that integrate various configurations of the single electronic board “C43”. Below are the tables with the main configurations of the device: SYS-C43-IPC-0000-0000-Cx PRIMARIA SYS-C43-IPC-1xxx-xxxx-Cx i.MX 8QuadPlus 1.6GHz Automotive -40 to 125 °C i.MX 8QuadPlus (no DSP) 1.6GHz Automotive -40 to 125...
- Page 25 SYS-C43-IPC Maintenance User should clean the product with a dry cloth when necessary, based on his visual inspection. Caution! Disconnect the device from any power source before cleaning. Warning! The enclosure of the device must be cleaned only with a dry cloth.
