2 - General Description

General Description

2.1

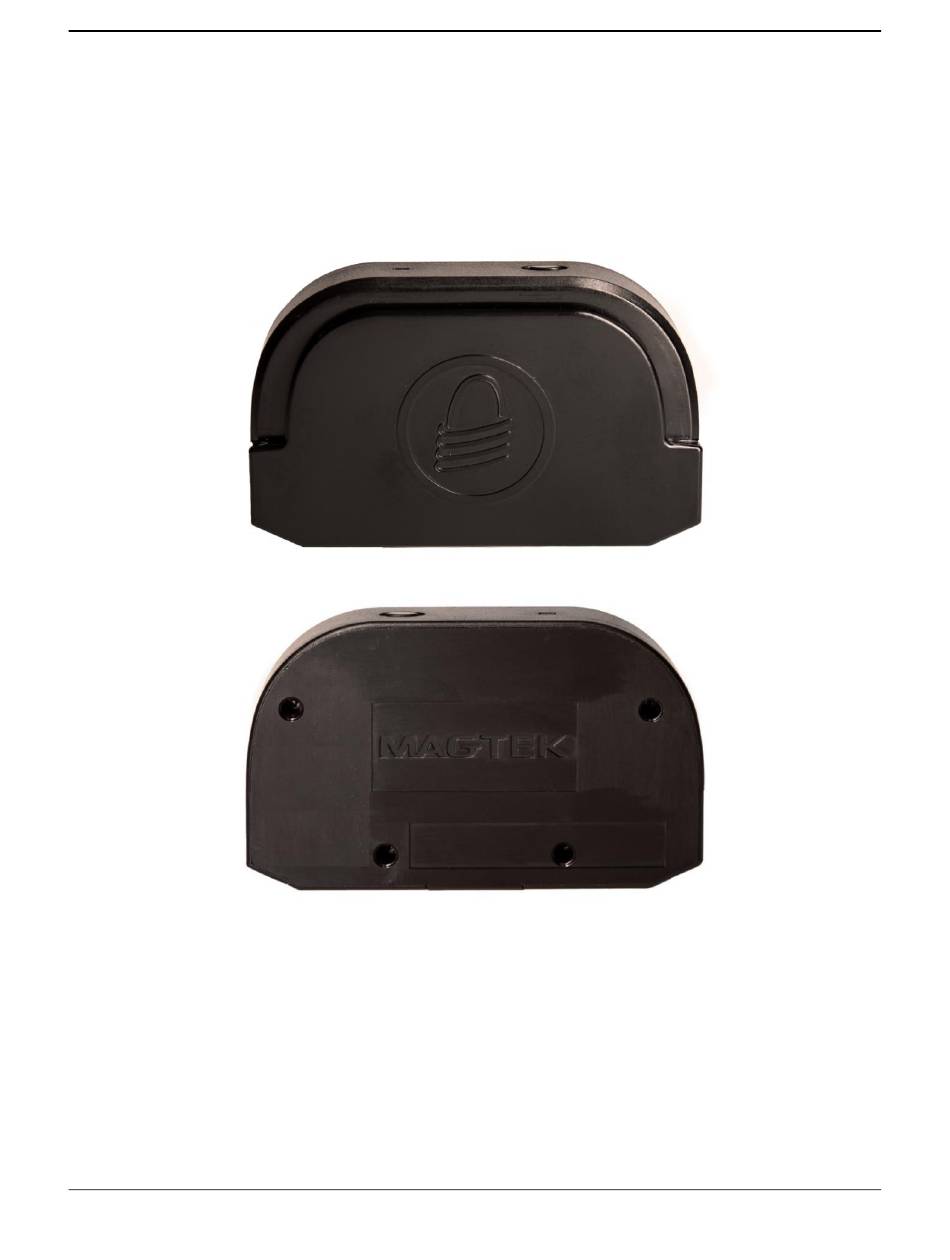

The front view of iDynamo 5 Gen III, is shown in Figure 2-1 below. The back view of iDynamo 5 Gen

III is shown in Figure 2-2. The side views of iDynamo 5 Gen III can be seen in Figure 2-3 and Figure

2-4. The Top View displaying the pushbutton and LED indicator can be seen in Figure 2-5, and the

Bottom View displaying the USB-C receptacle can be seen in Figure 2-6.

iDynamo 5 Gen III| Secure Card Reader | PCI PTS POI v6.2 Security Policy

Figure 2-1 –Front View

Figure 2-2 – Back View

Page 6 of 19 (D998200619-101)
