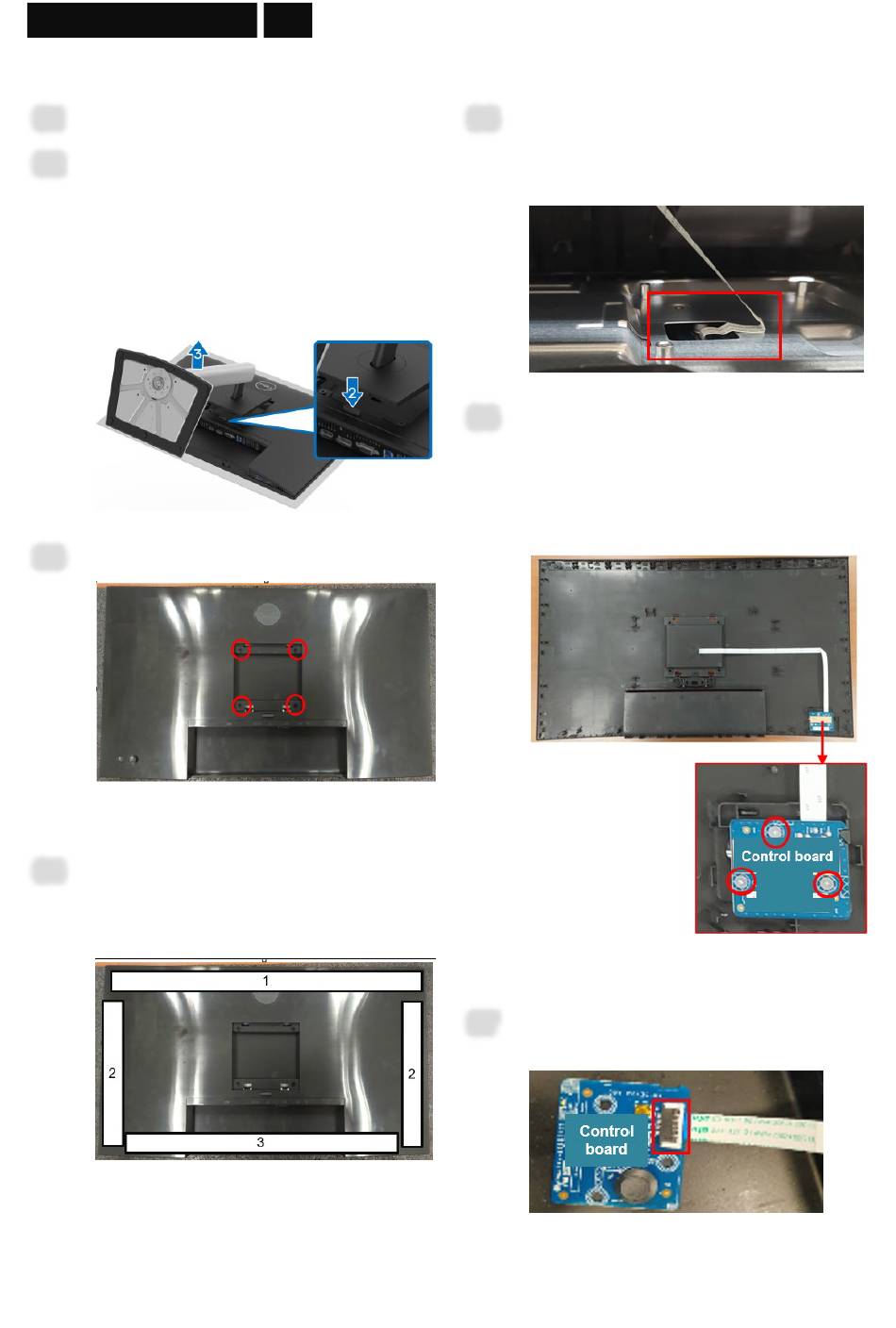

1. Disassembly Procedures
Turn off the monitor.
S1
Place the monitor on a soft cloth or
S2
cushion
Press and hold the stand release button
at the back of the display
Lift the stand assembly up and away
from the monitor
Unlock 4 screws on "Rear Cover"
S3
(Screw Torque: 9±1 kgf)
Use hands or "Bar Scraper" to
S4
disassemble "Rear Cover" from "Middle
Frame" according to the sequence
shown in the picture
1
Pull out "Control board FFC" from
S5
"Interface board" and tear off it from
"Main Shielding" to take off "Rear
Cover"
Unlock 3 screws to disassemble
S6
"Control board" from "Rear Cover"
Tear off "Control board FFC" from "Rear
Cover" and take off "Control board"
from "Rear Cover"
(Screw Torque: 1.6-1.8 kgf)
Disassemble "Control board FFC" from
S7
"Control board"
