Assembly Instructions & User's Manual for

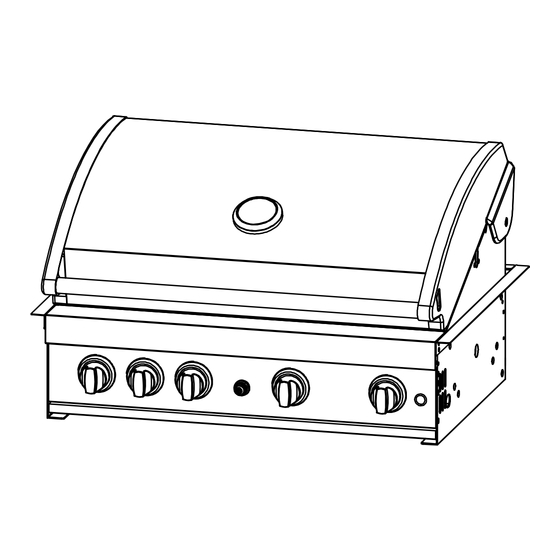

MAXIM 4B BUILT-IN GRILL
Model Number: GT04-RBI01-LP
ELITE 4B BUILT-IN GRILL
Model Number: GT04-R-LP-S
Customer Assistance
Email: support@1800acs.com/ contact@zhprokan.com
THIS ASSEMBLY MANUAL CONTAINS IMPORTANT SAFETY
INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE.
DANGER
!
If you smell gas:
1.
Shut off gas to the appliance.
Extinguish any open flame.
2.
3.
Open lid.
If odor continues, keep away from
4.
the appliance and immediately call
your gas supplier or your fire
department.
(spare/replacement parts)
!
: 1-877-419-2598 or
WARNING
!
Do not store or use gasoline or other
1.
flammable liquids or vapors in the
vicinity of this or any other appli-
ances.
An LP cylinder not connected for
2.
use shall not be stored in the vicinity
of this or any other appliance.
Manual # PK000553023AE- Date: 2023/10
OPERATOR'S MANUAL
801480
!
1 |
P a g e
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Prokan MAXIM 4B
Summary of Contents for Prokan MAXIM 4B
- Page 1 OPERATOR'S MANUAL Assembly Instructions & User’s Manual for MAXIM 4B BUILT-IN GRILL Model Number: GT04-RBI01-LP ELITE 4B BUILT-IN GRILL Model Number: GT04-R-LP-S 801480 Customer Assistance : 1-877-419-2598 or (spare/replacement parts) Email: support@1800acs.com/ contact@zhprokan.com THIS ASSEMBLY MANUAL CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE.
-
Page 2: Table Of Contents
Table of Contents Quality Statement ............................. 3 Important Safety Information ........................ 4 Package Contents ............................5 Product Information ..........................6 Components .............................7 Tools ................................8 Assembly Instructions ..........................9-12 Part Diagrams and Lists ........................13-16 Warning ............................17 Danger ............................18 Troubleshooting ............................19-21 Care & Use Instructions ........................22-29 Storage Instructions ..........................30 Technical Data ............................ -
Page 3: Quality Statement
Quality Statement Important Safety Information • Please read all instructions carefully before assembling this product. • Where applicable, and for your safety, assembly by an adult is strongly recommended. • Use only vendor-supplied hardware to assemble this item. Using unauthorized hardware could jeopardize the structural integrity of the item. -
Page 4: Important Safety Information
Important Safety Information PRE-ASSEMBLY CAUTION Read and perform the following pre-assembly instruc- tions: Tools Required for Assembly Failure to comply with these instructions may result in a hazardous situation which, if not avoided, may • protective work gloves result in injury. •... -
Page 5: Package Contents
Package Contents Quantity Component Description Cooking Grid Grill Hotplate Warming Rack P a g e... -
Page 6: Product Information
Product Information 34.5" 34.5" 26" 33" 23.9" Elite GT04-R-LP-S 34.5" 34.5" 26" 33" 23.9" Maxim GT04-RBI01-LP P a g e... -
Page 7: Components
Components Components Cooking Grid Warming Rack Hotplate No.S0147-57C No.S0211-13 No.S0146-183 Qty 3 Qty 1 Qty 1 lame amer Cooking Grid Part Part No.S0234-10 No.S0157-50 Qty 3 Qty 3 P a g e... -
Page 8: Tools
Tools Phillips Screwdriver (Not Included) P a g e... -
Page 9: Assembly Instructions
ASSEMBLY INSTRUCTIONS Step 1：Install the Trim brackets Left and Right & Rear Phillips Head Screw 3/16" 3/8" Phillips Head Screw 1/4" 3/8" Qty. 4 Qty. 2 GT04-LP-S ELITE G4I Step 2：Regulator and Install the grill onto the housing. Step 3： Connect the power supply, and use the switch on the control panel to turn on the lights. - Page 10 Install Ignitor Battery Step 4： Remove Ignitor Cap from Control Panel. Place supplied AA battery into the Ignitor Slot with positive pole facing you. Position the Cap and Spring over the AA battery and tighten onto Control Panel. Step 5： Main Burner Electrode check With the assistance of another person, perform this Electrode Check before proceeding.
- Page 11 Install Cooking Components Step 7： Place the Flame Tamers above the Burners. Place the Cooking Grids on the ledge above the Flame Tamer. Place the Secondary Cooking Rack onto the Warming rack holder. Maxim G4IB Cooking Grid Please do not cook always with just 2 burners with hood closed.
- Page 12 Step 8: Install Transformer light the Lights. Remove Transformer from box (the transformer is in Grill Head). Remove 4 Phillips Head Screws 3/16"x 1/2" and 4 Hexagon Nuts 3/16" from the Transformer. Install Transformer-Plug into Transformer-Socket and tighten securely. (See Fig. 1) Install Transformer to the Rear Island Panel* by using 4 Phillips Head Screws 3/16"x1/2".
-
Page 13: Part Diagrams And Lists
Part Diagrams and Lists-Elite GT04-R-LP-S 13 | P a g e... - Page 14 Part Diagrams and Lists-Elite GT04-R-LP-S S0209-01Z2 Lid Assembly Temperature Gauge S0209-16 Name plate S0202-19 S0146-158 Lid Rubber Pad,Front Lid Rubber Pad,Rear S0146-158 Heat Shield Panel S0211-33 S0211-03 Bowl Panel, Left Bowl Panel, Right S0211-04 S0211-25A Bowl Grease Shield- Left 9Ａ S0211-25B Bowl Grease Shield- Right 9Ｂ...
- Page 15 Part Diagrams and Lists-GT04-RBI01-LP 15 | P a g e...
- Page 16 Part Diagrams and Lists-GT04-RBI01-LP S0209-01Z-SPP S0209-16 S0202-19 Name plate Lid Rubber Pad, Front S0146-158 Lid Rubber Pad, Rear S0146-158 S0220-16 S0228-09 , Left S0211-25A , Right S0211-25B Heat Shield Panel S0211- Heat Shield -Rear Burner S0147-107 S0146-57C Cooking Grid S0221-04 S0146-81 S0147-59B S0221-15...
-
Page 17: Warning
WARNING WARNING WARNING • This appliance, when installed, must be electri- cally grounded in accordance with local codes • LPG models must be used with Liquid Propane or, in the absence of local codes, with the Gas and the regulator assembly supplied. Natural National Electrical Code, ANSI/NFPA 70, or the Gas models must be used with Natural Gas only. -
Page 18: Danger
Danger DANGER Do not use an open flame to check for gas leaks. Be sure there are no sparks or open flames in the area while you check for gas leaks. This will result in a fire or explosion which can cause serious bodily injury or death, and damage to property. -
Page 19: Troubleshooting
Troubleshooting Troubleshooting To purge air from your gas line and/or reset If the grill fails to light : the regulator excess gas flow device: Turn gas off at source and turn Control Knobs to OFF. Wait Turn Control Knobs to the OFF position. at least 5 minutes for gas to clear, then retry. - Page 20 Troubleshooting Answer: Question: The humming sound is gas flowing through the regulator. Can I convert my grill from LPG to NG? A low volume of sound is normal and will not interfere with the operation of your grill. Loud or excessive regulator Answer: humming and/or low flow and intermittent lighting may No, your gas grill is manufactured to exact specifications and is...
- Page 21 Troubleshooting Question: After every use (after your grill has cooled down), wipe The Regulator and Hose supplied with my gas grill stainless surfaces with a soft, soapy cloth or sponge does not fit the older LP Gas tank I’ve used for years. then rinse with water.
-
Page 22: Care & Use Instructions
Care & Use Instructions LP Gas Model only: NOTE about LP Gas Tank Exchange Programs To Secure a 20lb LP Gas Tank to the tank Many retailers who sell grills offer you the option of re- storage placing your empty LP Gas tank through an exchange service. - Page 23 Care & Use Instructions CORRECT LP GAS TANK USE Keep fire extinguisher readily accessible. In the event LP Gas grill models are designed for use with a standard of a oil/grease fire, do not attempt to extinguish with 20 lb. Liquid Propane Gas (LP Gas) tank (sold sepa- water.
- Page 24 Care & Use Instructions LP Gas Model only: Check all connections for LP Gas Leaks Connect Regulator with Hose to your LP Gas Tank Never test for leaks with an open flame. Prior to first use, at the beginning of each season, or every time Turn all Burner Valves to the OFF position.
- Page 25 Care & Use Instructions Main Burner Lighting Instructions Repeat steps to light each burner individually. Note: When Before each use, check all hoses for cracks, nicks, cuts, burns or abrasions. If a hose is damaged in any way, do lighting all main burners, start with the burner furthest from fuel source location, then light remaining burners in se- not use your grill before replacing the hose with an quence moving toward fuel source.
- Page 26 Care & Use Instructions Cleaning Exterior Stainless Steel Surfaces: Proper care and maintenance will keep your grill in top operating condition and prolong its life. Follow these cleaning procedures Routine care and maintenance is required to preserve on a timely basis and your grill will stay clean and operate with the appearance and corrosion resistance of stainless minimum effort.
- Page 27 Care & Use Instructions Manually Lighting Your Grill By Paper Match CAUTION To light your gas grill by match, insert a match into the Lighting Stick and follow steps 1 through 5 of the Grill Lighting Instructions. Then, light the match and place Never lean over the grill cooking area while lighting Lighting Stick through the Cooking Grids on the grill (See your gas grill.
- Page 28 Care & Use Instructions CORRECT ROTISSERIE USE ELECTRICAL EQUIPMENT USE Read all instructions before initial use. To protect against electric shock, do not immerse cord or IMPORTANT: When using electrical appliances, basic safety plugs in water or other liquid. precautions should always be used. The Rotisserie Motor is set for 120V, 60Hz AC current.
- Page 29 Care & Use Instructions Cleaning the burner tubes and burner ports. To reduce the chance of FLASHBACK FIRE you must clean Regardless of which Burner cleaning procedure you use, we recommend that you also complete the follow- the Burner Tubes as follows at least once a month in summer and fall or whenever spiders are active in your ing cleaning regimens to help prolong Burner life.
-
Page 30: Storage Instructions
Storage Instructions Storage Instructions 1. Shut off the gas at the tank. 2. Disconnect the tank and store it in an upright position in an outdoor space away from dryer and furnace vents and play areas. Item 3. Coat the burners and other metal parts with cooking oil to repel moisture Maxim GT04-RBI01-LP that can build up over the winter and to prevent rust. -
Page 31: Technical Data
Technical Data SPECIFICATIONS Maxim GT04-RBI01-LP Models/Finish Main Burners 4x10,000 BTU/ HR 12,000 BTU/ HR Rotisserie Burner Dimensions (L × W × H) 34.5 ×26 ×19.7 in. Warranty 1-year limited Elite GT04-R-LP-S Models/Finish Main Burners 4x10,000 BTU/ HR Rotisserie Burner 12,000 BTU/ HR Dimensions (L ×... -
Page 32: Limited Warranty
Limited Warranty Should you encounter any problem, Please contact us first. DON’T Return the product to the store. We can help. For assistance, contact customer service at support@1800acs.com; prokansupport@1800acs.com or call 1-877-419-2598 Monday through Friday from 8:00 a.m. to 8:00 p.m. EST. Please note that the limited warranty is given to and covers the Original purchaser only and such coverage is not transferable.
