Assembly Instructions & User's Manual for

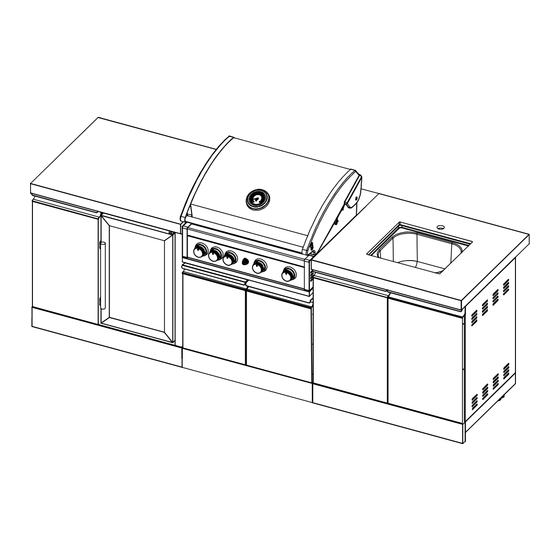

Bespoke 5B Modular Outdoor Kitchen in Wood Pattern Panels
Item Number: K05000351C
Bespoke 5B Modular Outdoor Kitchen in Gray Glass Panels
Item Number: K05000352C Model Number: BS04RCIS-LP-C
THIS ASSEMBLY MANUAL CONTAINS IMPORTANT SAFETY
INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE.
DANGER
!
If you smell gas:
1.
Shut off gas to the appliance.
Extinguish any open flame.
2.
3.
Open lid.
If odor continues, keep away from
4.
the appliance and immediately call
your gas supplier or your fire
department.
Model Number: BS04RCIS-LP-B
!
1.
2.
OPERATOR'S MANUAL
Faucet is not included.
WARNING
!
Do not store or use gasoline or other
flammable liquids or vapors in the
vicinity of this or any other appli-
ances.
An LP cylinder not connected for
use shall not be stored in the vicinity
of this or any other appliance.
Manual # PK000542023AE- Date: 2023/07
801480
!
1 |
P a g e
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Prokan BS04RCIS-LP-B
Summary of Contents for Prokan BS04RCIS-LP-B
- Page 1 OPERATOR'S MANUAL Assembly Instructions & User’s Manual for Bespoke 5B Modular Outdoor Kitchen in Wood Pattern Panels Model Number: BS04RCIS-LP-B Item Number: K05000351C Bespoke 5B Modular Outdoor Kitchen in Gray Glass Panels Item Number: K05000352C Model Number: BS04RCIS-LP-C 801480 Faucet is not included.
-
Page 2: Table Of Contents
Table of Contents Quality Statement ............................. 3 Important Safety Information ........................ 4 Natural Gas Safety Instructions......................5 Tools ................................6 Assembly Instructions ..........................7-11 Part Diagrams and Lists ........................12-21 Warning ............................22 Danger ............................23 Troubleshooting ............................24-26 Care & Use Instructions ........................27-34 Storage Instructions ..........................35 Technical Data ............................ -
Page 3: Quality Statement
Quality Statement Important Safety Information • Please read all instructions carefully before assembling this product. • Where applicable, and for your safety, assembly by an adult is strongly recommended. • Use only vendor-supplied hardware to assemble this item. Using unauthorized hardware could jeopardize the structural integrity of the item. -
Page 4: Important Safety Information
Important Safety Information PRE-ASSEMBLY CAUTION Read and perform the following pre-assembly instruc- tions: Tools Required for Assembly Failure to comply with these instructions may result in a hazardous situation which, if not avoided, may • protective work gloves result in injury. •... -
Page 5: Natural Gas Safety Instructions
Natural Gas Safety Instructions • Your Natural Gas BBQ is designed to operate on • WARNING: Do not route the 10 foot Quick Natural Gas only, at a pressure of 7" water column Disconnect Hose under a deck. The hose must (W.C.) (1/4 psig or 1.75 kpa), regulated at the be visible and inspected prior to each grill use. -
Page 6: Tools
Tools (for Corner Cabinets) Caster Wrench How to Install fridge handle? Open the gasket from the rear of the Install the handle door P a g e... -
Page 7: Assembly Instructions
ASSEMBLY-Corner Cabinet Install Corner Cabinet Trolley. Phillips Head Screw 3/16"x3/8" Qty.16 Install Corner Cabinet Top. Install Casters. Phillips Head Screw 1/4X5/8 Qty.4 P a g e... - Page 8 ASSEMBLY-Side Cabinet Install kickboard. Phillips Head Screw 3/16"x3/8" Qty.2 P a g e...
- Page 9 How to Adjust cabinet door? Horizontal adjustment. Fig. 1 Allow reasonable gap for turning Position adjustment Fig. 2 When the door is not align with the cabinet frame NOTEPlease Ensure to 1.Door Alighment: Adjust the tightness of the screw as shown on Fig. on both doors until the doors align properly.
- Page 10 How to adjust the height of the casters with leveling glide. 1. 1.When you want to move the cabinet, please lift the leveling glide with wrench as shown on below image (please keep the leveling glide off the floor 3-5mm). 2.When you want to level the cabinet, please use a wrench (not included) to adjust the leveling-caster.
- Page 11 How to attach the cabinets together？ Phillips Head Screw 3/16"x3/8" Open the door of main cabinet, put 2 screws into the holes to fix with left cabinet as Qty.4 below picture shown, insert the screw close to the side of hole, as this is the most secure. Washer Qty.4 Washer...
-
Page 12: Part Diagrams And Lists
Parts Diagram for Side Cabinet - K01000354A & K01000355A 12 | P a g e... - Page 13 Parts Diagram for Corner Cabinet - K01000356A 13 | P a g e...
- Page 14 Parts Diagram for Fridge Cabinet - K05000351C (BS04RCIS-LP-B) & K05000352C (BS04RCIS-LP-C) 14 | P a g e...
- Page 15 Parts Diagram for Sink Cabinet - K05000351C (BS04RCIS-LP-B) & K05000352C (BS04RCIS-LP-C) Faucet is not included. 15 | P a g e...
- Page 16 Parts Diagram for Pro Elite 5B Gas Grill Cabinet- K05000351C (BS04RCIS-LP-B) & K05000352C (BS04RCIS-LP-C) 16 | P a g e...
- Page 17 Parts Diagram for Side Cabinet - K01000354A & K01000355A DESCRIPTION PART# Cabinet Panel, TOP S0233-38Z Cabinet Panel, Left S0233-09 Cabinet Panel, Right S0233-10 Cabinet Panel, Rear Top S0233-03 Cabinet Panel, Rear Bottom S0233-02 Soft Close Hinge S0233-67 Middle Panel S0233-05 Door Bracket S0233-04 233-01...
- Page 18 Parts Diagram for Fridge Cabinet - K05000351C (BS04RCIS-LP-B) & K05000352C (BS04RCIS-LP-C) DESCRIPTION PART# Cabinet Panel, TOP S0233-38Z Cabinet Panel, Left S0233-09 Cabinet Panel, Right S0233-10 Cabinet Panel, Rear Top S0233-03 Cabinet Panel, Rear Bottom 33-02 Shelf Bracket 33-35 Rear Panel...
- Page 19 Parts Diagram for Sink Cabinet - K05000351C (BS04RCIS-LP-B) & K05000352C (BS04RCIS-LP-C) DESCRIPTION PART# S0233-43Z Sink Top Cabinet Panel, Left 33-09 Cabinet Panel, Right S0233-10 Cabinet Panel, Rear Top 0233-03 Cabinet Panel,Rear Bottom 33-02 S0233-62A Trash Bin Frame Reinforcement Bracket, Left...
- Page 20 Parts Diagram for Pro Elite 5B Gas Grill Cabinet- K05000351C (BS04RCIS-LP-B) & K05000352C (BS04RCIS-LP-C) DESCRIPTION PART# Protective Pad, Rear S0111-160 Protective Pad, Front 111-160 Temperature Gauge S0209-16 Thermometer Bezel S0202-19 26-01 Lid Assembly Cast Aluminum Grill Box 24-01 Control Panel, Upper...
- Page 21 Parts Diagram for Pro Elite 5B Gas Grill Cabinet- K05000351C (BS04RCIS-LP-B) & K05000352C (BS04RCIS-LP-C) DESCRIPTION PART# BBQ Cabinet Panel, Top S0233-15 Rear Bracket, Left S0233-26A Rear Bracket, Right S0233-26B 33-13 Cart Rear Panel Cabinet Panel, Left 33-11 Cabinet Panel, Right...
-
Page 22: Warning
WARNING WARNING WARNING • This appliance, when installed, must be electri- cally grounded in accordance with local codes • LPG models must be used with Liquid Propane or, in the absence of local codes, with the Gas and the regulator assembly supplied. Natural National Electrical Code, ANSI/NFPA 70, or the Gas models must be used with Natural Gas only. -
Page 23: Danger
Danger DANGER Do not use an open flame to check for gas leaks. Be sure there are no sparks or open flames in the area while you check for gas leaks. This will result in a fire or explosion which can cause serious bodily injury or death, and damage to property. -
Page 24: Troubleshooting
Troubleshooting Troubleshooting To purge air from your gas line and/or reset If the grill fails to light : the regulator excess gas flow device: Turn gas off at source and turn Control Knobs to OFF. Wait Turn Control Knobs to the OFF position. at least 5 minutes for gas to clear, then retry. - Page 25 Troubleshooting Answer: Question: The humming sound is gas flowing through the regulator. Can I convert my grill from LPG to NG? A low volume of sound is normal and will not interfere with the operation of your grill. Loud or excessive regulator Answer: humming and/or low flow and intermittent lighting may No, your gas grill is manufactured to exact specifications and is...
- Page 26 Troubleshooting Question: After every use (after your grill has cooled down), wipe The Regulator and Hose supplied with my gas grill stainless surfaces with a soft, soapy cloth or sponge does not fit the older LP Gas tank I’ve used for years. then rinse with water.
-
Page 27: Care & Use Instructions
Care & Use Instructions CORRECT LP GAS TANK USE Keep fire extinguisher readily accessible. In the event LP Gas grill models are designed for use with a standard of a oil/grease fire, do not attempt to extinguish with 20 lb. Liquid Propane Gas (LP Gas) tank (sold sepa- water. - Page 28 Care & Use Instructions LP Gas Model only: NOTE about LP Gas Tank Exchange Programs To Secure a 20lb LP Gas Tank to the tank Many retailers who sell grills offer you the option of re- storage placing your empty LP Gas tank through an exchange service.
- Page 29 Care & Use Instructions LP Gas Model only: Check all connections for LP Gas Leaks Connect Regulator with Hose to your LP Gas Tank Never test for leaks with an open flame. Prior to first use, at the beginning of each season, or every time Turn all Burner Valves to the OFF position.
- Page 30 Care & Use Instructions Main Burner Lighting Instructions Repeat steps to light each burner individually. Note: When Before each use, check all hoses for cracks, nicks, cuts, burns or abrasions. If a hose is damaged in any way, do lighting all main burners, start with the burner furthest from fuel source location, then light remaining burners in se- not use your grill before replacing the hose with an quence moving toward fuel source.
- Page 31 Care & Use Instructions Cleaning Exterior Stainless Steel Surfaces: Proper care and maintenance will keep your grill in top operating condition and prolong its life. Follow these cleaning procedures Routine care and maintenance is required to preserve on a timely basis and your grill will stay clean and operate with the appearance and corrosion resistance of stainless minimum effort.
- Page 32 Care & Use Instructions Manually Lighting Your Grill By Paper Match CAUTION To light your gas grill by match, insert a match into the Lighting Stick and follow steps 1 through 5 of the Grill Lighting Instructions. Then, light the match and place Never lean over the grill cooking area while lighting Lighting Stick through the Cooking Grids on the grill (See your gas grill.
- Page 33 Care & Use Instructions CORRECT ROTISSERIE USE ELECTRICAL EQUIPMENT USE Read all instructions before initial use. To protect against electric shock, do not immerse cord or IMPORTANT: When using electrical appliances, basic safety plugs in water or other liquid. precautions should always be used. The Rotisserie Motor is set for 120V, 60Hz AC current.
- Page 34 Care & Use Instructions Cleaning the burner tubes and burner ports. To reduce the chance of FLASHBACK FIRE you must clean Regardless of which Burner cleaning procedure you use, we recommend that you also complete the follow- the Burner Tubes as follows at least once a month in summer and fall or whenever spiders are active in your ing cleaning regimens to help prolong Burner life.
-
Page 35: Storage Instructions
(NEVER put on the grill cover when the grill is still wet.) Technical Data SPECIFICATIONS Models/Finish BS04RCIS-LP-B / BS04RCIS-LP-C Main Burners 4x10,000 BTU/HR 12,000 BTU/HR Rotisserie Burner 94.2 ×... -
Page 36: Warranty Information
Warranty Information Should you encounter any problem, Please contact us first. DON’T Return the product to the store. We can help. For assistance, contact customer service at support@1800acs.com; prokansupport@1800acs.com or call 1-877-419-2598 Monday through Friday from 8:00 a.m. to 8:00 p.m. EST. Please note that the limited warranty is given to and covers the Original purchaser only and such coverage is not transferable.
