Summary of Contents for GE Critical Power SG Series

Page 1 Critical Power Installation Guide Uninterruptible Power Supply GE Consumer & Industrial SA General Electric Company CH – 6595 Riazzino (Locarno) Switzerland T +41 (0)91 / 850 51 51 F +41 (0)91 / 850 52 52 www.gecriticalpower.com imagination at work...
Page 2 The present publication and any other documentation supplied with the UPS system is not to be reproduced, either in part or in its entirety, without the prior written consent of GE. The illustrations and plans describing the equipment are intended as general reference only and are not necessarily complete in every detail.
Page 3 START-UP AND COMMISSIONING A GE GLOBAL SERVICES FIELD ENGINEER must perform start-up and commissioning of the UPS. Please Contact GE. GLOBAL SERVICES at least two weeks prior to schedule start-up and commissioning at 1-800-637-1738, or by E-mail at pqservice@ge.com Distributed in the USA by:...
Page 4 UPS. While every care has been taken to ensure the completeness and accuracy of this manual, GE assumes no responsibility or liability for any losses or damages resulting from the use of the information contained in this document.
Page 5: Table Of Contents
Critical Power Table of contents Page SAFETY RULES ..............................6 LAYOUT................................9 LAYOUT SG SERIES 10 & 20 ................................... 9 LAYOUT SG SERIES 30 & 40 .................................10 INSTALLATION............................... 11 TRANSPORT .........................................11 3.1.1 Dimensions and weight ..................................11 DELIVERY ........................................12 STORAGE ........................................12 3.3.1 Storage of the UPS ....................................
Page 6: Safety Rules
Critical Power SAFETY RULES SAVE THESE INSTRUCTIONS This manual contains important instructions for models SG Series 10-20-30-40 that should be followed during installation and maintenance of the UPS and battery. GENERAL Move the UPS in an upright position in its original package to the final destination room. To lift the cabinets, use a forklift or lifting belts with spreader bars.
Page 7 Critical Power Safety instructions when working with battery EXTERNAL BATTERY MUST BE INSTALLED AND CONNECTED TO THE UPS BY QUALIFIED SERVICE PERSONNEL. INSTALLATION PERSONNEL MUST READ THIS ENTIRE SECTION BEFORE HANDLING THE UPS AND BATTERY. DANGER! Full voltage and current are always present at the battery terminals. The battery used in this system can provide dangerous voltages, extremely high currents and a risk of electric shock.
Page 8 Critical Power Safety symbols and warnings Safety warnings The text of this manual contains some warnings to avoid risk to the persons and to avoid damages to the UPS system and the supplied critical loads. The non-observance of the warnings reminding hazardous situations could result in human injury and equipment damages.
Page 9: Layout
Critical Power LAYOUT LAYOUT SG Series 10 & 20 Fig. 2.1-1 SG Series 10 & 20 general view Fig. 2.1-2 SG Series 10 & 20 general view with open doors Opening for top cable entry Opening for bottom cable entry Terminals for Utility input and load output Terminals for external Battery...
Page 10 Critical Power LAYOUT SG Series 30 & 40 Fig. 2.2-1 SG Series 30 & 40 general view Fig. 2.2-2 SG Series 30 & 40 general view with open doors Opening for top cable entry Opening for bottom cable entry Terminals for Utility input and load output Terminals for external Battery connection...
Page 11: Installation
Critical Power INSTALLATION TRANSPORT Forklift Transport UPS only in upright position! The UPS is packaged on a pallet suitable for handling with a forklift. Pay attention to the center of gravity. The UPS must be moved in upright position. Do not tilt cabinets more than +/- 10° during handling. Move the UPS in it’s original package to the final Crane destination site.
Page 12: Delivery
Critical Power DELIVERY When delivered, inspect the package integrity and the physical conditions of the cabinets carefully. In case of any damage sustained during transport, immediately inform the carrier and contact your local Service Center. A detailed report of the damage is necessary for any insurance claim. NOTE ! A DAMAGED UPS MUST NEVER BE INSTALLED OR CONNECTED TO UTILITY OR BATTERY!
Page 13: Place Of Installation
Critical Power PLACE OF INSTALLATION 3.4.1 UPS location WARNING ! A QUALIFIED ELECTRICAL CONTRACTOR must carry out the installation and cabling of the UPS. If optional cabinets and accessories are included with the UPS, please refer to those accompanying manuals for installation and operating instructions. It is important to have a clean, dust-free environment provided with proper ventilation and air- conditioning to keep the ambient temperature within the specified operating range.
Page 14 Critical Power Openings for input and output cable connections Battery Utility input Utility input Output Load Output Load Battery Fig. 3.4.1-3 Opening on top of the cabinet for input and Fig. 3.4.1-2 Opening on top of the cabinet for input and cables of SG Series 10 &...
Page 15: Battery Location
Critical Power In case of parallel system, try to place the UPS modules in sequence of their numbers (marked on the packing). 3 - 4 - 5 - 6 - 7 - 8 If the units are positioned “side by side”, the side panels must be mounted on all UPS 2 units.
Page 16: Ventilation And Cooling
Critical Power VENTILATION AND COOLING Fig. 3.5-1 Installation on plain floor Fig. 3.5-2 Installation on raised floor The heat produced by the UPS is transferred to the environment by its ventilation. Air inlets for UPS ventilation are located on the front of the UPS, while air outlets are on top of the cabinet.
Page 17: Unpacking
Critical Power UNPACKING NOTE ! Check for sufficient floor and elevator loading capacity. Take care not to damage the UPS when moving by forklift. Remove the cabinet from the pallet with care because of the heavy weight of the equipment. The UPS and battery cabinets may be shipped packaged in carton boxes or in wooden crates (if requested).
Page 18 A detailed report of the damage is necessary for any indemnity claim. Packing material recycling GE, in compliance with environment protection, use only environmentally friendly material. UPS packing materials must be recycled in compliance with all applicable regulations.
Page 19: Electrical Wiring
Critical Power ELECTRICAL WIRING WARNING ! UPS installation and connection must be performed by QUALIFIED SERVICE PERSONNEL ONLY. It is the responsibility of the installation technician to ensure that all local and national electric codes are adhered to. 3.7.1 Utility input connection NOTE ! Ensure that the AC and DC external isolators are OFF and locked out to prevent their inadvertent operation.
Page 20: Input/Output Over Current Protection And Wire Sizing
Critical Power 3.7.2 Input/output over current protection and wire sizing The cabling of the UPS system has to be sized according to the UPS power rating. Sizing of circuit breakers, fuses and cables for Input Utility, Output Load and Battery must meet the requirements of local and national electrical codes.
Page 21: Battery Over Current Protection And Wire Sizing
Critical Power 3.7.3 Battery over current protection and wire sizing  Please read the safety precautions at the front of this guide carefully, and thoroughly review the battery manufacturers installation and maintenance manual before connecting the batteries to the UPS. ...
Page 22 Critical Power WIRING Wire sizing according to NEC Section 210-20 (a) Table 310-16 Use 75°C (167°F) copper wire Wiring requirements: AC INPUT RECTIFIER: 3-Phase, 3 wire plus Ground AC INPUT BYPASS: 3-Phase, 4 wire plus Ground AC OUTPUT: 3-Phase, 4 wire plus Ground DC INPUT: 2 wire (positive and negative) plus Ground Maximum cable diameter that terminals can accept...
Page 23 Critical Power NEC SECTION 210-20 (a) Table 310-16. Allowable Ampacities of Insulated Conductors Rated O Through 2000 Volts, 60°C Trough 90°C (140°F Trough 194°F) Not More than Three Current-Carrying Conductors in Raceway, Cable, or Earth (Directly Buried), Based on Ambient Temperature of 30°C (86°F). Temperature Rating of Conductor (See table 310-13) Size 60°C (140°F)
Page 24: Wiring Connection
Critical Power WIRING CONNECTION WARNING! UPS installation and connection must be performed by QUALIFIED SERVICE PERSONNEL ONLY. 3.8.1 Power connections Input/output and DC connections are provided with terminal blocks. Please refer to chart for torque specifications. Carefully read the following recommendations before proceeding: ...
Page 25 Critical Power SG Series 10 & 20 How to access the terminals for the cable connections. Top entry cables Please remove the plate "E & F" before drilling any wholes. Bottom entry cables Fig. 3.8.1-1 Access to the input / output connections of SG Series 10 & 20 To access input, output and Battery connections proceed as follows: ...
Page 26 Critical Power SG Series 30 & 40 How to access the terminals for the cable connections. Top entry cables Please remove the plate "E & F" before drilling any wholes. Bottom entry cables Fig. 3.8.1-2 Access to the input / output connections of SG Series 30 & 40 To access input, output and Battery connections proceed as follows: ...
Page 27: Power Connection With Common Input Utility Of Sg Series 10 & 20
Critical Power 3.8.2 Power connection with common input utility of SG Series 10 & 20 L3-1 L2-1 L1-1 Fig. 3.8.2-1 Power connections Common Input Utility of SG Series 10 & 20 SG Series 10 & 20 Max. rating X1 terminals: 3 AWG (25mm Common Input Rectifier / Bypass L1-1...
Page 28: Power Connection With Common Input Utility Of Sg Series 30 & 40
Critical Power 3.8.3 Power connection with common input utility of SG Series 30 & 40 LOAD INPUT RECTIFIER L3-1 & L2-1 BYPASS L1-1 Fig. 3.8.3-1 Power connections Common Input Utility of SG Series 30 & 40 SG Series 30 & 40 Max.
Page 29: Power Connection Dual Input Utility Of Sg Series 10 & 20
Critical Power 3.8.4 Power connection dual input utility of SG Series 10 & 20 L3-2 L2-2 N - Bypass L3-1 L1-2 L2-1 L1-1 Fig. 3.8.4-1 Power connections Dual Input Utility of SG Series 10 & 20 SG Series 10 & 20: Max.
Page 30 Critical Power Notices for installation Fig. 3.8.4-2 Interconnection links BR1, BR2 and BR3 of SG Series 10 & 20 For separate Bypass and Rectifier Input configuration, the interconnection links BR1, BR2 and BR3 MUST BE REMOVED. Modifications reserved Page 30/46 GE_UPS_OPM_SGS_ISG_10K_40K_0US_V070.docx Installation Guide SG Series 10-20-30-40 UL S...
Page 31: Power Connection Dual Input Utility Of Sg Series 30 & 40
Critical Power 3.8.5 Power connection dual input utility of SG Series 30 & 40 N - Bypass L3-2 L3-1 L2-2 L2-1 L1-1 L1-2 Fig. 3.8.5-1 Power connections Dual Input Utility of SG Series 30 & 40 SG Series 30 & 40 Max.
Page 32 Critical Power Notices for installation BR1 BR2 Fig. 3.8.5-2 Interconnection links BR1, BR2 and BR3 of SG Series 30 & 40 For separate Bypass and Rectifier Input configuration, the interconnection links BR1, BR2 and BR3 MUST BE REMOVED. Modifications reserved Page 32/46 GE_UPS_OPM_SGS_ISG_10K_40K_0US_V070.docx Installation Guide SG Series 10-20-30-40 UL S...
Page 33: Battery Connection Of Sg Series 10 & 20
Critical Power 3.8.6 Battery connection of SG Series 10 & 20 External battery connection Internal battery connection When the unit is equipped with internal battery, for safety reasons it is delivered with the battery fuses already inserted, but with the battery plug "BC"...
Page 34 Critical Power 3.8.7 Battery connection of SG Series 30 & 40 BATTERY Fig. 3.8.7-1 Power connections battery of SG Series 30 & 40 Max. rating Battery terminals: 1 AWG (50mm Battery Positive pole of the Battery – Negative pole of the Battery Do not insert the Battery Fuses before the commissioning.
Page 35: Set-Up For Sg Series 10-20-30-40 When Functioning As Frequency Converter
(accessible only through password), and can therefore only be done by a QUALIFIED SERVICE ENGINEER GE. When the SG Series 10-20-30-40 is utilized for different output frequency compared to the input frequency, the Automatic Bypass and Manual Bypass functions are disabled, therefore the load cannot be transferred to Utility in case of overload, short circuit, or inverter failure.
Page 36: Rpa Parallel System Connection
Critical Power RPA PARALLEL SYSTEM CONNECTION WARNING ! This operation must be performed by QUALIFIED SERVICE PERSONNEL ONLY before the initial start-up. ENSURE THAT THE UPS INSTALLATION IS COMPLETELY POWERED DOWN. 3.9.1 Power wiring of parallel units To guarantee good Load sharing between the units of a parallel system, we recommend that the cable length from the input distribution board (5) to the output distribution board (10) is equal for each unit (a+b = c+d = e+f = g+h = i+l = m+n = o+p = q+r).
Page 37: Parallel Control Bus Connection
Critical Power 3.9.2 Parallel control bus connection In cases of parallel operation, the communication between the units takes place through the control bus cables. Each parallel unit is equipped with an additional board “P13 – RPA Board“ where the connectors J52 (A) and J62 (B) are located.
Page 38 Critical Power SGT5000_100-150_RPA-IM0048_02 IM 0048 Fig. 3.9.2-2 Bus connection on terminal units Terminal units On the parallel bus PCB “P34 – Bus Interface”, of the first and last units (terminal) of the parallel system the Jumpers JP1, JP2, JP3 and JP4 MUST BE INSERTED. SGT5000_100-150_RPA-IM0048_03 IM 0048 Fig.
Page 39: Control Bus Cable Location
Critical Power 3.9.3 Control bus cable location WARNING ! This operation must be performed by QUALIFIED SERVICE PERSONNEL ONLY before the initial start-up. ENSURE THAT THE UPS INSTALLATION IS COMPLETELY POWERED DOWN. Access to the control bus connection. The control bus connection between parallel units must be made on the front of the electronic module fitted behind the front doors.
Page 40 It is important that the cable JA must be the same length as cable JB. WARNING ! Connection and commissioning of an additional UPS to an existing parallel system, Service Center. must be performed by a GE SERVICE ENGINEER from of your Modifications reserved Page 40/46 GE_UPS_OPM_SGS_ISG_10K_40K_0US_V070.docx...
Page 41: Customer Interface
Critical Power CUSTOMER INTERFACE CUSTOMER INTERFACE Serial port J3 - RS 232 (sub D - female 9 pin) (see Section 4.1.1) SGSU_100-150_Customer interface_01 Suitable for JUMP protocol Pin 2: TX (out) Pin 3: RX (in) Pin 5: GND J2 (subD-female 25p) – Output signals on voltage free contacts(see Section 4.1.2) J2/1, 2, 3 NO, C, NC Utility Failure...
Page 42: Serial Port J3
Serial port J3 - RS-232 (sub D, female 9 pin) that allows: Total remote management of the system using software GE Power Diagnostics, GE Data Protection or GE Service Software for system protection and management of the UPS systems. Fig. 4.1.1-1 Serial port J3 The serial port J3 - RS232 is enabled on all the units of the parallel system.
Page 43: Programmable Input Free Contacts
Critical Power 4.1.3 Programmable input free contacts Some programmable UPS functions (indicated in Section 4.1), can be activated by closing an external contact, if connected, on: X1 / 10, 21 J2 / 10, 23 User Input 1 (default = Not used) X1 / 11, 22 J2 / 11, 24 User Input 2 (default = Emergency GEN ON)
Page 44: Epo - Emergency Power Off" Command Connection
Critical Power 4.1.7 EPO - Emergency Power Off” command connection “ Be aware: The reliability of the system depends on this contact NC (Normally Closed)! An external Emergency switch (Normally Closed voltage-free contact) can be connected on terminals XB / 1 - 4 or connector J2 / 12 - 25 of the “P4 - Customer Interface”.
Page 45 Critical Power When the “EPO - Emergency Power Off” has been activated, the system must be restored as follows:  Realize the push-button “EPO - Emergency Power Off” (contact on XB / 1, 4 is closed again).  Press the key “O” (Inverter OFF - Shut-down) on the Control Panel. (see User Manual to Section 5.2).
Page 46: Notes
Critical Power NOTES NOTES FORM It is recommended to note in this section Notes, with date and short description all the operations performed on the UPS, as: maintenance, components replacement, abnormal situations, etc. Date Description Done by Modifications reserved Page 46/46 GE_UPS_OPM_SGS_ISG_10K_40K_0US_V070.docx Installation Guide SG Series 10-20-30-40 UL S...
Page 47 Critical Power User Manual Uninterruptible Power Supply GE Consumer & Industrial SA General Electric Company CH – 6595 Riazzino (Locarno) Switzerland T +41 (0)91 / 850 51 51 F +41 (0)91 / 850 52 52 www.gecriticalpower.com imagination at work...
Page 48 The present publication and any other documentation supplied with the UPS system is not to be reproduced, either in part or in its entirety, without the prior written consent of GE. The illustrations and plans describing the equipment are intended as general reference only and are not necessarily complete in every detail.
Page 49 START-UP AND COMMISSIONING A GE GLOBAL SERVICES FIELD ENGINEER must perform start-up and commissioning of the UPS. Please Contact GE. GLOBAL SERVICES at least two weeks prior to schedule start-up and commissioning at 1-800-637-1738, or by E-mail at pqservice@ge.com Distributed in the USA by:...
Page 50 UPS. While every care has been taken to ensure the completeness and accuracy of this manual, GE assumes no responsibility or liability for any losses or damages resulting from the use of the information contained in this document.
Page 51 Critical Power Table of contents Page SAFETY RULES ..............................7 LAYOUT ................................10 LAYOUT SG SERIES 10 & 20 .................................10 LAYOUT SG SERIES 30 & 40 .................................11 INTRODUCTION ............................12 DESCRIPTION..............................13 BLOCK DIAGRAM AND MAIN ELEMENTS ............................13 OPERATION MODES ....................................14 4.2.1 Normal operation mode ..................................
Page 52 Critical Power PROCEDURES FOR SG SERIES 10-20-30-40 PARALLEL SYSTEM ..................53 7.3.1 Start-up SG Series 10-20-30-40 Parallel System ........................53 7.3.2 Maintenance system shut-down (Load supplied from Q2 on all Units) ............... 55 7.3.3 From Manual Bypass (Q2) to normal function VFI ......................... 56 7.3.4 Separate a Unit from the Parallel System (System Redundancy) ...................
Page 53: Safety Rules
Critical Power SAFETY RULES SAVE THESE INSTRUCTIONS This manual contains important instructions for models SG Series 10-20-30-40 that should be followed during installation and maintenance of the UPS and battery. GENERAL Move the UPS in an upright position in its original package to the final destination room. To lift the cabinets, use a forklift or lifting belts with spreader bars.
Page 54 Critical Power Safety instructions when working with battery EXTERNAL BATTERY MUST BE INSTALLED AND CONNECTED TO THE UPS BY QUALIFIED SERVICE PERSONNEL. INSTALLATION PERSONNEL MUST READ THIS ENTIRE SECTION BEFORE HANDLING THE UPS AND BATTERY. DANGER! Full voltage and current are always present at the battery terminals. The battery used in this system can provide dangerous voltages, extremely high currents and a risk of electric shock.
Page 55 Critical Power Safety symbols and warnings Safety warnings The text of this manual contains some warnings to avoid risk to the persons and to avoid damages to the UPS system and the supplied critical loads. The non-observance of the warnings reminding hazardous situations could result in human injury and equipment damages.
Page 56: Layout
Critical Power LAYOUT LAYOUT SG Series 10 & 20 Fig. 2.1-1 SG Series 10 & 20 general view Fig. 2.1-2 SG Series 10 & 20 general view with open doors Fig. 2.1-4 Control Panel Fig. 2.1-3 Manual operated switches Customer Interface Board UPS output switch Manual Bypass switch SNMP...
Page 57 Critical Power LAYOUT SG Series 30 & 40 Fig. 2.2-1 SG Series 30 & 40 general view Fig. 2.2-2 SG Series 30 & 40 general view with open doors Fig. 2.2-4 Control Panel Fig. 2.2-3 Manual operated switches Customer Interface Board UPS output switch Manual Bypass switch SNMP...
Page 58: Introduction
Tailor made power protection to meet your individual installation requirements; SG Series 10-20-30- 40 offers various options like input harmonic filters and our comprehensive GE Power Diagnostic software suite for mission control and data protection to cover all your application needs.
Page 59: Description
Critical Power DESCRIPTION BLOCK DIAGRAM AND MAIN ELEMENTS Fig. 4.1-1 Block diagram The SG Series 10-20-30-40 system can be divided into the following main elements: Control System SG Series 10-20-30-40 is designed with microprocessor-controlled signal processing circuits. The interface between the operator and the unit is provided by the monitoring system on the front panel.
Page 60: Operation Modes
Critical Power OPERATION MODES 4.2.1 Normal operation mode During normal operation, the Rectifier converts input AC power to DC. The DC power provides input power for the Inverter and charging power for the Battery. The Inverter converts the DC power to continuous and regulated AC power, which supplies the critical load.
Page 61: Utility Recovery Operation
Critical Power 4.2.3 Utility recovery operation As soon as the AC input power recovers, the Rectifier will start automatically, supplying DC power to the Inverter and recharging the Battery. If the Inverter was previously shut-down due to low Battery, the Load will be initially powered by Utility through the Automatic Bypass.
Page 62: Parallel System Operation
Critical Power PARALLEL SYSTEM OPERATION 4.3.1 Introduction to the Parallel System Fig. 4.3.1-1 Block diagram Parallel System operation Two or more equal power units can be paralleled to increase the output power (paralleling for capacity) or to improve the overall reliability of an UPS system (paralleling for redundancy). The outputs of parallel units are connected to a common power bus, and in normal operation the units connected on the parallel bus share the Load equally.
Page 63: Features Of Rpa Parallel System
Critical Power 4.3.2 Features of RPA Parallel System The SG Series 10-20-30-40 Parallel System is designed to provide a complete Redundant Parallel Architecture, and is free from common equipment. Not only the Inverters are redundant, but also the Bypass functions are designed with redundant modular concept.
Page 64: Rectifiers Paralleled On The Same Battery
A Parallel System with a Common Battery for two or more Rectifiers, requires a particular installation and adequate setting of some parameters, (accessible only through password), and can therefore only be done by a GE QUALIFIED SERVICE ENGINEER Usually each Rectifier-Inverter Unit runs with its own Battery.
Page 65: Recycling At The End Of Service Life
It does not contain CFCs (Carbon Fluor Clorid) or HCFCs (Halogen Carbon Fluor Clorid). GE, in compliance with environment protection recommends to the User that the UPS equipment, at the end of its service life, must be recovered conforming to the local applicable regulations.
Page 66: Control Panel
Critical Power CONTROL PANEL CONTROL PANEL Fig. 5.1-1 Control Panel TABLE OF FUNCTIONS AND INDICATIONS ON CONTROL PANEL Key to switch the Inverter ON ( I ) inverter on/off (This key is also used to reset “total off” if pressed simultaneously with total off push button).
Page 67 Critical Power General alarm condition It blinks when one or more alarm is activated. The internal buzzer is ON. The LED remains lighted (with alarm condition still present) and the buzzer stops as the key “mute” has been pressed. alarm LED ON indicates that a regular maintenance service is needed.
Page 68: Lcd Screen
Critical Power LCD SCREEN The user interface consists of a back lit LCD screen having:  4 lines with 20 characters (standard version for Latin characters).  6 keys (the function is described for each operating mode). The operation is extremely simple and is structured on three important main menus related to the UPS operation, as follows: metering A UPS must offer some metering information for the user to be able to examine the...
Page 69: Metering Mode
Critical Power METERING MODE The metering mode is entered any time the metering button is pressed. While in this mode the LCD will display a series of screens containing metering information. In this mode the buttons perform the following functions: metering Scrolls forward to the next screen.
Page 70 Critical Power Rectifier Utility data screen This screen refers to the AC source supplying the Rectifier. This screen displays:  Iout1 = output current Rectifier Bridge.  Iout2 = output current 2 Rectifier Bridge (optional 12 pulse Rectifiers only).  The voltage levels between the three phases (line-to-line).
Page 71 Critical Power Load on phases screen 2 This screen displays for each phase:  The Load active power (kW) (for RPA: total value of Parallel System).  Load Power factor: + Indicates inductive Load - Indicates capacitive Load metering LOAD ON PHASES L1= 6.72kW PF +/-0.80 –...
Page 72: Alarms
– Scrolls backward to the previous screen. Display the main screen for this mode. The events displayed are the standard GE events as described in the Section 6.7 - EVENTS (Alarms and Messages). The information displayed includes:  The exact date and time when the event occurred.
Page 73: Parameters
Critical Power PARAMETERS The parameters mode is entered any time the parameters button is pressed. The LCD will display a series of screens containing the user parameters, accessible without password protection. The buttons perform the following functions: metering Abandon parameters mode and enter metering mode. alarms Abandon parameters mode and enter alarms mode.
Page 74 Critical Power 3 – Scroll to the next screen (+). The third screen is displayed. metering Tel1:002186394567 Tel1 enabled: – alarms Tel2:004017464340 Tel2 enabled: parameters 4 – Move the selection (underscore cursor) to the next parameter in this page (-). metering Tel1:002186394567 Tel1 enabled:...
Page 75: Edit Mode
Critical Power EDIT MODE The EDIT MODE is entered from the parameters mode when the ok button is pressed. During this mode the LCD will display a special editing screen for the parameter being edited. The screen contents during Edit mode is: ...
Page 76 Critical Power 3 – Change the selected character (-). metering EDIT MODE PHONE NUMBER 2 – alarms 005017464340 + SCROLL - CHANGE parameters 4 – Change the selected character (-). metering EDIT MODE PHONE NUMBER 2 – alarms 006017464340 + SCROLL - CHANGE parameters 5 –...
Page 77 Critical Power 3 – Change to 4800. metering EDIT MODE PRINTER BAUDRATE – alarms 4800 + SCROLL - CHANGE parameters 4 – Press ok: the screen will return to parameters mode saving the new value. metering PRINTER SETUP Baud=4800 Parity=O –...
Page 78: User Parameters
Critical Power USER PARAMETERS Pressing the Parameters button displays a series of screens containing the user parameters on the LCD panel. This first parameter level in not protected by password, therefore the user can freely adapt these parameters to their needs. The meaning of the user parameters and their use is described below (buttons performance is described to Section 7.3).
Page 79 Critical Power Telephone numbers Tel1: metering Tel1 enabled: N – alarms Tel2: Tel2 enabled: N parameters Tel1 This parameter specifies a first telephone number to be used for modem dial-out. The telephone number has a maximum 39 characters and cannot contain blanks. If the desired number is shorter than 39 characters, the string will finish with blanks.
Page 80 Critical Power Printer Set-up The UPS is capable of communicating to a serial printer, to printout disparate information. Please be sure to have a serial printer, that is a printer with a serial RS232 interface. This is the only printer-interface supported by the UPS. metering PRINTER SETUP Baud=2400 Parity=O...
Page 81: Events (Alarms And Messages)
Each of the following listed events, alarm or message, can be displayed on the LCD screen, on a PC with the software “GE Data Protection” installed or with the monitoring system “GE Power Diagnostic”. Alarms and Messages are differently specified because the alarms are indicating an abnormal...
Page 82 Critical Power Code Alarms Meaning Temperature sensor indicates an over temperature on the Rectifier Bridge. RECTIFIER 4105 Only alarm is given. OVERTEMPERATURE The Rectifier, when in Off state, cannot start as long as this condition persists. The temperature sensor inside the input transformer winding RECTIFIER indicates over temperature.
Page 83 Critical Power Code Alarms Meaning INV. VOLTAGE Inverter Output Voltage is out of the tolerances ( 10%). 4312 OUT OF TOLERANCE Inverter is switched OFF. Detection of Inverter Bridge (Is) current limit causing the Inverter ISMAX OFF and automatic re-start. 4320 DETECTION After 3 times the Inverter switches-Off, and it can be restarted...
Page 84 Critical Power Code Alarms Meaning Alarm after detection of an EPO from an external safety device EMERGENCY OFF connected on Customer Interface Board. 4563 ACTIVATED Consequently K3, K4, K6, K7, K8 open, Rectifier, Inverter and SSM are switched Off. The UPS-System is in an overload condition 105% on Inverter, or 150% on Utility.
Page 85: Messages List
Critical Power 6.6.2 Messages list Code Message Meaning The microprocessor has detected an incorrect operation: WATCHDOG 4002 Transfers the Load on Utility and performs a program reset. RESET The Inverter will restart automatically and will supply the Load. RECTIFIER Rectifier Input Utility is again within the admitted tolerance 4111 UTILITY OK (voltage, frequency and phase).
Page 86 Critical Power Code Message Meaning TOTAL Push-button “total off” on the UPS Control Panel has been 4561 pressed, with the output circuit switch Q1 closed. DETOUR The auxiliary contact indicates that Manual Bypass Q2 was 4562 closed. DETOUR The auxiliary contact indicates that Manual Bypass Q2 was 4564 opened.
Page 87: Event Report Sg Series 10-20-30-40
Critical Power 6.6.3 Event report SG Series 10-20-30-40 In case of failure or malfunctioning, before calling the nearest Service Center, please note the most important data of your UPS and the most recent events. In order to make the diagnosis easier from our Diagnostic Center we suggest you make a copy of this page, fill it out with the requested data and send it by fax.
Page 88: Operation
START-UP AND COMMISSIONING A GE GLOBAL SERVICES FIELD ENGINEER must perform start-up and commissioning of the UPS. Please Contact GE. Global Services at least two weeks prior to schedule start-up and commissioning at 1-800-637-1738, or by E-mail at pqservice@ge.com This symbol refers to the operations of a Parallel System.
Page 89: Start-Up Of The Sg Series 10-20-30-40
Critical Power PROCEDURES FOR SINGLE SG Series 10-20-30-40 7.1.1 Start-up of the SG Series 10-20-30-40 Verify with open front door: Switch Q1 and Q2 must be open (Pos. O). 1. Connect the Utility power on the UPS. (In case of separate inputs for Rectifier and Bypass, connect both).
Page 90: Maintenance Shut-Down (Load On Q2)
Critical Power 7.1.2 Maintenance shut-down (Load on Q2) Initial status: Load supplied from Inverter. 1. Press “inverter off” ( O ) key and hold until the LED inside the Inverter symbol turns OFF.  Load is transferred to Utility.  Inverter shuts down. ...
Page 91: From Manual Bypass (Q2) To Normal Function Vfi
Critical Power 7.1.3 From Manual Bypass (Q2) to normal function VFI Initial status: Load supplied from Manual Bypass. 1. Close Q1 (Pos. I).  Bypass connects to Load. LED Load on Bypass lights up.  Rectifier starts automatically and LED in Rectifier symbol and LED Battery charge light up.
Page 92: Complete Ups Shut-Down (No Load Supply)
Critical Power 7.1.4 Complete UPS shut-down (No Load supply) NOTE ! The Load must be disconnected. Initial status: Load supplied from Inverter. 1. Press “total off” button.  Load is disconnected from UPS.  Rectifier is shut-down and all output and input contactors will be opened.
Page 93: Restore To Normal Operation After "Total Off
Critical Power 7.1.5 Restore to normal operation after “total off” View of the panel after pressing the button “total off”.  All Contacts are open.  Rectifier, Inverter and Static-Switch shut-down. 1. Reset “total off” by pressing and holding the “total off” button and then the “inverter on”...
Page 94: Restore To Normal Operation After Epo (Emergency Power Off)
Critical Power 7.1.6 Restore to normal operation after EPO (Emergency Power Off) UPS panel after activation of EPO (Emergency Power Off) with Utility available, i.e. complete shut-down of the UPS. In this case wait until Utility is again available, then proceed to restart the UPS as described below.
Page 95: Procedures For Sg Series 10-20-30-40 Functioning As Frequency Converter
Critical Power PROCEDURES FOR SG Series 10-20-30-40 FUNCTIONING AS FREQUENCY CONVERTER When the functions as a Frequency Converter, the Automatic Bypass and SG Series 10-20-30-40 functions are disabled. Manual Bypass Therefore the Load cannot be transferred to Utility in case of overload, short circuit, or Inverter failure.
Page 96: Complete Ups Shut-Down (No Load Supply)
Critical Power 7.2.2 Complete UPS shut-down (No Load supply) NOTE ! The Load must be disconnected. Initial status: Load supplied from Inverter. 1. Press “total off” button.  Load is disconnected from UPS.  Rectifier is shut-down and all output and input contactors will be opened.
Page 97: Restore To Normal Operation After "Total Off
Critical Power 7.2.3 Restore to normal operation after “total off” View of the panel after pressing the button “total off”.  All Contacts are open. Rectifier, Inverter and Static-Switch  shut-down. 1. Reset “total off” by pressing and holding the “total off” button and the “inverter on”...
Page 98: Restore To Normal Operation After Epo (Emergency Power Off)
Critical Power 7.2.4 Restore to normal operation after EPO (Emergency Power Off) UPS panel after activation of EPO (Emergency Power Off) with Utility not available, i.e. complete shut- down of the UPS. In this case wait until Utility is again available, then proceed to restart the UPS as described below.
Page 99: Procedures For Sg Series 10-20-30-40 Parallel System
Critical Power PROCEDURES FOR SG Series 10-20-30-40 PARALLEL SYSTEM 7.3.1 Start-up SG Series 10-20-30-40 Parallel System Verify on all Units, with open front door: Switches Q1 and Q2 must be open (Pos. O). 1. Connect the Utility power on all UPS’s. (In case of separate inputs for Rectifier and Bypass, connect both).
Page 100 Critical Power 4. Press “inverter on” ( I ) key on first unit.  Soft-start of Inverter, indicated with blinking LED.  At the end of Soft-start the LED Inverter remains lit.  In case of sufficient output power, the output will transfer to Inverter. ...
Page 101: Maintenance System Shut-Down (Load Supplied From Q2 On All Units)
Critical Power 7.3.2 Maintenance system shut-down (Load supplied from Q2 on all Units) Initial status: Load supplied from all Inverters. First operated unit All other units of the system ( O ) 1. Press “inverter off” key on all Units, and hold until the LED inside the Inverter symbol turns OFF.
Page 102: From Manual Bypass (Q2) To Normal Function Vfi
Critical Power 7.3.3 From Manual Bypass (Q2) to normal function VFI Initial status: Load supplied from Manual Bypass. All Q2 of the system are closed. First operated unit All other units of the system 1. Close Q1 (Pos. I) on all Units. The Rectifiers will start automatically and at the closure of Q1 of the last Unit, the Bypass of all Units will be activated.
Page 103 Critical Power 4. Press “inverter on” ( I ) key on first unit.  Soft-start of Inverter, indicated with blinking LED.  At the end of Soft-start the LED Inverter remains lit.  In case of sufficient output power, the output will transfer to Inverter. ...
Page 104: Separate A Unit From The Parallel System (System Redundancy)
Critical Power 7.3.4 Separate a Unit from the Parallel System (System Redundancy) Initial status: Load supplied from all Inverters. First operated unit All other units of the system 1. Press and hold “inverter off” ( O ) key on the Unit to separate, until the LED turns OFF. Load supplied from Inverter(s) of the other Unit(s) of the Parallel System First operated unit All other units of the system...
Page 105: Reconnect A Unit To A Parallel System
Critical Power 7.3.5 Reconnect a Unit to a Parallel System 1. Connect the Utility supply on the separated Unit.  Press mute, to reset alarm and buzzer. First operated unit All other units of the system 2. Close Q1 (Pos. I) on the separated Unit. Rectifier starts automatically.
Page 106: Parallel System Shut-Down (No Load Supply)
Critical Power 7.3.6 Parallel system shut-down (No Load supply) NOTE ! The Load must be disconnected. Initial status: Load supplied from all Inverters. First operated unit All other units of the system 1. Press “total off” button on any one on the Units. ...
Page 107 Critical Power 3. Disconnect the Battery, in case of External Battery, from all Units.  Wait 5 minutes for DC-Link Capacitors discharge First operated unit All other units of the system 4. Disconnect the Utility supply from all Units.  All LED’s are OFF. First operated unit All other units of the system END OF PROCEDURE...
Page 108: Restore To Normal Operation After "Total Off
Critical Power 7.3.7 Restore to normal operation after “total off” View of the panel after pressing the button “total off”.  All Contacts are open.  Rectifier, Inverter and Static-Switch shut-down. First operated unit All other units of the system 1.
Page 109 Critical Power 3 Press “inverter on” ( I ) key on first unit.  Soft-start of Inverter, indicated with blinking LED.  At the end of Soft-start the LED Inverter remains lit.  In case of sufficient output power, the output will transfer to Inverter. ...
Page 110: Restore To Normal Operation After Epo (Emergency Power Off)
Critical Power 7.3.8 Restore to normal operation after EPO (Emergency Power Off) UPS panel after activation of EPO (Emergency Power Off) with Utility not available, i.e. complete shut-down of the UPS and LCD screen OFF. In this case wait until Utility is again available, then proceed to restart the UPS as described below Points 1 through 3.
Page 111 Critical Power 3. Connect the Battery to all Units by closing the external Battery Switches or Fuses, in case of External Battery. 4. Press “inverter on” ( I ) key on first Unit.  Soft-start of Inverter, indicated with blinking LED. ...
Page 112: Start-Up Sg Series 10-20-30-40 Parallel System With Common Battery
Critical Power PROCEDURES FOR SG Series 10-20-30-40 PARALLEL SYSTEM WITH COMMON BATTERY NOTE ! ONLY FOR SG Series 10-20-30-40 WITH EXTERNAL BATTERY. 7.4.1 Start-up SG Series 10-20-30-40 Parallel System with common battery Verify on all Units, with open front door: Switches Q1 and Q2 must be open (Pos. O). 1.
Page 113 Critical Power 4. Press “inverter on” ( I ) key on first unit.  Soft-start of Inverter, indicated with blinking LED.  At the end of Soft-start the LED Inverter remains lit.  In case of sufficient output power, the output will transfer to Inverter. ...
Page 114: Maintenance System Shut-Down (Load Supplied From Q2 On All Units)
Critical Power 7.4.2 Maintenance system shut-down (Load supplied from Q2 on all Units) Initial status: Load supplied from all Inverters. First operated unit All other units of the system ( O ) 1. Press and hold “inverter off” key on all Units, until the LED inside the Inverter symbol turns OFF.
Page 115: From Manual Bypass (Q2) To Normal Function Vfi
Critical Power 7.4.3 From Manual Bypass (Q2) to normal function VFI Initial status: Load supplied from Manual Bypass. All Q2 of the system closed. First operated unit All other units of the system 1. Connect the Battery to all Units by closing the external Battery Switch(es) or Fuses. 2.
Page 116 Critical Power 4. Press “inverter on” ( I ) key on first unit.  Soft-start of Inverter, indicated with blinking LED.  At the end of Soft-start the LED Inverter remains lit.  In case of sufficient output power, the output will transfer to Inverter. ...
Page 117: Separate A Unit From The Parallel System (System Redundancy)
Critical Power 7.4.4 Separate a Unit from the Parallel System (System Redundancy) Initial status: Load supplied from all Inverters. First operated unit All other units of the system 1. Press and hold “inverter off” ( O ) key on the Unit, to separate, until the LED turns OFF. Load supplied from Inverter(s) of the other Unit(s) of the Parallel System First operated unit All other units of the system...
Page 118: Reconnect A Unit To A Parallel System
Critical Power 7.4.5 Reconnect a Unit to a Parallel System 1. Connect the Utility supply on the separated Unit.  Press mute, to reset alarm and buzzer. First operated unit All other units of the system 2. Connect the Battery to the UPS separated by closing the external Battery Switch or Fuses.
Page 119: Parallel System Shut-Down (No Load Supply)
Critical Power 7.4.6 Parallel system shut-down (No Load supply) NOTE ! The Load must be disconnected. Initial status: Load supplied from all Inverters. First operated unit All other units of the system 1. Press “total off” button on any one on the units. ...
Page 120 Critical Power 3. Disconnect the Battery from all Units.  Wait 5 minutes for DC-Link Capacitors discharge First operated unit All other units of the system 4. Disconnect the Utility supply from all Units. All LED’s are OFF.  First operated unit All other units of the system END OF PROCEDURE Modifications reserved...
Page 121: Restore To Normal Operation After "Total Off
Critical Power 7.4.7 Restore to normal operation after “total off” View of the panel after pressing the button “total off”.  All Contacts are open.  Rectifier, Inverter and Static-Switch shut-down. First operated unit All other units of the system 1.
Page 122 Critical Power 3. Press “inverter on” ( I ) key on first unit.  Soft-start of Inverter, indicated with blinking LED.  At the end of Soft-start the LED Inverter remains lit.  In case of sufficient output power, the output will transfer to Inverter. ...
Page 123: Restore To Normal Operation After Epo (Emergency Power Off)
Critical Power 7.4.8 Restore to normal operation after EPO (Emergency Power Off) panel after activation (Emergency Power Off) with Utility not available, i.e. complete shut-down of the UPS and LCD screen OFF. In this case wait until Utility is again available, then proceed to restart the UPS as described below Points 1 through 3.
Page 124 Critical Power 4. Press “inverter on” ( I ) key on first Unit.  Soft-start of Inverter, indicated with blinking LED.  At the end of Soft-start the LED Inverter remains lit.  In case of sufficient output power, the output will transfer to Inverter. ...
Page 125: Options
UPS. Based on the leading Intelligent Remote Information System IRIS all GE UPS types as well as 3rd party UPS are supported. Accessing the latest site information via Web and being alerted by Email, SMS or Fax, it enables the user to make timely decisions in case of changing critical conditions.
Page 126: Connection For Options
AUX. BUZZER yellow/brown Alarm STOP OPERATION Mute Test GE Digital Energy P.S.: The above mentioned colors are suitables only for XY standard cable 8 1/2" in 216mm Fig. 8.3.1-1 Remote Signaling Box connection Terminals X3, X4 and X15 fitted inside the Remote Signaling Box.
Page 127: Maintenance
A UPS system, like other electrical equipment, needs periodic preventive maintenance. A regular maintenance check of your installation guarantees higher reliability of your safe power supply. GE recommends to perform the first service within 12 months from the commissioning date or within 18 months from delivery date.
Page 128: Battery
Critical Power 9.1.4 Battery We recommend a periodic Manual Battery Test, especially if the Automatic Battery Test is disabled, in order to verify if the Battery can provide the expected backup time in case of Utility Failure. We recommend that this test is performed at least every 3 months, especially if the Battery is not sufficiently discharged during normal operation.
Page 129: Notes
Critical Power 10 NOTES 10.1 NOTES FORM It is recommended to note in this section Notes, with date and short description all the operations performed on the UPS, as: maintenance, components replacement, abnormal situations, etc. Date Description Done by Modifications reserved Page 83/83 GE_UPS_OPM_SGS_USM_10K_40K_0US_V060.docx User Manual SG Series 10-20-30-40 UL S...
Page 130 Digital Energy™ SG Series 50 & 80 kVA 480 VAC UL / Series 0 Manufactured by: GE Consumer & Industrial SA General Electric Company CH – 6595 Riazzino (Locarno) Switzerland T +41 (0)91 / 850 51 51 F +41 (0)91 / 850 51 44 www.gedigitalenergy.com...
Page 131 The present publication and any other documentation supplied with the UPS system is not to be reproduced, either in part or in its entirety, without the prior written consent of GE. The illustrations and plans describing the equipment are intended as general reference only and are not necessarily complete in every detail.
Page 132 Thank you for choosing GE ! START UP AND COMMISSIONING A GE Global Services Field Engineer must perform start-up and commissioning of the UPS. Please Contact GE. Global Services at least two weeks prior to schedule start-up and commissioning at 1-800-637-1738, or by E-mail at pqservices@ge.com...
Page 133 While every care has been taken to ensure the completeness and accuracy of this manual, GE assumes no responsibility or liability for any losses or damages resulting from the use of the information contained in this document.
Page 134 Table of contents Page IMPORTANT SAFETY INSTRUCTIONS ......................6 LAYOUT ................................9 LAYOUT SG Series 50 & 80 kVA...............................9 INSTALLATION .............................. 10 TRANSPORT......................................10 3.1.1 Dimensions and weight ..................................10 DELIVERY........................................ 11 STORAGE........................................ 11 3.3.1 Storage of the UPS ....................................11 3.3.2 Storage of battery ....................................
Page 135: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS SAVE THESE INSTRUCTIONS This manual contains important instructions for models SG Series 50 & 80 kVA that should be followed during installation and maintenance of the UPS and battery. GENERAL Move the UPS in an upright position in its original package to the final destination room. To lift the cabinets, use a forklift or lifting belts with spreader bars.
Page 136 Safety instructions when working with battery EXTERNAL BATTERY MUST BE INSTALLED AND CONNECTED TO THE UPS BY QUALIFIED SERVICE PERSONNEL. INSTALLATION PERSONNEL MUST READ THIS ENTIRE SECTION BEFORE HANDLING THE UPS AND BATTERY. DANGER! Full voltage and current are always present at the battery terminals. The battery used in this system can provide dangerous voltages, extremely high currents and a risk of electric shock.
Page 137 Safety symbols and warnings Safety warnings The text of this manual contains some warnings to avoid risk to the persons and to avoid damages to the UPS system and the supplied critical loads. The non-observance of the warnings reminding hazardous situations could result in human injury and equipment damages.
Page 138: Layout
LAYOUT LAYOUT SG Series 50 & 80 kVA Fig. 2.1-2 SG Series general view with open doors Fig. 2.1-1 SG Series general view Opening for top cable entry Opening for bottom cable entry Terminals for Utility input and load output Terminals external Battery...
Page 139: Installation
INSTALLATION TRANSPORT Forklift Transport UPS only in upright position! The UPS is packaged on a pallet suitable for handling with a forklift. Pay attention to the center of gravity. The UPS must be moved in upright position. Do not tilt cabinets more than +/- 10° during handling. Move the UPS in it’s original package to the final Crane destination site.
Page 140: Delivery
DELIVERY When delivered, inspect the package integrity and the physical conditions of the cabinets carefully. In case of any damage sustained during transport, immediately inform the carrier and contact your local Service Center. A detailed report of the damage is necessary for any insurance claim. NOTE ! A DAMAGED UPS MUST NEVER BE INSTALLED OR CONNECTED TO UTILITY OR BATTERY!
Page 141: Place Of Installation
PLACE OF INSTALLATION 3.4.1 UPS location WARNING ! A qualified electrical contractor must carry out the installation and cabling of the UPS. If optional cabinets and accessories are included with the UPS, please refer to those accompanying manuals for installation and operating instructions. It is important to have a clean, dust-free environment provided with proper ventilation and air- conditioning to keep the ambient temperature within the specified operating range.
Page 142 Openings for input and output cable connections Battery Utility input Output Load Series openings provided on the top and the bottom of the UPS for the connection input output cables. Fig. 3.4.1-2 Opening on top of the cabinet for input and output cables Pay attention to the position of these openings, when Utility input...
Page 143: Battery Location
In case of parallel system, try to place the UPS modules in sequence of their numbers (marked 3-4-5-6-7-8 on the packing). If the units are positioned “side by side”, the side panels must be mounted on all units. UPS 2 UPS 1 Fig.
Page 144: Ventilation And Cooling
VENTILATION AND COOLING Fig. 3.5-1 Installation on plain floor Fig. 3.5-2 Installation on raised floor The heat produced by the UPS is transferred to the environment by its ventilation. Air inlets for UPS ventilation are located on the front of the UPS, while air outlets are on top of the cabinet.
Page 145: Unpacking
UNPACKING The UPS and battery cabinets may be shipped packaged in carton boxes or in wooden crates (if requested). Move the cabinets as close as possible to the final location before removing from the pallet. Remove the cabinet from the pallet with care because of the heavy weight of the equipment. To unpack the cabinet follow the instructions below: Wooden crate will arrive as shown.
Page 146 For parallel systems, the delivery also includes the bus control cables for inter- connecting the UPS modules. Packing material recycling GE, in compliance with environment protection, use only environmentally friendly material. UPS packing materials must be recycled in compliance with all applicable regulations.
Page 147: Electrical Wiring
ELECTRICAL WIRING WARNING ! UPS installation and connection must be performed by qualified service personnel only. It is the responsibility of the installation technician to ensure that all local and national electric codes are adhered to. 3.7.1 Utility input connection NOTE ! Ensure that the AC and DC external isolators are OFF and locked out to prevent their inadvertent operation.
Page 148: Input/Output Over Current Protection And Wire Sizing
3.7.2 Input/output over current protection and wire sizing The cabling of the UPS system has to be sized according to the UPS power rating. Sizing of circuit breakers, fuses and cables for Input Utility, Output Load and Battery must meet the requirements of local and national electrical codes.
Page 149: Battery Over Current Protection And Wire Sizing
3.7.3 Battery over current protection and wire sizing • Please read the safety precautions at the front of this guide carefully, and thoroughly review the battery manufacturers installation and maintenance manual before connecting the batteries to the UPS. • If the UPS system has been purchased with an accompanying battery cabinet, that cabinet should have an integral battery circuit breaker.
Page 150 NEC SECTION 210-20 (a) Table 310-16. Allowable Ampacities of Insulated Conductors Rated O Through 2000 Volts, 60°C Trough 90°C (140°F Trough 194°F) Not More than Three Current-Carrying Conductors in Raceway, Cable, or Earth (Directly Buried), Based on Ambient Temperature of 30°C (86°F). Temperature Rating of Conductor (See table 310-13) Size 60°C (140°F)
Page 151: Wiring Connection
WIRING CONNECTION WARNING! UPS installation and connection must be performed by qualified service personnel only. 3.8.1 Power connections Input/output and DC connections are provided with terminal blocks. Please refer to chart for torque specifications. Carefully read the following recommendations before proceeding: •...
Page 152 How to access the terminals for the cable connections. Top entry cables Please remove the plate "E & F" before drilling any wholes. Bottom entry cables Fig. 3.8.1-1 Access to the input / output connections To access input, output and Battery connections proceed as follows: •...
Page 153: Power Connection With Common Input Utility
3.8.2 Power connection with common input utility LOAD INPUT L3-1 RECTIFIER L2-1 & L1-1 BYPASS Fig. 3.8.2-1 Power connections Common Input Utility SG Series 50 & 80 kVA Max. rating X1 terminals: 4/0 AWG (95mm Common Input Rectifier / Bypass L1-1 Rectifier + Bypass Phase A L2-1...
Page 154: Power Connection Dual Input Utility
3.8.3 Power connection dual input utility LOAD N - Bypass L3-2 L3-1 INPUT L2-1 L2-2 RECTIFIER L1-1 L1-2 Fig. 3.8.3-1 Power connections Dual Input Utility SG Series 50 & 80 kVA Max. rating X1 and X2 terminals: 4/0 AWG (95mm Dual Input Configuration Rectifier / Bypass L1-1 L1-2...
Page 155 Fig. 3.8.3-2 Interconnection links BR1, BR2 and BR3 For separate Bypass and Rectifier Input configuration, the interconnection links BR1, BR2 and BR3 MUST BE REMOVED. Modifications reserved Page 26/38 OPM_SGS_ISG_50K_80K_0US_V040.doc Installation Guide SG Series 50 & 80 kVA...
Page 156: Battery Connection
3.8.4 Battery connection BATTERY Fig. 3.8.4-1 Power connections battery SG Series 50 & 80kVA Max. rating Battery terminals: 4/0 AWG (95mm Battery Positive pole of the Battery – Negative pole of the Battery Do not insert the Battery Fuses before the commissioning. Battery cable terminations are to the Positive and Negative Terminals as shown above.
Page 157: Setup For Sg Series When Functioning As Frequency Converter
3.8.5 Setup for SG Series when functioning as frequency converter When the SG Series is utilized for different output frequency compared to the input frequency, the Automatic Bypass and Manual Bypass functions are disabled, therefore the load cannot be transferred to Utility in case of overload, short circuit, or inverter failure.
Page 158: Rpa Parallel System Connection
RPA PARALLEL SYSTEM CONNECTION WARNING ! This operation must be performed by trained personnel before the initial start-up. ENSURE THAT THE UPS INSTALLATION IS COMPLETELY POWERED DOWN. 3.9.1 Power wiring of parallel units To guarantee good Load sharing between the units of a parallel system, we recommend that the cable length from the input distribution board (5) to the output distribution board (10) is equal for each unit (a+b = c+d = e+f = g+h = i+l = m+n = o+p = q+r).
Page 159: Parallel Control Bus Connection
3.9.2 Parallel control bus connection In cases of parallel operation, the communication between the units takes place through the control bus cables. Each parallel unit is equipped with an additional board “P13 – RPA Board“ where the connectors J52 (A) and J62 (B) are located.
Page 160 SGT5000_100-150_RPA-IM0048_02 IM 0048 Fig. 3.9.2-2 Bus connection on terminal units Terminal units On the parallel bus PCB “P34 – Bus Interface”, of the first and last units (terminal) of the parallel system the Jumpers JP1, JP2, JP3 and JP4 MUST BE INSERTED. SGT5000_100-150_RPA-IM0048_03 IM 0048 Fig.
Page 161: Control Bus Cable Location
3.9.3 Control bus cable location WARNING ! This operation must be performed by trained personnel before the initial start-up. ENSURE THAT THE UPS INSTALLATION IS COMPLETELY POWERED DOWN. Access control connection. control connection between parallel units must be made on the front of the electronic module fitted behind the front doors.
Page 162 Fig. 3.9.3-3 Control Bus cable routing and connection Control bus cables routing Place and fix the cables JA-1/2/3/4/5/6/7 and JB-1/2/3/4/5/6/7 with the appropriate clamps inside the UPS cabinets in the position shown in the drawing Fig 3.9.3-1/2/3. Pay attention to the fact, that routing of cables shall allow the removal of the protection covers “A”. NOTE ! Pay attention when cabling and routing the bus cables JA and JB inside the UPS cabinet.
Page 163: Customer Interface
CUSTOMER INTERFACE CUSTOMER INTERFACE Serial port J3 - RS 232 (sub D - female 9 pin) Suitable for JUMP protocol Pin 2: TX (out) Pin 3: RX (in) Pin 5: GND J2 (subD-female 25p) – Output signals on voltage free contacts J2/1, 2, 3 NO, C, NC Utility Failure...
Page 164: Serial Port J3
Total remote management of the system using new generation software JUMP (Java Universal Management Platform) for system protection and management of systems using GE UPS. JUMP system is written in JAVA and supports virtually all platforms having “JAVA runtime environment”.
Page 165: Programmable Input Free Contacts
4.1.3 Programmable input free contacts Some programmable UPS functions (indicated in Section 8.1), can be activated by closing an external contact, if connected, on: X1 / 10, 21 J2 / 10, 23 User Input 1 (default = Not used) X1 / 11, 22 J2 / 11, 24 User Input 2 (default = Emergency GEN ON) 4.1.4 Gen Set Signalling (GEN ON)
Page 166: Epo (Emergency Power Off) Input Contact
4.1.7 EPO (Emergency Power Off) input contact Be aware: The reliability of the system depends on this contact NC (Normally Closed)! An external Emergency switch (Normally Closed voltage-free contact) can be connected on terminals XB / 1 - 4 or connector J2 / 12 - 25 of the P4 - Interface Customer.
Page 167: Notes
NOTES NOTES FORM It is recommended to note in this section Notes, with date and short description all the operations performed on the UPS, as: maintenance, components replacement, abnormal situations, etc. Date Description Done by Modifications reserved Page 38/38 OPM_SGS_ISG_50K_80K_0US_V040.doc Installation Guide SG Series 50 &...
Page 168 Digital Energy™ SG Series 50 & 80 kVA 480 VAC UL / Series 0 Manufactured by: GE Consumer & Industrial SA General Electric Company CH – 6595 Riazzino (Locarno) Switzerland T +41 (0)91 / 850 51 51 F +41 (0)91 / 850 51 44 www.gedigitalenergy.com...
Page 169 The present publication and any other documentation supplied with the UPS system is not to be reproduced, either in part or in its entirety, without the prior written consent of GE. The illustrations and plans describing the equipment are intended as general reference only and are not necessarily complete in every detail.
Page 170 Thank you for choosing GE ! START UP AND COMMISSIONING A GE Global Services Field Engineer must perform start-up and commissioning of the UPS. Please Contact GE. Global Services at least two weeks prior to schedule start-up and commissioning at 1-800-637-1738, or by E-mail at pqservices@ge.com...
Page 171 UPS. While every care has been taken to ensure the completeness and accuracy of this manual, GE assumes no responsibility or liability for any losses or damages resulting from the use of the information contained in this document.
Page 172 Table of contents Page IMPORTANT SAFETY INSTRUCTIONS ......................7 INTRODUCTION ............................10 DESCRIPTION ..............................11 BLOCK DIAGRAM AND MAIN ELEMENTS..........................11 OPERATION MODES................................... 12 3.2.1 Normal operation mode ..................................12 3.2.2 Utility failure operation..................................12 3.2.3 Utility recovery operation ................................... 13 3.2.4 Automatic Bypass....................................
Page 173 PROCEDURES FOR UPS FUNCTIONING AS FREQUENCY CONVERTER................ 48 7.2.1 Start-up of the SG Series as frequency converter........................48 7.2.2 Complete UPS shutdown (No Load supply)..........................49 7.2.3 Restore to normal operation after “total off”..........................50 7.2.4 Restore to normal operation after EPO (Emergency Power Off)..................51 PROCEDURES FOR PARALLEL SYSTEM............................
Page 174: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS SAVE THESE INSTRUCTIONS This manual contains important instructions for models SG Series 50 & 80 kVA that should be followed during installation and maintenance of the UPS and battery. GENERAL Move the UPS in an upright position in its original package to the final destination room. To lift the cabinets, use a forklift or lifting belts with spreader bars.
Page 175 Safety instructions when working with battery EXTERNAL BATTERY MUST BE INSTALLED AND CONNECTED TO THE UPS BY QUALIFIED SERVICE PERSONNEL. INSTALLATION PERSONNEL MUST READ THIS ENTIRE SECTION BEFORE HANDLING THE UPS AND BATTERY. DANGER! Full voltage and current are always present at the battery terminals. The battery used in this system can provide dangerous voltages, extremely high currents and a risk of electric shock.
Page 176 Safety symbols and warnings Safety warnings The text of this manual contains some warnings to avoid risk to the persons and to avoid damages to the UPS system and the supplied critical loads. The non-observance of the warnings reminding hazardous situations could result in human injury and equipment damages.
Page 177: Introduction
Power Factor Corrected (PFC) equipment. • No single point of failure Redundant Parallel Architecture (RPA) is an exclusive GE technology. With RPA, SG Series UPS are controlled in a true peer-to-peer configuration where all critical elements and functions (including Bypass) are redundant.
Page 178: Description
DESCRIPTION BLOCK DIAGRAM AND MAIN ELEMENTS Fig. 3.1-1 Block diagram The SG Series system can be divided into the following main elements: Control System SG Series is designed with microprocessor-controlled signal processing circuits. The interface between the operator and the unit is provided by the monitoring system on the front panel.
Page 179: Operation Modes
OPERATION MODES 3.2.1 Normal operation mode During normal operation, the Rectifier converts input AC power to DC. The DC power provides input power for the Inverter and charging power for the Battery. The Inverter converts the DC power to continuous and regulated AC power, which supplies the critical load.
Page 180: Utility Recovery Operation
3.2.3 Utility recovery operation As soon as the AC input power recovers, the Rectifier will start automatically, supplying DC power to the Inverter and recharging the Battery. If the Inverter was previously shut down due to low Battery, the Load will be initially powered by Utility through the Automatic Bypass.
Page 181: Parallel System Operation
PARALLEL SYSTEM OPERATION 3.3.1 Introduction to the parallel system Two or more equal power units can be paralleled to increase the output power (paralleling for capacity) or to improve the overall reliability of an UPS system (paralleling for redundancy). The outputs of parallel units are connected to a common power bus, and in normal operation the units connected on the parallel bus share the Load equally.
Page 182: Features Of Rpa Parallel System
3.3.2 Features of RPA parallel system The SG Series parallel system is designed to provide a complete Redundant Parallel Architecture, and is free from common equipment. Not only the Inverters are redundant, but also the Bypass functions are designed with redundant modular concept.
Page 183: Rectifiers Paralleled On The Same Battery
(accessible only through password), and can therefore only be done by a qualified engineer from GE. Usually each Rectifier-Inverter Unit runs with its own Battery. In case of parallel units are running with a Common Battery (max. 4 UPS - see Fig 3.4-1), the sharing circuit between individual Rectifier is integrated in the communication bus of the system in order to assure an equal sharing of the Rectifiers output currents.
Page 184: Recycling At The End Of Service Life
It does not contain CFCs (Carbon Fluor Clorid) or HCFCs (Halogen Carbon Fluor Clorid). GE, in compliance with environment protection recommends to the User that the UPS equipment, at the end of its service life, must be recovered conforming to the local applicable regulations.
Page 185: Layout
LAYOUT LAYOUT SG Series 50 & 80 kVA Fig. 4.1-1 SG Series general view Fig. 4.1-2 SG Series general view with open doors Fig. 4.1-4 Control Panel Customer Interface Board UPS output switch Manual Bypass switch SNMP Advanced SNMP Card (option) Terminals 24VDC...
Page 186: Control Panel
CONTROL PANEL CONTROL PANEL Fig. 5.1-1 Control Panel TABLE OF FUNCTIONS AND INDICATIONS ON CONTROL PANEL Key to switch the Inverter ON ( I ) inverter on/off (This key is also used to reset “total off” if pressed simultaneously with total off push button).
Page 187 General alarm condition It blinks when one or more alarm is activated. The internal buzzer is ON. The LED remains lighted (with alarm condition still present) and the buzzer stops as the key “mute” has been pressed. alarm LED ON indicates that a regular maintenance service is needed. May be reset by a service technician only.
Page 188: Lcd Screen
LCD SCREEN The user interface consists of a back lit LCD screen having: • 4 lines with 20 characters (standard version for Latin characters). • 6 keys (the function is described for each operating mode). The operation is extremely simple and is structured on three important main menus related to the UPS operation, as follows: metering A UPS must offer some metering information for the user to be able to examine the...
Page 189: Metering Mode
METERING MODE The metering mode is entered any time the metering button is pressed. While in this mode the LCD will display a series of screens containing metering information. In this mode the buttons perform the following functions: metering Scrolls forward to the next screen. alarms Abandons the metering mode and enters the alarms mode.
Page 190 Rectifier Utility data screen This screen refers to the AC source supplying the Rectifier. This screen displays: • Iout1 = output current Rectifier Bridge. • Iout2 = output current 2 Rectifier Bridge (optional 12 pulse Rectifiers only). • The voltage levels between the three phases (line-to-line). •...
Page 191 Load on phases screen 2 This screen displays for each phase: • The Load active power (kW) (for RPA: total value of Parallel System). • The Load apparent power (kVA) (for RPA: total value of Parallel System). metering LOAD ON PHASES L1= 17.95kW 22.44kVA alarms...
Page 192: Alarms
– Scrolls backward to the previous screen. Display the main screen for this mode. The events displayed are the standard GE events as described in the Section 6.7 - EVENTS (Alarms and Messages). The information displayed includes: • The exact date and time when the event occurred.
Page 193: Parameters
PARAMETERS The parameters mode is entered any time the parameters button is pressed. The LCD will display a series of screens containing the user parameters, accessible without password protection. The buttons perform the following functions: metering Abandon parameters mode and enter metering mode. alarms Abandon parameters mode and enter alarms mode.
Page 194 3 – Scroll to the next screen (+). The third screen is displayed. metering Tel1:002186394567 Tel1 enabled: alarms – Tel2:004017464340 Tel2 enabled: parameters 4 – Move the selection (underscore cursor) to the next parameter in this page (-). metering Tel1:002186394567 Tel1 enabled: alarms –...
Page 195: Edit Mode
EDIT MODE The EDIT MODE is entered from the parameters mode when the ok button is pressed. During this mode the LCD will display a special editing screen for the parameter being edited. The screen contents during Edit mode is: •...
Page 196 3 – Change the selected character (-). metering EDIT MODE PHONE NUMBER 2 alarms – 005017464340 + SCROLL - CHANGE parameters 4 – Change the selected character (-). metering EDIT MODE PHONE NUMBER 2 alarms – 006017464340 + SCROLL - CHANGE parameters 5 –...
Page 197 3 – Change to 4800. metering EDIT MODE PRINTER BAUDRATE alarms – 4800 + SCROLL - CHANGE parameters 4 – Press ok: the screen will return to parameters mode saving the new value. metering PRINTER SETUP Baud=4800 Parity=O alarms – Bits=8 Handshake=XON Print All = N parameters...
Page 198: User Parameters
USER PARAMETERS Pressing the Parameters button displays a series of screens containing the user parameters on the LCD panel. This first parameter level in not protected by password, therefore the user can freely adapt these parameters to their needs. The meaning of the user parameters and their use is described below (buttons performance is described to Section 7.3).
Page 199 Telephone numbers Tel1 : m e te rin g Tel1 en ab led : N a la rm s – Tel2 : Tel2 en ab led : N p a ra m e te rs Tel1 This parameter specifies a first telephone number to be used for modem dial-out. The telephone number has a maximum 39 characters and cannot contain blanks.
Page 200 Printer Set-up The UPS is capable of communicating to a serial printer, to printout disparate information. Please be sure to have a serial printer, that is a printer with a serial RS232 interface. This is the only printer-interface supported by the UPS. m etering PRINTER SETUP Baud=2400 Parity=O...
Page 201: Events (Alarms And Messages)
EVENTS (ALARMS AND MESSAGES) Each of the following listed events can be displayed on the LCD screen or on PC where the “PowerJump Manager” or “PowerJump DataShield” is installed. Alarms and Messages are differently specified because the alarms are indicating an abnormal functioning of the UPS (which are additionally signalled with the LED alarm and acoustically with the buzzer), while the messages indicate the various states of operation of the UPS (stored in the events list, but not activating the LED alarm and the buzzer).
Page 202 Code Alarms Meaning The Battery has been discharged and reached “stop operation” LOW BATTERY time-out (default 3 minutes), and the Inverter will be shut down. 4115 VOLTAGE It will restart automatically only when the Battery has recharged enough for a minimum runtime. Dangerous high DC Voltage caused Inverter shutdown.
Page 203 Code Alarms Meaning K6 OPENING K6 closed despite an opening command being issued. 4405 FAILURE Signalled by auxiliary contact. A faulty current has been detected in the static-switch causing the opening of the contactor K6 for 10 seconds. 4406 FAILURE After 3 times K6 remains definitively open.
Page 204 Code Alarms Meaning Battery voltage is at the lowest limit. 4700 DC LOW Will stay Off Inverter until the battery voltage reaches the value in parameter. The Load is locked on Inverter after 3 Load transfers within 30 LOAD LOCKED 4900 seconds.
Page 205: Messages List
6.6.2 Messages list Code Message Meaning The microprocessor has detected an incorrect operation: WATCHDOG 4002 Transfers the Load on Utility and performs a program reset. RESET The Inverter will restart automatically and will supply the Load. RECTIFIER Rectifier Input Utility is again within the admitted tolerance 4111 UTILITY OK (voltage, frequency and phase).
Page 206 Code Message Meaning TOTAL Push-button “total off” on the UPS Control Panel has been 4561 pressed, with the output circuit switch Q1 closed. DETOUR The auxiliary contact indicates that Manual Bypass Q2 was 4562 closed. DETOUR The auxiliary contact indicates that Manual Bypass Q2 was 4564 opened.
Page 207: Event Report Sg Series
6.6.3 Event report SG Series In case of failure or malfunctioning, before calling the nearest Service Center, please note the most important data of your UPS and the most recent events. In order to make the diagnosis easier from our Diagnostic Centre we suggest you make a copy of this page, fill it out with the requested data and send it by fax.
Page 208: Operation
If you encounter any problems during the following procedures, you should not continue, but contact GE Global Services. Find on the following pages the descriptions of the various procedures of start-up and shutdown for single and parallel UPS’s, divided into the following principal chapters:...
Page 209: Start-Up Of The Sg Series
7.1 PROCEDURES FOR SINGLE UPS 7.1.1 Start-up of the SG Series Verify with open front door: Switch Q1 and Q2 must be open (Pos. O). 1. Connect the Utility power on the UPS. (In case of separate inputs for Rectifier and Bypass, connect both).
Page 210: Maintenance Shutdown (Load On Q2)
7.1.2 Maintenance shutdown (Load on Q2) Initial status: Load supplied from Inverter. 1. Press “inverter off” ( O ) key and hold until the LED inside the Inverter symbol turns OFF. • Load is transferred to Utility. • Inverter shuts down. •...
Page 211: From Manual Bypass (Q2) To Normal Function Vfi
7.1.3 From Manual Bypass (Q2) to normal function VFI Initial status: Load supplied from Manual Bypass. 1. Close Q1 (Pos. I). • Bypass connects to Load. LED Load on Bypass lights up. • Rectifier starts automatically and LED in Rectifier symbol and LED Battery charge light up.
Page 212: Complete Ups Shutdown (No Load Supply)
7.1.4 Complete UPS shutdown (No Load supply) NOTE ! The Load must be disconnected. Initial status: Load supplied from Inverter. 1. Press “total off” button. • Load is disconnected from UPS. • Rectifier is shut down and all output and input contactors will be opened.
Page 213: Restore To Normal Operation After "Total Off
7.1.5 Restore to normal operation after “total off” View of the panel after pressing the button “total off”. • All Contacts are open. Rectifier, Inverter and Static-Switch • shutdown. 1. Reset “total off” by pressing and holding the “total off” button and then the “inverter on”...
Page 214: Restore To Normal Operation After Epo (Emergency Power Off)
7.1.6 Restore to normal operation after EPO (Emergency Power Off) UPS panel after activation of EPO (Emergency Power Off) with Utility available, i.e. complete shutdown of the UPS. In this case wait until Utility is again available, then proceed to restart the UPS as described below.
Page 215: Procedures For Ups Functioning As Frequency Converter
7.2 PROCEDURES FOR UPS FUNCTIONING AS FREQUENCY CONVERTER When the functions as a Frequency Converter, the Automatic Bypass and SG Series Manual functions are disabled. Bypass Therefore the Load cannot be transferred to Utility in case of overload, short circuit, or Inverter failure.
Page 216: Complete Ups Shutdown (No Load Supply)
7.2.2 Complete UPS shutdown (No Load supply) NOTE ! The Load must be disconnected. Initial status: Load supplied from Inverter. 1. Press “total off” button. • Load is disconnected from UPS. • Rectifier is shut down and all output and input contactors will be opened. •...
Page 217: Restore To Normal Operation After "Total Off
7.2.3 Restore to normal operation after “total off” View of the panel after pressing the button “total off”. • All Contacts are open. • Rectifier, Inverter and Static-Switch shutdown. 1. Reset “total off” by pressing and holding the “total off” button and the “inverter on”...
Page 218: Restore To Normal Operation After Epo (Emergency Power Off)
7.2.4 Restore to normal operation after EPO (Emergency Power Off) UPS panel after activation of EPO (Emergency Power Off) with Utility available, i.e. complete shutdown of the UPS. In this case wait until Utility is again available, then proceed to restart the UPS as described below.
Page 219: Procedures For Parallel System
7.3 PROCEDURES FOR PARALLEL SYSTEM 7.3.1 Parallel System start-up Verify on all Units, with open front door: Switches Q1 and Q2 must be open (Pos. O). 1. Connect the Utility power on all UPS’s. (In case of separate inputs for Rectifier and Bypass, connect both). •...
Page 220 4. Press “inverter on” ( I ) key on first unit. • Soft-start of Inverter, indicated with blinking LED. • At the end of Soft-start the LED Inverter remains lit. • In case of sufficient output power, the output will transfer to Inverter. •...
Page 221: Maintenance System Shutdown (Load Supplied From Q2 On All Units)
7.3.2 Maintenance system shutdown (Load supplied from Q2 on all Units) Initial status: Load supplied from all Inverters. First operated unit All other units of the system ( O ) 1. Press “inverter off” key on all Units, and hold until the LED inside the Inverter symbol turns OFF.
Page 222: From Manual Bypass (Q2) To Normal Function Vfi
7.3.3 From Manual Bypass (Q2) to normal function VFI Initial status: Load supplied from Manual Bypass. All Q2 of the system are closed. First operated unit All other units of the system 1. Close Q1 (Pos. I) on all Units. The Rectifiers will start automatically and at the closure of Q1 of the last Unit, the Bypass of all Units will be activated.
Page 223 4. Press “inverter on” ( I ) key on first unit. • Soft-start of Inverter, indicated with blinking LED. • At the end of Soft-start the LED Inverter remains lit. • In case of sufficient output power, the output will transfer to Inverter. UPS output LED indicates Load on Inverter and the LCD must display on the main •...
Page 224: Separate A Unit From The Parallel System (System Redundancy)
7.3.4 Separate a Unit from the parallel system (System Redundancy) Initial status: Load supplied from all Inverters. First operated unit All other units of the system 1. Press and hold “inverter off” ( O ) key on the Unit to separate, until the LED turns OFF. Load supplied from Inverter(s) of the other Unit(s) of the parallel system First operated unit All other units of the system...
Page 225: Reconnect A Unit To A Parallel System
7.3.5 Reconnect a Unit to a parallel system 1. Connect the Utility supply on the separated Unit. • Press mute, to reset alarm and buzzer. First operated unit All other units of the system 2. Close Q1 (Pos. I) on the separated Unit. Rectifier starts automatically.
Page 226: Parallel System Shutdown (No Load Supply)
7.3.6 Parallel system shutdown (No Load supply) NOTE ! The Load must be disconnected. Initial status: Load supplied from all Inverters. First operated unit All other units of the system 1. Press “total off” button on any one on the Units. •...
Page 227 3. Disconnect the Battery, in case of External Battery, from all Units. • Wait 5 minutes for DC-Link Capacitors discharge First operated unit All other units of the system 4. Disconnect the Utility supply from all Units. • All LED’s are OFF. First operated unit All other units of the system END OF PROCEDURE...
Page 228: Restore To Normal Operation After "Total Off
7.3.7 Restore to normal operation after “total off” View of the panel after pressing the button “total off”. • All Contacts are open. • Rectifier, Inverter and Static-Switch shutdown. First operated unit All other units of the system 1. Reset “total off” by pressing and holding the “total off” button and then the “inverter on” ( I ) key, on any of the Units simultaneously, until Load is supplied from Bypass and the Rectifiers start.
Page 229 3 Press “inverter on” ( I ) key on first unit. • Soft-start of Inverter, indicated with blinking LED. • At the end of Soft-start the LED Inverter remains lit. • In case of sufficient output power, the output will transfer to Inverter. •...
Page 230: Restore To Normal Operation After Epo (Emergency Power Off)
7.3.8 Restore to normal operation after EPO (Emergency Power Off) UPS panel after activation of EPO (Emergency Power Off) with Utility not available, i.e. complete shutdown of the UPS and LCD screen OFF. In this case wait until Utility is again available, then proceed to restart the UPS as described below Points 1 through 3.
Page 231 3. Connect the Battery to all Units by closing the external Battery Switches or Fuses, in case of External Battery. 4. Press “inverter on” ( I ) key on first Unit. • Soft-start of Inverter, indicated with blinking LED. • At the end of Soft-start the LED Inverter remains lit. •...
Page 232: Procedures For Parallel System With Common Battery
7.4 PROCEDURES FOR PARALLEL SYSTEM WITH COMMON BATTERY 7.4.1 Parallel System start-up Verify on all Units, with open front door: Switches Q1 and Q2 must be open (Pos. O). 1. Connect the Utility power on all UPS’s. (In case of separate inputs for Rectifier and Bypass, connect both). •...
Page 233 4. Press “inverter on” ( I ) key on first unit. • Soft-start of Inverter, indicated with blinking LED. • At the end of Soft-start the LED Inverter remains lit. • In case of sufficient output power, the output will transfer to Inverter. •...
Page 234: Maintenance System Shutdown (Load Supplied From Q2 On All Units)
7.4.2 Maintenance system shutdown (Load supplied from Q2 on all Units) Initial status: Load supplied from all Inverters. First operated unit All other units of the system ( O ) 1. Press and hold “inverter off” key on all Units, until the LED inside the Inverter symbol turns OFF.
Page 235: From Manual Bypass (Q2) To Normal Function Vfi
7.4.3 From Manual Bypass (Q2) to normal function VFI Initial status: Load supplied from Manual Bypass. All Q2 of the system closed. First operated unit All other units of the system 1. Connect the Battery to all Units by closing the external Battery Switch(es) or Fuses. 2.
Page 236 4. Press “inverter on” ( I ) key on first unit. • Soft-start of Inverter, indicated with blinking LED. • At the end of Soft-start the LED Inverter remains lit. • In case of sufficient output power, the output will transfer to Inverter. •...
Page 237: Separate A Unit From The Parallel System (System Redundancy)
7.4.4 Separate a Unit from the parallel system (System Redundancy) Initial status: Load supplied from all Inverters. First operated unit All other units of the system 1. Press and hold “inverter off” ( O ) key on the Unit, to separate, until the LED turns OFF. Load supplied from Inverter(s) of the other Unit(s) of the parallel system First operated unit All other units of the system...
Page 238: Reconnect A Unit To A Parallel System
7.4.5 Reconnect a Unit to a parallel system 1. Connect the Utility supply on the separated Unit. • Press mute, to reset alarm and buzzer. First operated unit All other units of the system 2. Connect the Battery to the UPS separated by closing the external Battery Switch or Fuses.
Page 239: Parallel System Shutdown (No Load Supply)
7.4.6 Parallel system shutdown (No Load supply) NOTE ! The Load must be disconnected. Initial status: Load supplied from all Inverters. First operated unit All other units of the system 1. Press “total off” button on any one on the units. •...
Page 240 3. Disconnect the Battery from all Units. • Wait 5 minutes for DC-Link Capacitors discharge First operated unit All other units of the system 4. Disconnect the Utility supply from all Units. • All LED’s are OFF. First operated unit All other units of the system END OF PROCEDURE Modifications reserved...
Page 241: Restore To Normal Operation After "Total Off
7.4.7 Restore to normal operation after “total off” View of the panel after pressing the button “total off”. • All Contacts are open. • Rectifier, Inverter and Static-Switch shutdown. First operated unit All other units of the system 1. Reset “total off” by pressing and holding the “total off” button and then the “inverter on”...
Page 242 3. Press “inverter on” ( I ) key on first unit. • Soft-start of Inverter, indicated with blinking LED. • At the end of Soft-start the LED Inverter remains lit. • In case of sufficient output power, the output will transfer to Inverter. •...
Page 243: Restore To Normal Operation After Epo (Emergency Power Off)
7.4.8 Restore to normal operation after EPO (Emergency Power Off) panel after activation (Emergency Power Off) with Utility not available, i.e. complete shutdown of the UPS and LCD screen OFF. In this case wait until Utility is again available, then proceed to restart the UPS as described below Points 1 through 3.
Page 244 4. Press “inverter on” ( I ) key on first Unit. • Soft-start of Inverter, indicated with blinking LED. • At the end of Soft-start the LED Inverter remains lit. • In case of sufficient output power, the output will transfer to Inverter. •...
Page 245: Options
The Advanced SNMP Card is an interface to the Ethernet Network, and provides UPS information via the standard SNMP Protocol (UPS-MIB (RFC-1628); GE Single MIB; GE Parallel MIB). The UPS can therefore be managed by a Network Management System (NMS) or by our applications (for instance JUMP), which...
Page 246: Connection For Options
AUX. BUZZER yellow/brown Alarm STOP OPERATION Mute Test GE Digital Energy P.S.: The above mentioned colors are suitables only for XY standard cable 8 1/2" in 216mm Fig. 8.3.1-1 Remote Signalling Box connection Terminals X3, X4 and X15 fitted inside the Remote Signalling Box.
Page 247: Maintenance
A regular maintenance check of your installation guarantees higher reliability of your safe critical power supply. Preventive maintenance work on the UPS can be done only by trained Service technicians. We therefore recommend you sign a Maintenance and Service contract with GE Global Services @ 1- 800-637-1738 9.1.1 Service check If this lamp lights up during the normal operation, that means that the unit has not been serviced for the last 20,000 hours by a GE trained technician.
Page 248: Long Shut-Down Periods Of The Ups-System
9.1.5 Long shut-down periods of the UPS-system To guarantee that the Battery is fully charged, the UPS system should be in operation for at least 12 hours every 3 months. If not the Battery may be permanently damaged. 9.1.6 UPS room conditions and temperature The UPS room and the Battery Room have to be maintained clean and free from dust.
Page 249: Notes
10 NOTES 10.1 NOTES FORM It is recommended to note in this section Notes, with date and short description all the operations performed on the UPS, as: maintenance, components replacement, abnormal situations, etc. Date Description Done by Modifications reserved Page 82/82 OPM_SGS_USM_50K_80K_0US_V030.doc Operating Manual SG Series 50 &...
Page 250 Digital Energy™ SG Series 100 - 120 - 150 kVA 480 VAC UL / Series 0 Manufactured by: GE Consumer & Industrial SA General Electric Company CH – 6595 Riazzino (Locarno) Switzerland T +41 (0)91 / 850 51 51 F +41 (0)91 / 850 51 44 www.gedigitalenergy.com...
Page 251 The present publication and any other documentation supplied with the UPS system is not to be reproduced, either in part or in its entirety, without the prior written consent of GE. The illustrations and plans describing the equipment are intended as general reference only and are not necessarily complete in every detail.
Page 252 Thank you for choosing GE ! START UP AND COMMISSIONING A GE Global Services Field Engineer must perform start-up and commissioning of the UPS. Please Contact GE. Global Services at least two weeks prior to schedule start-up and commissioning at 1-800-637-1738, or by E-mail at pqservices@ge.com...
Page 253 While every care has been taken to ensure the completeness and accuracy of this manual, GE assumes no responsibility or liability for any losses or damages resulting from the use of the information contained in this document.
Page 254 Table of contents Page IMPORTANT SAFETY INSTRUCTIONS ......................6 LAYOUT................................9 LAYOUT SG Series 100 - 120 - 150 kVA............................9 INSTALLATION............................10 TRANSPORT....................................... 10 3.1.1 Dimensions and weight................................. 10 DELIVERY ......................................11 STORAGE ......................................11 3.3.1 Storage of the UPS ..................................11 3.3.2 Storage of battery ...................................
Page 255: Important Safety Instructions
1 IMPORTANT SAFETY INSTRUCTIONS SAVE THESE INSTRUCTIONS This manual contains important instructions for models SG Series 100 – 120 – 150 kVA that should be followed during installation and maintenance of the UPS and battery. GENERAL Move the UPS in an upright position in its original package to the final destination room. To lift the cabinets, use a forklift or lifting belts with spreader bars.
Page 256 Safety instructions when working with battery EXTERNAL BATTERY MUST BE INSTALLED AND CONNECTED TO THE UPS BY QUALIFIED SERVICE PERSONNEL. INSTALLATION PERSONNEL MUST READ THIS ENTIRE SECTION BEFORE HANDLING THE UPS AND BATTERY. DANGER! Full voltage and current are always present at the battery terminals. The battery used in this system can provide dangerous voltages, extremely high currents and a risk of electric shock.
Page 257 Safety symbols and warnings Safety warnings The text of this manual contains some warnings to avoid risk to the persons and to avoid damages to the UPS system and the supplied critical loads. The non-observance of the warnings reminding hazardous situations could result in human injury and equipment damages.
Page 258: Layout

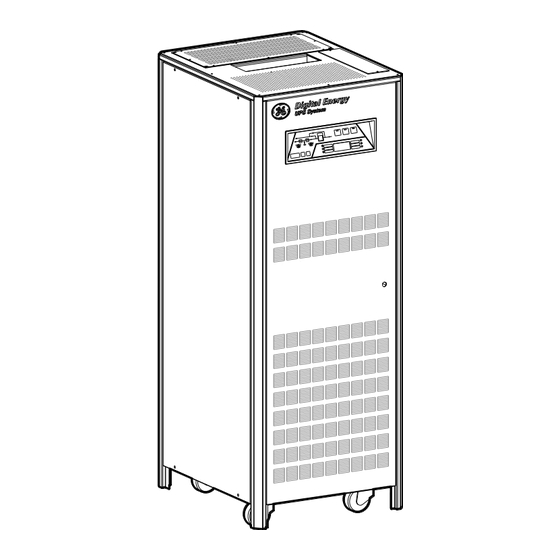

2 LAYOUT 2.1 LAYOUT SG Series 100 - 120 - 150 kVA Fig. 2.1-1 SG Series general view Fig. 2.1-2 SG Series general view with open doors Opening for top cable entry Opening for bottom cable entry Compression lugs for Utility input and Load output Compression lugs for external Battery connection...
Page 259: Installation
3 INSTALLATION 3.1 TRANSPORT Forklift Transport UPS only in upright position! The UPS is packaged on a pallet suitable for handling with a forklift. Pay attention to the center of gravity. The UPS must be moved in upright position. Do not tilt cabinets more than +/- 10° during handling. Move the UPS in it’s original package to the final Crane destination site.
Page 260: Delivery
3.2 DELIVERY When delivered, inspect the package integrity and the physical conditions of the cabinets carefully. In case of any damage sustained during transport, immediately inform the carrier and contact your local Service Center. A detailed report of the damage is necessary for any insurance claim. NOTE ! A DAMAGED UPS MUST NEVER BE INSTALLED OR CONNECTED TO UTILITY OR BATTERY!
Page 261: Place Of Installation
3.4 PLACE OF INSTALLATION 3.4.1 UPS location WARNING ! A qualified electrical contractor must carry out the installation and cabling of the UPS. If optional cabinets and accessories are included with the UPS, please refer to those accompanying manuals for installation and operating instructions. It is important to have a clean, dust-free environment provided with proper ventilation and air- conditioning to keep the ambient temperature within the specified operating range.
Page 262 Openings for input and output cable connections Battery Utility input Output Load SG Series openings are provided on the top and the bottom of the UPS for the connection of input and output cables. Fig. 3.4.1-2 Opening on top of the cabinet for input and output cables Pay attention to the position these...
Page 263: Battery Location
In case of parallel system, try to place the UPS modules in sequence of their numbers (marked 3-4-5-6-7-8 on the packing). If the units are positioned “side by side”, the side UPS 2 panels must be mounted on all units. UPS 1 Fig.
Page 264: Ventilation And Cooling
3.5 VENTILATION AND COOLING Fig. 3.5-1 Installation on plain floor Fig. 3.5-2 Installation on raised floor The heat produced by the UPS is transferred to the environment by its ventilation. Air inlets for UPS ventilation are located on the front of the UPS, while air outlets are on top of the cabinet.
Page 265: Unpacking
For parallel systems, the delivery also includes the bus control cables for inter- connecting the UPS modules. Packing material recycling GE, in compliance with environment protection, use only environmentally friendly material. UPS packing materials must be recycled in compliance with all applicable regulations.
Page 266: Electrical Wiring
3.7 ELECTRICAL WIRING WARNING ! UPS installation and connection must be performed by qualified service personnel only. It is the responsibility of the installation technician to ensure that all local and national electric codes are adhered to. 3.7.1 Utility input connection NOTE ! Ensure that the AC and DC external isolators are OFF and locked out to prevent their inadvertent operation.
Page 267: Input/Output Over Current Protection And Wire Sizing
3.7.2 Input/output over current protection and wire sizing The cabling of the UPS system has to be sized according to the UPS power rating. Sizing of circuit breakers, fuses and cables for Input Utility, Output Load and Battery must meet the requirements of local and national electrical codes.
Page 268: Battery Over Current Protection And Wire Sizing
3.7.3 Battery over current protection and wire sizing • Please read the safety precautions at the front of this guide carefully, and thoroughly review the battery manufacturers installation and maintenance manual before connecting the batteries to the UPS. • If the UPS system has been purchased with an accompanying battery cabinet, that cabinet should have an integral battery circuit breaker.
Page 269 NEC SECTION 210-20 (a) Table 310-16. Allowable Ampacities of Insulated Conductors Rated O Through 2000 Volts, 60°C Trough 90°C (140°F Trough 194°F) Not More than Three Current-Carrying Conductors in Raceway, Cable, or Earth (Directly Buried), Based on Ambient Temperature of 30°C (86°F). Temperature Rating of Conductor (See table 310-13) Size 60°C (140°F)
Page 270: Wiring Connection
3.8 WIRING CONNECTION WARNING! UPS installation and connection must be performed by qualified service personnel only. 3.8.1 Power connections Input/output and DC connections are provided with terminal blocks. Please refer to chart for torque specifications. Carefully read the following recommendations before proceeding: •...
Page 271 CAUTION ! Panel “D” should never be removed or replaced with power applied to the UPS. This panel is in close proximity to 480V live buss bars. Always disconnect the rectifier, bypass, load and battery sources from the UPS before removing or replacing this panel.
Page 272: Power Connection With Common Input Utility
3.8.2 Power connection with common input utility LOAD 1 - INPUT RECTIFIER & BYPASS Fig. 3.8.2-1 Power connections Common Input Utility Common Input Rectifier / Bypass L1-1 Rectifier + Bypass Phase A L2-1 Rectifier + Bypass Phase B L3-1 Rectifier + Bypass Phase C Neutral Ground Output Load...
Page 273: Power Connection Dual Input Utility
3.8.3 Power connection dual input utility LOAD 1 - INPUT RECTIFIER 2 - INPUT BYPASS Fig. 3.8.3-1 Power connections Dual Input Utility Dual Input Configuration Rectifier / Bypass L1-1 L1-2 Rectifier Phase A Bypass Phase A L2-1 Rectifier Phase B L2-2 Bypass Phase B L3-1...
Page 274 This UPS is only designed to operate in a wye-configured electrical system with a solidly grounded neutral. In case of 3-wire utility input the following solutions are possible: 1- Connection of a “3-wire kit” between Utility Input and Neutral of the output transformer.
Page 275: Battery Connection
3.8.4 Battery connection BATTERY Fig. 3.8.4-1 Power connections Battery Battery Positive pole of the Battery – Negative pole of the Battery Do not insert the Battery Fuses before the commissioning. Battery Cable Terminations are to the Positive and Negative Terminals as shown above. Connect wire to the Lugs using appropriate tools and appropriate torque.
Page 276: Setup For Sg Series When Functioning As Frequency Converter
3.8.5 Setup for SG Series when functioning as frequency converter When the SG Series is utilized for different output frequency compared to the input frequency, the Automatic Bypass and Manual Bypass functions are disabled, therefore the Load cannot be transferred to Utility in case of overload, short circuit, or inverter failure.
Page 277: Rpa Parallel System Connection
3.9 RPA PARALLEL SYSTEM CONNECTION WARNING ! This operation must be performed by trained personnel before the initial start-up. ENSURE THAT THE UPS INSTALLATION IS COMPLETELY POWERED DOWN. 3.9.1 Power wiring of parallel units To guarantee good Load sharing between the units of a parallel system, we recommend that the cable length from the input distribution board (5) to the output distribution board (10) is equal for each unit (a+b = c+d = e+f = g+h = i+l = m+n = o+p = q+r).
Page 278: Parallel Control Bus Connection
3.9.2 Parallel control bus connection In cases of parallel operation, the communication between the units takes place through the control bus cables. Each parallel unit is equipped with an additional board “P13 – RPA Board“ where the connectors J52 (A) and J62 (B) are located.
Page 279 SGT5000_100-150_RPA-IM0048_02 IM 0048 Fig. 3.9.2-2 Bus connection on terminal units Terminal units On the parallel bus PCB “P34 – Bus Interface”, of the first and last units (terminal) of the parallel system the Jumpers JP1, JP2, JP3 and JP4 MUST BE INSERTED. SGT5000_100-150_RPA-IM0048_03 IM 0048 Fig.
Page 280: Control Bus Cable Location
3.9.3 Control bus cable location WARNING ! This operation must be performed by trained personnel before the initial start-up. ENSURE THAT THE UPS INSTALLATION IS COMPLETELY POWERED DOWN. Access to the control bus connection. The control bus connection between parallel units must be made on the front of the electronic module fitted behind the front doors.
Page 281 Fig. 3.11-3 Control Bus cable routing and connection Control bus cables routing Place and fix the cables JA-1/2/3/4/5/6/7 and JB-1/2/3/4/5/6/7 inside the UPS cabinets in the position illustrated in the drawing. NOTE ! Pay attention when cabling and routing the bus cables JA and JB inside the UPS cabinet.
Page 282: Customer Interface
4 CUSTOMER INTERFACE 4.1 CUSTOMER INTERFACE Serial port J3 - RS 232 (sub D - female 9 pin) Suitable for JUMP protocol Pin 2: TX (out) Pin 3: RX (in) Pin 5: GND J2 (subD-female 25p) – Output signals on voltage free contacts J2/1, 2, 3 NO, C, NC Utility Failure...
Page 283 Total remote management of the system using new generation software JUMP (Java Universal Management Platform) for system protection and management of systems using GE UPS. JUMP system is written in JAVA and supports virtually all platforms having “JAVA runtime environment”.
Page 284: Programmable Input Free Contacts
4.1.3 Programmable input free contacts Some programmable UPS functions (indicated in Section 8.1), can be activated by closing an external contact, if connected, on: X1 / 10, 21 J2 / 10, 23 User Input 1 (default = Not used) X1 / 11, 22 J2 / 11, 24 User Input 2 (default = Emergency GEN ON) 4.1.4 Gen Set Signalling (GEN ON)
Page 285: Epo (Emergency Power Off) Input Contact
4.1.7 EPO (Emergency Power Off) Input contact Be aware: The reliability of the system depends on this contact NC (Normally Closed)! An external Emergency switch (Normally Closed voltage-free contact) can be connected on terminals XB / 1 - 4 or connector J2 / 12 - 25 of the P4 - Interface Customer.
Page 286: Notes
5 NOTES 5.1 NOTES FORM It is recommended to note in this section Notes, with date and short description all the operations performed on the UPS, as: maintenance, components replacement, abnormal situations, etc. Date Description Done by Modifications reserved Page 37/37 OPM_SGS_ISG_M10_M15_0US_V040.doc Installation Guide SG Series 100 –120 –...
Page 287 Digital Energy™ SG Series 100 – 120 – 150 kVA 480 VAC UL / Series 0 Manufactured by: GE Consumer & Industrial SA General Electric Company CH – 6595 Riazzino (Locarno) Switzerland T +41 (0)91 / 850 51 51 F +41 (0)91 / 850 51 44 www.gedigitalenergy.com...
Page 288 The present publication and any other documentation supplied with the UPS system is not to be reproduced, either in part or in its entirety, without the prior written consent of GE. The illustrations and plans describing the equipment are intended as general reference only and are not necessarily complete in every detail.
Page 289 Thank you for choosing GE ! START UP AND COMMISSIONING A GE Global Services Field Engineer must perform start-up and commissioning of the UPS. Please Contact GE. Global Services at least two weeks prior to schedule start-up and commissioning at 1-800-637-1738, or by E-mail at pqservices@ge.com...
Page 290 UPS. While every care has been taken to ensure the completeness and accuracy of this manual, GE assumes no responsibility or liability for any losses or damages resulting from the use of the information contained in this document.
Page 291 Table of contents Page IMPORTANT SAFETY INSTRUCTIONS ......................7 INTRODUCTION............................10 DESCRIPTION.............................. 11 BLOCK DIAGRAM AND MAIN ELEMENTS ..........................11 OPERATION MODES..................................12 3.2.1 Normal operation mode ................................... 12 3.2.2 Utility failure operation ..................................12 3.2.3 Utility recovery operation ................................13 3.2.4 Automatic Bypass ....................................
Page 292 PROCEDURES FOR UPS FUNCTIONING AS FREQUENCY CONVERTER ..............48 7.2.1 Start-up of the SG Series as frequency converter......................... 48 7.2.2 Complete UPS shutdown (No Load supply)..........................49 7.2.3 Restore to normal operation after “total off”........................... 50 7.2.4 Restore to normal operation after EPO (Emergency Power Off)..................51 PROCEDURES FOR PARALLEL SYSTEM ..........................
Page 293: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS SAVE THESE INSTRUCTIONS This manual contains important instructions for models SG Series 100 - 120 - 150 kVA that should be followed during installation and maintenance of the UPS and battery. GENERAL Move the UPS in an upright position in its original package to the final destination room. To lift the cabinets, use a forklift or lifting belts with spreader bars.
Page 294 Safety instructions when working with battery EXTERNAL BATTERY MUST BE INSTALLED AND CONNECTED TO THE UPS BY QUALIFIED SERVICE PERSONNEL. INSTALLATION PERSONNEL MUST READ THIS ENTIRE SECTION BEFORE HANDLING THE UPS AND BATTERY. DANGER! Full voltage and current are always present at the battery terminals. The battery used in this system can provide dangerous voltages, extremely high currents and a risk of electric shock.
Page 295 Safety symbols and warnings Safety warnings The text of this manual contains some warnings to avoid risk to the persons and to avoid damages to the UPS system and the supplied critical loads. The non-observance of the warnings reminding hazardous situations could result in human injury and equipment damages.
Page 296: Introduction
Power Factor Corrected (PFC) equipment. • No single point of failure Redundant Parallel Architecture (RPA) is an exclusive GE technology. With RPA, SG Series UPS are controlled in a true peer-to-peer configuration where all critical elements and functions (including Bypass) are redundant.
Page 297: Description
DESCRIPTION BLOCK DIAGRAM AND MAIN ELEMENTS Fig. 3.1-1 Block diagram The SG Series system can be divided into the following main elements: Control System SG Series is designed with microprocessor-controlled signal processing circuits. The interface between the operator and the unit is provided by the monitoring system on the front panel.
Page 298: Operation Modes
OPERATION MODES 3.2.1 Normal operation mode During normal operation, the Rectifier converts input AC power to DC. The DC power provides input power for the Inverter and charging power for the Battery. The Inverter converts the DC power to continuous and regulated AC power, which supplies the critical load.
Page 299: Utility Recovery Operation
3.2.3 Utility recovery operation As soon as the AC input power recovers, the Rectifier will start automatically, supplying DC power to the Inverter and recharging the Battery. If the Inverter was previously shut down due to low Battery, the Load will be initially powered by Utility through the Automatic Bypass.
Page 300: Parallel System Operation
PARALLEL SYSTEM OPERATION 3.3.1 Introduction to the parallel system Two or more equal power units can be paralleled to increase the output power (paralleling for capacity) or to improve the overall reliability of an UPS system (paralleling for redundancy). The outputs of parallel units are connected to a common power bus, and in normal operation the units connected on the parallel bus share the Load equally.
Page 301: Features Of Rpa Parallel System
3.3.2 Features of RPA parallel system The SG Series parallel system is designed to provide a complete Redundant Parallel Architecture, and is free from common equipment. Not only the Inverters are redundant, but also the Bypass functions are designed with redundant modular concept.
Page 302: Rectifiers Paralleled On The Same Battery
(accessible only through password), and can therefore only be done by a qualified engineer from GE. Usually each Rectifier-Inverter Unit runs with its own Battery. In case of parallel units are running with a Common Battery (max. 4 UPS - see Fig 3.4-1), the sharing circuit between individual Rectifier is integrated in the communication bus of the system in order to assure an equal sharing of the Rectifiers output currents.
Page 303: Recycling At The End Of Service Life
It does not contain CFCs (Carbon Fluor Clorid) or HCFCs (Halogen Carbon Fluor Clorid). GE, in compliance with environment protection recommends to the User that the UPS equipment, at the end of its service life, must be recovered conforming to the local applicable regulations.
Page 304: Layout
LAYOUT LAYOUT SG Series 100 - 120 - 150 kVA Fig. 4.1-2 SG Series general view with open doors Fig. 4.1-1 SG Series general view Fig. 4.1-4 Control Panel Fig. 4.1-3 Manual operated switches Customer Interface Board UPS output switch Manual Bypass switch SNMP SNMP...
Page 305: Control Panel
CONTROL PANEL CONTROL PANEL Fig. 5.1-1 Control Panel TABLE OF FUNCTIONS AND INDICATIONS ON CONTROL PANEL Key to switch the Inverter ON ( I ) inverter on/off (This key is also used to reset “total off” if pressed simultaneously with total off push button).
Page 306 General alarm condition It blinks when one or more alarm is activated. The internal buzzer is ON. The LED remains lighted (with alarm condition still present) and the buzzer stops as the key “mute” has been pressed. alarm LED ON indicates that a regular maintenance service is needed. May be reset by a service technician only.
Page 307: Lcd Screen
LCD SCREEN The user interface consists of a back lit LCD screen having: • 4 lines with 20 characters (standard version for Latin characters). • 6 keys (the function is described for each operating mode). The operation is extremely simple and is structured on three important main menus related to the UPS operation, as follows: metering A UPS must offer some metering information for the user to be able to examine the...
Page 308: Metering Mode
METERING MODE The metering mode is entered any time the metering button is pressed. While in this mode the LCD will display a series of screens containing metering information. In this mode the buttons perform the following functions: metering Scrolls forward to the next screen. alarms Abandons the metering mode and enters the alarms mode.
Page 309 Rectifier Utility data screen This screen refers to the AC source supplying the Rectifier. This screen displays: • Iout1 = output current Rectifier Bridge. • Iout2 = output current 2 Rectifier Bridge (optional 12 pulse Rectifiers only). • The voltage levels between the three phases (line-to-line). •...
Page 310 Load on phases screen 2 This screen displays for each phase: • The Load active power (kW) (for RPA: total value of Parallel System). • The Load apparent power (kVA) (for RPA: total value of Parallel System). metering LOAD ON PHASES L1= 22.37kW 27.97kVA alarms...
Page 311: Alarms
– Scrolls backward to the previous screen. Display the main screen for this mode. The events displayed are the standard GE events as described in the Section 6.7 - EVENTS (Alarms and Messages). The information displayed includes: • The exact date and time when the event occurred.
Page 312: Parameters
PARAMETERS The parameters mode is entered any time the parameters button is pressed. The LCD will display a series of screens containing the user parameters, accessible without password protection. The buttons perform the following functions: metering Abandon parameters mode and enter metering mode. alarms Abandon parameters mode and enter alarms mode.
Page 313 3 – Scroll to the next screen (+). The third screen is displayed. metering Tel1:002186394567 Tel1 enabled: alarms – Tel2:004017464340 Tel2 enabled: parameters 4 – Move the selection (underscore cursor) to the next parameter in this page (-). metering Tel1:002186394567 Tel1 enabled: alarms –...
Page 314: Edit Mode
EDIT MODE The EDIT MODE is entered from the parameters mode when the ok button is pressed. During this mode the LCD will display a special editing screen for the parameter being edited. The screen contents during Edit mode is: •...
Page 315 3 – Change the selected character (-). metering EDIT MODE PHONE NUMBER 2 alarms – 005017464340 + SCROLL - CHANGE parameters 4 – Change the selected character (-). metering EDIT MODE PHONE NUMBER 2 alarms – 006017464340 + SCROLL - CHANGE parameters 5 –...
Page 316 3 – Change to 4800. metering EDIT MODE PRINTER BAUDRATE alarms – 4800 + SCROLL - CHANGE parameters 4 – Press ok: the screen will return to parameters mode saving the new value. metering PRINTER SETUP Baud=4800 Parity=O alarms – Bits=8 Handshake=XON Print All = N parameters...
Page 317: User Parameters
USER PARAMETERS Pressing the Parameters button displays a series of screens containing the user parameters on the LCD panel. This first parameter level in not protected by password, therefore the user can freely adapt these parameters to their needs. The meaning of the user parameters and their use is described below (buttons performance is described to Section 7.3).
Page 318 Telephone numbers Tel1 : m e te rin g Tel1 en ab led : N a la rm s – Tel2 : Tel2 en ab led : N p a ra m e te rs Tel1 This parameter specifies a first telephone number to be used for modem dial-out. The telephone number has a maximum 39 characters and cannot contain blanks.
Page 319 Printer Set-up The UPS is capable of communicating to a serial printer, to printout disparate information. Please be sure to have a serial printer, that is a printer with a serial RS232 interface. This is the only printer-interface supported by the UPS. m etering PRINTER SETUP Baud=2400 Parity=O...
Page 320: Events (Alarms And Messages)
EVENTS (ALARMS AND MESSAGES) Each of the following listed events can be displayed on the LCD screen or on PC where the “PowerJump Manager” or “PowerJump DataShield” is installed. Alarms and Messages are differently specified because the alarms are indicating an abnormal functioning of the UPS (which are additionally signalled with the LED alarm and acoustically with the buzzer), while the messages indicate the various states of operation of the UPS (stored in the events list, but not activating the LED alarm and the buzzer).
Page 321 Code Alarms Meaning The Battery has been discharged and reached “stop operation” LOW BATTERY time-out (default 3 minutes), and the Inverter will be shut down. 4115 VOLTAGE It will restart automatically only when the Battery has recharged enough for a minimum runtime. Dangerous high DC Voltage caused Inverter shutdown.
Page 322 Code Alarms Meaning K6 OPENING K6 closed despite an opening command being issued. 4405 FAILURE Signalled by auxiliary contact. A faulty current has been detected in the static-switch causing the opening of the contactor K6 for 10 seconds. 4406 FAILURE After 3 times K6 remains definitively open.
Page 323 Code Alarms Meaning Battery voltage is at the lowest limit. 4700 DC LOW Will stay Off Inverter until the battery voltage reaches the value in parameter. The Load is locked on Inverter after 3 Load transfers within 30 LOAD LOCKED 4900 seconds.
Page 324: Messages List
6.6.2 Messages list Code Message Meaning The microprocessor has detected an incorrect operation: WATCHDOG 4002 Transfers the Load on Utility and performs a program reset. RESET The Inverter will restart automatically and will supply the Load. RECTIFIER Rectifier Input Utility is again within the admitted tolerance 4111 UTILITY OK (voltage, frequency and phase).
Page 325 Code Message Meaning TOTAL Push-button “total off” on the UPS Control Panel has been 4561 pressed, with the output circuit switch Q1 closed. DETOUR The auxiliary contact indicates that Manual Bypass Q2 was 4562 closed. DETOUR The auxiliary contact indicates that Manual Bypass Q2 was 4564 opened.
Page 326 6.6.3 Event report SG Series In case of failure or malfunctioning, before calling the nearest Service Center, please note the most important data of your UPS and the most recent events. In order to make the diagnosis easier from our Diagnostic Centre we suggest you make a copy of this page, fill it out with the requested data and send it by fax.
Page 327: Operation
If you encounter any problems during the following procedures, you should not continue, but contact GE Global Services. Find on the following pages the descriptions of the various procedures of start-up and shutdown for single and parallel UPS’s, divided into the following principal chapters:...
Page 328: Start-Up Of The Sg Series
7.1 PROCEDURES FOR SINGLE UPS 7.1.1 Start-up of the SG Series Verify with open front door: Switch Q1 and Q2 must be open (Pos. O). 1. Connect the Utility power on the UPS. (In case of separate inputs for Rectifier and Bypass, connect both).
Page 329: Maintenance Shutdown (Load On Q2)
7.1.2 Maintenance shutdown (Load on Q2) Initial status: Load supplied from Inverter. 1. Press “inverter off” ( O ) key and hold until the LED inside the Inverter symbol turns OFF. • Load is transferred to Utility. • Inverter shuts down. •...
Page 330: From Manual Bypass (Q2) To Normal Function Vfi
7.1.3 From Manual Bypass (Q2) to normal function VFI Initial status: Load supplied from Manual Bypass. 1. Close Q1 (Pos. I). • Bypass connects to Load. LED Load on Bypass lights up. • Rectifier starts automatically and LED in Rectifier symbol and LED Battery charge light up.
Page 331: Complete Ups Shutdown (No Load Supply)
7.1.4 Complete UPS shutdown (No Load supply) NOTE ! The Load must be disconnected. Initial status: Load supplied from Inverter. 1. Press “total off” button. • Load is disconnected from UPS. • Rectifier is shut down and all output and input contactors will be opened.
Page 332: Restore To Normal Operation After "Total Off
7.1.5 Restore to normal operation after “total off” View of the panel after pressing the button “total off”. • All Contacts are open. Rectifier, Inverter and Static-Switch • shutdown. 1. Reset “total off” by pressing and holding the “total off” button and then the “inverter on”...
Page 333: Restore To Normal Operation After Epo (Emergency Power Off)
7.1.6 Restore to normal operation after EPO (Emergency Power Off) UPS panel after activation of EPO (Emergency Power Off) with Utility available, i.e. complete shutdown of the UPS. In this case wait until Utility is again available, then proceed to restart the UPS as described below.
Page 334: Procedures For Ups Functioning As Frequency Converter
7.2 PROCEDURES FOR UPS FUNCTIONING AS FREQUENCY CONVERTER When the functions as a Frequency Converter, the Automatic Bypass and SG Series Manual functions are disabled. Bypass Therefore the Load cannot be transferred to Utility in case of overload, short circuit, or Inverter failure.
Page 335: Complete Ups Shutdown (No Load Supply)
7.2.2 Complete UPS shutdown (No Load supply) NOTE ! The Load must be disconnected. Initial status: Load supplied from Inverter. 1. Press “total off” button. • Load is disconnected from UPS. • Rectifier is shut down and all output and input contactors will be opened. •...
Page 336: Restore To Normal Operation After "Total Off
7.2.3 Restore to normal operation after “total off” View of the panel after pressing the button “total off”. • All Contacts are open. • Rectifier, Inverter and Static-Switch shutdown. 1. Reset “total off” by pressing and holding the “total off” button and the “inverter on”...
Page 337: Restore To Normal Operation After Epo (Emergency Power Off)
7.2.4 Restore to normal operation after EPO (Emergency Power Off) UPS panel after activation of EPO (Emergency Power Off) with Utility available, i.e. complete shutdown of the UPS. In this case wait until Utility is again available, then proceed to restart the UPS as described below.
Page 338: Procedures For Parallel System
7.3 PROCEDURES FOR PARALLEL SYSTEM 7.3.1 Parallel System start-up Verify on all Units, with open front door: Switches Q1 and Q2 must be open (Pos. O). 1. Connect the Utility power on all UPS’s. (In case of separate inputs for Rectifier and Bypass, connect both). •...
Page 339 4. Press “inverter on” ( I ) key on first unit. • Soft-start of Inverter, indicated with blinking LED. • At the end of Soft-start the LED Inverter remains lit. • In case of sufficient output power, the output will transfer to Inverter. •...
Page 340: Maintenance System Shutdown (Load Supplied From Q2 On All Units)
7.3.2 Maintenance system shutdown (Load supplied from Q2 on all Units) Initial status: Load supplied from all Inverters. First operated unit All other units of the system ( O ) 1. Press “inverter off” key on all Units, and hold until the LED inside the Inverter symbol turns OFF.
Page 341: From Manual Bypass (Q2) To Normal Function Vfi
7.3.3 From Manual Bypass (Q2) to normal function VFI Initial status: Load supplied from Manual Bypass. All Q2 of the system are closed. First operated unit All other units of the system 1. Close Q1 (Pos. I) on all Units. The Rectifiers will start automatically and at the closure of Q1 of the last Unit, the Bypass of all Units will be activated.
Page 342 4. Press “inverter on” ( I ) key on first unit. • Soft-start of Inverter, indicated with blinking LED. • At the end of Soft-start the LED Inverter remains lit. • In case of sufficient output power, the output will transfer to Inverter. UPS output LED indicates Load on Inverter and the LCD must display on the main •...
Page 343: Separate A Unit From The Parallel System (System Redundancy)
7.3.4 Separate a Unit from the parallel system (System Redundancy) Initial status: Load supplied from all Inverters. First operated unit All other units of the system 1. Press and hold “inverter off” ( O ) key on the Unit to separate, until the LED turns OFF. Load supplied from Inverter(s) of the other Unit(s) of the parallel system First operated unit All other units of the system...
Page 344: Reconnect A Unit To A Parallel System
7.3.5 Reconnect a Unit to a parallel system 1. Connect the Utility supply on the separated Unit. • Press mute, to reset alarm and buzzer. First operated unit All other units of the system 2. Close Q1 (Pos. I) on the separated Unit. Rectifier starts automatically.
Page 345: Parallel System Shutdown (No Load Supply)
7.3.6 Parallel system shutdown (No Load supply) NOTE ! The Load must be disconnected. Initial status: Load supplied from all Inverters. First operated unit All other units of the system 1. Press “total off” button on any one on the Units. •...
Page 346 3. Disconnect the Battery, in case of External Battery, from all Units. • Wait 5 minutes for DC-Link Capacitors discharge First operated unit All other units of the system 4. Disconnect the Utility supply from all Units. • All LED’s are OFF. First operated unit All other units of the system END OF PROCEDURE...
Page 347: Restore To Normal Operation After "Total Off
7.3.7 Restore to normal operation after “total off” View of the panel after pressing the button “total off”. • All Contacts are open. • Rectifier, Inverter and Static-Switch shutdown. First operated unit All other units of the system 1. Reset “total off” by pressing and holding the “total off” button and then the “inverter on” ( I ) key, on any of the Units simultaneously, until Load is supplied from Bypass and the Rectifiers start.
Page 348 3 Press “inverter on” ( I ) key on first unit. • Soft-start of Inverter, indicated with blinking LED. • At the end of Soft-start the LED Inverter remains lit. • In case of sufficient output power, the output will transfer to Inverter. •...
Page 349: Restore To Normal Operation After Epo (Emergency Power Off)
7.3.8 Restore to normal operation after EPO (Emergency Power Off) UPS panel after activation of EPO (Emergency Power Off) with Utility not available, i.e. complete shutdown of the UPS and LCD screen OFF. In this case wait until Utility is again available, then proceed to restart the UPS as described below Points 1 through 3.
Page 350 3. Connect the Battery to all Units by closing the external Battery Switches or Fuses, in case of External Battery. 4. Press “inverter on” ( I ) key on first Unit. • Soft-start of Inverter, indicated with blinking LED. • At the end of Soft-start the LED Inverter remains lit. •...
Page 351: Procedures For Parallel System With Common Battery
7.4 PROCEDURES FOR PARALLEL SYSTEM WITH COMMON BATTERY 7.4.1 Parallel System start-up Verify on all Units, with open front door: Switches Q1 and Q2 must be open (Pos. O). 1. Connect the Utility power on all UPS’s. (In case of separate inputs for Rectifier and Bypass, connect both). •...
Page 352 4. Press “inverter on” ( I ) key on first unit. • Soft-start of Inverter, indicated with blinking LED. • At the end of Soft-start the LED Inverter remains lit. • In case of sufficient output power, the output will transfer to Inverter. •...
Page 353: Maintenance System Shutdown (Load Supplied From Q2 On All Units)
7.4.2 Maintenance system shutdown (Load supplied from Q2 on all Units) Initial status: Load supplied from all Inverters. First operated unit All other units of the system ( O ) 1. Press and hold “inverter off” key on all Units, until the LED inside the Inverter symbol turns OFF.
Page 354: From Manual Bypass (Q2) To Normal Function Vfi
7.4.3 From Manual Bypass (Q2) to normal function VFI Initial status: Load supplied from Manual Bypass. All Q2 of the system closed. First operated unit All other units of the system 1. Connect the Battery to all Units by closing the external Battery Switch(es) or Fuses. 2.
Page 355 4. Press “inverter on” ( I ) key on first unit. • Soft-start of Inverter, indicated with blinking LED. • At the end of Soft-start the LED Inverter remains lit. • In case of sufficient output power, the output will transfer to Inverter. •...
Page 356: Separate A Unit From The Parallel System (System Redundancy)
7.4.4 Separate a Unit from the parallel system (System Redundancy) Initial status: Load supplied from all Inverters. First operated unit All other units of the system 1. Press and hold “inverter off” ( O ) key on the Unit, to separate, until the LED turns OFF. Load supplied from Inverter(s) of the other Unit(s) of the parallel system First operated unit All other units of the system...
Page 357: Reconnect A Unit To A Parallel System
7.4.5 Reconnect a Unit to a parallel system 1. Connect the Utility supply on the separated Unit. • Press mute, to reset alarm and buzzer. First operated unit All other units of the system 2. Connect the Battery to the UPS separated by closing the external Battery Switch or Fuses.
Page 358: Parallel System Shutdown (No Load Supply)
7.4.6 Parallel system shutdown (No Load supply) NOTE ! The Load must be disconnected. Initial status: Load supplied from all Inverters. First operated unit All other units of the system 1. Press “total off” button on any one on the units. •...
Page 359 3. Disconnect the Battery from all Units. • Wait 5 minutes for DC-Link Capacitors discharge First operated unit All other units of the system 4. Disconnect the Utility supply from all Units. • All LED’s are OFF. First operated unit All other units of the system END OF PROCEDURE Modifications reserved...
Page 360: Restore To Normal Operation After "Total Off
7.4.7 Restore to normal operation after “total off” View of the panel after pressing the button “total off”. • All Contacts are open. • Rectifier, Inverter and Static-Switch shutdown. First operated unit All other units of the system 1. Reset “total off” by pressing and holding the “total off” button and then the “inverter on”...
Page 361 3. Press “inverter on” ( I ) key on first unit. • Soft-start of Inverter, indicated with blinking LED. • At the end of Soft-start the LED Inverter remains lit. • In case of sufficient output power, the output will transfer to Inverter. •...
Page 362: Restore To Normal Operation After Epo (Emergency Power Off)
7.4.8 Restore to normal operation after EPO (Emergency Power Off) panel after activation (Emergency Power Off) with Utility not available, i.e. complete shutdown of the UPS and LCD screen OFF. In this case wait until Utility is again available, then proceed to restart the UPS as described below Points 1 through 3.
Page 363 4. Press “inverter on” ( I ) key on first Unit. • Soft-start of Inverter, indicated with blinking LED. • At the end of Soft-start the LED Inverter remains lit. • In case of sufficient output power, the output will transfer to Inverter. •...
Page 364: Options
The Advanced SNMP Card is an interface to the Ethernet Network, and provides UPS information via the standard SNMP Protocol (UPS-MIB (RFC-1628); GE Single MIB; GE Parallel MIB). The UPS can therefore be managed by a Network Management System (NMS) or by our applications (for instance JUMP), which...
Page 365: Connection For Options
AUX. BUZZER yellow/brown Alarm STOP OPERATION Mute Test GE Digital Energy P.S.: The above mentioned colors are suitables only for XY standard cable 8 1/2" in 216mm Fig. 8.3.1-1 Remote Signalling Box connection Terminals X3, X4 and X15 fitted inside the Remote Signalling Box.
Page 366: Maintenance
A regular maintenance check of your installation guarantees higher reliability of your safe critical power supply. Preventive maintenance work on the UPS can be done only by trained Service technicians. We therefore recommend you sign a Maintenance and Service contract with GE Global Services @ 1- 800-637-1738 9.1.1 Service check If this lamp lights up during the normal operation, that means that the unit has not been serviced for the last 20,000 hours by a GE trained technician.
Page 367: Long Shut-Down Periods Of The Ups-System
9.1.5 Long shut-down periods of the UPS-system To guarantee that the Battery is fully charged, the UPS system should be in operation for at least 12 hours every 3 months. If not the Battery may be permanently damaged. 9.1.6 UPS room conditions and temperature The UPS room and the Battery Room have to be maintained clean and free from dust.
Page 368: Notes
10 NOTES 10.1 NOTES FORM It is recommended to note in this section Notes, with date and short description all the operations performed on the UPS, as: maintenance, components replacement, abnormal situations, etc. Date Description Done by Modifications reserved Page 82/82 OPM_SGS_USM_M10_M15_0US_V030.doc Operating Manual SG Series 100 –...
Page 369 Installation Guide Uninterruptible Power supply SG Series 225 & 300 225 & 300 kVA / 480Vac UL / S2 GE Consumer & Industrial SA General Electric Company CH – 6595 Riazzino (Locarno) Switzerland T +41 (0)91 / 850 51 51 F +41 (0)91 / 850 52 52 www.gepowerquality.com...
Page 370 The present publication and any other documentation supplied with the UPS system is not to be reproduced, either in part or in its entirety, without the prior written consent of GE. The illustrations and plans describing the equipment are intended as general reference only and are not necessarily complete in every detail.
Page 371 START UP AND COMMISSIONING A GE GLOBAL SERVICES FIELD ENGINEER must perform start-up and commissioning of the UPS. Please Contact GE. GLOBAL SERVICES at least two weeks prior to schedule start-up and commissioning at 1-800-637-1738, or by E-mail at pqservice@ge.com...
Page 372 While every care has been taken to ensure the completeness and accuracy of this manual, GE assumes no responsibility or liability for any losses or damages resulting from the use of the information contained in this document.
Page 373 Table of contents Page IMPORTANT SAFETY INSTRUCTIONS ......................6 LAYOUT................................9 LAYOUT SG Series 225 & 300 ...............................9 INSTALLATION............................10 TRANSPORT....................................... 10 3.1.1 Dimensions and weight................................. 10 DELIVERY ......................................11 STORAGE ......................................11 3.3.1 Storage of the UPS ..................................11 3.3.2 Storage of battery ...................................
Page 374: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS SAVE THESE INSTRUCTIONS This manual contains important instructions for models SG Series 225 & 300 that should be followed during installation and maintenance of the UPS and battery. GENERAL Move the UPS in an upright position in its original package to the final destination room. To lift the cabinets, use a forklift or lifting belts with spreader bars.
Page 375 Safety instructions when working with battery EXTERNAL BATTERY MUST BE INSTALLED AND CONNECTED TO THE UPS BY QUALIFIED SERVICE PERSONNEL ONLY. INSTALLATION PERSONNEL MUST READ THIS ENTIRE SECTION BEFORE HANDLING THE UPS AND BATTERY. DANGER! Full voltage and current are always present at the battery terminals. The battery used in this system can provide dangerous voltages, extremely high currents and a risk of electric shock.
Page 376 Safety symbols and warnings Safety warnings The text of this manual contains some warnings to avoid risk to the persons and to avoid damages to the UPS system and the supplied critical loads. The non-observance of the warnings reminding hazardous situations could result in human injury and equipment damages.
Page 377: Layout
LAYOUT LAYOUT SG Series 225 & 300 Fig. 2.1-1 SG Series 225 & 300 general view Fig. 2.1-2 SG Series 225 & 300 general view with open doors Opening for top cable entry Opening for bottom cable entry Compression lugs for Utility input and Load output Compression lugs...
Page 378: Installation
INSTALLATION TRANSPORT Forklift Transport UPS only in upright position! The UPS is packaged on a pallet suitable for handling with a forklift. Pay attention to the center of gravity. The UPS must be moved in upright position. Do not tilt cabinets more than +/- 10° during handling. Move the UPS in it’s original package to the final Crane destination site.
Page 379: Delivery
DELIVERY When delivered, inspect the package integrity and the physical conditions of the cabinets carefully. In case of any damage sustained during transport, immediately inform the carrier and contact your local Service Center. A detailed report of the damage is necessary for any insurance claim. NOTE ! A DAMAGED UPS MUST NEVER BE INSTALLED OR CONNECTED TO UTILITY OR BATTERY!
Page 380: Place Of Installation
PLACE OF INSTALLATION 3.4.1 UPS location WARNING ! A QUALIFIED ELECTRICAL CONTRACTOR must carry out the installation and cabling of the UPS. If optional cabinets and accessories are included with the UPS, please refer to those accompanying manuals for installation and operating instructions. It is important to have a clean, dust-free environment provided with proper ventilation and air- conditioning to keep the ambient temperature within the specified operating range.
Page 381 Openings for input and output cable connections Battery Utility input Output Load SG Series 225 & 300 openings are provided on the top and the bottom of the UPS for the connection of input Fig. 3.4.1-2 Opening on top of the cabinet for input and output cables and output cables.
Page 382: Battery Location
3 - 4 - 5 - 6 UPS 2 UPS 1 Fig. 3.4.1-5 RPA system disposition In case of parallel system, try to place the UPS modules in sequence of their numbers (marked on the packing). If the units are positioned “side by side”, the side panels must be mounted on all units. 3.4.2 Battery location Batteries require a well-ventilated room with controlled temperature to obtain reliable operation.
Page 383: Ventilation And Cooling
VENTILATION AND COOLING Fig. 3.5-1 Installation on plain floor Fig. 3.5-2 Installation on raised floor The heat produced by the UPS is transferred to the environment by its ventilation. Air inlets for UPS ventilation are located on the front of the UPS, while air outlets are on top of the cabinet.
Page 384: Unpacking
For parallel systems, the delivery also includes the bus control cables for inter- connecting the UPS modules. Packing material recycling GE, in compliance with environment protection, use only environmentally friendly material. UPS packing materials must be recycled in compliance with all applicable regulations.
Page 385: Electrical Wiring
ELECTRICAL WIRING WARNING ! UPS installation and connection must be performed by QUALIFIED SERVICE PERSONNEL ONLY. It is the responsibility of the installation technician to ensure that all local and national electric codes are adhered to. 3.7.1 Utility input connection NOTE ! Ensure that the AC and DC external isolators are OFF and locked out to prevent their inadvertent operation.
Page 386: Input/Output Over Current Protection And Wire Sizing
3.7.2 Input/output over current protection and wire sizing The cabling of the UPS system has to be sized according to the UPS power rating. Sizing of circuit breakers, fuses and cables for Input Utility, Output Load and Battery must meet the requirements of local and national electrical codes.
Page 387: Battery Over Current Protection And Wire Sizing
3.7.3 Battery over current protection and wire sizing NOTE ! • Please read the safety precautions at the front of this guide carefully, and thoroughly review the battery manufacturers installation and maintenance manual before connecting the batteries to the UPS. •...
Page 388 NEC SECTION 210-20 (a) Table 310-16. Allowable Ampacities of Insulated Conductors Rated O Through 2000 Volts, 60°C Trough 90°C (140°F Trough 194°F) Not More than Three Current-Carrying Conductors in Raceway, Cable, or Eart7h (Directly Buried), Based on Ambient Temperature of 30°C (86°F). Temperature Rating of Conductor (See table 310-13) Size 60°C (140°F)
Page 389: Wiring Connection
WIRING CONNECTION WARNING! UPS installation and connection must be performed by QUALIFIED SERVICE PERSONNEL ONLY. 3.8.1 Power connections Input/output and DC connections are provided with terminal blocks. Please refer to chart for torque specifications. Carefully read the following recommendations before proceeding: •...
Page 390 CAUTION ! Panels “A, B, C, D, E and F” should never be removed or replaced with power applied to the UPS. This panel is in close proximity to 480V live bus bars. Always disconnect the rectifier, bypass, load and battery sources from the UPS before removing or replacing this panel.
Page 391: Power Connection With Common Input Utility
3.8.2 Power connection with common input utility Typical installation using common NEMA two hole lugs PE Input utility PE Load L1-1 L2-1 L3-1 Input utility PE Load Fig. 3.8.2-1 Power connections Common Input Utility Fix the cables on accessory “A” with the enclosed cable ties. Cable terminations are to the Rectifier Input Lugs and Output Lugs as shown above.
Page 392 NOTE ! This UPS is only designed to operate in a wye-configured electrical system with a solidly grounded neutral. The UPS cannot be operated from a mid-point or end-point grounded delta supply source. If the Load requires a Neutral, a Bypass Source Neutral MUST BE PROVIDED. If no Neutral Connection is available with the Bypass Input (3-wire input + ground) and the Load does not require a Neutral, solidly connect the Output Neutral of the UPS to ground with a ground bonding jumper.
Page 393: Power Connection Dual Input Utility (Option)
3.8.3 Power connection dual input utility (option) Typical installation using common NEMA two hole lugs PE Input utility PE Load L1-1 L2-1 L3-1 L3-2 N - Bypass L2-2 Input utility PE Load L1-2 Fig. 3.8.3-1 Power connections Dual Input Utility (option) Fix the cables on accessory “A”...
Page 394 NOTE ! This UPS is only designed to operate in a wye-configured electrical system with a solidly grounded neutral. The UPS cannot be operated from a mid-point or end-point grounded delta supply source. If the Load requires a Neutral, a Bypass Source Neutral MUST BE PROVIDED. If no Neutral Connection is available with the Bypass Input (3-wire input + ground) and the Load does not require a Neutral, solidly connect the Output Neutral of the UPS to ground with a ground bonding jumper.
Page 395 Notices for installation 1 2 3 12 13 14 15 Fig. 3.8.3-3 AC Bus Bars BR1, BR2 and BR3 For separate Bypass and Rectifier input configuration (option), the AC Bus Bars BR1, BR2 and BR3 MUST BE REMOVED. Modifications reserved Page 27/40 OPM_SGS_ISG_M22_M30_2US_V010.doc Installation Guide SG Series 225 &...
Page 396: Battery And External Battery Breaker Connection
3.8.4 Battery and External Battery Breaker connection Typical installation using common NEMA two hole lugs BATTERY 17 18 Fig. 3.8.4-1 Power connections Battery Fix the cables on accessory “A” with the enclosed cable ties (see Fig. 3.8.2-1). Battery Cable Terminations are to the Positive and Negative Terminals as shown above. Connect wire to the Lugs using appropriate tools and appropriate torque.
Page 397: Interface To External Bypass For Single Unit
3.8.5 Interface to External Bypass for single unit If the UPS system is equipped with an External Maintenance Bypass Switch, connect the NO (normally open) voltage free auxiliary contact from the External Bypass Switch to X4 - 1, 2 of P27 – IM0108 - Interface for External Bypass inserted in the Connectivity Rack.
Page 398: Setup For Sg Series 225 & 300 Intended To Be Operated In Eboost™ Operation Mode
3.8.7 Setup for SG Series 225 & 300 intended to be operated in eBoost™ Operation Mode NOTE ! For systems intended to be operated in eBoost™ Operation Mode, the installation shall be protected with suitable surge protection devices (SPDs) on the AC bus feeding the UPSs. Please contact your Service Center for more information.
Page 399 RPA PARALLEL SYSTEM CONNECTION WARNING ! This operation must be performed by QUALIFIED SERVICE PERSONNEL ONLY before the initial start-up. ENSURE THAT THE UPS INSTALLATION IS COMPLETELY POWERED DOWN. 3.9.1 Power wiring of parallel units To guarantee good Load sharing between the units of a Parallel System, we recommend that the cable length from the input distribution board (5) to the output distribution board (9) is equal for each unit (a+b = c+d = e+f = g+h = i+l = m+n).
Page 400 3.9.2 Parallel control bus connection In cases of parallel operation, the communication between the units takes place through the control bus cables. Each parallel unit is equipped with an additional board “P13 – RPA Board“ where the connectors J52 (A) and J62 (B) are located.
Page 401 IM 0048 Fig. 3.9.2-2 Bus connection on terminal units Terminal units On the parallel bus PCB “P34 – Bus Interface”, of the first and last units (terminal) of the parallel system the Jumpers JP1, JP2, JP3 and JP4 MUST BE INSERTED. IM 0048 Fig.
Page 402: Control Bus Cable Location
3.9.3 Control bus cable location WARNING ! This operation must be performed by QUALIFIED SERVICE PERSONNEL ONLY before the initial start-up. ENSURE THAT THE UPS INSTALLATION IS COMPLETELY POWERED DOWN. Access to the control bus connection. The control bus connection between parallel units must be made on the front of the electronic...
Page 403 It is important that the cable JA must be the same length as cable JB. WARNING ! Connection and commissioning of an additional UPS to an existing parallel system, Service Center. must be performed by a GE SERVICE ENGINEER from of your Modifications reserved Page 35/40 OPM_SGS_ISG_M22_M30_2US_V010.doc...
Page 404: Customer Interface
CUSTOMER INTERFACE CUSTOMER INTERFACE Serial port J3 - RS 232 (sub D - female 9 pin) Suitable for JUMP protocol Pin 2: TX (out) Pin 3: RX (in) Pin 5: GND J2 (subD-female 25p) – Output signals on voltage free contacts J2/1, 2, 3 NO, C, NC Utility Failure...
Page 405 Serial port J3 - RS-232 (sub D, female 9 pin) that allows: Total remote management of the system using software GE Power Diagnostics, GE Data Protection or GE Service Software for system protection and management of the UPS systems. Fig. 4.1.1-1 Serial port J3 The serial port J3 - RS232 is enabled on all the units of the parallel system.
Page 406: Programmable Input Free Contacts
4.1.3 Programmable input free contacts Some programmable UPS functions (indicated in Section 8.1), can be activated by closing an external contact, if connected, on: X1 / 10, 21 J2 / 10, 23 User Input 1 (default = Not used) X1 / 11, 22 J2 / 11, 24 User Input 2 (default = Emergency GEN ON) 4.1.4 Gen Set Signaling (GEN ON)
Page 407: Epo (Emergency Power Off) Input Contact
4.1.7 EPO (Emergency Power Off) Input contact Be aware: The reliability of the system depends on this contact NC (Normally Closed)! An external Emergency switch (Normally Closed voltage-free contact) can be connected on terminals XB / 1 - 4 or connector J2 / 12 - 25 of the P4 - Interface Customer.
Page 408: Notes
NOTES NOTES FORM It is recommended to note in this section Notes, with date and short description all the operations performed on the UPS, as: maintenance, components replacement, abnormal situations, etc. Date Description Done by Modifications reserved Page 40/40 OPM_SGS_ISG_M22_M30_2US_V010.doc Installation Guide SG Series 225 &...
Page 409 User Manual Uninterruptible Power supply SG Series 225 & 300 225 & 300 kVA / 480Vac UL / S2 GE Consumer & Industrial SA General Electric Company CH – 6595 Riazzino (Locarno) Switzerland T +41 (0)91 / 850 51 51 F +41 (0)91 / 850 52 52 www.gepowerquality.com...
Page 410 The present publication and any other documentation supplied with the UPS system is not to be reproduced, either in part or in its entirety, without the prior written consent of GE. The illustrations and plans describing the equipment are intended as general reference only and are not necessarily complete in every detail.
Page 411 Thank you for choosing GE ! START UP AND COMMISSIONING A GE Global Services Field Engineer must perform start-up and commissioning of the UPS. Please Contact GE. Global Services at least two weeks prior to schedule start-up and commissioning at 1-800-637-1738, or by E-mail at pqservice@ge.com...
Page 412 UPS. While every care has been taken to ensure the completeness and accuracy of this manual, GE assumes no responsibility or liability for any losses or damages resulting from the use of the information contained in this document.
Page 413 Table of contents Page IMPORTANT SAFETY INSTRUCTIONS ......................7 LAYOUT ................................10 2.1 LAYOUT SG Series 225 & 300 ................................10 INTRODUCTION ............................11 DESCRIPTION ..............................12 4.1 BLOCK DIAGRAM AND MAIN ELEMENTS ............................. 12 4.2 OPERATION MODES ....................................13 4.2.1 Normal operation mode ...................................
Page 414 7.2 PROCEDURES FOR SG Series 225 & 300 PARALLEL SYSTEM AND PARALLEL SYSTEM WITH COMMON BATTERY........................................56 7.2.1 SG Series 225 & 300 Parallel System start-up ..........................56 7.2.2 Parallel System shutdown with Load transfer on Manual Bypass Q2 (option)..............61 7.2.3 From Manual Bypass Q2 (option) to normal function VFI......................
Page 415: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS SAVE THESE INSTRUCTIONS This manual contains important instructions for models SG Series 225 & 300 that should be followed during installation and maintenance of the UPS and battery. GENERAL Move the UPS in an upright position in its original package to the final destination room. To lift the cabinets, use a forklift or lifting belts with spreader bars.
Page 416 Safety instructions when working with battery EXTERNAL BATTERY MUST BE INSTALLED AND CONNECTED TO THE UPS BY QUALIFIED SERVICE PERSONNEL ONLY. INSTALLATION PERSONNEL MUST READ THIS ENTIRE SECTION BEFORE HANDLING THE UPS AND BATTERY. DANGER! Full voltage and current are always present at the battery terminals. The battery used in this system can provide dangerous voltages, extremely high currents and a risk of electric shock.
Page 417 Safety symbols and warnings Safety warnings The text of this manual contains some warnings to avoid risk to the persons and to avoid damages to the UPS system and the supplied critical loads. The non-observance of the warnings reminding hazardous situations could result in human injury and equipment damages.
Page 418: Layout
LAYOUT LAYOUT SG Series 225 & 300 Fig. 2.1-1 SG Series 225 & 300 general view Fig. 2.1-2 SG Series 225 & 300 general view with open doors Fig. 2.1-4 Control panel Fig. 2.1-3 Manual operated switches Customer Interface Board UPS output switch Manual Bypass switch (option) SNMP...
Page 419: Introduction
Tailor made power protection to meet your individual installation requirements; SG Series 225 & 300 offers various options like input harmonic filters and our comprehensive GE Power Diagnostic software suite for mission control and data protection to cover all your application needs.
Page 420: Description
DESCRIPTION BLOCK DIAGRAM AND MAIN ELEMENTS Fig. 4.1-1 Block diagram The SG Series 225 & 300 system can be divided into the following main elements: Control System SG Series 225 & 300 is designed with microprocessor-controlled signal processing circuits. The interface between the operator and the unit is provided by the monitoring system on the front panel. This monitoring system consists of an active mimic diagram, a keyboard and a backlit display.
Page 421: Operation Modes
UPS control panel (see Section 7.4 / eBoost). NOTE ! The eBoost™ Operation Mode is available only if enabled at the factory or by a GE GLOBAL SERVICES FIELD ENGINEER. Modifications reserved Page 13/79 OPM_SGS_USM_M22_M30_2US_V010.doc...
Page 422: Utility Failure Operation
4.2.3 Utility failure operation When the Utility is no longer within acceptable tolerances, the Battery will provide the DC power to the Inverter. The Inverter will maintain continuous AC power to the Load until the Battery Voltage reaches the lower limit of the Inverter operation capability.
Page 423: Automatic Bypass
4.2.5 Automatic Bypass In normal operation, the Load is supplied by the Inverter. When the control system detects a fault in the Inverter, an overload condition or a short-circuit condition, the Automatic Bypass will transfer the critical Load to the Utility without interruption. When the Inverter recovers, or the overload or short-circuit condition is corrected, the Load will be automatically transferred back to the Inverter.
Page 424: Parallel System Operation
PARALLEL SYSTEM OPERATION 4.3.1 Introduction to the parallel system Two or more equal power units can be paralleled to increase the output power (paralleling for capacity) or to improve the overall reliability of an UPS system (paralleling for redundancy). The outputs of parallel units are connected to a common power bus, and in normal operation the units connected on the parallel bus share the Load equally.
Page 425: Features Of Rpa Parallel System
4.3.2 Features of RPA parallel system The SG Series 225 & 300 Parallel System is designed to provide a complete Redundant Parallel Architecture, and is free from common equipment. Not only the Inverters are redundant, but also the Bypass functions are designed with redundant modular concept.
Page 426: Rectifiers Paralleled On The Same Battery
A parallel system with a Common Battery for two or more Rectifiers, requires a particular installation and adequate setting of some parameters, (accessible only through password), and can therefore only be done by a QUALIFIED ENGINEER from GE. Usually each Rectifier-Inverter Unit runs with its own Battery.
Page 427: Recycling At The End Of Service Life
RECYCLING AT THE END OF SERVICE LIFE NOTE ! This product has been designed to respect the environment, using materials and components respecting eco-design rules. It does not contain CFCs (chlorofluorocarbons) or HCFCs (hydrochlorofluorocarbons). RECYCLING AT THE END OF SERVICE LIFE ! compliance with environment...
Page 428: Control Panel
CONTROL PANEL CONTROL PANEL Fig. 5.1-1 Control panel The control panel, positioned on the UPS front door, acts as the UPS user interface and comprises of the following elements: Back lit Graphic Display (LCD) with the following characteristics: • − Multilanguage communication interface: English, German, Italian, Spanish, French, Finnish, Polish, Portuguese, Czech, Slovakian, Chinese, Swedish, Russian and Dutch;...
Page 429: Table Of Functions And Indications On Control Panel
TABLE OF FUNCTIONS AND INDICATIONS ON CONTROL PANEL Key to switch the Inverter ON ( I ) NOTE ! When eBoost™ Operation Mode is enabled, control of Inverter status and selection of the feed path is done autonomously by the UPS control logic.
Page 430 LED Stop Operation (red color) It warns about the imminent inverter stop (default parameter = 3 min.) and the consequent load shutdown as result of: The battery is fully discharged and the load cannot be transferred on utility. • Overtemperature or overload condition (>125%) and the load cannot be •...
Page 431: Lcd Screen
LCD SCREEN HOME SCREEN Fig. 6.1-1 LCD display The buttons perform the following functions: METERING View electric parameters values and statistics of use. METER See Section 6.2. ALARMS Shows in chronological order, all the events occurred (alarms, ALARM messages, commands, handling, etc.). See Section 6.3. MUTE Key to reset general alarm and buzzer.
Page 432 SG Series UPS Model UPS series number UPS nominal rating (kVA) Battery level LED All lightning lit LED open indicate a battery autonomy of 100%. LED A Fixed: indicates a battery autonomy between 6% and 25%. indicates a battery autonomy ≤5%. Blinking: LED A, B Indicate a battery autonomy between 26% and 50%.
Page 433: Metering
METERING The METERING mode is entered any time the “METER” button is pressed. The LCD screen will indicate a series of screenshots showing the measures of all electric parameters like AC, DC and various statistics. In this mode the buttons perform the following functions: Return to HOME screen.
Page 434 Inverter data screen Home\Meter INVERTER The output frequency of the Inverter. 60 Hz 277 V Three-phase output voltage PHASE/NEUTRAL. 277 V 277 V The temperature of the inverter bridge. +25° C SYNCHRONIZED The synchronization status of the inverter with respect to utility (SYNCHRONIZED / NOT SYNCHRONIZED).
Page 435 Home\Meter Statistics screen COUNTERS The total number of bypass utility faults (bypass utility out of tolerance). Bypass utility failure Rectifier utility failure The total number of rectifier utility faults (rectifier utility out Overloads of tolerance). InvOperTime [h] 2135 The total number of detected output overloads. UPSOperTime [h] 3125 The total operating time for the Inverter (in hours).
Page 436: Alarms
Confirm the selection made. It is possible to view any pushbutton functional description by pushing the button for more than 3 seconds. The events displayed are the standard GE events as described in the Section 6.3.1 - EVENTS (Alarms and Messages). Home\ Alarm...
Page 437: Events (Alarms And Messages)
Each of the following listed events, alarm or message, can be displayed on the LCD screen, on a PC with the software “GE Data Protection” installed or with the monitoring system “GE Power Diagnostic”. Alarms and Messages are differently specified because the alarms are indicating an abnormal...
Page 438 Code Alarms Meaning The temperature sensor inside the input transformer winding indicates over temperature. RECTIFIER TRANSFORMER 4106 Only the alarm is given. OVERTEMPERATURE The Rectifier, when in Off state, cannot start as long as this condition persists. RECTIFIER UTILITY OUT Rectifier Input Utility is out of tolerance (voltage, frequency 4110 OF TOLERANCE...
Page 439 Code Alarms Meaning An abnormal condition has been detected on one or more power modules of the Inverter (temperature or over 4309 DRIVER FAILURE current). Inverter shutdown and cannot be started as long as the alarm is present. Inverter Output Voltage is out of the tolerances (± 10%). INV.
Page 440 Code Alarms Meaning The UPS-System is in an overload condition >125% on Inverter, or >150% on Utility. 4570 OVERLOAD With Utility unavailable, a sequence of “stop operation” starts. Time out depends on Load quantity. With Utility Bypass supply available and load >115%, the Load is transferred on Utility.
Page 441: Messages List
6.3.3 Messages list Code Message Meaning The microprocessor has detected an incorrect operation: Transfers the Load on Utility and performs a program 4002 WATCHDOG RESET reset. The Inverter will restart automatically and will supply the Load. The auxiliary contact indicates that the input rectifier 4108 Q4 OPEN switch Q4 has been opened.
Page 442 Code Message Meaning 2 transfers Inverter- Utility have been detected in a short 4534 MULTIPLE LOAD TRANSFER time, (default 30 seconds). Bypass is not available. 4535 BYPASS LOCKED Contactor K6 is open, SSM deactivated. Bypass is enabled. 4536 BYPASS FREE Contactor K6 is closed.
Page 443 Code Message Meaning Automatic Battery Test is not possible due to: − No Utility Rectifier or Bypass. 4699 BATTERY TEST IMPOSSIBLE − Battery not fully charged. − Load is below 10% or above 80%. Test is postponed for 1 week. Inverter can be started or shutdown by remote control.
Page 444 6.3.4 Event report SG Series 225 & 300 In case of failure or malfunctioning, before calling the nearest Service Center, please note the most important data of your UPS and the most recent events. In order to make the diagnosis easier from our Diagnostic Center we suggest you make a copy of this page, fill it out with the requested data and send it by fax.
Page 445: Setup
SETUP The SETUP mode is entered any time the “SETUP” button is pressed. This screen allows the user to modify some parameters permitting to adapt some functions of the UPS to his/her needs, described as follows. The LCD will display a series of screens containing the user parameters, accessible without password protection.
Page 446 Setup screen Home\Setup SETUP LEVEL 1 USER Displays a sequence of screens with parameters which can LEVEL 1 USER be user defined. LEVEL 2 SERVICE LEVEL 2 SERVICE Only service is allowed. At this level the parameters access is protected by a code. Date and time screen Home\Setup\User DATE AND TIME...
Page 447 Home\Setup\User MODEM Modem screen 2 Tel 2 Tel 2 Tel 2 enabled It records the second dial-out number. Tel 3 Tel 2 enabled Tel 3 enabled This parameter Y/N specifies if the second telephone Tel 4 number will be used for dial-out. Tel 4 enabled Tel 3 It records the third dial-out number.
Page 448 Home\Setup\User LCD Display screen DISPLAY UPS Name The user can choose the name of the UPS model shown on the main page (max. 9 UPS name SG Series characters). Language This parameter allows the choice of Language ENGLISH language used to display the information. Valid choices are: English, German, Italian, Contrast Spanish, French, Finnish, Polish, Portuguese,...
Page 449 To better understand the eBoost™ programming modes, some typical examples are shown: Example 1: For continuous eBoost™ Operation Mode set the eBoost START times to 00:00 and the eBoost STOP times to 23:59 for all weekdays, but almost 1 day must have 1 minute of VFI programmation: i.e d2 - Sunday 00:00 to 23:58).
Page 450 Example 5: An equivalent set of parameters for Example 4 is. Weekday - Saturday - Sunday - Monday - Tuesday - Wednesday - Thursday - Friday eBoost START 00:00 00:00 18:00 18:00 06:00 09:00 12:00 eBoost STOP 23:59 20:00 18:00 06:00 06:00 09:00...
Page 451: Commands
COMMANDS The COMMANDS mode is entered any time the “CMDS” button is pressed. Allows the user to execute UPS operation commands. In this mode the buttons perform the following functions: Return to HOME screen. Scrolls forward to the next screen. Scrolls forward to the next line.
Page 452: Operation
START UP AND COMMISSIONING A GE GLOBAL SERVICES FIELD ENGINEER must perform start-up and commissioning of the UPS. Please Contact GE. Global Services at least two weeks prior to schedule start-up and commissioning at 1-800-637- 1738, or by E-mail at pqservice@ge.com...
Page 453: Start-Up Of The Sg Series 225 & 300
PROCEDURES FOR SINGLE SG Series 225 & 300 7.1.1 Start-up of the SG Series 225 & 300 WARNING ! Before proceeding to Turn ON the UPS System, ensure that the AC and DC external isolators are OFF (Pos. O), and prevent their inadverted operation. Ensure that the output load distribution can be powered and all the output isolators are open (Pos.
Page 454 WARNING ! The setup of the UPS configuration parameters must be done only by a GE GLOBAL SERVICES FIELD ENGINEER. The setup of mistaken values could compromise the integrity and reliability of the UPS. In this mode the keys perform the following functions: Confirm the selection made and select the next parameter.
Page 455 CONFIGURATION screen Save and exit ? Screen to save the configuration of set parameters. Any additional modification of setup parameters can be done only from a GE SERVICE PERSON as it requires an access code. ► Continue Modifications reserved Page 47/79 OPM_SGS_USM_M22_M30_2US_V010.doc...
Page 456 2. Close the UPS Output Switch Q1 (Pos. I). • The Load is supplied by the Utility through the Automatic Bypass. • Rectifier starts automatically, blinking LED 3 (Rectifier ON) indicates Soft-start. • At the end of Rectifier Soft-start the LED 3 (Rectifier ON) remains lit. The Synoptic Diagram must display the status “LOAD SUPPLIED BY AUTOMATIC BYPASS”.
Page 457: Ups Shutdown With Load Transfer On Manual Bypass Q2 (Option)
7.1.2 UPS shutdown with Load transfer on Manual Bypass Q2 (option) NOTE ! Not following this procedure can cause protected loads to shut down! Never close or open either UPS Output Switch Q1 and Manual Bypass switch Q2 (option) with the inverter running! Initial situation: the Load is powered by the Inverter.
Page 458 3. Open the UPS Output Switch Q1 (Pos. O) and then press the “Load Off” button. • The load is now supplied only through the Manual Bypass Q2. • Rectifier shuts down and all output and input Contactors are opened. •...
Page 459: From Manual Bypass Q2 (Option) To Normal Function Vfi
7.1.3 From Manual Bypass Q2 (option) to normal function VFI NOTE ! UPS system has been turned OFF following the “Maintenance shutdown (Load on Manual Bypass Q2)” procedure and the Load is still powered by Manual Bypass Q2 (option). The Load must be transferred back to the UPS system. Open the front door and make sure that: The safety screens are fixed in their position.
Page 460 4. Open the Manual Bypass Switch Q2 (Pos. O). • The Load is supplied by the Utility through the Automatic Bypass. • LED 8 (Automatic Bypass ON) is lit and LED 9 (Manual Bypass Q2 ON) turns OFF. The Synoptic Diagram must display the status “LOAD SUPPLIED BY AUTOMATIC BYPASS”.
Page 461: Complete Ups Shutdown
7.1.4 Complete UPS shutdown NOTE ! Follow this procedure only in case the UPS system and the Load must be completely powered-down. If eBoost™ option is available, make sure that eBoost™ Operation mode is disabled before starting this procedure. Initial status: Load supplied from Inverter.
Page 462: Restore To Normal Operation After "Load Off
7.1.5 Restore to normal operation after “Load Off” NOTE ! Make sure the UPS to be status of the activation of “Load Off”, i. e. UPS Output Switch Q1 closed (Pos. I), Manual Bypass Switch Q2 (option) open (Pos. O) and External Battery Switch or Fuses connected (Pos.
Page 463: Restore To Normal Operation After Epo (Emergency Power Off)
7.1.6 Restore to normal operation after EPO (Emergency Power Off) NOTE ! Make sure the UPS to be status of the activation of EPO, i. e. UPS Output Switch Q1 closed (Pos. I), Manual Bypass Switch Q2 (option) open (Pos. O) and External Battery Switch or Fuses connected (Pos.
Page 464: Procedures For Sg Series 225 & 300 Parallel System And Parallel System With Common Battery
PROCEDURES FOR SG Series 225 & 300 PARALLEL SYSTEM AND PARALLEL SYSTEM WITH COMMON BATTERY 7.2.1 SG Series 225 & 300 Parallel System start-up WARNING ! Before proceeding to Turn ON the UPS System, ensure that the AC and DC external isolators are OFF (Pos.
Page 465 WARNING ! The setup of the UPS configuration parameters must be done only by a GE GLOBAL SERVICES FIELD ENGINEER. The setup of mistaken values could compromise the integrity and reliability of the UPS. In this mode the keys perform the following functions: Confirm the selection made and select the next parameter.
Page 466 CONFIGURATION screen Save and exit ? Screen to save the configuration of set parameters. Any additional modification of setup parameters can be done only from a GE SERVICE PERSON as it requires an access code. ► Continue Modifications reserved Page 58/79 OPM_SGS_USM_M22_M30_2US_V010.doc...
Page 467 Close UPS Output Switch Q1 (Pos. I) on first Unit. • Rectifiers start automatically, blinking LED 3 (Rectifier ON) indicates Soft-start. • At the end of Rectifier Soft-start, the LED 3 (Rectifier ON) remains lit. Synoptic Diagram of first unit Synoptic Diagram of other units 3.
Page 468 6. Insert the Inverter by pressing the “Inverter ON” ( I ) key on all other units. Do not start the next Inverter until the sequence of the previous ends. • As soon as the output power of the Inverters is sufficient to supply the Load, the output of the units with running Inverter will transfer to Inverter.
Page 469: Parallel System Shutdown With Load Transfer On Manual Bypass Q2 (Option)
7.2.2 Parallel System shutdown with Load transfer on Manual Bypass Q2 (option) NOTE ! Not following this procedure can cause protected loads to shut down! Never close or open either UPS Output Switch Q1 and Manual Bypass switch Q2 (option) with the inverter running! Initial situation: the Load is powered by all inverters of the Parallel System.
Page 470 3. Open the UPS Output Switch Q1 (Pos. O) and then press the “Load Off” key on all Units. • The Load is now supplied only through the Manual Bypass Q2 of all Units. • LED 8 (Automatic Bypass ON) turns OFF and LED 9 (Manual Bypass Q2 ON) stays lit. •...
Page 471: From Manual Bypass Q2 (Option) To Normal Function Vfi
7.2.3 From Manual Bypass Q2 (option) to normal function VFI NOTE ! UPS Parallel System has been turned OFF following the “Maintenance shutdown (Load on Manual Bypass Q2)” procedure and the Load is still powered by all Manual Bypass Q2 (option). The Load must be transferred back to the UPS Parallel System.
Page 472 4. Repeat the procedures 2 and 3 for each other Unit. • The Rectifiers will start automatically and at the closure of UPS output switch Q1 of the last Unit, the output will be supplied parallel from Automatic Bypass and Manual Bypass Q2 of all UPS units. •...
Page 473: Separate A Ups Unit From The Parallel System (System Redundancy)
7.2.4 Separate a UPS Unit from the Parallel System (System Redundancy) NOTE: The Load is powered by the UPS Redundant Parallel System. One UPS unit of the Parallel System has to be turned Off, while the Load is shared between the other units supplying the parallel bus. If eBoost™...
Page 474 Home\Commands COMMANDS 3. Perform the command “Load Off” on the Unit to separate only when the LED 7 (Q1 closed) is Off. RESET TOTAL OFF Perform the command “Load Off” by entering the screen (see Section 7.5): REQUEST TOTAL OFF COMMANDS / REQUEST TOTAL OFF Synoptic Diagram of the unit to separate Synoptic Diagram of other units...
Page 475: Reconnect A Ups Unit To A Parallel System
7.2.5 Reconnect a UPS unit to a Parallel System NOTE: The Load is still powered by the other units supplying the Parallel Bus. This UPS unit will be powered on and connected to the Parallel Bus in order to share the Load with each other's.
Page 476 2. Close the UPS Output Switch Q1 (Pos. I) on the Unit to reconnect. • Rectifier starts automatically, blinking LED 3 (Rectifier ON) indicates Soft-start. • At the end of Rectifier Soft-start the LED 3 (Rectifier ON) remains lit. Synoptic diagram of the unit to reconnect Synoptic diagram of other units 3.
Page 477: Complete Parallel System Shutdown
7.2.6 Complete Parallel System shutdown NOTE ! Follow this procedure only in case the UPS Parallel System and the Load must be completely powered-down. If eBoost™ option is available, make sure that eBoost™ Operation Mode is disabled before starting the shutdown procedure. Initial situation: The Load is powered by SG Series 225 &...
Page 478 3. Disconnect on all Units the Battery from the UPS by opening (Pos. O) the External Battery Switch or Fuses. • Wait 5 minutes for DC-Link Capacitors discharge. 4. Disconnect the Utility supply on all Units. • Complete power shutdown will OFF the LCD Display Panel. Synoptic Diagram of first unit Synoptic Diagram of other units END OF PROCEDURE...
Page 479: Restore To Normal Operation After "Load Off
7.2.7 Restore to normal operation after “Load Off” NOTE ! Make sure the all Units of the Parallel System to be status of the activation of “Load Off”, i. e. UPS Output Switches Q1 closed (Pos. I), Manual Bypass Switches Q2 (option) open (Pos.
Page 480 Insert the Inverter by pressing the “Inverter ON” ( I ) key on first unit. • Soft-start of Inverter, indicated with blinking LED 5 (Inverter available). • At the end of Soft-start the LED 5 (Inverter available) remains lit. • In case of sufficient output power, the output will transfer to Inverter.
Page 481: Restore To Normal Operation After Epo (Emergency Power Off)
7.2.8 Restore to normal operation after EPO (Emergency Power Off) NOTE ! Make sure the all units of the Parallel System to be status of the activation of EPO, i. e. UPS Output Switches Q1 closed (Pos. I), Manual Bypass Switches Q2 (option) open (Pos.
Page 482 Insert the Inverter by pressing the “Inverter ON” ( I ) key on first unit. • Soft-start of Inverter, indicated with blinking LED 5 (Inverter available). • At the end of Soft-start the LED 5 (Inverter available) remains lit. • In case of sufficient output power, the output will transfer to Inverter.
Page 483: Options
UPS. Based on the leading Intelligent Remote Information System IRIS all GE UPS types as well as 3rd party UPS are supported. Accessing the latest site information via Web and being alerted by Email, SMS or Fax, it enables the user to make timely decisions in case of changing critical conditions.
Page 484: Connection For Options
AUX. BUZZER yellow/brown Alarm STOP OPERATION Mute Test GE Digital Energy P.S.: The above mentioned colors are suitables only for XY standard cable 8 1/2" in 216mm Fig. 8.3.1-1 Remote Signaling Box connection Terminals X3, X4 and X15 fitted inside the Remote Signaling Box.
Page 485: Maintenance
A regular maintenance check of your installation guarantees higher reliability of your safe critical power supply. Preventive maintenance work on the UPS can be done only by trained Service technicians. We therefore recommend you sign a Maintenance and Service contract with GE Global Services @ 1- 800-637-1738 9.1.1 Service check If the LED Operation blinking during normal operation, the unit has not been serviced for the last 20,000 hours by a GE trained technician.
Page 486: Battery
9.1.4 Battery We recommend a periodic Manual Battery Test, especially if the Automatic Battery Test is disabled, in order to verify if the Battery can provide the expected backup time in case of Utility Failure. We recommend this test be performed at least every 3 months, especially if the Battery is not sufficiently discharged during normal operation.
Page 487: Notes
10 NOTES 10.1 NOTES FORM It is recommended to note in this section Notes, with date and short description all the operations performed on the UPS, as: maintenance, components replacement, abnormal situations, etc. Date Description Done by Modifications reserved Page 79/79 OPM_SGS_USM_M22_M30_2US_V010.doc User Manual SG Series 225 &...
Page 488 eries SG S UPS 225-750 kVA eBoost ™ with ultra-high efficiency technology...
Page 489 Industrial Solutions and Critical Power businesses. GE is a global solutions provider modernizing and optimizing how we generate, move and consume energy. We invent, improve and integrate communications, automation and power delivery technologies to enable cleaner, smarter and more efficient power for electrical infrastructures and consumers around the world.
Page 490 SG Series 225-750 kVA UPS Modules State-of-the-art Multi-Mode UPS with eBoost Technology The SG Series UPS is one of the most efficient and reliable Three Phase UPS Systems, providing best-in-class output performance and critical power protection for your datacenter needs. The SG Series UPS solutions are designed and optimized to provide high- efficiency at part load conditions.
Page 491 GE’s UPS performance is optimized at 50-75% load operation, as this is the most common operating range. The optimization of the SG Series includes selecting all the major power chain components based on maximizing the component efficiency at part load conditions.
Page 492 Their goal is to reduce cost and keep the datacenter running. IT organizations Customer Benefits can reduce energy consumption costs & system reliability with GE’s eBoost technology. • 80% reduction in UPS losses Technology Features • System energy cost savings •...
Page 493 Superior Battery Management (SBM) The secondary windings of the output transformer form a Every GE UPS incorporates a standard feature called Superior ZigZag pattern to cancel triplen (third order) load harmonics. Battery Management (SBM) that can be configured to periodically...
Page 494 (Ph-N) load imbalances. Smart Input Filters, <5 % THDi GE offers an optional internal input filter with the SG Series UPS. The “smart” filter has a programmable feature that allows the filter to be switched off during start-up and low load conditions, preventing leading power factor (PF).
Page 495 ™ GE provides RPA, a unique technology that can parallel UPS modules with true redundancy by eliminating any single point of failure. RPA provides a scalable paralleling technique that reduces operating footprint and increases system reliability by eliminating the need for external paralleling equipment and cabinets (centralized bypass and master control).
Page 496 Redundant Parallel Architecture (RPA) System Options ™ Intelligent Sync Module (ISM) Intelligent Energy Management Integrated (IEMi) For System + System (2N) applications, the ISM module is utilized to IEMi is a software package which allows RPA systems to save synchronize the outputs of two modules or two groups of UPS’s that energy and reduce operating costs ($) during low load conditions.
Page 497 Software & Connectivity Solutions Protection Software GE Data Protection software can communicate with the UPS over RS-232, USB or SNMP to receive status information and measurement values of the UPS. In case of a critical condition (time on battery, remaining battery autonomy time or low battery) for the load, the software starts a controlled shutdown.
Page 498 THD to less than 5% and increases the power factor to 0.96. FCC EMI Filters GE provides an internal FCC EMI filter as a cost-effective option for installations that require FCC Class A certification (300 kVA and below). Battery Cabinets...
Page 499 Factory Testing & Customer Witness Testing Factory Testing can include, but is not limited to: • Functional test of full parallel RPA system including transfers • 0-100% step loads with waveform capture to bypass, utility failure, EPO, etc. • 0-100% bypass transfers with waveform captures •...
Page 500 From installation to product retirement, warranty upgrades to remote monitoring, proactive care to 24/7 problem resolution, you can rely on GE’s field service organization for all your electrical infrastructure support needs. On-Site & Emergency Services •...
Page 501 UPS Energy Efficiency Calculator Reducing UPS Cost of Ownership Use the UPS Energy Efficiency Calculator tool to see how GE’s new eBoost technology can increase ™ UPS efficiency and greatly reduce operating costs. Customer enters application information Calculated comparison showing eBoost savings GEIndustrial.com/CriticalPower...
Page 502 60 db(A) at 5 ft Ambient Operating Temp UPS Module: 32 to 104 degrees F (0-40° C) Humidity 0-95% non-condensing Certifications Seismic Certified, GE EcoMagination Certified Listings / Registrations UL1778 / IEC62040 / ISO 9001 Enclosure IP20 and NEMA PE-1 RFI / Surge Protection EN50091-2 / IEC 62040-2 / IEEE 587B / FCC Class A Part B Compliance.
Page 503 © 2013 General Electric Company. GE, the GE Monogram, imagination at work, Zenith and all other trademarks, registered trademarks and service marks, unless otherwise noted, are owned or licensed by the General Electric Company or its subsidiaries. The contents of this document are the property of General Electric Company. No part of this work may be reproduced or transmitted in any form or by any means, except as permitted in written license agreement with General Electric Company.
Page 504 Uninterruptible Power supply SG Series 750 UL S2 SG Series 750 T12 UL S2 750 kVA / 480Vac UL / S2 GE Consumer & Industrial SA General Electric Company CH – 6595 Riazzino (Locarno) Switzerland T +41 (0)91 / 850 51 51 F +41 (0)91 / 850 52 52 www.gepowerquality.com...
Page 505 The present publication and any other documentation supplied with the UPS system is not to be reproduced, either in part or in its entirety, without the prior written consent of GE. The illustrations and plans describing the equipment are intended as general reference only and are not necessarily complete in every detail.
Page 506 START UP AND COMMISSIONING A GE GLOBAL SERVICES FIELD ENGINEER must perform start-up and commissioning of the UPS. Please Contact GE. GLOBAL SERVICES at least two weeks prior to schedule start-up and commissioning at 1-800-637-1738, or by E-mail at pqservice@ge.com...
Page 507 While every care has been taken to ensure the completeness and accuracy of this manual, GE assumes no responsibility or liability for any losses or damages resulting from the use of the information contained in this document.
Page 508 Table of contents Page IMPORTANT SAFETY INSTRUCTIONS ......................6 LAYOUT................................9 LAYOUT SG Series 750 & SG Series 750 T12 ..........................9 INVERTER CABINET LAYOUT SG Series 750 & SG Series 750 T12 ..................9 RECTIFIER CABINET LAYOUT SG Series 750 & SG Series 750 T12................. 10 INSTALLATION...............................
Page 509: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS SAVE THESE INSTRUCTIONS This manual contains important instructions for models SG Series 750 & SG Series 750 T12 that should be followed during installation and maintenance of the UPS and battery. GENERAL Move the UPS in an upright position in its original package to the final destination room. To lift the cabinets, use a forklift or lifting belts with spreader bars.
Page 510 Safety instructions when working with battery EXTERNAL BATTERY MUST BE INSTALLED AND CONNECTED TO THE UPS BY QUALIFIED SERVICE PERSONNEL. INSTALLATION PERSONNEL MUST READ THIS ENTIRE SECTION BEFORE HANDLING THE UPS AND BATTERY. DANGER! Full voltage and current are always present at the battery terminals. The battery used in this system can provide dangerous voltages, extremely high currents and a risk of electric shock.
Page 511 Safety symbols and warnings Safety warnings The text of this manual contains some warnings to avoid risk to the persons and to avoid damages to the UPS system and the supplied critical loads. The non-observance of the warnings reminding hazardous situations could result in human injury and equipment damages.
Page 512: Layout
LAYOUT LAYOUT SG Series 750 & SG Series 750 T12 Fig. 2.1-1 SG Series 750 & SG Series 750 T12 general view INVERTER CABINET LAYOUT SG Series 750 & SG Series 750 T12 Fig. 2.2-1 Inverter cabinet general view Modifications reserved Page 9/49 OPM_SGS_ISG_M75_M75_2US_V010.doc Installation Guide SG Series 750 UL S2 &...
Page 513: Rectifier Cabinet Layout Sg Series 750 & Sg Series 750 T12
RECTIFIER CABINET LAYOUT SG Series 750 & SG Series 750 T12 Fig. 2.3-1 Rectifier cabinet general view Fig. 2.3-2 Rectifier cabinet general view with open doors Opening for top cable entry (*) Opening bottom cable entry (*) Bus bars for Utility input and Load output Bus bars for external Battery connection...
Page 514: Installation
INSTALLATION TRANSPORT The two cabinets of the UPS are packaged on a pallet suitable for handling with a forklift. Pay attention to the center of gravity. The cabinets must be moved in upright position. Do not tilt cabinets more than +/- 10° during handling. Move each cabinet in it’s original package to the final destination site.
Page 515 Crane Crane If the packed UPS cabinets have to be lifted by crane, use suitable carrying belts taking note of the CENTER OF GRAVITY marked on the package. Take all necessary precautions to avoid damage to the cabinet while hoisting the UPS. WARNING ! PLEASE DO NOT LIFT UNPACKED UPS CABINETS...
Page 516: Dimensions And Weight
3.1.1 Dimensions and weight Fig. 3.1.1-1 SG Series 750 & SG Series 750 T12 cabinet dimensions SG Series 750 & SG Series 750 T12 UPS dimensions (W x D x H) SG Series 750 & SG Series 750 T12 146.5x35.4x76.8 inches (3720x900x1950 mm) SG Series 750 &...
Page 517: Delivery
DELIVERY When delivered, inspect the package integrity and the physical condition of the cabinets carefully. In case of any damage sustained during transport, immediately inform the carrier and contact your local Service Center. Do not accept damaged equipment, please contact your Service Center. A detailed report of the damage is necessary for any insurance claim.
Page 518: Place Of Installation
PLACE OF INSTALLATION 3.4.1 UPS location NOTE ! A QUALIFIED ELECTRICAL CONTRACTOR must carry out the installation and cabling of the UPS. It is important to have a clean, dust-free environment provided with proper ventilation and air- conditioning to keep the ambient temperature within the specified operating range. The recommended air inlet temperature is from 68°F (20°C) to 77°F (25°C) (max.
Page 519 SG Series 750 & SG Series 750 T12 openings for input and output cable connections SG Series 750 & SG Series 750 T12 openings are provided on the top and the bottom of the rectifier cabinet for the connection of input and output cables. Pay attention to the position of these openings, when choosing the placement of the UPS.
Page 520: Battery Location
In case of parallel system, try to place the UPS modules in sequence of their numbers (marked on the packing). If the units are positioned “side by side”, the side panels must be mounted on all units. 3 - 4 - 5 - 6 UPS 2 UPS 1 Fig.
Page 521: Ventilation And Cooling
VENTILATION AND COOLING The heat produced by the UPS is transferred to the environment by its ventilation. Air inlets for UPS ventilation are located on the front and bottom of the UPS, while air outlets are on top of the cabinet. A suitable ventilation or cooling system must be installed to extract the heat from the UPS room.
Page 522: Unpacking
For parallel systems, the delivery also includes the bus control cables for inter- connecting the UPS modules. Packing material recycling GE, in compliance with environment protection, use only environmentally friendly material. UPS packing materials must be recycled in compliance with all applicable regulations.
Page 523: Inter Cabinet Connections
INTER CABINET CONNECTIONS 3.7.1 Cabinets positioning and interconnection NOTE ! The inverter cabinet and rectifier cabinet must be installed on leveled floor. SG Series 750 & SG Series 750 T12 unit, in standard version, are delivered split into two cabinets. Align them together with the rectifier cabinet on the right side (cabinet with control panel).
Page 524 3.7.2 Bus bars interconnection WARNING ! All the inter cabinet wiring must be performed by QUALIFIED SERVICE PERSONNEL only. Inverter cabinet Rectifier cabinet SGS_750_S2_UPS connection cabinets_GE_01US Fig. 3.7.2-1 Bus bars interconnections Connection Type Connection Description of connection Type (medium of connection) (See Fig.
Page 525 Type 1 Bolt M10x35 M10 Spring Washer M10 Flat Washer Bus Bar Pre Fixed Nut Type 2 SG Series 750 SG Series 750 T12 Bolt M10x35 M10 Spring Washer M10 Flat Washer Torque Specifications Bus Bar Bus bar/Flexi-bar To Bus bar (Inter Cabinet) Bypass/Inverter Pre Fixed Nut output/Neutral/DC/Earthing...
Page 526 3.7.3 Control cables Interconnection WARNING ! All the inter cabinet wiring must be performed by QUALIFIED SERVICE PERSONNEL only. Inverter cabinet Rectifier cabinet SGS_750_S2_UPS connection cabinets_GE_02US Fig. 3.7.3-1 Control cables interconnection Pos. Connection Already connected on Connecting to Female Molex connectors Inverter cabinet Rectifier cabinet H8, H9, H10...
Page 527: Electrical Wiring
ELECTRICAL WIRING WARNING ! UPS installation and connection must be performed by QUALIFIED SERVICE PERSONNEL only. It is the responsibility of the installation technician to ensure that all local and national electric codes are adhered to. 3.8.1 Utility input connection NOTE ! Ensure that the AC and DC external circuit breakers are OFF and locked out to prevent their inadvertent operation.
Page 528: Input/Output Over Current Protection And Wire Sizing
3.8.2 Input/output over current protection and wire sizing The cabling of the UPS system has to be sized according to the UPS power rating. Sizing of circuit breakers, fuses and cables for Input Utility, Output Load and Battery must meet the requirements of local and national electrical codes.
Page 529: Battery Over Current Protection And Wire Sizing
3.8.3 Battery over current protection and wire sizing Please read the safety precautions at the front of this guide carefully, and thoroughly review the Battery • manufacturers installation and maintenance manual before connecting the batteries to the UPS. If the UPS system has been purchased with an accompanying Battery Cabinet, that cabinet should •...
Page 530 NEC SECTION 210-20 (a) Table 310-16. Allowable Ampacities of Insulated Conductors Rated O Through 2000 Volts, 60°C Trough 90°C (140°F Trough 194°F) Not More than Three Current-Carrying Conductors in Raceway, Cable, or Earth (Directly Buried), Based on Ambient Temperature of 30°C (86°F). Temperature Rating of Conductor (See table 310-13) Size 60°C (140°F)
Page 531: Wiring Connection
WIRING CONNECTION WARNING! UPS installation and connection must be performed by QUALIFIED SERVICE PERSONNEL ONLY. 3.9.1 Power connections Carefully read the following recommendations before proceeding: • Ensure that the AC and DC external circuit breakers are OFF and locked out to prevent their inadvertent operation.
Page 532 CAUTION ! Panel “A and B” should never be removed or replaced with power applied to the UPS. These panels are in close proximity to 480V live buss bars. Always disconnect the rectifier, bypass, load and battery sources from the UPS before removing or replacing these panels.
Page 533 TERMINAL LUGS FOR FIELD WIRING CONNECTIONS Provided for cable connections. SG Series 750 & SG Series 750 T12 Rating Connection type Component Allowed cable sizes Torque Rectifier Input 5 x 500 MCM 428 LB-in Neutral Bypass Input Use only UL LISTED components. Bypass Input 4 x 500 MCM 428 LB-in...
Page 534: Power Connection With Common Input Utility
3.9.2 Power connection with common input utility Typical installation using After cable connections to the common NEMA two hole lugs bus bars are done, the PHASE BARRIER NOMEX SHEET must be screwed onto the bus bars wit 2 bolts M4x10 PE Input Utility PE Load LOAD...
Page 535 NOTE ! This UPS is only designed to operate in a wye-configured electrical system with a solidly grounded neutral. The UPS cannot be operated from a mid-point or end-point grounded delta supply source. If the Load requires a Neutral, a Bypass Source Neutral MUST BE PROVIDED. If no Neutral Connection is available with the Bypass Input (3-wire input + ground) and the Load does not require a Neutral, solidly connect the Output Neutral of the UPS to ground with a ground bonding jumper.
Page 536: Power Connection Dual Input Utility (Option)
3.9.3 Power connection dual input utility (option) Typical installation using After cable connections to the common NEMA two hole lugs bus bars are done, the PHASE BARRIER NOMEX SHEET must be screwed onto the bus bars wit 2 bolts M4x10 PE Input Utility PE Load LOAD...
Page 537 NOTE ! This UPS is only designed to operate in a wye-configured electrical system with a solidly grounded neutral. The UPS cannot be operated from a mid-point or end-point grounded delta supply source. If the Load requires a Neutral, a Bypass Source Neutral MUST BE PROVIDED. If no Neutral Connection is available with the Bypass Input (3-wire input + ground) and the Load does not require a Neutral, solidly connect the Output Neutral of the UPS to ground with a ground bonding jumper.
Page 538 Notices for installation BR1, BR2 and BR3 MUST BE REMOVED In case of dual input utility Fig. 3.9.3-3 SG Series 750 & SG Series 750 T12AC bus bars BR1, BR2 and BR3 For separate Bypass and Rectifier input configuration AC bus bars BR1, BR2 and BR3 MUST BE REMOVED.
Page 539: Battery And External Battery Breaker Connection
3.9.4 Battery and External Battery Breaker connection Typical installation using common NEMA two hole lugs Fig. 3.9.4-1 SG Series 750 & SG Series 750 T12 power connections Battery Use M12x35 bolts for the cable connections on BATTERY power wiring Bus Bars. Battery Cable Terminations are to the Positive and Negative Terminals as shown above.
Page 540: Interface To External Bypass For Single Unit
3.9.5 Interface to External Bypass for single unit If the UPS system is equipped with an External Maintenance Bypass Switch, connect the NO (Normally Open) voltage free auxiliary contact from the External Bypass Switch to X4 - 1, 2 of P27 – IM0108 - Interface for External Bypass inserted in the Connectivity Rack.
Page 541: Setup For Sg Series 750 & Sg Series 750 T12 Intended To Be Operated In Eboost™ Operation Mode
3.9.7 Setup for SG Series 750 & SG Series 750 T12 intended to be operated in eBoost™ Operation Mode NOTE ! For systems intended to be operated in eBoost™ Operation Mode, the installation shall be protected with suitable surge protection devices (SPDs) on the AC bus feeding the UPSs.
Page 542 3.10 RPA PARALLEL SYSTEM CONNECTION WARNING ! This operation must be performed by QUALIFIED SERVICE PERSONNEL ONLY before the initial start-up. ENSURE THAT THE UPS INSTALLATION IS COMPLETELY POWERED DOWN. 3.10.1 Power wiring of parallel units To guarantee good Load sharing between the units of a Parallel System, we recommend that the cable length from the input distribution board (5) to the output distribution board (9) is equal for each unit (a+b = c+d = e+f = g+h = i+l = m+n).
Page 543 3.10.2 Parallel control bus connection In cases of parallel operation, the communication between the units takes place through the control bus cables. Each parallel unit is equipped with an additional board “P13 – RPA Board“ where the connectors J52 (A) and J62 (B) are located.
Page 544 SGS_750_RPA-IM0048_02 Fig. 3.10.2-2 Bus connection on terminal units Terminal units On the parallel bus PCB “P34 – Bus Interface (IM0048)”, of the first and last units (terminal) of the parallel system the Jumpers JP1, JP2, JP3 and JP4 MUST BE INSERTED. SGS_750_RPA-IM0048_03 Fig.
Page 545: Control Bus Cable Location
3.10.3 Control bus cable location WARNING ! This operation must be performed by QUALIFIED SERVICE PERSONNEL ONLY before the initial start-up. ENSURE THAT THE UPS INSTALLATION IS COMPLETELY POWERED DOWN. Access control connection. control connection between parallel units must be made on the electronic module “P34 –...
Page 546 It is important that the cable JA must be the same length as cable JB. WARNING ! Connection and commissioning of an additional UPS to an existing parallel system, Service Center. must be performed by a GE SERVICE ENGINEER from of your Modifications reserved Page 43/49 OPM_SGS_ISG_M75_M75_2US_V010.doc...
Page 547: Customer Interface
CUSTOMER INTERFACE Connectivity Rack CR1 and CR2 SG Series 750 & SG Series 750 T12 are delivered with 2 Connectivity Rack (CR1 and CR2). Connectivity Rack with Customer Interface (see Section 4.1) Connectivity Rack for additional Customer Interface (option) WARNING ! The installation of the option “Additional Customer Interface”...
Page 548 CUSTOMER INTERFACE J3 - Serial port RS 232 (sub D - female 9 pin) Suitable for GE protocol Pin 2: TX (out) Pin 3: RX (in) Pin 5: GND J2 - (subD-female 25 pin) – Output signals on voltage free contacts...
Page 549 4.1.1 Serial Port J3 Serial port J3 - RS-232 (sub D, female 9 pin) that allows: Total remote management of the system using software GE Power Diagnostics, GE Data Protection or GE Service Software for system protection and management of the UPS systems.
Page 550: Programmable Input Free Contacts
4.1.3 Programmable input free contacts Some programmable UPS functions (indicated in Section 4.1), can be activated by closing an external contact, if connected, on: X1 / 10, 21 J2 / 10, 23 User Input 1 (default = Not used) X1 / 11, 22 J2 / 11, 24 User Input 2 (default = Emergency GEN ON) 4.1.4 Gen Set Signaling (GEN ON)
Page 551: Epo (Emergency Power Off) Input Contact
4.1.6 EPO (Emergency Power Off) Input contact BE AWARE ! The reliability of the system depends on this contact NC (Normally Closed)! An external Emergency switch (Normally Closed voltage-free contact) can be connected on terminals XB / 1 - 4 or connector J2 / 12 - 25 of the P4 - Interface Customer.
Page 552: Notes
NOTES NOTES FORM It is recommended to note in this section Notes, with date and short description all the operations performed on the UPS, as: Maintenance, components replacement, abnormal situations, etc. Date Description Done by Modifications reserved Page 49/49 OPM_SGS_ISG_M75_M75_2US_V010.doc Installation Guide SG Series 750 UL S2 &...
Page 553 Uninterruptible Power supply SG Series 750 UL S2 SG Series 750 T12 UL S2 750 kVA / 480Vac UL / S2 GE Consumer & Industrial SA General Electric Company CH – 6595 Riazzino (Locarno) Switzerland T +41 (0)91 / 850 51 51 F +41 (0)91 / 850 52 52 www.gepowerquality.com...
Page 554 The present publication and any other documentation supplied with the UPS system is not to be reproduced, either in part or in its entirety, without the prior written consent of GE. The illustrations and plans describing the equipment are intended as general reference only and are not necessarily complete in every detail.
Page 555 START UP AND COMMISSIONING A GE GLOBAL SERVICES FIELD ENGINEER must perform start-up and commissioning of the UPS. Please Contact GE. GLOBAL SERVICES at least two weeks prior to schedule start-up and commissioning at 1-800-637-1738, or by E-mail at pqservice@ge.com...
Page 556 UPS. While every care has been taken to ensure the completeness and accuracy of this manual, GE assumes no responsibility or liability for any losses or damages resulting from the use of the information contained in this document.
Page 557 Table of contents Page IMPORTANT SAFETY INSTRUCTIONS ......................7 LAYOUT................................10 LAYOUT SG Series 750 & SG Series 750 T12 .......................... 10 INTRODUCTION ............................11 DESCRIPTION ..............................12 BLOCK DIAGRAM AND MAIN ELEMENTS..........................12 OPERATION MODES................................... 13 4.2.1 Normal operation mode ..................................13 4.2.2 eBoost™...
Page 558 OPTIONS................................. 67 COMMUNICATION OPTIONS................................67 OPTIONS IN UPS CABINET ................................67 CONNECTION FOR OPTIONS ................................. 68 8.3.1 Remote Signaling Box (RSB) ................................68 MAINTENANCE.............................. 69 MAINTENANCE ....................................69 9.1.1 Service check......................................69 9.1.2 Fans and ventilation....................................69 9.1.3 Other components with limited lifetime ............................69 9.1.4 Battery..........................................
Page 559: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS SAVE THESE INSTRUCTIONS This manual contains important instructions for models SG Series 750 & SG Series 750 T12 that should be followed during installation and maintenance of the UPS and battery. GENERAL Move the UPS in an upright position in its original package to the final destination room. To lift the cabinets, use a forklift or lifting belts with spreader bars.
Page 560 Safety instructions when working with battery EXTERNAL BATTERY MUST BE INSTALLED AND CONNECTED TO THE UPS BY QUALIFIED SERVICE PERSONNEL. INSTALLATION PERSONNEL MUST READ THIS ENTIRE SECTION BEFORE HANDLING THE UPS AND BATTERY. DANGER! Full voltage and current are always present at the battery terminals. The battery used in this system can provide dangerous voltages, extremely high currents and a risk of electric shock.
Page 561 Safety symbols and warnings Safety warnings The text of this manual contains some warnings to avoid risk to the persons and to avoid damages to the UPS system and the supplied critical loads. The non-observance of the warnings reminding hazardous situations could result in human injury and equipment damages.
Page 562: Layout
LAYOUT LAYOUT SG Series 750 & SG Series 750 T12 Fig. 2.1-3 Control Panel Fig. 2.1-1 SG Series 750 & SG Series 750 T12 general view Fig. 2.1-4 Q1 UPS Output Switch Fig. 2.1-2 SG Series 750 & SG Series 750 T12 general view with open door Modifications reserved Page 10/71 OPM_SGS_USM_M75_M75_2US_V010.doc...
Page 563: Introduction
Tailor made power protection to meet your individual installation requirements; SG Series 750 & SG Series 750 T12 offer various options like input harmonic filters and our comprehensive GE Power Diagnostic software suite for mission control and data protection to cover all your application needs.
Page 564: Description
DESCRIPTION BLOCK DIAGRAM AND MAIN ELEMENTS Fig. 4.1-1 SG Series 750 & SG Series 750 T12 Block diagram The SG Series 750 & SG Series 750 T12 UPS can be divided into the following main elements: Control System SG Series 750 & SG Series 750 T12 are designed with microprocessor-controlled signal processing circuits.
Page 565: Operation Modes
UPS control panel (see Section 7.4 / eBoost). NOTE ! The eBoost™ Operation Mode is available only if enabled at the factory or by a GE GLOBAL SERVICES FIELD ENGINEER. Modifications reserved Page 13/71 OPM_SGS_USM_M75_M75_2US_V010.doc...
Page 566: Utility Failure Operation
4.2.3 Utility failure operation When the Utility is no longer within acceptable tolerances, the Battery will provide the DC power to the Inverter. The Inverter will maintain continuous AC power to the Load until the Battery Voltage reaches the lower limit of the Inverter operation capability.
Page 567: Automatic Bypass
4.2.5 Automatic Bypass In normal operation, the Load is supplied by the Inverter. When the control system detects a fault in the Inverter, an overload condition or a short-circuit condition, the Automatic Bypass will transfer the critical Load to the Utility without interruption. Fig.
Page 568: Parallel System Operation
PARALLEL SYSTEM OPERATION 4.3.1 Introduction to the parallel system Fig. 4.3.1-1 SG Series 750 & SG Series 750 T12 block diagram parallel system operation Two or more equal power units can be paralleled to increase the output power (paralleling for capacity) or to improve the overall reliability of an UPS system (paralleling for redundancy).
Page 569: Features Of Rpa Parallel System
4.3.2 Features of RPA parallel system The SG Series 750 & SG Series 750 T12 Parallel System are designed to provide a complete Redundant Parallel Architecture and is free from common equipment. Not only the Inverters are redundant, but also the Bypass functions are designed with redundant modular concept.
Page 570: Rectifiers Paralleled On The Same Battery
(accessible only through password), and can therefore only be done by a QUALIFIED SERVICE ENGINEER GE Usually each Rectifier-Inverter Unit runs with its own Battery. In case of parallel units are running with a Common Battery (max. 4 UPS - in SG Series 750 & SG Series 750 T12 we already have two rectifiers in parallel - see Fig 4.4-1), the sharing circuit between individual...
Page 571: Recycling At The End Of Service Life
It does not contain CFCs (chlorofluorocarbons) or HCFCs (hydrochlorofluorocarbons). GE, in compliance with environment protection recommends to the User that the UPS equipment, at the end of its service life, must be recovered conforming to the local applicable regulations.
Page 572: Control Panel
CONTROL PANEL CONTROL PANEL Fig. 5.1-1 Control panel The control panel, positioned on the UPS front door, acts as the UPS user interface and comprises of the following elements: Back lit Graphic Display (LCD) with the following characteristics: • − Multilanguage communication interface: English, German, Italian, Spanish, French, Finnish, Polish, Portuguese, Czech, Slovakian, Chinese, Swedish, Russian and Dutch;...
Page 573: Table Of Functions And Indications On Control Panel
TABLE OF FUNCTIONS AND INDICATIONS ON CONTROL PANEL Key to switch the Inverter ON ( I ) NOTE ! When eBoost™ Operation Mode is enabled, control of Inverter status and selection of the feed path is done autonomously by the UPS control logic.
Page 574 LED Stop Operation (red color) It warns about the imminent inverter stop (default parameter = 3 min.) and the consequent load shutdown as result of: The battery is fully discharged and the load cannot be transferred on utility. • Overtemperature or overload condition (>125%) and the load cannot be •...
Page 575: Lcd Screen
LCD SCREEN HOME SCREEN Fig. 6.1-1 LCD display The buttons perform the following functions: METERING View electric parameters values and statistics of use. METER See Section 6.2. ALARMS Shows in chronological order, all the events occurred (alarms, ALARM messages, commands, handling, etc.). See Section 6.3. MUTE Key to reset general alarm and buzzer.
Page 576 SG Series UPS Model UPS series number UPS nominal rating (kVA) Battery level LED All lightning lit LED open indicate a battery autonomy of 100%. LED A Fixed: indicates a battery autonomy between 6% and 25%. indicates a battery autonomy ≤5%. Blinking: LED A, B Indicate a battery autonomy between 26% and 50%.
Page 577: Metering
METERING The METERING mode is entered any time the “METER” button is pressed. The LCD screen will indicate a series of screenshots showing the measures of all electric parameters like AC, DC and various statistics. In this mode the buttons perform the following functions: Return to HOME screen.
Page 578 Inverter data screen Home\Meter INVERTER The output frequency of the Inverter. 60 Hz 277 V 3-phase output voltage PHASE/NEUTRAL. 277 V 277 V The temperature of the inverter bridge. +25° C SYNCHRONIZED The synchronization status of the inverter with respect to utility (SYNCHRONIZED / NOT SYNCHRONIZED).
Page 579 Home\Meter Statistics screen COUNTERS The total number of bypass utility faults (bypass utility out of tolerance). Bypass utility failure Rectifier utility failure The total number of rectifier utility faults (rectifier utility out Overloads of tolerance). InvOperTime [h] 2135 The total number of detected output overloads. UPSOperTime [h] 3125 The total operating time for the Inverter (in hours).
Page 580: Alarms
Confirm the selection made. It is possible to view any pushbutton functional description by pushing the button for more than 3 seconds. The events displayed are the standard GE events as described in the Section 6.3.1 - EVENTS (Alarms and Messages). Home\ Alarm...
Page 581: Events (Alarms And Messages)
Each of the following listed events, alarm or message, can be displayed on the LCD screen, on a PC with the software “GE Data Protection” installed or with the monitoring system “GE Power Diagnostic”. Alarms and Messages are differently specified because the alarms are indicating an abnormal...
Page 582 Code Alarms Meaning The temperature sensor inside the input transformer winding indicates over temperature. RECTIFIER TRANSFORMER 4106 Only the alarm is given. OVERTEMPERATURE The Rectifier, when in Off state, cannot start as long as this condition persists. RECTIFIER UTILITY OUT Rectifier Input Utility is out of tolerance (voltage, 4110 OF TOLERANCE...
Page 583 Code Alarms Meaning An abnormal condition has been detected on one or more power modules of the Inverter (temperature or 4309 DRIVER FAILURE over current). Inverter shutdown and cannot be started as long as the alarm is present. Inverter Output Voltage is out of the tolerances (± 10%). 4312 INV.
Page 584 Code Alarms Meaning The UPS-System is in an overload condition >125% on Inverter, or >150% on Utility. 4570 OVERLOAD With Utility unavailable, a sequence of “stop operation” starts. Time out depends on Load quantity. With Utility Bypass supply available and load >115%, the Load is transferred on Utility.
Page 585: Messages List
6.3.3 Messages list Code Message Meaning The microprocessor has detected an incorrect operation: Transfers the Load on Utility and performs a program 4002 WATCHDOG RESET reset. The Inverter will restart automatically and will supply the Load. The auxiliary contact indicates that the input rectifier 4108 Q4 OPEN switch Q4 has been opened.
Page 586 Code Message Meaning 2 transfers Inverter- Utility have been detected in a short 4534 MULTIPLE LOAD TRANSFER time, (default 30 seconds). Bypass is not available. 4535 BYPASS LOCKED Contactor K6 is open, SSM deactivated. Bypass is enabled. 4536 BYPASS FREE Contactor K6 is closed.
Page 587 Code Message Meaning Automatic Battery Test is not possible due to: − No Utility Rectifier or Bypass. 4699 BATTERY TEST IMPOSSIBLE − Battery not fully charged. − Load is below 10% or above 80%. Test is postponed for 1 week. Inverter can be started or shutdown by remote control.
Page 588 6.3.4 Event report SG Series 750 & SG Series 750 T12 In case of failure or malfunctioning, before calling your Service Center, please note the most important data of your UPS and the most recent events. In order to make the diagnosis easier from our Diagnostic Center we suggest you make a copy of this page, fill it out with the requested data and send it by fax.
Page 589 SETUP The SETUP mode is entered any time the “SETUP” button is pressed. This screen allows the user to modify some parameters permitting to adapt some functions of the UPS to his/her needs, described as follows. The LCD will display a series of screens containing the user parameters, accessible without password protection.
Page 590: Setup
Setup screen Home\Setup SETUP LEVEL 1 USER Displays a sequence of screens with parameters which can LEVEL 1 USER be user defined. LEVEL 2 SERVICE LEVEL 2 SERVICE Service only allowed. At this level the parameters access is protected by a code. Date and time screen Home\Setup\User DATE AND TIME...
Page 591 Home\Setup\User MODEM Modem screen 2 Tel 2 Tel 2 Tel 2 enabled It records the second dial-out number. Tel 3 Tel 2 enabled Tel 3 enabled This parameter Y/N specifies if the second telephone Tel 4 number will be used for dial-out. Tel 4 enabled Tel 3 It records the third dial-out number.
Page 592 Home\Setup\User LCD Display screen DISPLAY UPS Name The user can choose the name of the UPS model shown on the main page (max. 9 UPS name SG Series characters). Language This parameter allows the choice of Language ENGLISH language used to display the information. Valid choices are: English, German, Italian, Contrast Spanish, French, Finnish, Polish, Portuguese,...
Page 593 To better understand the eBoost™ programming modes, some typical examples are shown: Example 1: For continuous eBoost™ Operation Mode set the eBoost START times to 00:00 and the eBoost STOP times to 23:59 for all weekdays, but almost 1 day must have 1 minute of VFI programmation: i.e d2 - Sunday 00:00 to 23:58).
Page 594 Example 5: An equivalent set of parameters for Example 4 is. Weekday - Saturday - Sunday - Monday - Tuesday - Wednesday - Thursday - Friday eBoost START 00:00 00:00 18:00 18:00 06:00 09:00 12:00 eBoost STOP 23:59 20:00 18:00 06:00 06:00 09:00...
Page 595: Commands
6.5 COMMANDS The COMMANDS mode is entered any time the “CMDS” button is pressed. Allows the user to execute UPS operation commands. In this mode the buttons perform the following functions: Return to HOME screen. Scrolls forward to the next screen. Scrolls forward to the next line.
Page 596: Operation
START UP AND COMMISSIONING A GE GLOBAL SERVICES FIELD ENGINEER must perform start-up and commissioning of the UPS. Please Contact GE. Global Services at least two weeks prior to schedule start-up and commissioning at 1-800-637- 1738, or by E-mail at pqservice@ge.com...
Page 597: Start-Up Of The Sg Series 750 & Sg Series 750 T12
PROCEDURES FOR SINGLE SG Series 750 & SG Series 750 T12 7.1.1 Start-up of the SG Series 750 & SG Series 750 T12 WARNING ! Before proceeding to Turn ON the UPS System, ensure that the AC and DC external isolators are OFF, and prevent their inadverted operation.
Page 598 WARNING ! The setup of the UPS configuration parameters must be done only by a GE GLOBAL SERVICES FIELD ENGINEER. The setup of mistaken values could compromise the integrity and reliability of the UPS. In this mode the keys perform the following functions: Confirm the selection made and select the next parameter.
Page 599 CONFIGURATION screen Save and exit ? Screen to save the configuration of set parameters. Any additional modification of setup parameters can be done only from a GE SERVICE PERSON as it requires an access code. ► Continue Modifications reserved Page 47/71 OPM_SGS_USM_M75_M75_2US_V010.doc...
Page 600 Close the UPS Output Switch Q1 (Pos. I). The load is supplied by the Utility through the Automatic bypass. The Synoptic Diagram must display the status “LOAD SUPPLIED BY AUTOMATIC BYPASS”. Input Circuit Breaker CB4 closes automatically. LED 3 (Rectifier ON) must blink. The Rectifier starts up automatically, supplying the DC circuit, and charging the DC capacitors.
Page 601: Ups Shutdown With Load Transfer On External Maintenance Bypass (Option)
7.1.2 UPS shutdown with Load transfer on External Maintenance Bypass (option) NOTE ! Not following this procedure can cause protected loads to shut down! Never close or open either UPS Output Switch Q1 and External Maintenance Bypass Switch (option) with the Inverter running! Initial situation: the Load is powered by the Inverter.
Page 602: From External Maintenance Bypass (Option) To Normal Function Vfi
7.1.3 From External Maintenance Bypass (option) to normal function VFI NOTE ! UPS system has been turned OFF following the “Maintenance shutdown (Load on External Maintenance Bypass)” procedure and the Load is still powered by External Maintenance Bypass (option). The Load must be transferred back to the UPS system. Open the front door and make sure that: The safety screens are fixed in their position.
Page 603: Complete Ups Shutdown
7.1.4 Complete UPS shutdown NOTE ! Follow this procedure only in case the UPS system and the Load must be completely powered-down. If eBoost™ option is available, make sure that eBoost™ Operation mode is disabled before starting this procedure. Initial status: Load supplied from Inverter.
Page 604: Restore To Normal Operation After "Load Off
7.1.5 Restore to normal operation after “Load Off” NOTE ! Make sure the UPS to be status of the activation of “Load Off”, i. e. UPS Output Switch Q1 closed (Pos. I), External Maintenance Bypass Switch (option) open (Pos. O) and the Battery Circuit Breaker connected (Pos.
Page 605: Restore To Normal Operation After Epo (Emergency Power Off)
7.1.6 Restore to normal operation after EPO (Emergency Power Off) NOTE ! Make sure the UPS to be status of the activation of EPO, i. e. UPS Output Switch Q1 closed (Pos. I), External Maintenance Bypass Switch (option) open (Pos. O) and the Battery Circuit Breaker connected (Pos.
Page 606: Procedures For Sg Series 750 & Sg Series 750 T12 Parallel System
PROCEDURES FOR SG Series 750 & SG Series 750 T12 PARALLEL SYSTEM 7.2.1 SG Series 750 & SG Series 750 T12 Parallel System start-up WARNING Before proceeding to Turn ON the UPS System, ensure that the AC and DC external isolators are OFF, and prevent their inadverted operation.
Page 607 WARNING ! The setup of the UPS configuration parameters must be done only by a GE GLOBAL SERVICES FIELD ENGINEER. The setup of mistaken values could compromise the integrity and reliability of the UPS. In this mode the keys perform the following functions: Confirm the selection made and select the next parameter.
Page 608 CONFIGURATION screen Save and exit ? Screen to save the configuration of set parameters. Any additional modification of setup parameters can be done only from a GE SERVICE PERSON as it requires an access code. ► Continue Modifications reserved Page 56/71 OPM_SGS_USM_M75_M75_2US_V010.doc...
Page 609 2. Close the UPS Output Switch Q1 (Pos. I) on all UPS units. The load is supplied by the utility through the automatic bypass. The Synoptic Diagram must display the status “LOAD SUPPLIED BY AUTOMATIC BYPASS”. Input Circuit Breaker CB4 closes automatically. LED 3 (rectifier ON) must blink.
Page 610: Parallel System Shutdown With Load Transfer On External Maintenance Bypass (Option)
7.2.2 Parallel System shutdown with Load transfer on External Maintenance Bypass (option) NOTE ! Not following this procedure can cause protected loads to shut down! Never close or open either UPS Output Switch Q1 and External Maintenance Bypass Switch (option) with the Inverter running! Initial situation: the Load is powered by all Inverters of the Parallel System.
Page 611 Press “Load Off” key on all UPS units. Rectifier of all units are shut down. WARNING! The Battery remains connected to the UPS in case of configuration without External Battery Breaker ! Disconnect the Battery from all Units (only for UPS configuration without External Battery Breaker).
Page 612: From External Maintenance Bypass (Option) To Normal Function Vfi
7.2.3 From External Maintenance Bypass (option) to normal function VFI NOTE ! UPS Parallel System has been turned OFF following the “Maintenance shutdown” procedure and the Load is still powered by External Maintenance Bypass. The Load must be transferred back to the UPS Parallel System. Open the front door on all UPS units and make sure that: The safety screens are fixed in their position.
Page 613: Separate A Ups Unit From The Parallel System (System Redundancy)
7.2.4 Separate a UPS unit from the Parallel System (System Redundancy) INITIAL SITUATION: The Load is powered by the UPS Redundant Parallel System. One UPS unit of the Parallel System has to be turned Off, while the Load is shared between the other units supplying the parallel bus.
Page 614: Reconnect A Ups Unit To A Parallel System
7.2.5 Reconnect a UPS unit to a Parallel System Initial situation: The Load is still powered by the other units supplying the Parallel Bus. This UPS unit will be powered on and connected to the Parallel Bus in order to share the Load with each other's.
Page 615: Complete Parallel System Shutdown
7.2.6 Complete Parallel System shutdown NOTE ! Follow this procedure only in case the UPS Parallel System and the Load must be completely powered-down. If eBoost™ option is available, make sure that eBoost™ Operation Mode is disabled before starting the shutdown procedure. Initial situation: The Load is powered by SG Series 750 or SG Series 750 T12 Parallel System supplying the Parallel Bus.
Page 616: Restore To Normal Operation After "Load Off
7.2.7 Restore to normal operation after “Load Off” NOTE ! Make sure the all Units of the Parallel System to be status of the activation of “Load Off”, i. e. UPS Output Switches Q1 closed (Pos. I), External Maintenance Bypass Switches (option) open (Pos.
Page 617: Restore To Normal Operation After Epo (Emergency Power Off)
7.2.8 Restore to normal operation after EPO (Emergency Power Off) NOTE ! Make sure the all Units of the Parallel System to be status of the activation of EPO, i. e. UPS Output Switches Q1 closed (Pos. I), External Maintenance Bypass Switches (option) open (Pos.
Page 618 Insert the Inverter by pressing the “Inverter ON” ( I ) key on first unit. Soft-start of Inverter, indicated with blinking LED 5 (Inverter available). At the end of Soft-start the LED 5 (Inverter available) remains lit. In case of sufficient output power, the output will transfer to Inverter. Synoptic Diagram of first unit Synoptic Diagram of other units 4.
Page 619: Options
UPS. Based on the leading Intelligent Remote Information System IRIS all GE UPS types as well as 3rd party UPS are supported. Accessing the latest site information via Web and being alerted by Email, SMS or Fax, it enables the user to make timely decisions in case of changing critical conditions.
Page 620: Connection For Options
AUX. BUZZER yellow/brown Alarm STOP OPERATION Mute Test GE Digital Energy P.S.: The above mentioned colors are suitables only for XY standard cable 8 1/2" in 216mm Fig. 8.3.1-1 Remote Signaling Box connection Terminals X3, X4 and X15 fitted inside the Remote Signaling Box.
Page 621: Maintenance
A regular maintenance check of your installation guarantees higher reliability of your safe critical power supply. Preventive maintenance work on the UPS can be done only by trained Service technicians. We therefore recommend you sign a Maintenance and Service contract with GE Global Services @ 1- 800-637-1738 9.1.1 Service check If the LED Operation blinking during normal operation, the unit has not been serviced for the last 20,000 hours by a GE trained technician.
Page 622: Battery
9.1.4 Battery We recommend a periodic Manual Battery Test, especially if the Automatic Battery Test is disabled, in order to verify if the Battery can provide the expected backup time in case of Utility Failure. We recommend this test be performed at least every 3 months, especially if the Battery is not sufficiently discharged during normal operation.
Page 623: Notes
10 NOTES 10.1 NOTES FORM It is recommended to note in this section Notes, with date and short description all the operations performed on the UPS, as: maintenance, components replacement, abnormal situations, etc. Date Description Done by Modifications reserved Page 71/71 OPM_SGS_USM_M75_M75_2US_V010.doc User Manual SG Series 750 UL S2 &...
Page 624 eries SG S UPS 10-150 kVA high eﬃciency systems...
Page 625 Industrial Solutions and Critical Power businesses. GE is a global solutions provider modernizing and optimizing how we generate, move and consume energy. We invent, improve and integrate communications, automation and power delivery technologies to enable cleaner, smarter and more efﬁ...
Page 626 SG Series 10-150 kVA UPS Modules Delivering Reliable Power in a Flexible Design The GE SG Series is one of the most efﬁ cient and reliable Three Phase UPS Systems, providing best-in-class output performance and critical power protection for your data center needs.
Page 627 Superior Battery Management (SBM) at 100% non-linear load. Every GE UPS incorporates a standard feature called Superior The secondary windings of the output transformer form a Battery Management (SBM) that can be conﬁ gured to periodically ZigZag pattern to cancel triplen (third order) load harmonics.
Page 628 (gensets, feeder cables, and overcurrent devices). Smart Input Filters, <7 % THDi GE offers an optional internal input filter with the SG Series UPS. The “smart” filter has a programmable feature that allows the filter to be switched off during start-up and low load conditions, preventing leading power factor (PF).
Page 629 Redundant Parallel Architecture (RPA) System Conﬁ guration GE provides RPA, a unique technology that can parallel UPS modules with true redundancy by eliminating any single point of failure. RPA provides a scalable paralleling technique that reduces operating footprint and increases system reliability by eliminating the need for external paralleling equipment and cabinets (centralized bypass and master control).
Page 630 Redundant Parallel Architecture (RPA) System Options Intelligent Sync Module (ISM) Intelligent Energy Management Integrated (IEMi) For System + System (2N) applications, the ISM module is utilized IEMi is a software package which allows RPA systems to save to synchronize the outputs of two modules or two groups of UPS’s energy and reduce operating costs ($) during low load conditions.
Page 631 Software & Connectivity Solutions Protection Software GE data protection software can communicate with the UPS over RS-232, USB or SNMP to receive status information and measurement values of the UPS. In case of a critical condition (time on battery, remaining battery autonomy time or low battery) for the load, the software starts a controlled shutdown.
Page 632 OSHPD requirements, and such can be used on seismic needs anywhere in North America. Surge Protection Devices GE provides a complete line of wallmount Surge Protection devices, up to 300kA ratings, that provide enhanced surge protection to switchgear, panelboards and UPS systems.
Page 633 Factory Testing & Customer Witness Testing Factory Testing can include, but is not limited to: • 0-100% step loads with waveform capture • Functional test of full parallel RPA system including transfers to bypass, utility failure, EPO, etc. • 0-100% bypass transfers with waveform captures •...
Page 634 From installation to product retirement, warranty upgrades to remote monitoring, proactive care to 24/7 problem resolution, you can rely on GE’s field service organization for all your electrical infrastructure support needs. On-Site & Emergency Services •...
Page 635 For more technical information, please refer to the applicable product Technical Datasheet DEA - 567 , Rev. 3/15 © 2015 General Electric Company. GE, the GE Monogram, imagination at work, Zenith and all other trademarks, registered trademarks and service marks, unless otherwise noted, are owned or licensed by the General Electric Company or its subsidiaries.

This manual is also suitable for:

Critical power sg10 series Critical power sg20 series Critical power sg30 series Critical power sg40 series

GE Critical Power SG Series Installation Manual

Section 1

Section 2

Section 3

Section 4

Section 5

Section 6

Quick Links

Chapters

Need help?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for GE Critical Power SG Series

Summary of Contents for GE Critical Power SG Series
