Thermaltake Pacific Core P8 DP-D5 Plus Installation Manual

F
1
3 2 1
G
Connect the reservoir cable onto the controller.
2
Set the DIP switch on the back side of the controller
to assign the number of the controller
NO.1 NO.2
ON ON
1 2 3 4 1 2 3 4
NO.5 NO.6
ON ON
1 2 3 4 1 2 3 4
NO.9 NO.10
ON ON
1 2 3 4 1 2 3 4
NO.13 NO.14
ON ON
1 2 3 4 1 2 3 4

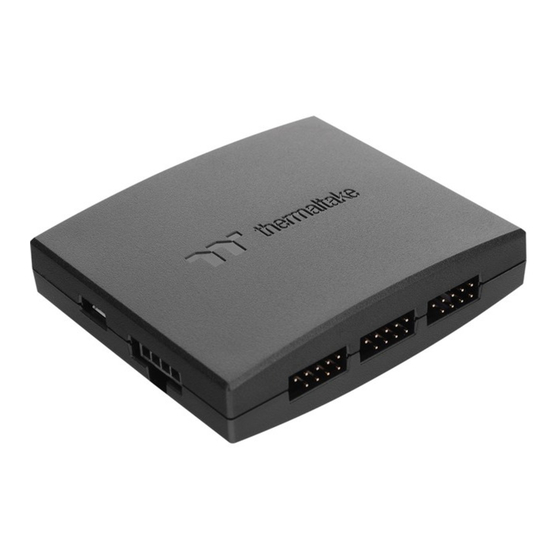

Pacific Core P8 DP-D5 Plus
Controller Installation Guide
5 4
NO.3 NO.4
ON ON
1 2 3 4 1 2 3 4
NO.7 NO.8
ON ON
1 2 3 4 1 2 3 4
NO.11 NO.12
ON ON
1 2 3 4 1 2 3 4
NO.15 NO.16
ON ON
1 2 3 4 1 2 3 4
3
I
Connect the controller cable onto the mainboard
(USB 2.0 9 pin) and controller.
4
H
Connect the power cable to the 4pin Molex
connecter and controller.
5
J
If you want to connect two or more connectors,
you can use the bridge cable to connect the
controllers.
Scan Here
Installation Guide
