Thermaltake M360 Plus Manual

This product is intended for installation only by expert users. Please consult with a qualified technician for installation.
Improper installation may result in damage to your equipment.
1. Please carefully read the manual before beginning the installation process !
2. It is strongly recommended to use market proven pre-mix coolant, such as Thermaltake Coolant.
3. DO NOT USE any kind of alcohol or alcohol derivatives with this reservoir or the acrylic tube may crack and fail ! Do not clean it using alcohol either !
CAUTIONS: 1. Make sure there is enough space when you start set up the LCS product
2. Please use the wrench to install/ uninstall the base parts during all the installation

Fitting

Dismantle the fitting by using the wrench
2
1

Water Blocks

Attach the fittings to the inlet and outlet of the
waterblock.
Attach the waterblock onto the motherboard by
referring to the enclosed manual.
1
Place the motherboard into the case.

Before Installation

Radiators
To ensure a clean loop, flush and rinse your radiators
and water blocks with distilled water before using.
Make sure the fittings are screwed securely when
Nut
placing them onto the radiator.
O-Ring
Packing
Base
Base

Pump and Reservoir

Choose the proper way to mount the pump and reservoir
by referring to the manual (suggest vertical palcement)

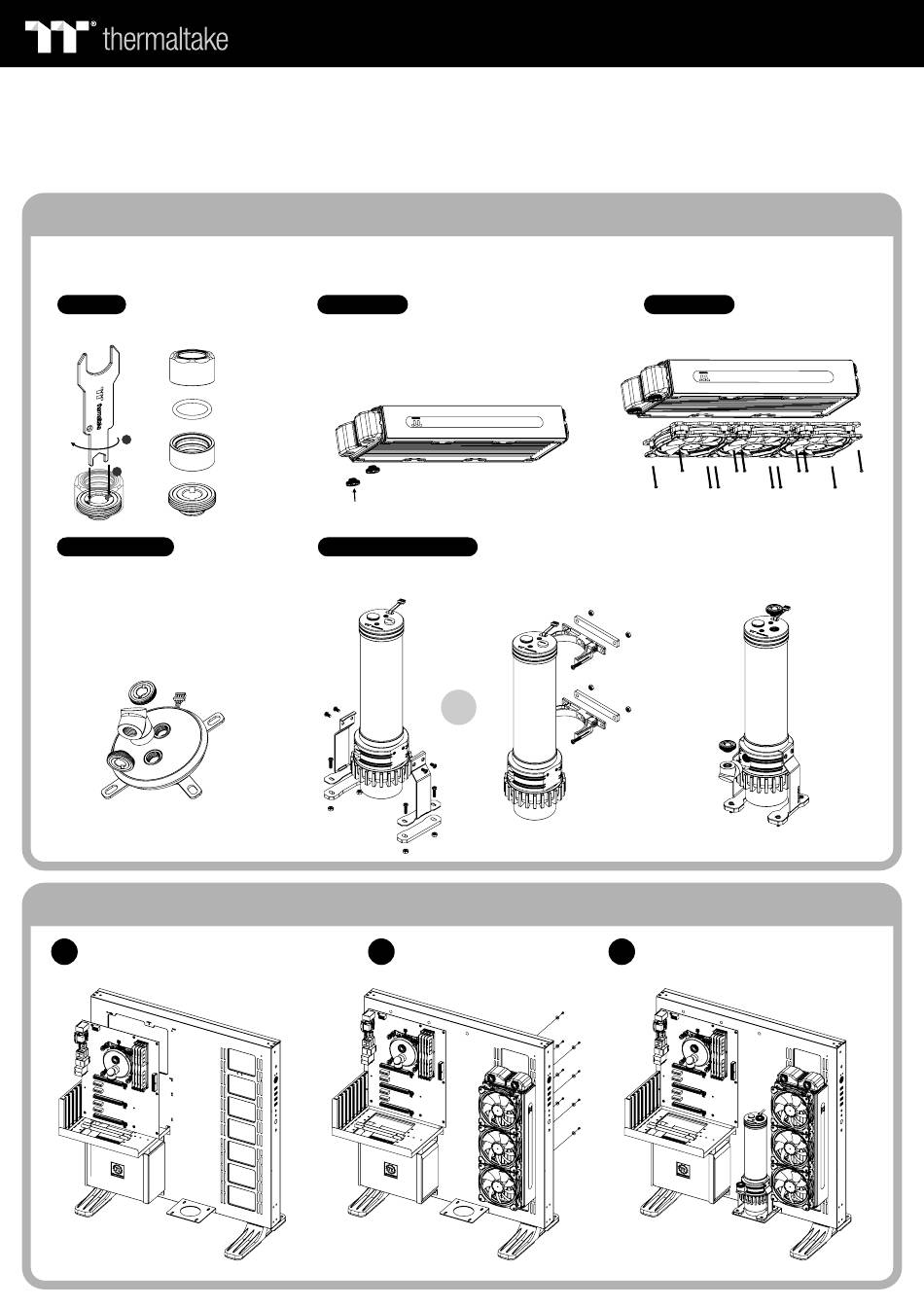

Installation Walkthrough

2
Pacific Series M360 Plus
or
(Example: Core P5)
Position the radiator.
Case Fan
Attach the fans to the radiator
Attach fittings onto the pump and reservoir
3
Attach the pump and reservoir into
the chosen locations.
