COMBINED FAN INSTALLATION INSTRUCTIONS
FOR 2400, 2200, & 1800 STOVE / 1600 INSERT MODELS
COMBINED INSTRUCTIONS
1. Do not operate the fan or plug it in without the fan being permanently installed on the stove (fire) or
insert (inbuilt).
2. When the fan is in place, the electrical cord should be routed as close to the floor as possible and
outside the hearth, away from the unit and wall clearances. Route the electrical cord away from the unit
to prevent damage to the cord insulation. Plug into a standard three prong 110-volt outlet or a 240-volt
outlet for use in Australia.
3. Make sure that the fire in the stove is out, and it has cooled down to room temperature before any
maintenance.
4. Follow normal instructions to continue burning.
OSBURN 2400 STOVE

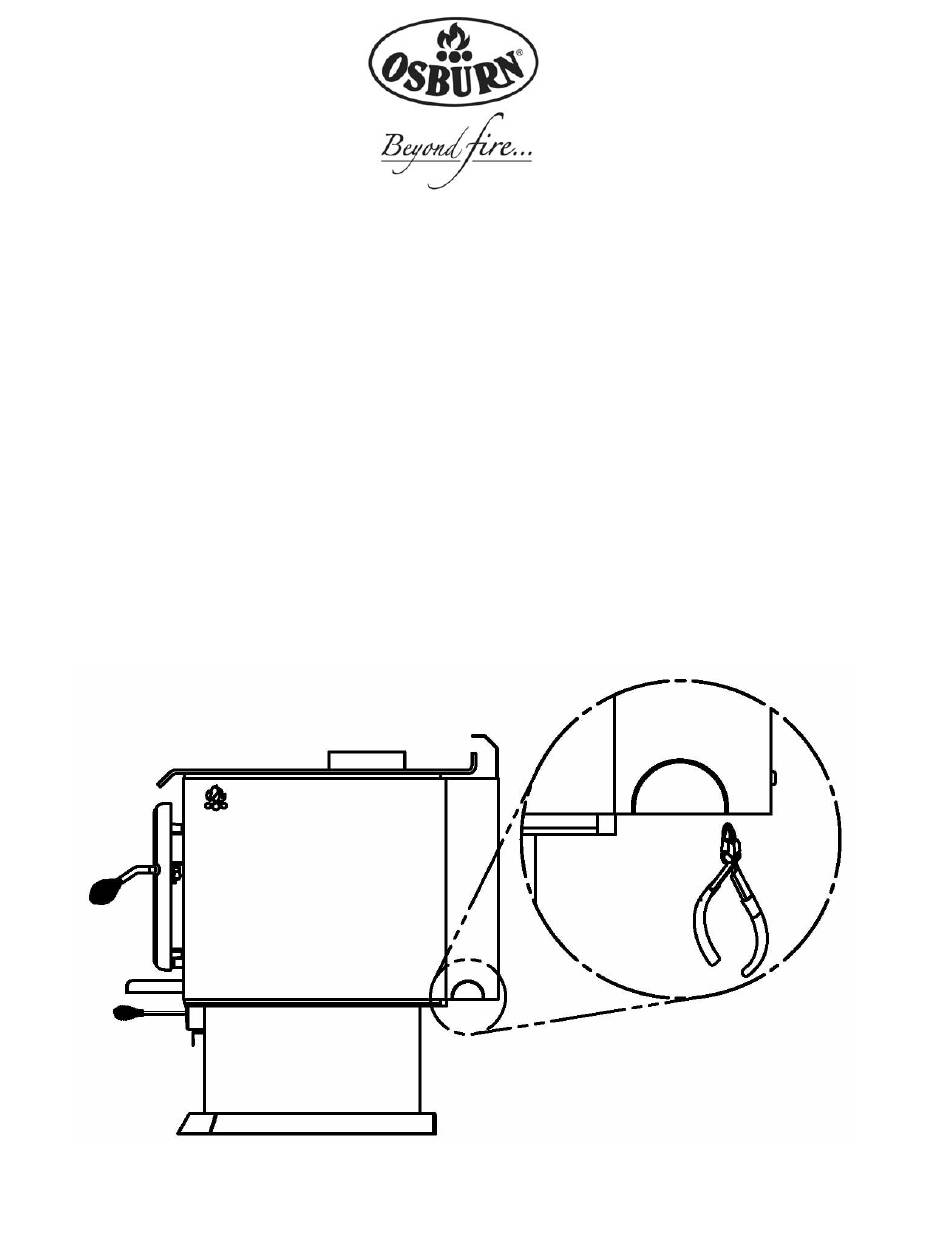

1. Using a pair of pliers, break the micro-joints that hold the knockout on the back of the right decorative
panel. This opening will facilitate access to the rheostat knob
Printed in Canada
45104A
12-03-2013
Advertisement
Related Manuals for Osburn OA10510
Summary of Contents for Osburn OA10510
- Page 1 4. Follow normal instructions to continue burning. OSBURN 2400 STOVE 1. Using a pair of pliers, break the micro-joints that hold the knockout on the back of the right decorative panel. This opening will facilitate access to the rheostat knob...
- Page 2 2. Insert the fan assembly between the rear air jacket and rear heat shield and align the two pre-drilled holes in the rear heat shield with the holes on the blower housing and secure the assembly using the two provided screws. The louvers should be at the bottom of the fan housing.
- Page 3 OSBURN 2200 STOVE & OSBURN 1800 STOVE 1. Attach the brackets to the fan housing using the inner holes of the brackets as per the drawing below. 2. Use the four screws provided to attach the other end of the brackets to the rear heat shield of the stove.
- Page 4 FAN CONTROL NORTH AMERICA Variable speed control (rheostat). AUSTRALIA Variable speed control (rheostat). MAINTENANCE & CARE Clean the fan air inlet screen regularly. The fan should be kept clean and dust free. Life of the fan will be shortened if operated in a dust filled environment or if restricting air supply overheats the fan. Stalling the rotor or over firing the stove or insert with the fan turned off will also damage the fan.
