Summary of Contents for Osburn OA10630

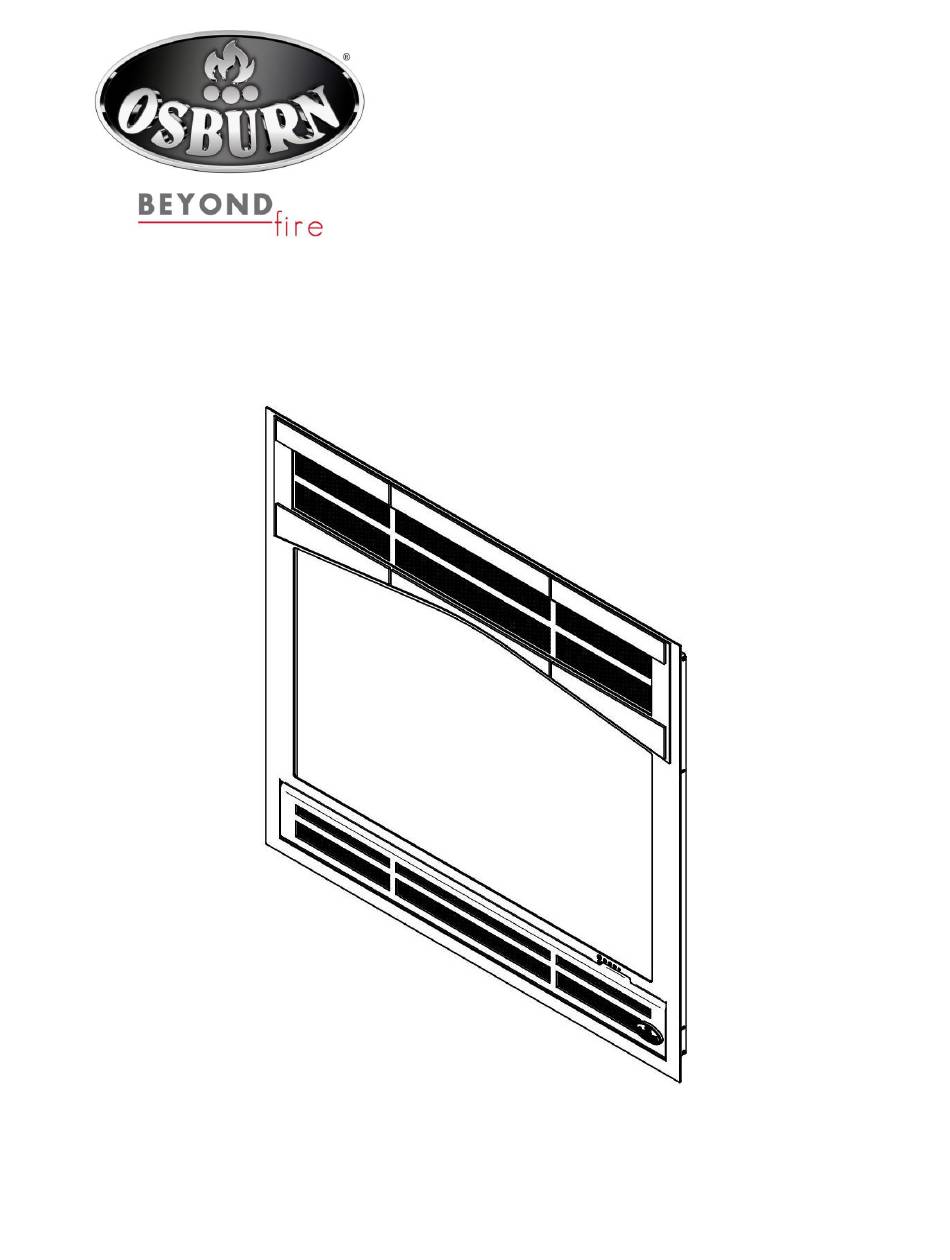

- Page 1 HORIZON STEEL FACEPLATE OA10630 PRAIRIE STYLE FACEPLATE This faceplate assembly contains the following part: Steel faceplate already assembled (1X ) 45860A Printed in Canada 20-07-2016...
- Page 2 DIMENSIONS Installation Instructions 1. Locate the bottom springs (A). 2. Fix the top springs (B) provided in the fireplace owner’s manual.
- Page 3 3. Bring the faceplate close to the fireplace. 4. Attach the upper springs on the faceplate to hold it in place.
- Page 4 5. Firmly push the faceplate against the fireplace. Using a power driver, secure the bottom with 2 self-tapping screws (one on each side) provided with the fireplace owner’s manual. 6. Attach the bottom springs to the lower louver.
