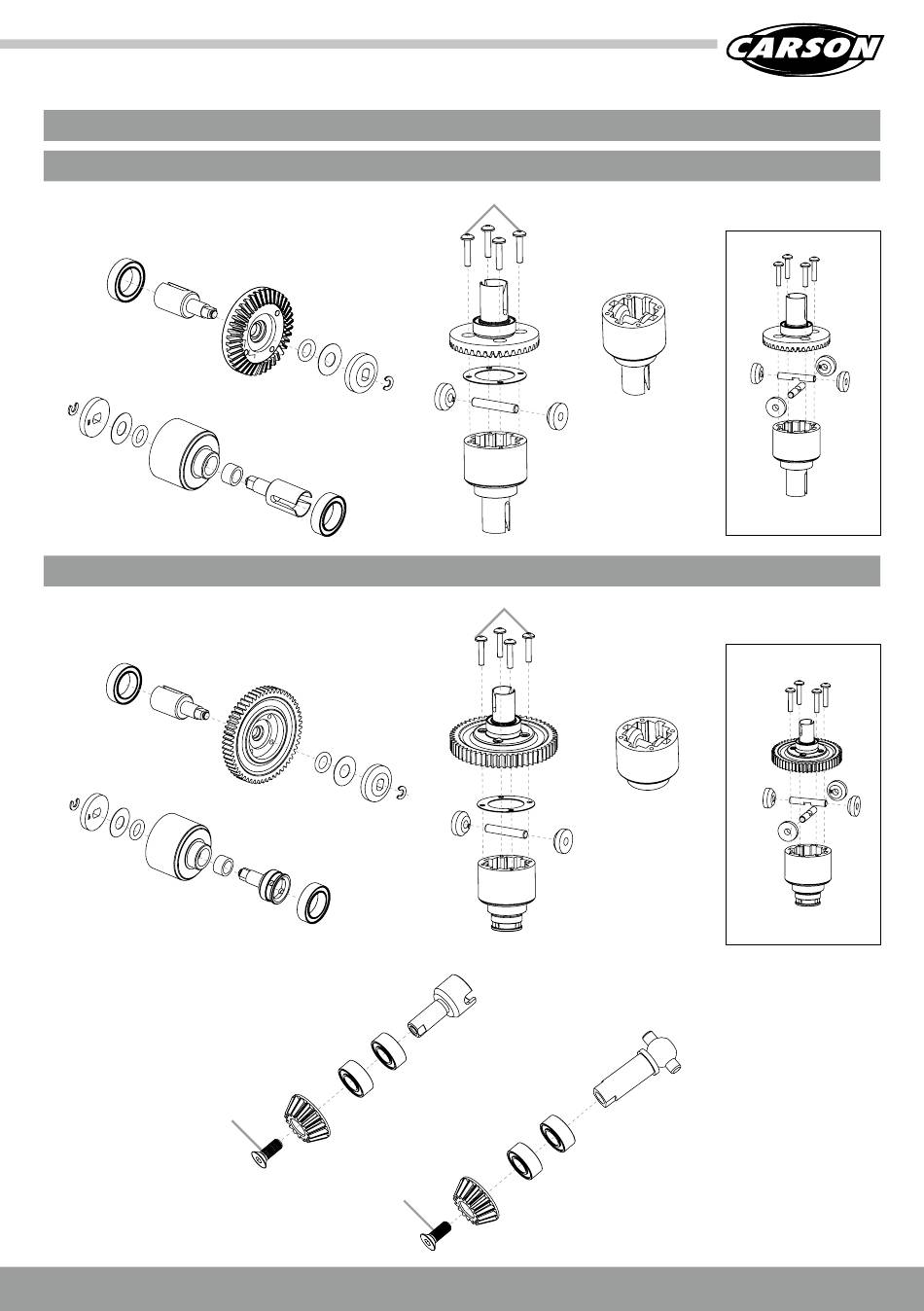

- Page 1 MONTAGEANLEITUNG • ASSEMBLY INSTRUCTIONS DIFFERENZIAL VORNE • DIFFERENTIAL FRONT 2.0 x 8 mm 500405652 DIFFERENZIAL MITTE • DIFFERENTIAL CENTER 2.0 x 8 mm 500405664 500405652 500405664 3 x 8 mm 3 x 8 mm...
- Page 2 CHASSIS • CHASSIS 500405484 500405658 500405344 3 x 10 mm 3 x 10 mm...
- Page 3 MONTAGE MITTELDIFFERENZIAL • CENTER DIFFERENTIAL 3 x 10 mm 500405658 500405658 500405664 500405658 500405656 500405658 3 x 10 mm...
- Page 4 MONTAGE VORDERACHSE • ASSEMBLING FRONT UNIT 3 x 8 mm 500405658 3 x 12 mm 500405656 500405650 500405652 500405652 500405359 500405656 500405650 500405445 500405354 500405448 500405445 500405354 500405354 500405448...
- Page 5 3 x 5 mm 3 x 5 mm 500405350 500405420 500405350 500405344 3 x 10 mm...
- Page 6 500405653 500405656 500405656 500405656 500405651 500405653 500405653...
- Page 7 500405660 500405660 3 x 10 mm SERVOSAVER • SERVOSAVER 500405360 500405360 3 x 10 mm...
- Page 8 500405360 500405360 3 x 10 mm OBERDECK • UPPERDECK 3 x 10 mm 3 x 12 mm 3 x 10 mm 500405658 3 x 10 mm 500405658...
- Page 9 STABILISATOR VORNE • ANTI-ROLL BAR FRONT 500405663 LENKSERVO • STEERING SERVO 500405653 500405658 500405653 3 x 8 mm 3 x 10 mm...
- Page 10 MONTAGE MOTOR • ASSEMBLING ENGINE 500405659 4 x 4 mm HINTERACHSE • REAR UNIT 500405662 500405662...
- Page 11 500405651 500405665 500405654 500405666 500405665 500405666 500405665 500405666 500405666 500405666 500405445 500405662 500405662 500405664 500405662...
- Page 12 500405662 MONTAGE AKKUHALTERUNG • ASSEMBLING BATTERYMOUNT 500405658 500405658...
- Page 13 MONTAGE ÜBERROLLKÄFIG • ASSEMBLING ROLLOVER CAGE...
- Page 15 MONTAGE STOSSDÄMPFER • ASSEMBLING SHOCK ABSORBERS...
- Page 16 MONTAGE SEITENSCHUTZ • ASSEMBLING SIDE PROTECTION 500405688 MONTAGE KAROSSERIE • ASSEMBLING BODY...
- Page 17 MONTAGE RÄDER • ASSEMBLING WHEELS 500900170 500900170 500405357...
- Page 18 MONTAGE SPOILER • ASSEMBLING WING 3 x 10 mm 500405496...
-
Page 19: Ersatzteile • Spare Parts
ERSATZTEILE • SPARE PARTS 500405344 Querlenkerhalter Set v/h 500405360 Servosaver / Lenkeinheit 500405484 Motorhalter Suspension arm holder set f/r Servosaver / steering set Engine mount 500405350 Querlenker- / 500405420 Querlenkerset + Halter v/h 500405496 Spoiler Achsschenkelstifte v/h Wing Suspensionarmset + holder Suspension / c-hub pin f/r 500405354 2 x Achsschenkel-Set hinten 500405445 4x Radmitnehmer-Set... - Page 20 ERSATZTEILE • SPARE PARTS 500405652 Differenzial vorne komplett 500405656 Getriebegehäuse hinten 500405660 Frontrammer Differntial front complete Gearhousing rear Frontbumper 500405653 Gestängeset (7) 500405657 Schraubenset 500405662 Schwingen-Set hinten Linkage Set (7) Screw set Rear Arms Set 500405654 Antriebswellen hinten 500405658 Chassis/anbauteile Set 500405663 Stabilisator vorne Driveshafts rear Chassis plates replacement set...
- Page 21 ERSATZTEILE • SPARE PARTS 500405665 Starrachse hinten 500405688 Seitenschutz (2) 500900170 Räder Fixed drive rear Side guards (2) Wheels 500405666 Hinterachse 500405661 Gitterrohrrahmen Set 500800107 Karosserieteile Rear axle Rollcage set Bodyparts...
