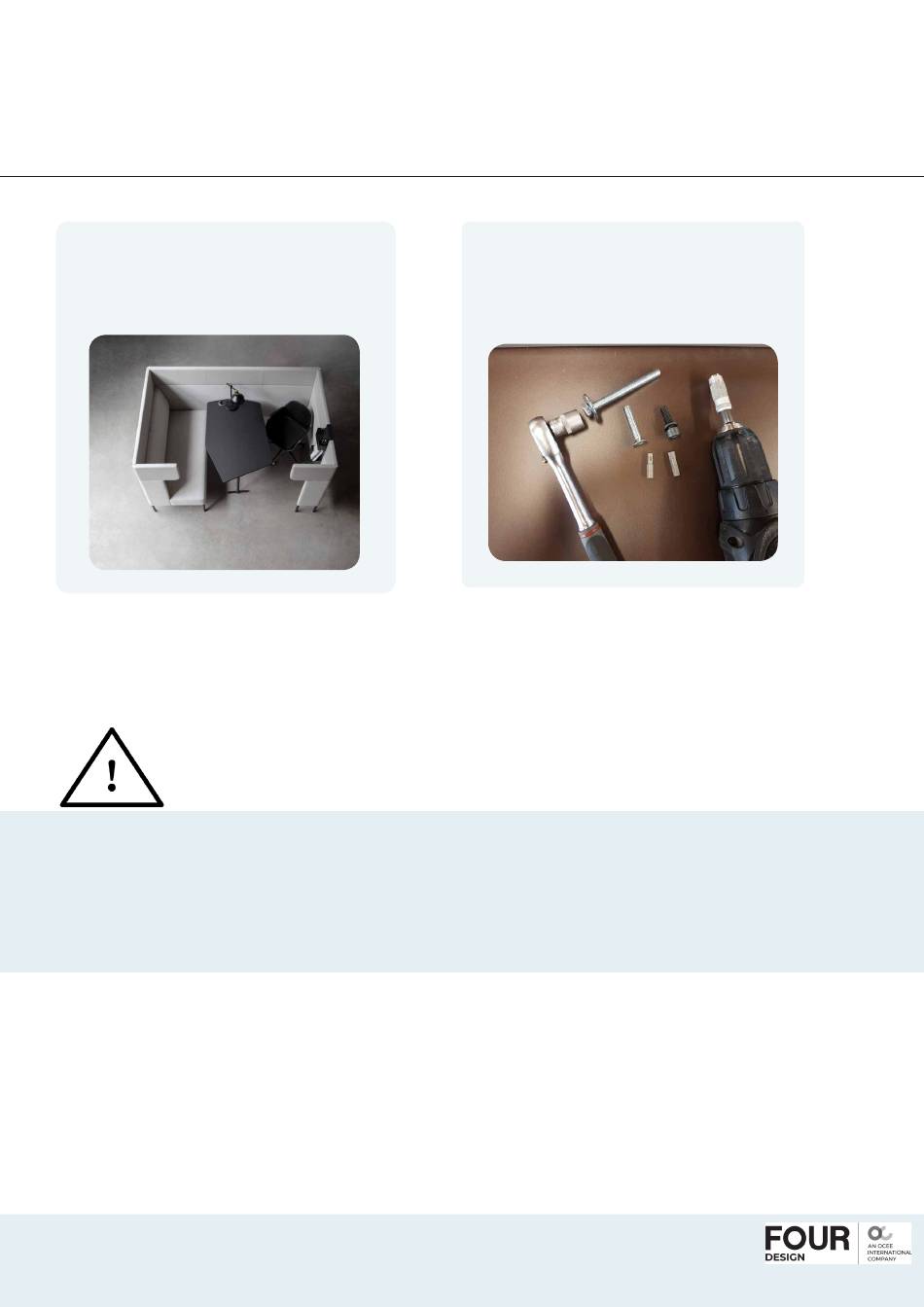

How to assemble FourUs Work Booth
FourUs Work Booth
FourUs Booth:
Please read the full instruction before
starting the assemble, as some of the
steps need to be done continuous.
1
ATTENTION:
1) ALL BOLTS AND SCREWS ATTACHED NEED TO BE USED FOR CORRECT ASSEMBLY!
2) Do not use a knife or other sharp object to unpack the product.
3) Always be at least two persons to set up the FourUs Booth.
4) Make sure to be gentle when handling the Booth components.
5) Be careful not to let the fabric touch the floor, as it can be damaged or get dirty.
®
Tools used in the manual:
Size 13" socket wrench
Drill with bits accordingly
Advertisement
Related Manuals for Four Design FourUs Work Booth
Summary of Contents for Four Design FourUs Work Booth
- Page 1 How to assemble FourUs Work Booth FourUs Work Booth ® FourUs Booth: Tools used in the manual: Please read the full instruction before Size 13” socket wrench starting the assemble, as some of the steps need to be done continuous.
- Page 2 Unpack the different components and attach all footplates with the attached M6 bolts. It is important not to tighten the footplates fully on those which is connecting points to the backwall. Afterwards screw the legs on the footplates. Under the wall there are 4 nut-head screws which need to be screwed approximately 1cm out (it should not be possible to pull the threaded rod which is connected out).
- Page 3 In the end of the backwall which is going to be attached to the side with a seat, there are 3 screws which can be turn out so they fit into the keyholes on the seat-wall. Place the back wall on top of the footplate on each side wall. It is important to have the footplate a little loose, while doing this.
- Page 4 Now attach the bolts for the footplate. It is important the footplate is a little loose, as shown on the pictures below, before tightening all the bolts. Tighten the 4 nut-head screws in the bottom of the backwall. They are connected to the top part of the wall, so tighten until the gap in the backwall is gone.
- Page 5 Repeat step 9 until all of the bolts are tighten so hard, that you can hear the wood squeak. It is important that the foam/fabric in the couch and wall are pressed together as the picture below shows. Before attaching the bolts into the footplates, it is important to screw the bolts which is already in the seat out a little, so the footplate is loose, as shown on the pictures below.
- Page 6 There are 8 holes for the pivottable which is marked with a white pin (see left picture below). Only 4 holes will be used - which ones depend on the height on the tabletop. See pictures below for which holes to use for the different tabletop heights. Cut a 1cm cross lines on top of each the 4 holes you want to attach screws in.
- Page 7 The FourUs Work Booth is now fully assembled. Attention: When moving the FourUs Work Booth, it is important to be 4 or more people, to take as much pressure off the legs as possible.
