How to mount TV bracket on
Four Us
TV Bracket Package
1
Attach the brackets to your TV (OBS max. 20kg TV). Use screws which fit the TV, but
choose washers which is bigger than the holes in the bracket.
It is important, that you use a tool to tighten the screws.
The TV brackets is made for VESA 100x100, 150x150 and 200x200 mm.
Booth
®
TV bracket
TV mount
Tools used in the manual:
Umbraco key, size 3
Umbraco key, size 5
Advertisement
Table of Contents
Related Manuals for Four Design FourUs Booth
Summary of Contents for Four Design FourUs Booth

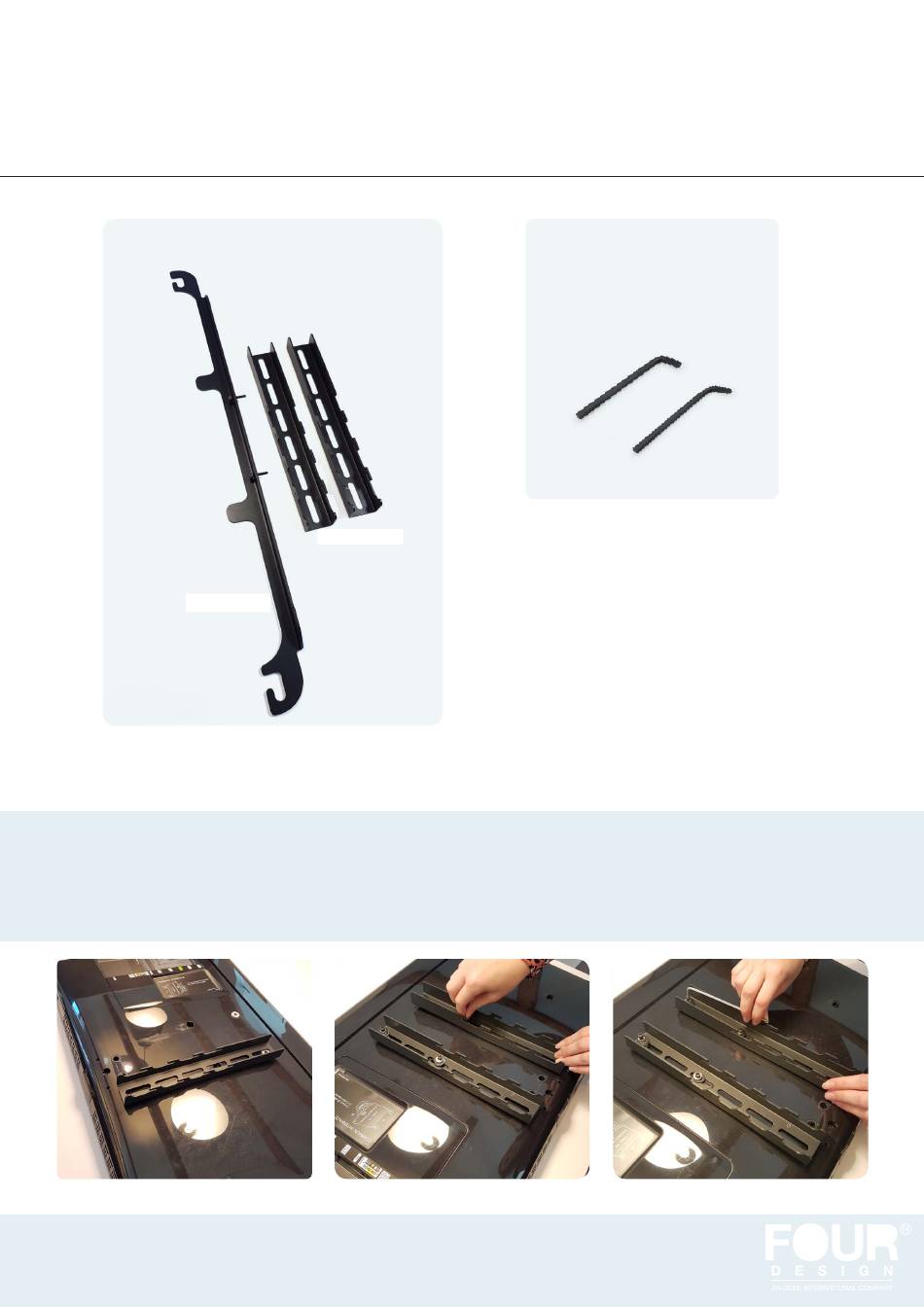

- Page 1 How to mount TV bracket on Four Us Booth ® TV Bracket Package Tools used in the manual: Umbraco key, size 3 Umbraco key, size 5 TV bracket TV mount Attach the brackets to your TV (OBS max. 20kg TV). Use screws which fit the TV, but choose washers which is bigger than the holes in the bracket.
- Page 2 Add the TV mount to the brackets. The lower the TV mount is placed on the brackets, the higher the TV will be placed on the Four Us Booth. There is a mark in the middle of the TV mount, which should be centered between the two TV brackets.
- Page 3 Lift the TV and place the mount in the gap between the couch and the top part. The threaded rod should slide into the gap in the mount. Put the TV in place by sliding it to the right, until the mount stops it. The threaded rod should now be in the mount hole.
- Page 4 When the TV is in place, push the top part down. It is important to press forward while pushing down. Tighten both threaded rods loosely, before tightening the rods firmly.
- Page 5 The TV is now in place.
